8.2.4 Application Curve
The evaluation module for the TPS7H4002-SP was used to capture a load step response of the device. The testing conditions were:
- VIN = PVIN = 5 V
- VOUT = 2.5 V
- Load step = 0 A to 3 A
- Switching frequency = 500 kHz

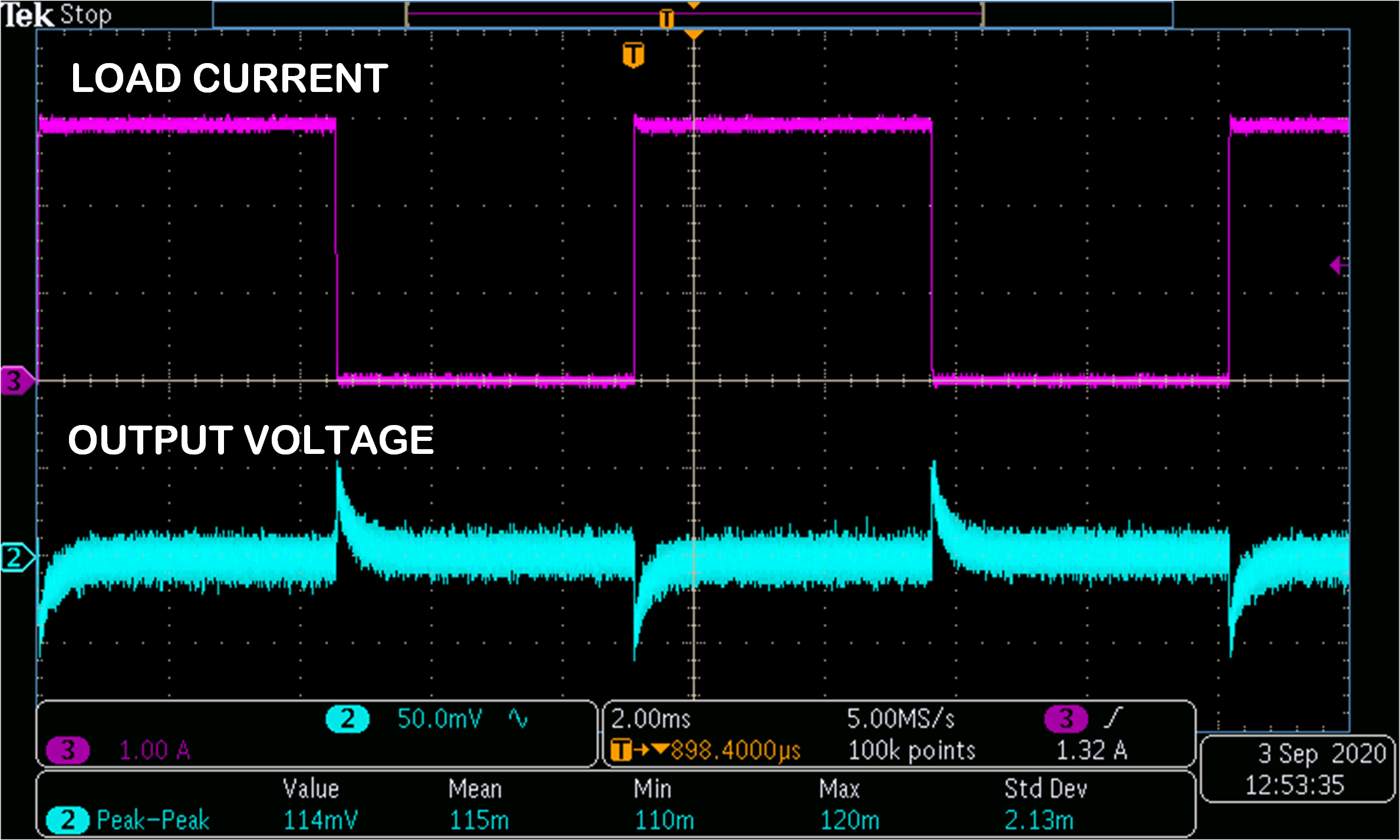

Figure 8-3 3-A Step Response for 500-kHz
Switching Operation
