9.2.4 Application Curve
The evaluation module for the TPS7H4001-SP was used to capture a load step response of the device. The testing conditions were:
- VIN = PVIN = 5 V
- VOUT = 1 V
- Load step = 9 A to 18 A
- Switching frequency = 500 kHz
Figure 9-4 9-A Step Response for 500-kHz Switching Operation

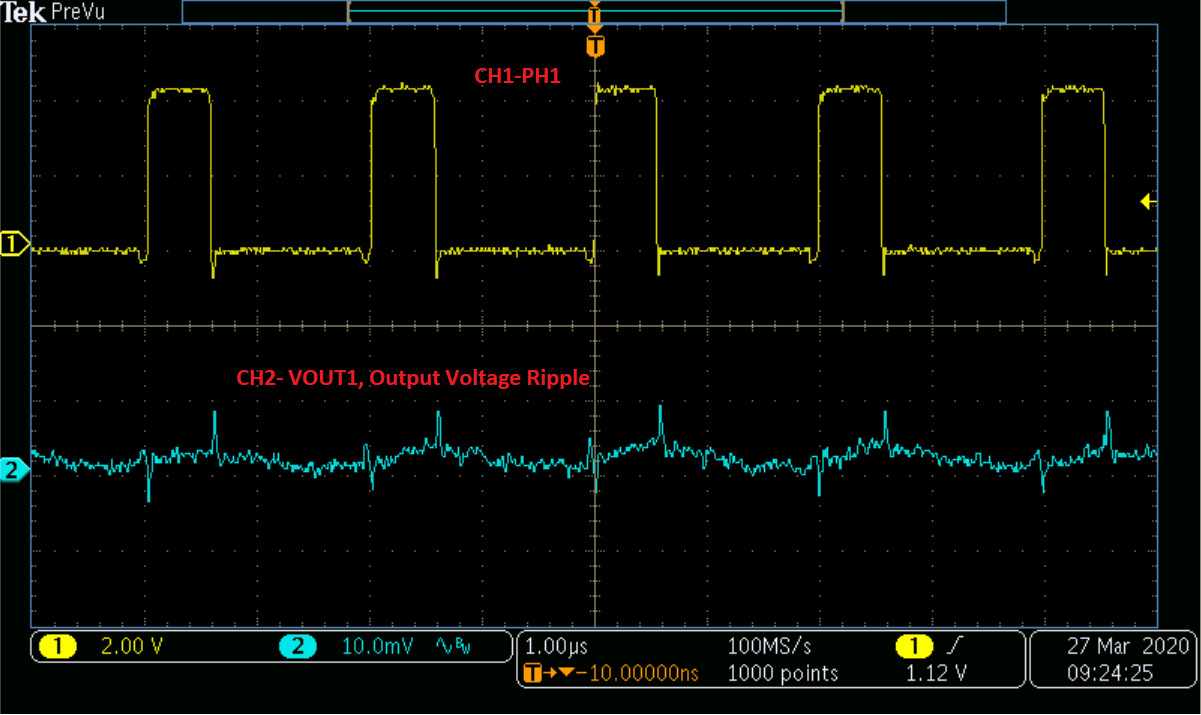

Figure 9-5 Switch Node Waveform (PH) and Output Voltage Ripple for 500-kHz Switching
Operation
