8.3.16 Small Signal Model for Frequency Compensation
The device uses a transconductance amplifier for the error amplifier and readily supports two of the commonly used frequency compensation circuits shown in Figure 8-10. In Type 2A, one additional high-frequency pole is added to attenuate high-frequency noise.
The following design guidelines are provided for advanced users who prefer to compensate using the general method.

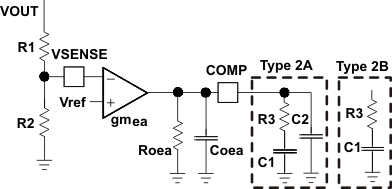

Figure 8-10 Types of
Frequency CompensationThe general design guidelines for device loop compensation are as follows:
- Determine the crossover frequency fco. A good starting point is one-tenth of the switching frequency, ?SW.
- R3 can be determined
by: Equation 19.
where gmea is the transconductance of the error amplifier (1800 μS), gmps is the transconductance of the power stage (40 S) and VREF is the reference voltage (0.604 V).
- Place a compensation zero at the
dominant pole calculated in Equation 20 using C1 and R3.
C1 can be determined by Equation 21.Equation 20.
Equation 21.
- C2 is optional. It can
be used to cancel the zero from the equivalent series resistance (ESR) of the
output capacitor COUT. Equation 22.
