10.2.2.3 Application Curve
Figure 10-7 shows how a 12 V overvoltage event trips the overvoltage protection (OVP) circuitry to protect the downstream load. Figure 10-8 shows how the switch will turn-off if the voltage falls too far.

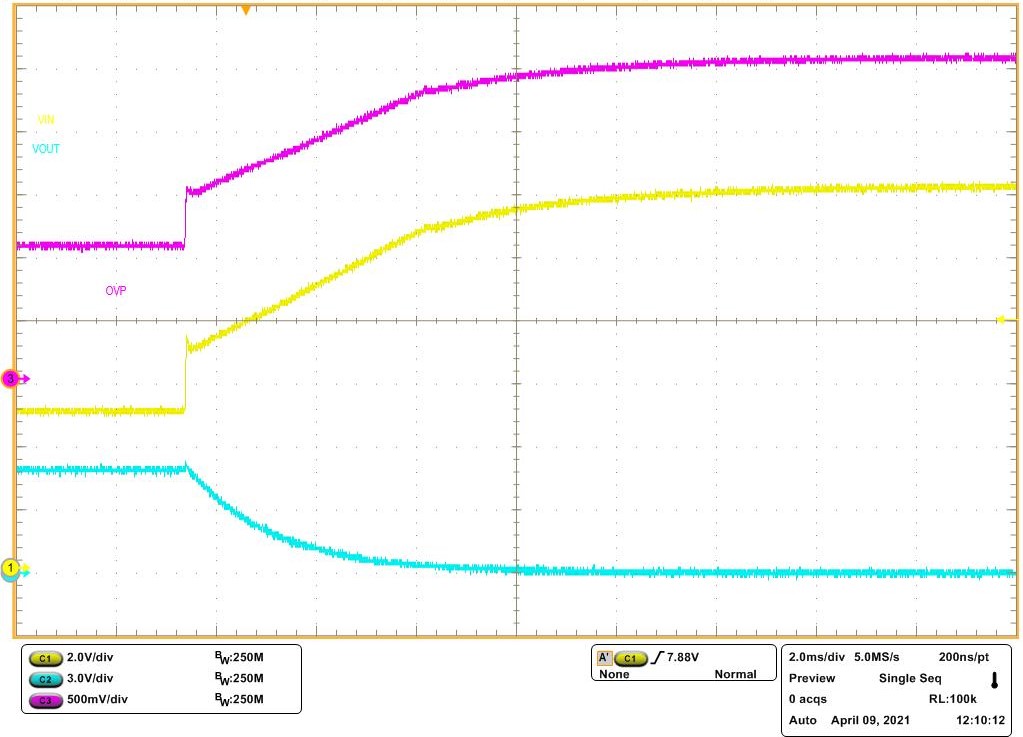

Figure 10-7 Overvoltage
Protection of
TPS7H2211
in Protection Application

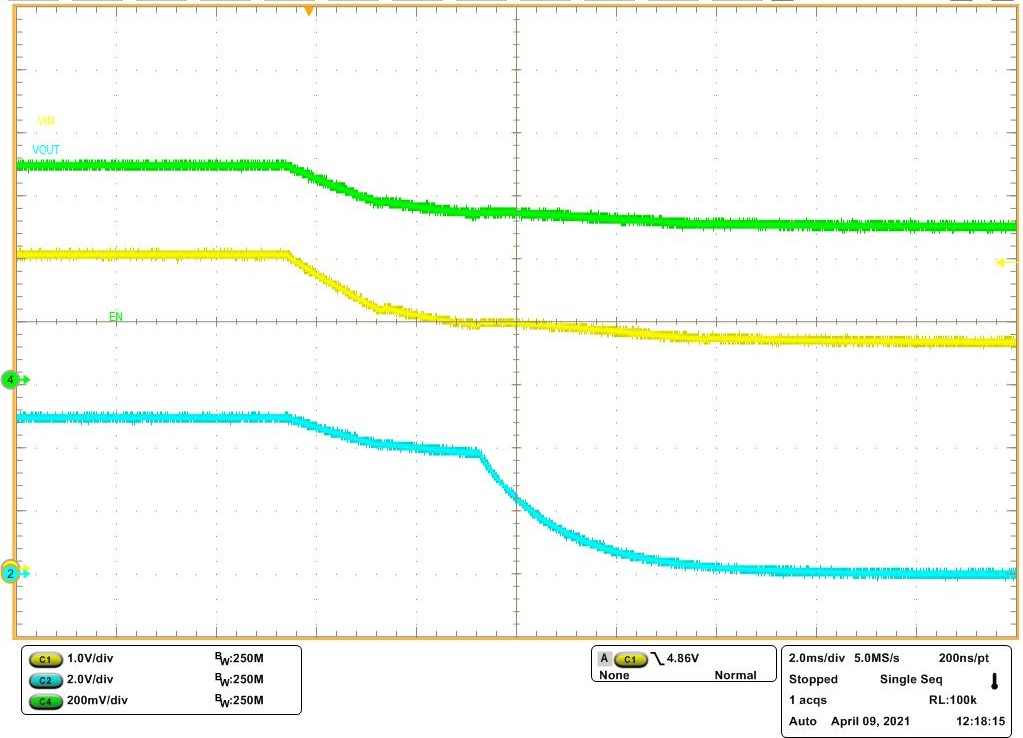

Figure 10-8 Undervoltage
Turn-Off
of
TPS7H2211
in Protection Application
