5.7 典型特性
VIN = VOUT(NOM) + 0.3V 或 1.6V（以較大者為準），VOUT = 2.8V，IOUT = 1mA，CIN = 1μF，COUT = 1μF 且 TA = 25°C（除非另有說明）

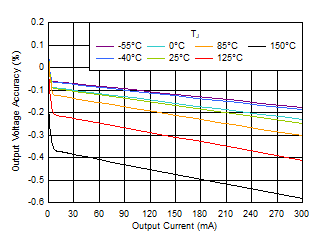

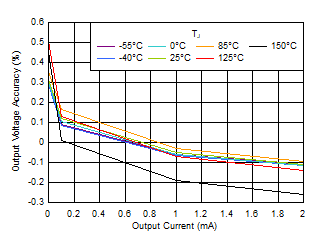

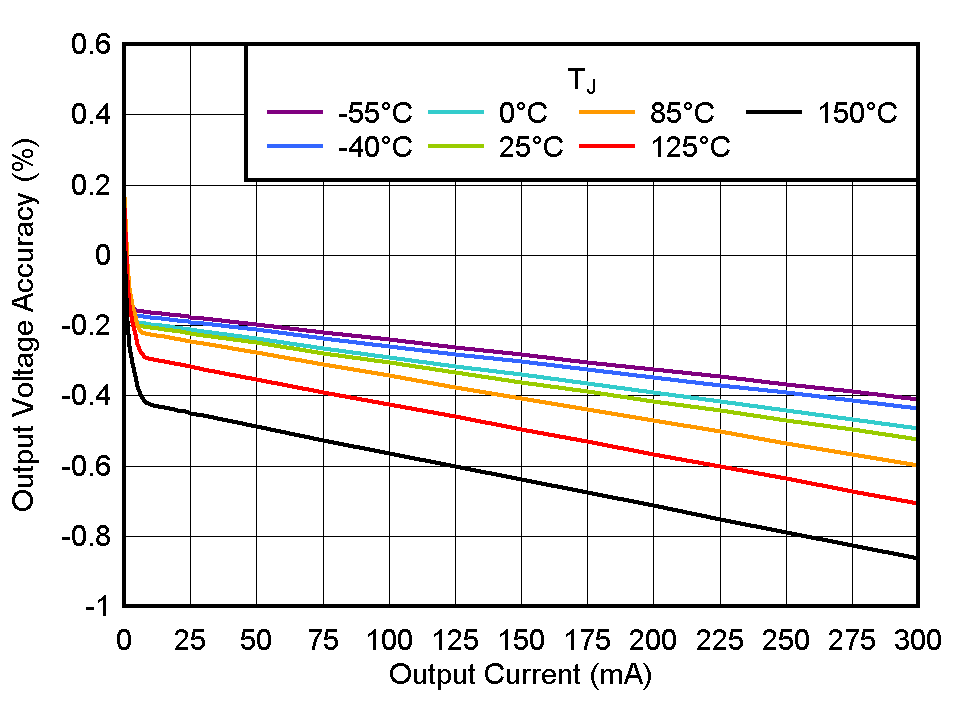

| VEN = 1V |

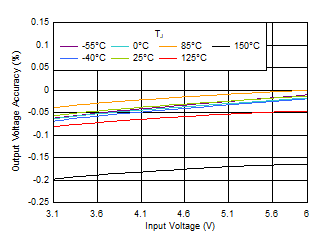

| VIN = 3.1V，VEN = 1V |

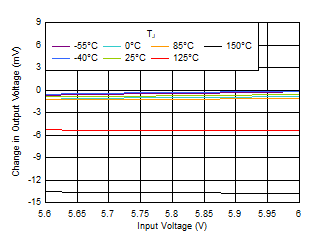

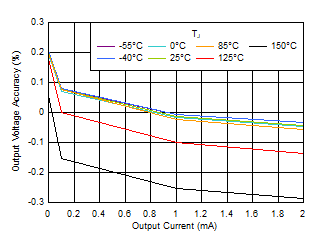

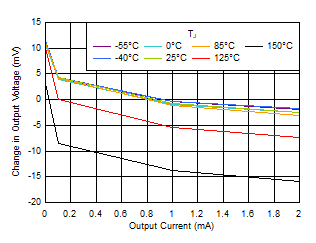

| VOUT = 5.5V，VEN = 1V |
| VEN = 1V |
| VOUT = 5.5V，VEN = 1V |

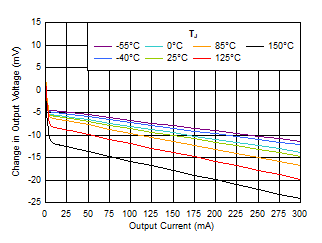

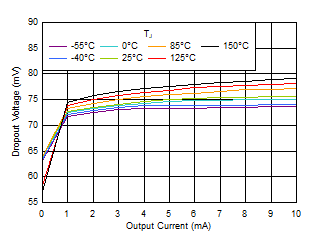

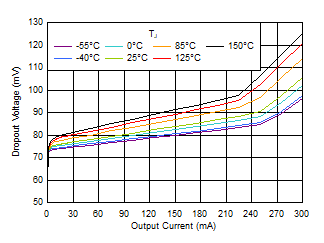

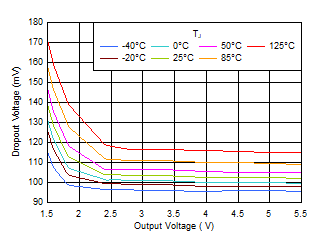

| VEN = 1V，IOUT = 1mA |
| VEN = 1V |
| VOUT = 1.8V，VEN = 1V |
| IOUT = 300 mA |

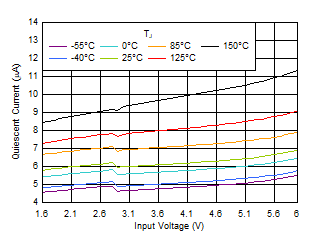

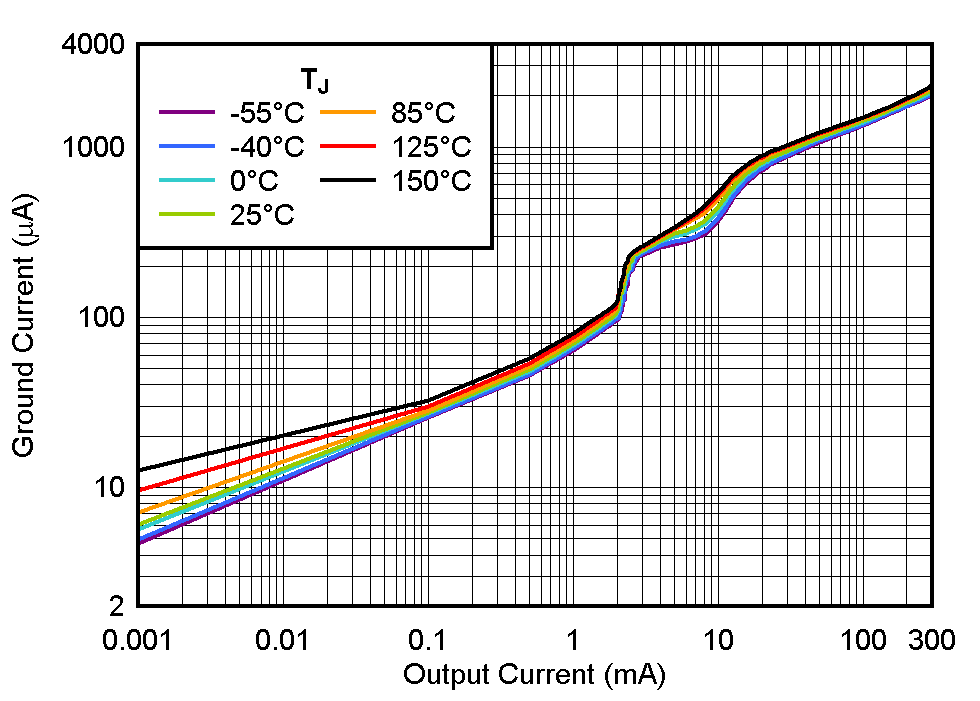

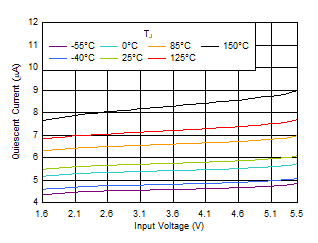

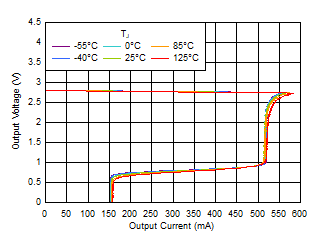

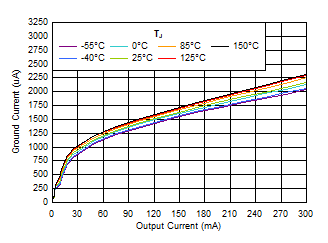

| VEN = VIN，IOUT = 0mA |
| VOUT(NOM) = 5.5V，VEN = VIN，IOUT = 0mA |
| VEN = 1V |

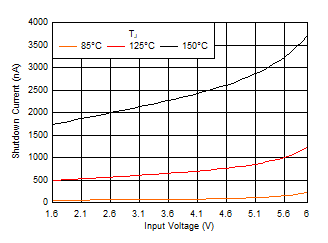

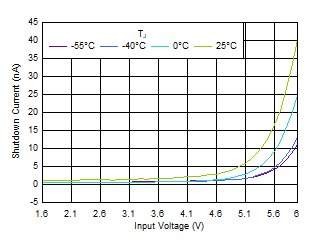

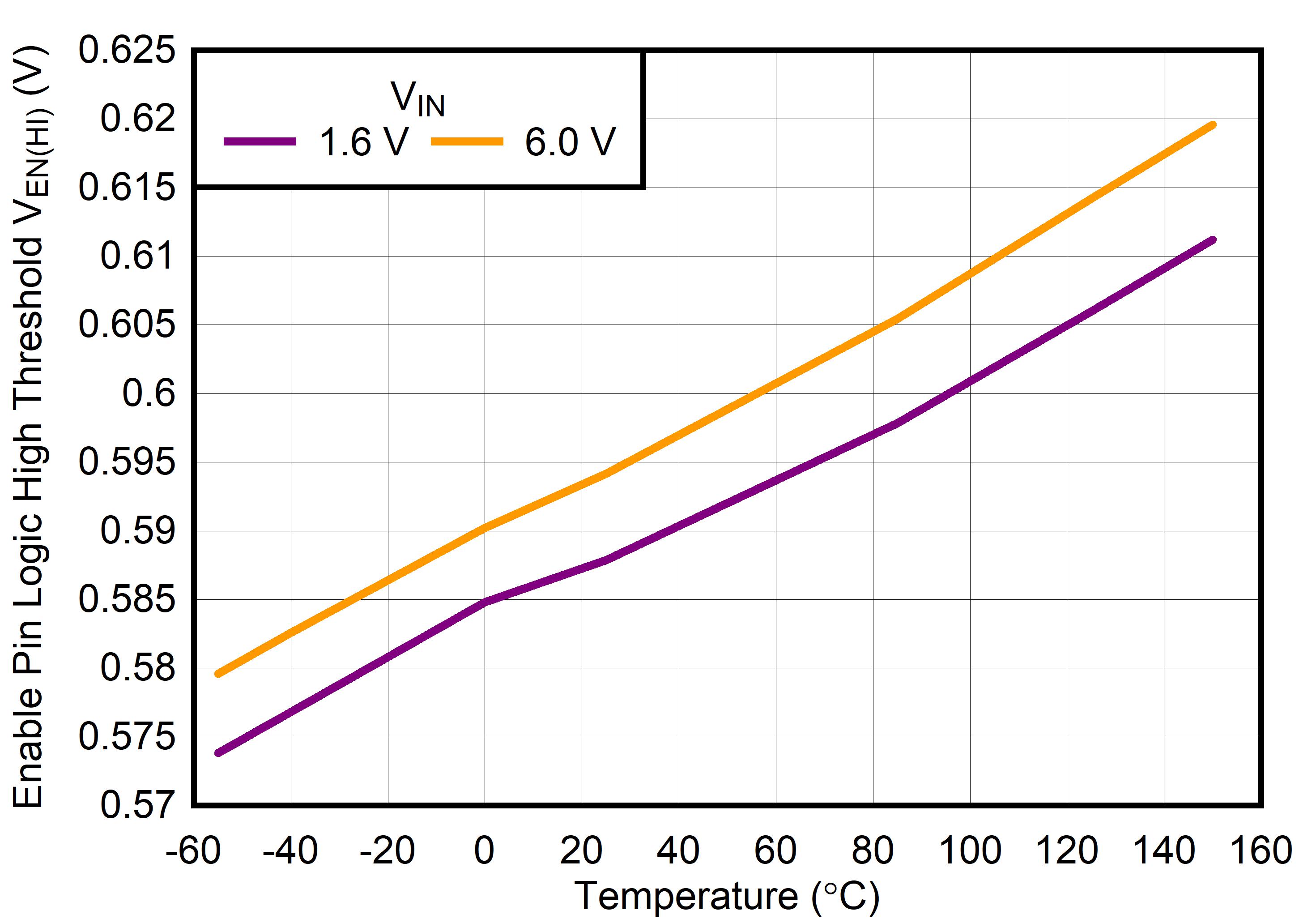

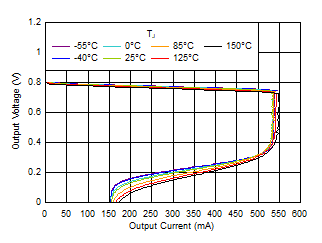

| VEN = 0V |
| VEN = 1V |
| VEN = 1V |

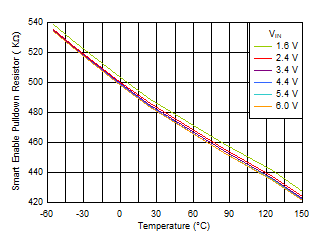

| VEN = 0.25 V |
| IOUT = 300mA 至 1mA，tFALLING = 1μs |

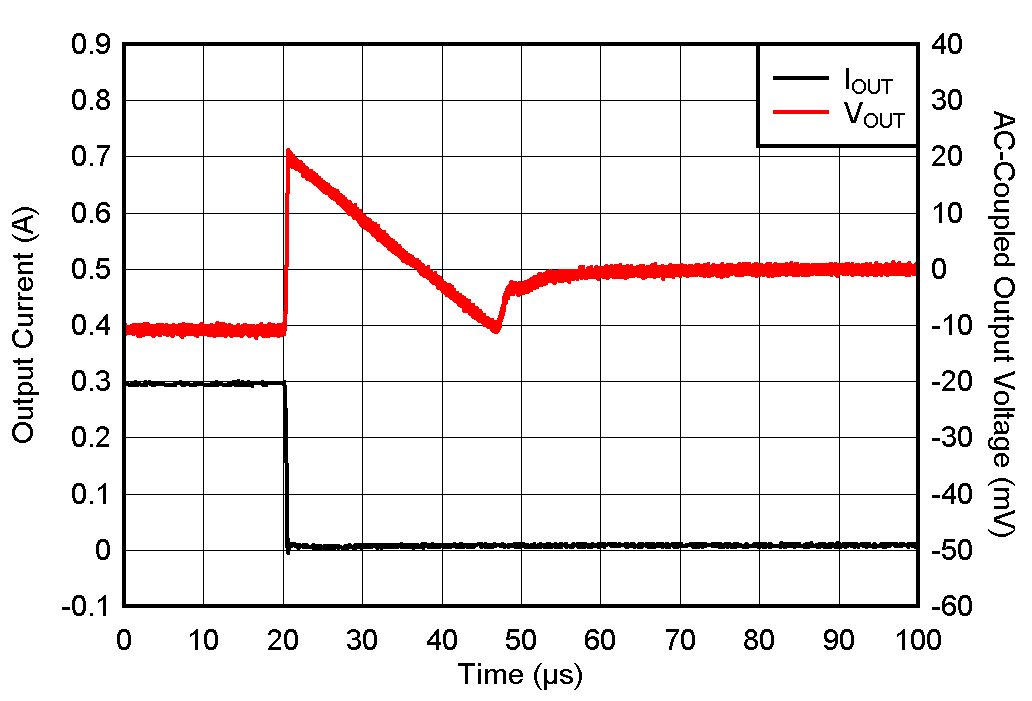

| IOUT = 300mA 至 1mA，tFALLING = 200ns |

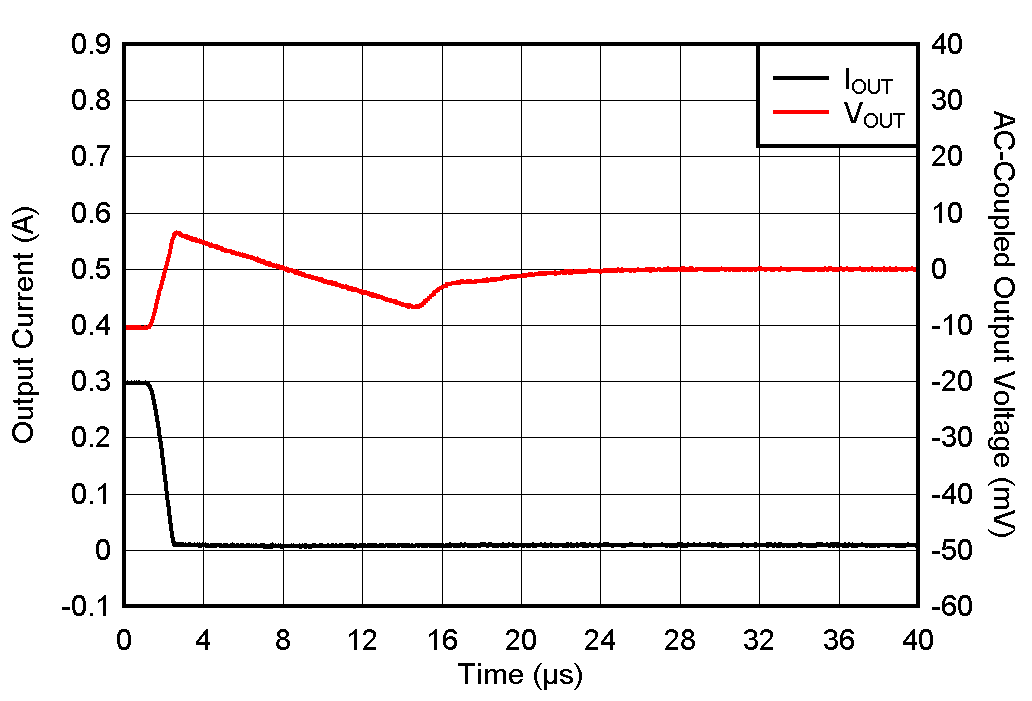

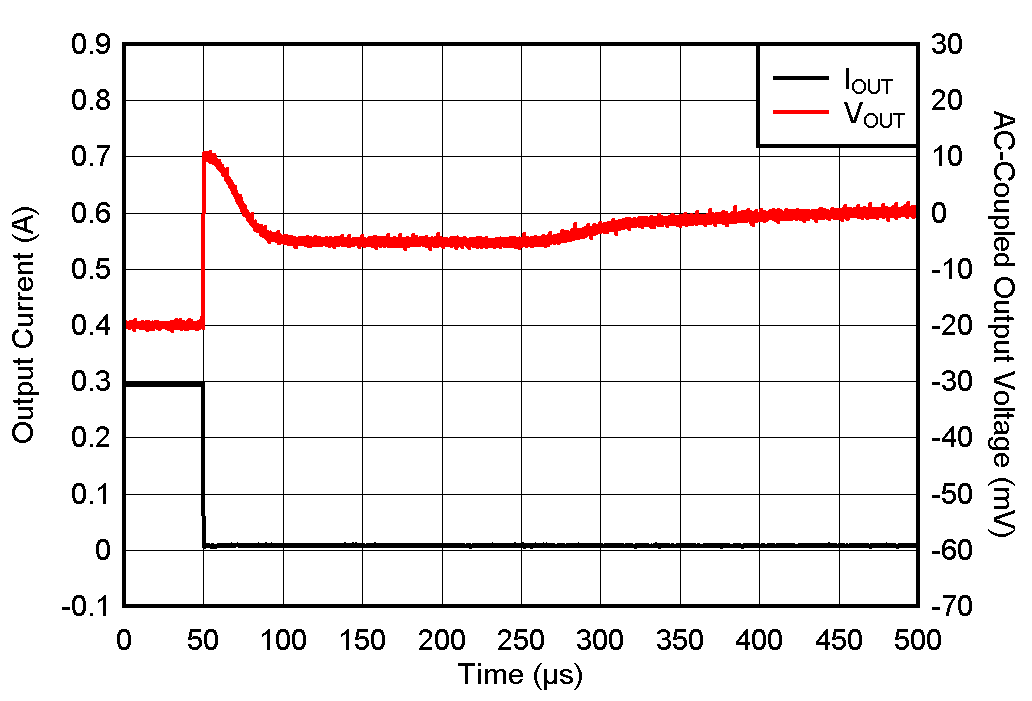

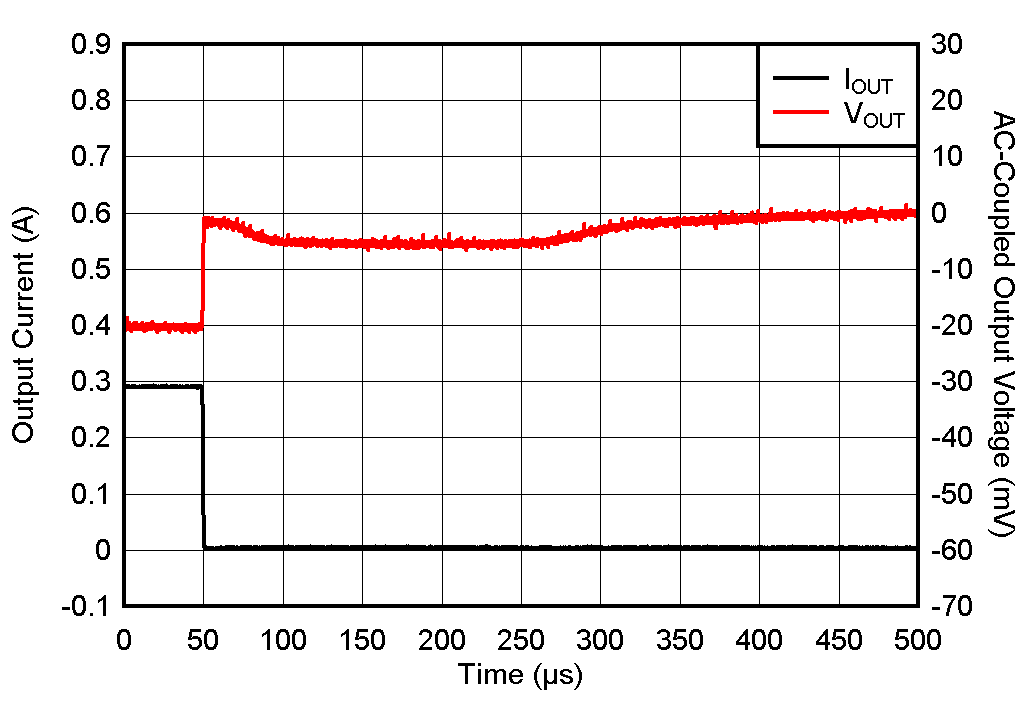

| IOUT = 300mA 至 0mA，tFALLING = 1μs |
| IOUT = 300mA 至 0mA，tFALLING = 200ns |

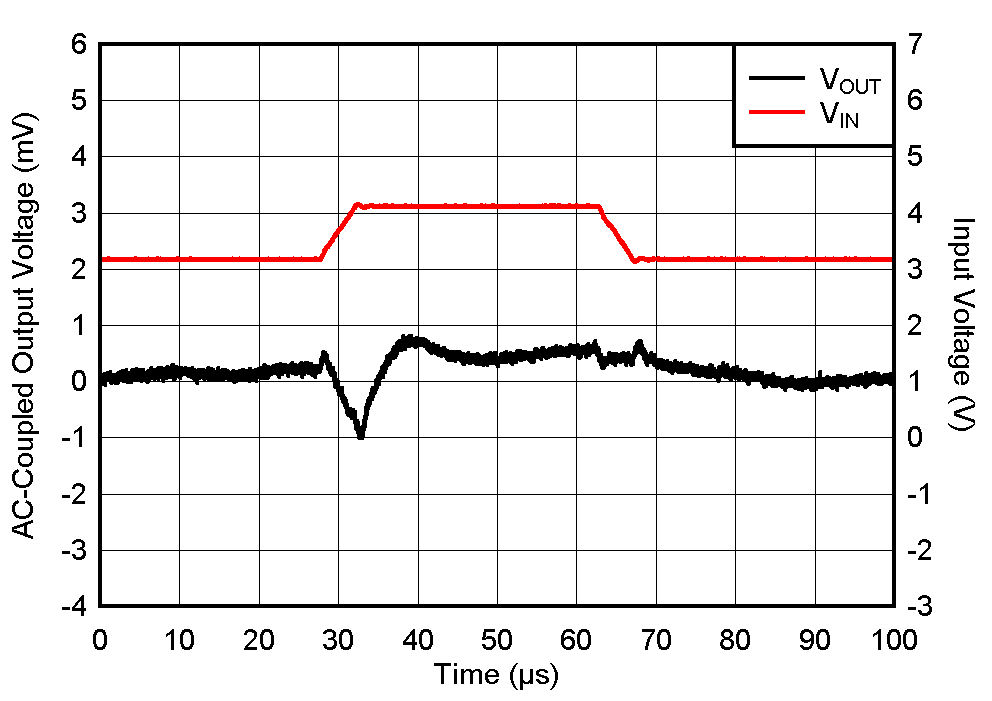

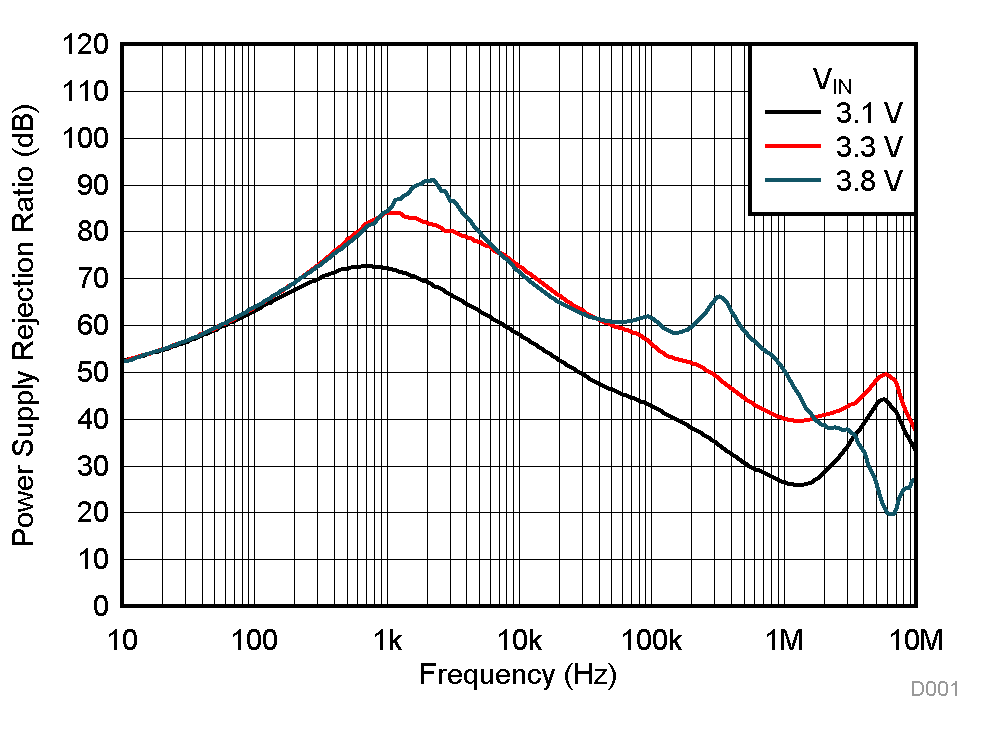

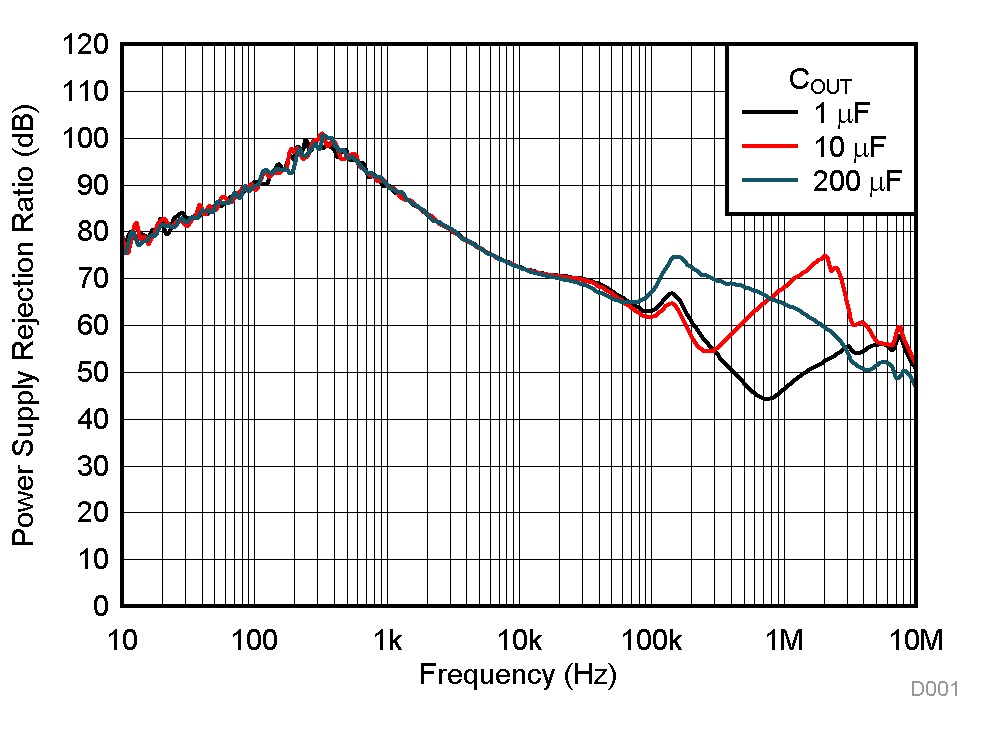

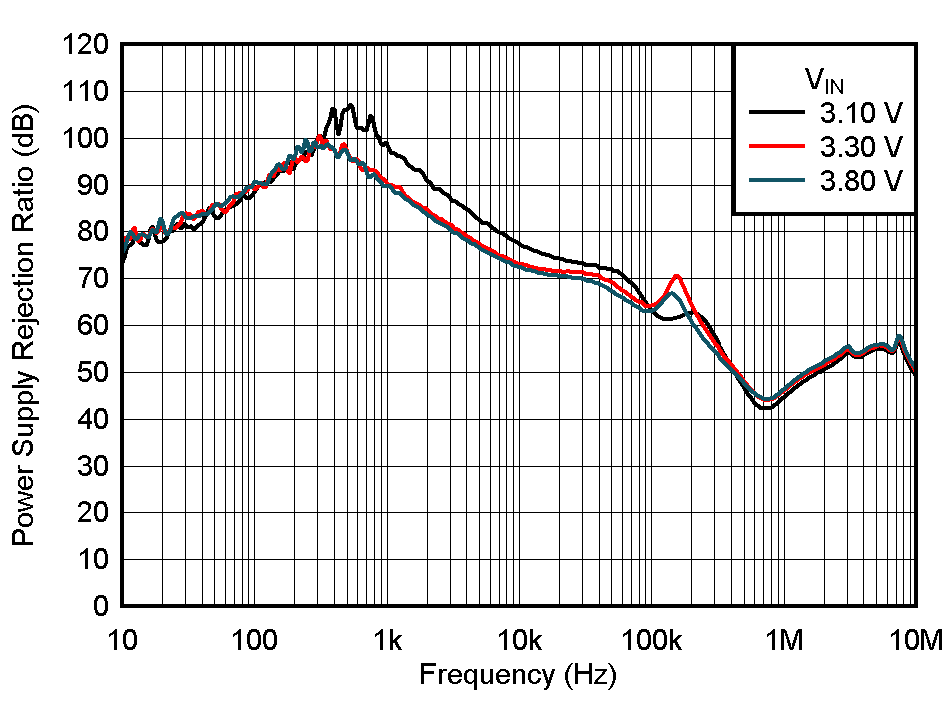

| VIN = 3.1V → 4.1V → 3.1V，VIN tRISING = 5μs， IOUT = 300mA |
| IOUT = 300 mA |
| IOUT = 20 mA |

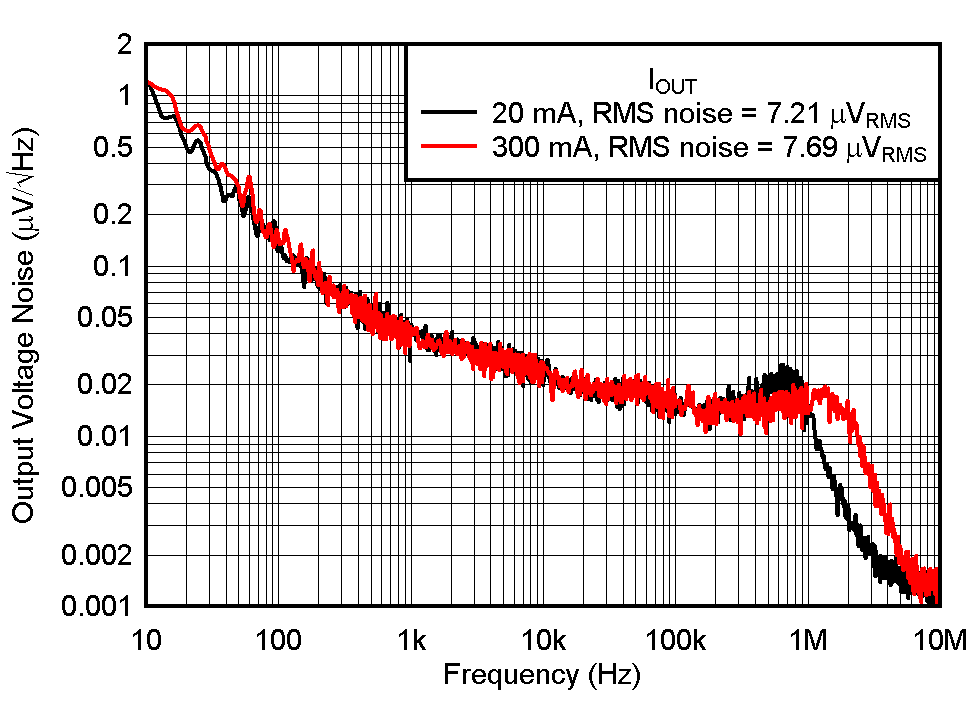

| IOUT = 20mA，VRMS BW = 10Hz 至 100kHz |

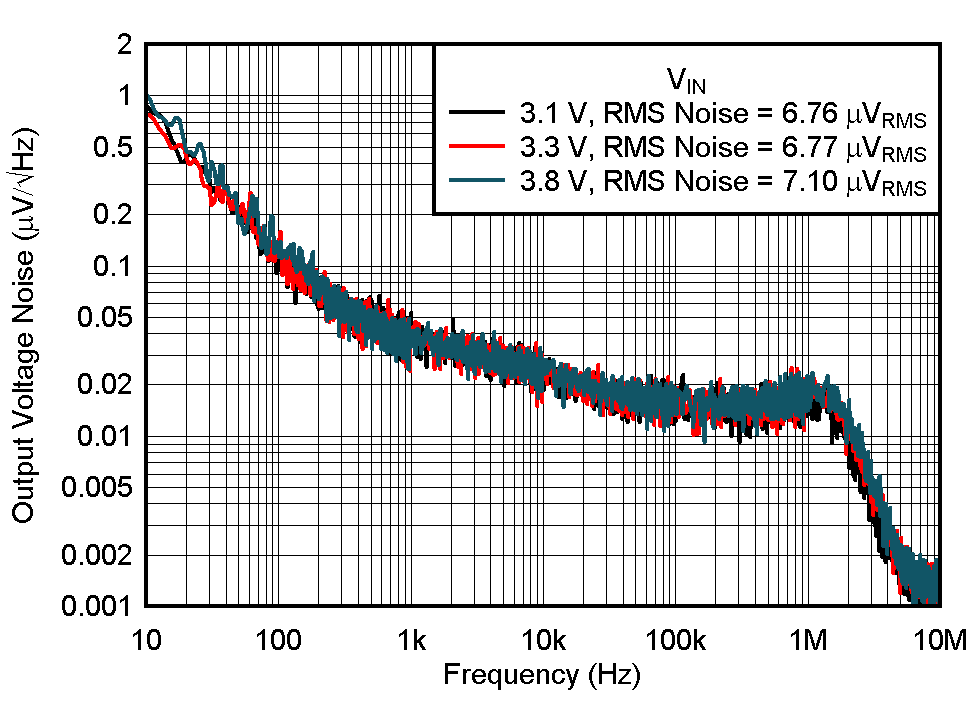

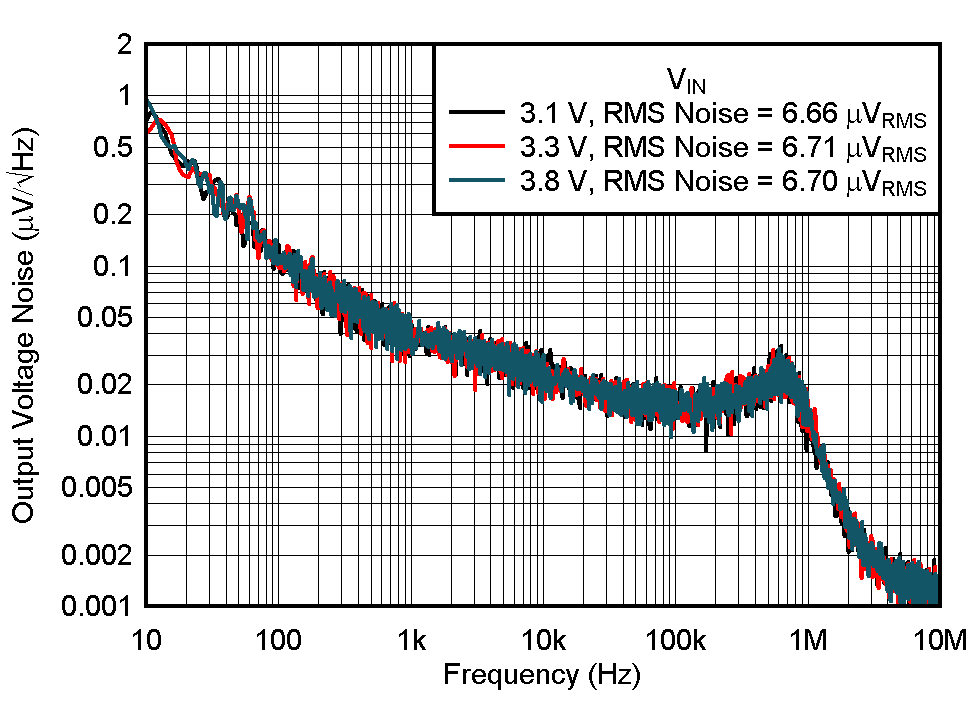

| VIN = 3.8V，IOUT = 20mA，VRMS BW = 10Hz 至 100kHz |

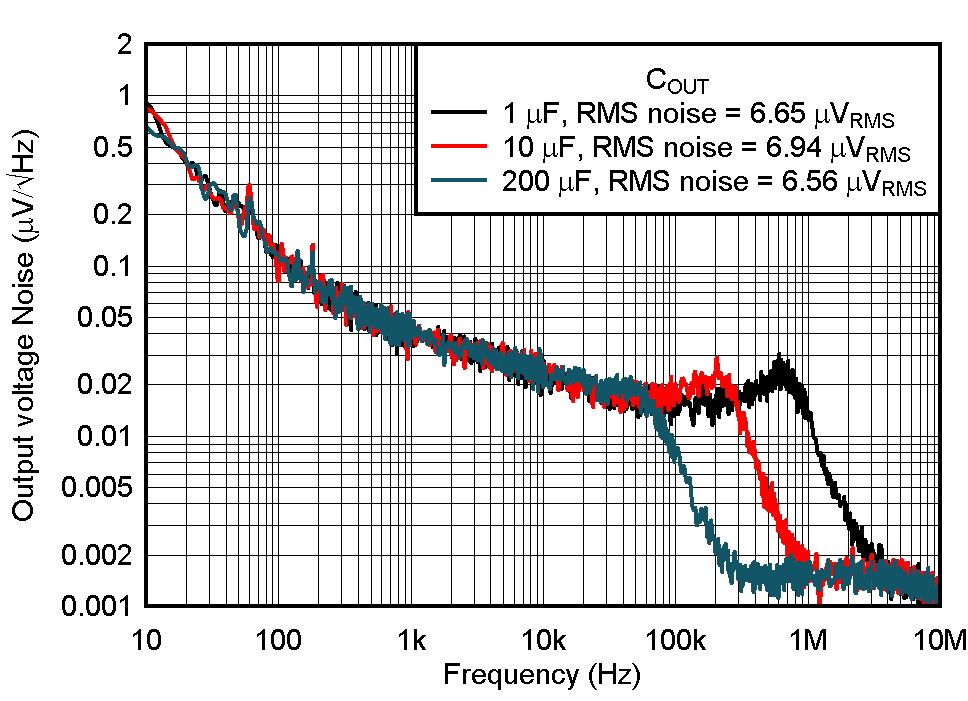

| VOUT = 0.8V，VRMS BW = 10Hz 至 100kHz |
| VOUT = 5.5V，VIN = 6V，VRMS BW = 10Hz 至 100kHz |
| VOUT = 0.8V，VIN = 0V 至 1.8V，VEN = 0V 至 1.8V，VEN 比 VIN 晚 500μs 上升，VIN 和 VEN 壓擺率 = 1V/μs |

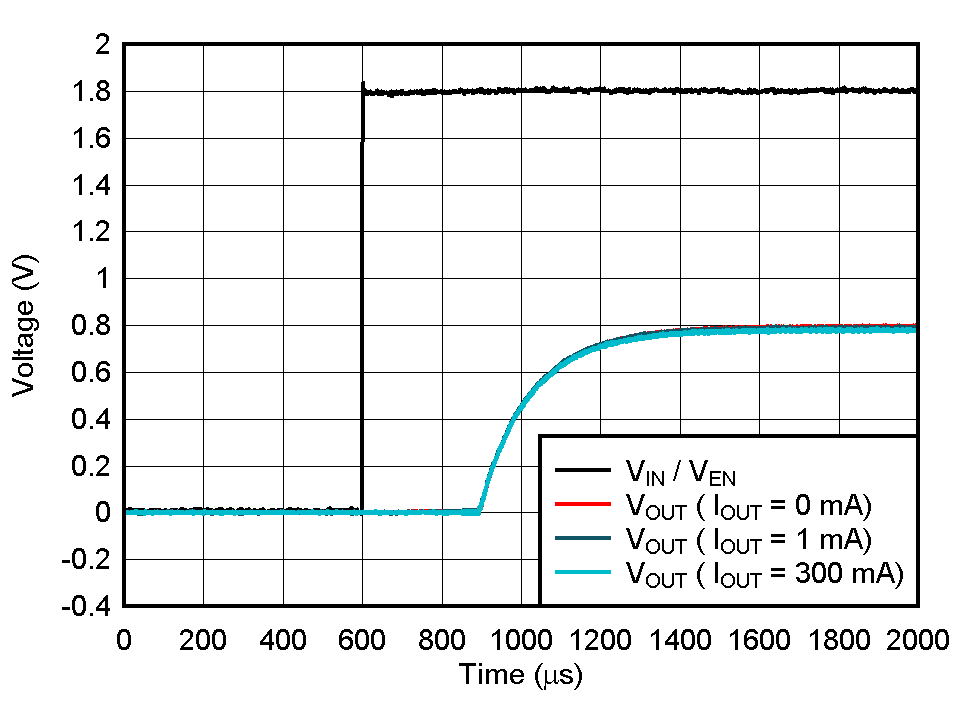

| VOUT = 0.8V，VIN = 0V 至 1.8V，VEN = VIN， VIN 壓擺率 = 1V/μs |

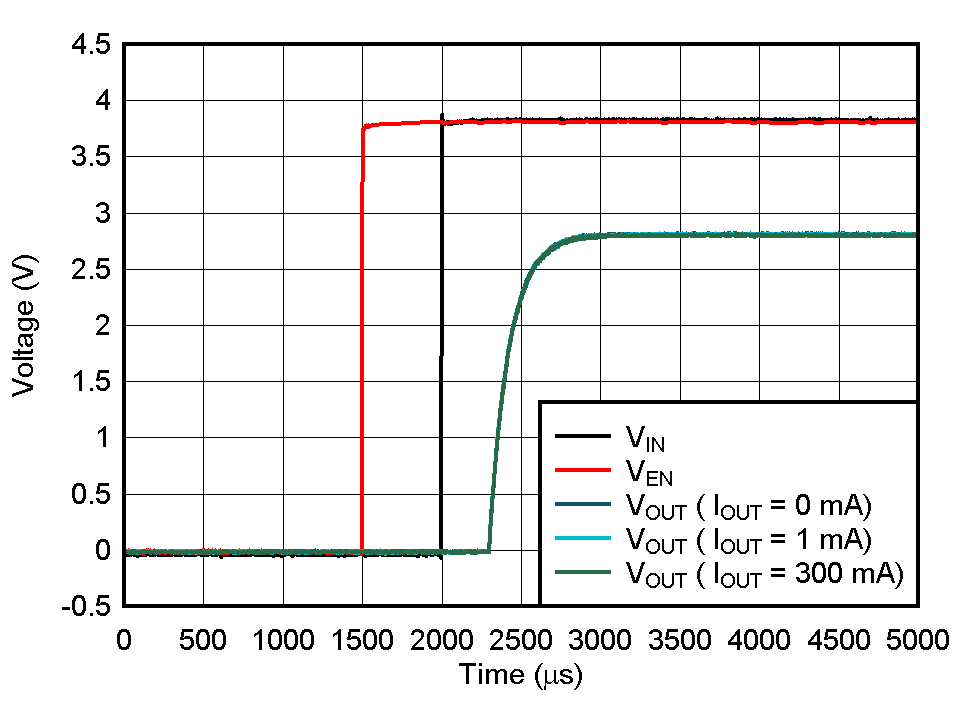

| VIN = 0V 至 3.8V，VEN = 0V 至 3.8V，VEN 比 VIN 早 500μs 上升，VIN 和 VEN 壓擺率 = 1V/μs |

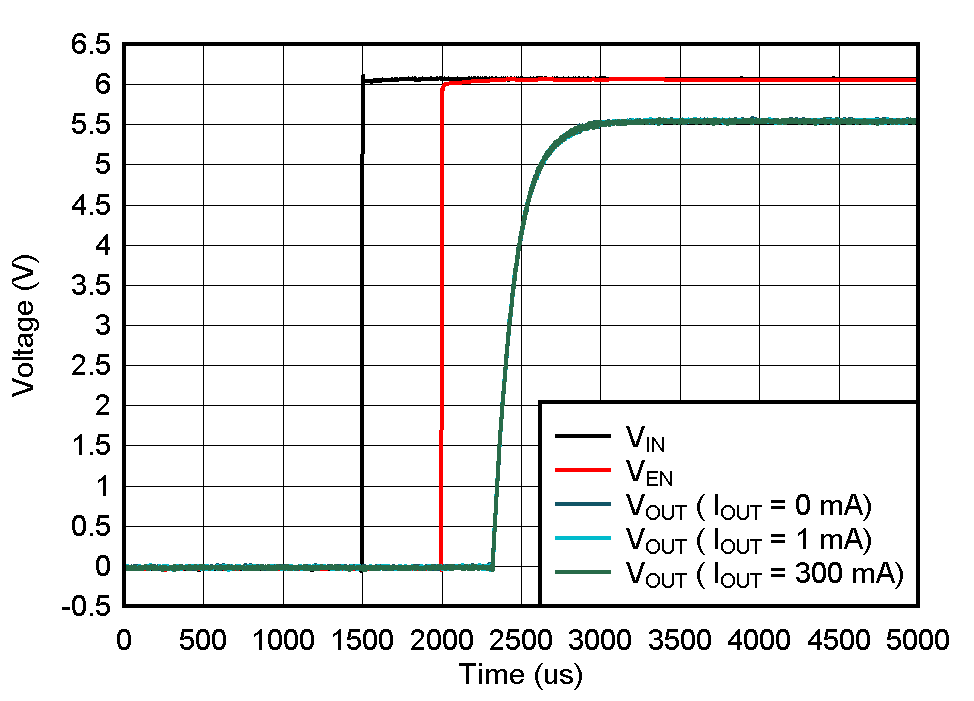

| VOUT = 5.5V，VIN = 0V 至 6.0V，VEN = 0V 至 6.0V，VEN 比 VIN 晚 500μs 上升，VIN 和 VEN 壓擺率 = 1V/μs |

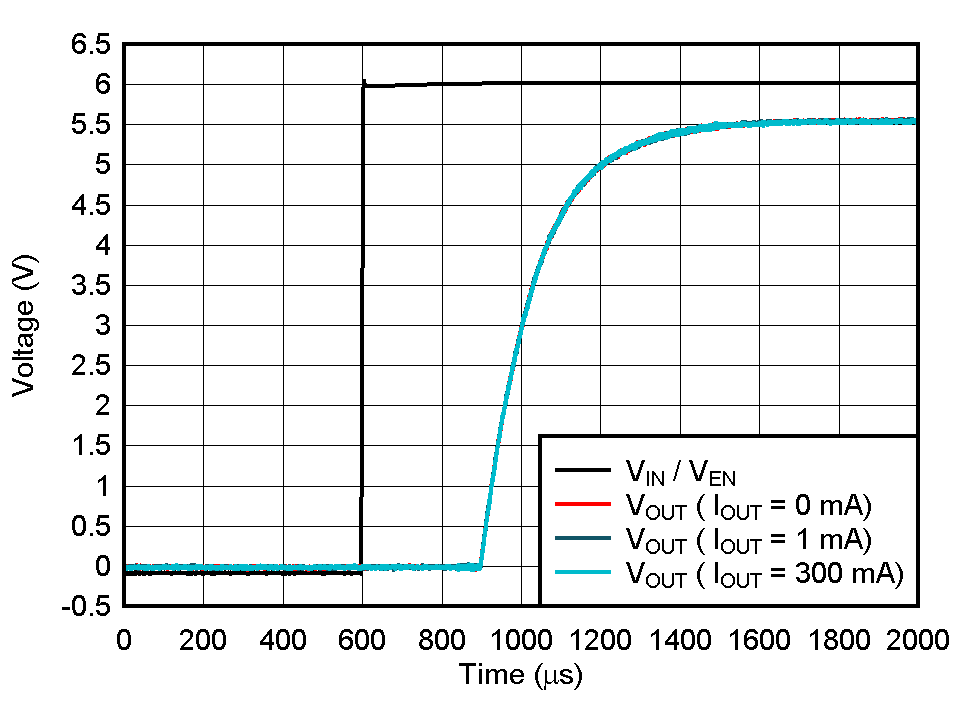

| VOUT = 5.5V，VIN = 0V 至 6V，VEN = VIN，VIN 壓擺率 = 1V/μs |
| VIN = 3.8V，VEN = 0V 至 3.8V，VEN 壓擺率 = 1V/μs， COUT = 10μF |
| VOUT = 5.5V，VEN = 1V |

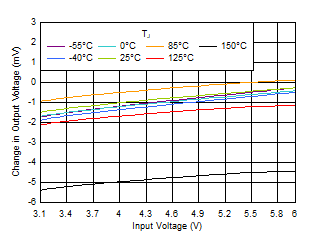

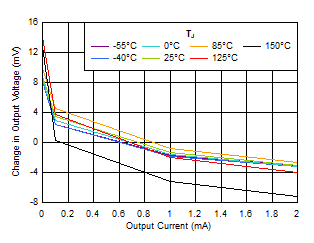

| VIN = 3.1V，VEN = 1V |
| VOUT = 5.5V，VEN = 1V |
| VEN = 1V |
| VOUT = 5.5V，VEN = 1V |
| VOUT = 5.5V，VEN = 1V |
| VEN = 1V |
| VOUT = 1.8V，VEN = 1V |

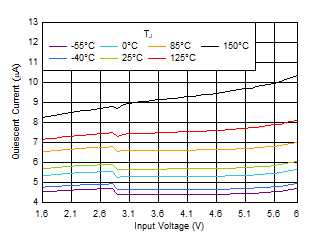

| VEN = 1V，IOUT = 0mA |
| VOUT(NOM) = 5.5V，VEN = 1V，IOUT = 0mA |
| VEN = 1V |
| VEN = 1V |
| VEN = 0V |
| VOUT = 0.8V，VEN = 1V |
| VEN = 0.25 V |

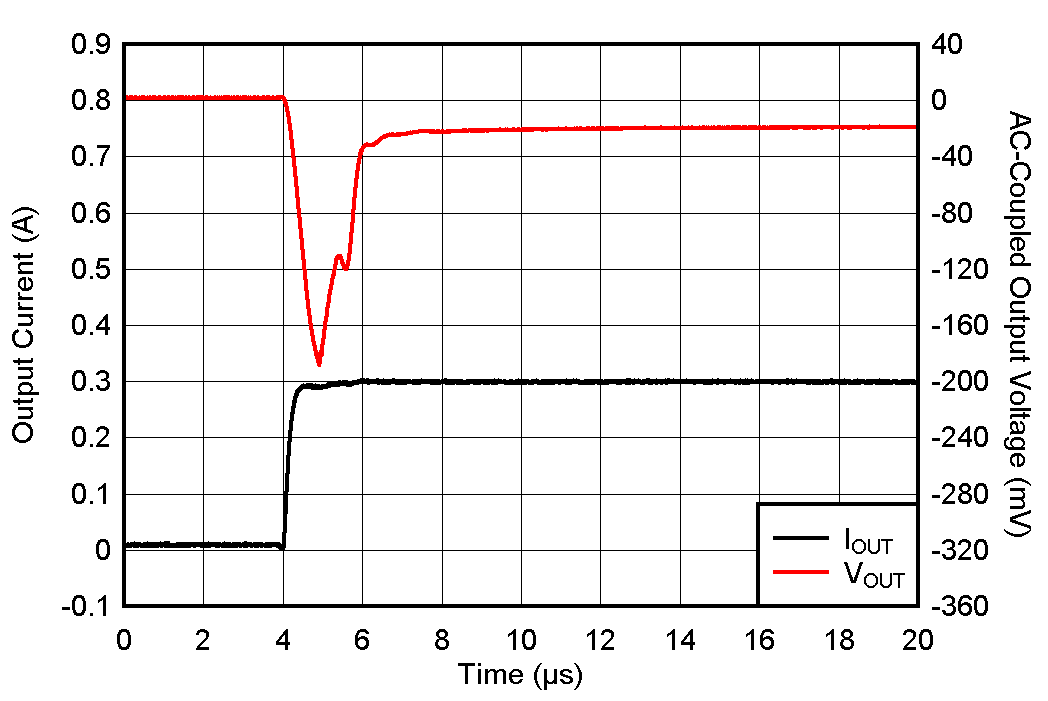

| IOUT = 1mA 至 300mA，tRISING = 1μs |
| IOUT = 1mA 至 300mA，tRISING = 200ns |

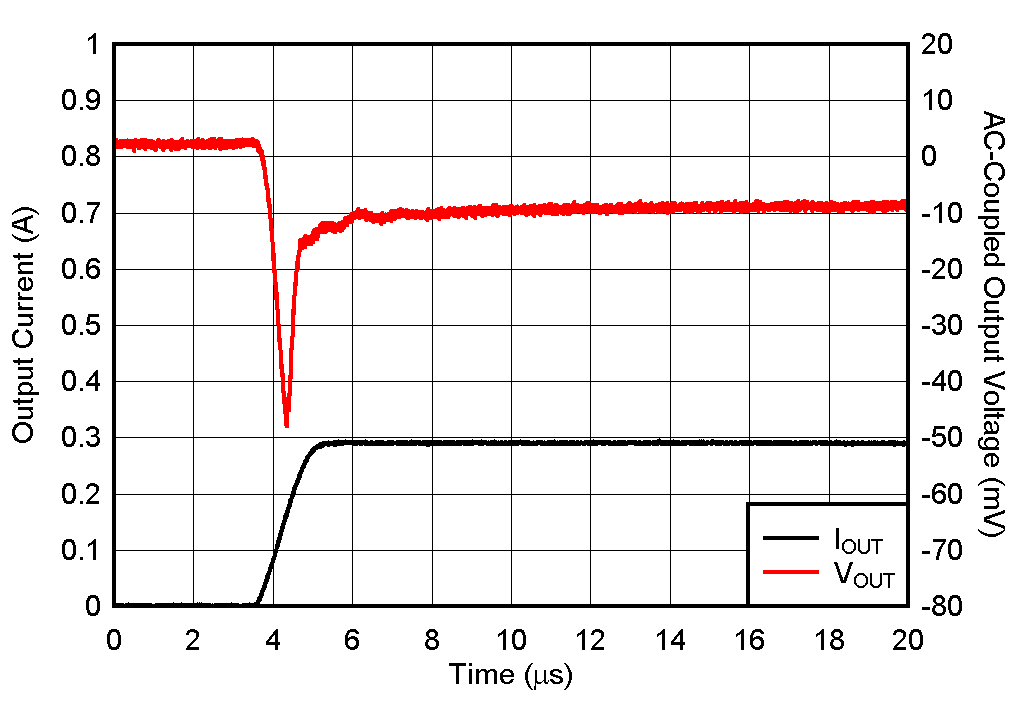

| IOUT = 0mA 至 300mA，tRISING = 1μs |

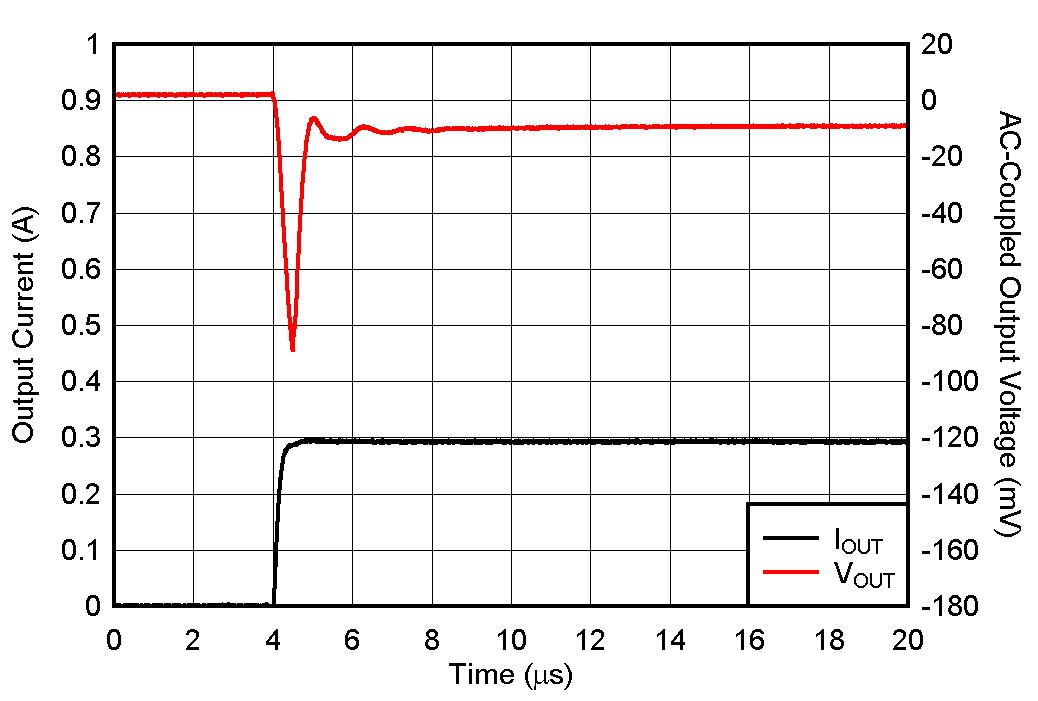

| IOUT = 0mA 至 300mA，tRISING = 200ns |
| VIN = 3.1V → 4.1V → 3.1V，VIN tRISING = 5μs，IOUT = 1mA |
| IOUT = 20 mA |

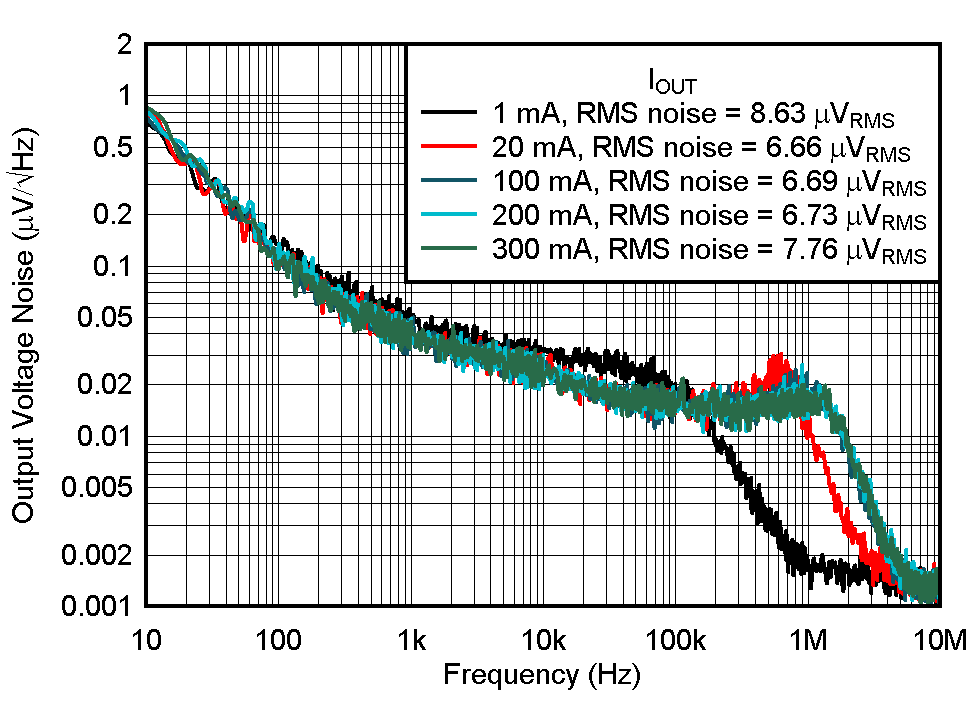

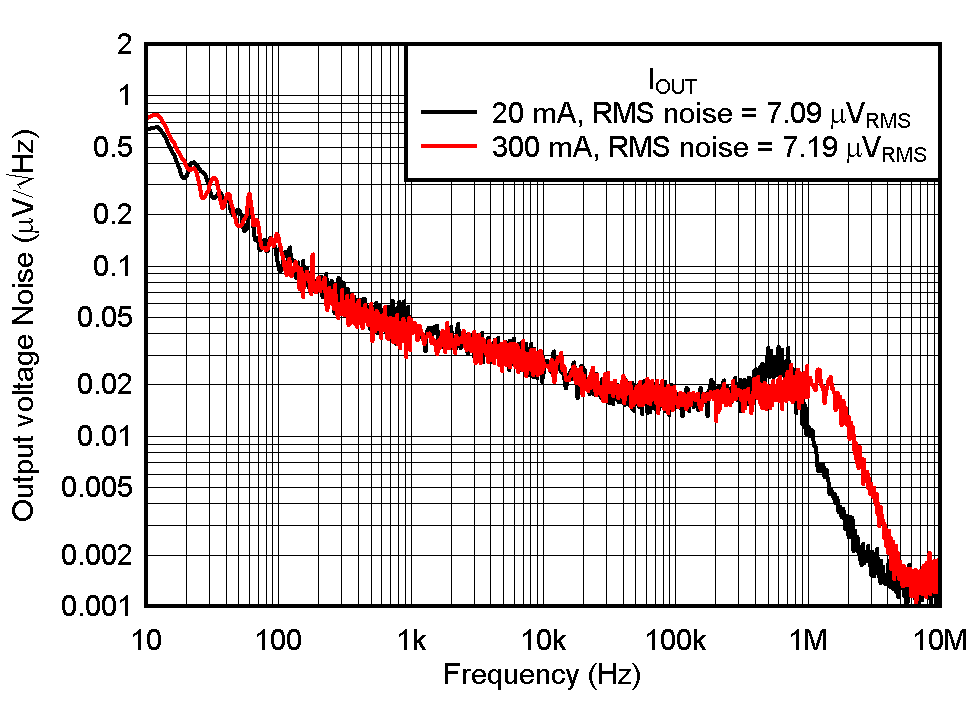

| VRMS BW = 10Hz 至 100kHz |
| IOUT = 300mA，VRMS BW = 10Hz 至 100kHz |
| VIN = 3.8V，IOUT = 300mA，VRMS BW = 10Hz 至 100kHz |
| VOUT = 0.8V，VIN = 1.8V，VRMS BW = 10Hz 至 100kHz |
| 從 VEN = VEN(HI) 到 VOUT = VOUT(NOM) 的 95%，IOUT = 0mA |

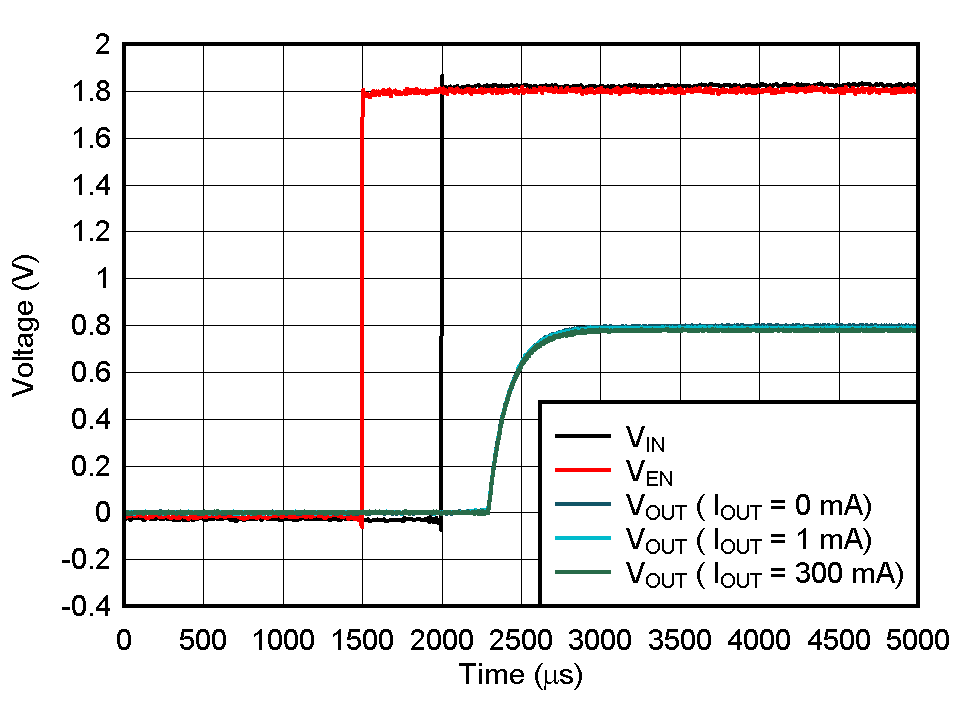

| VOUT = 0.8V，VIN = 0V 至 1.8V，VEN = 0V 至 1.8V，VEN 比 VIN 早 500μs 上升，VIN 和 VEN 壓擺率 = 1V/μs |

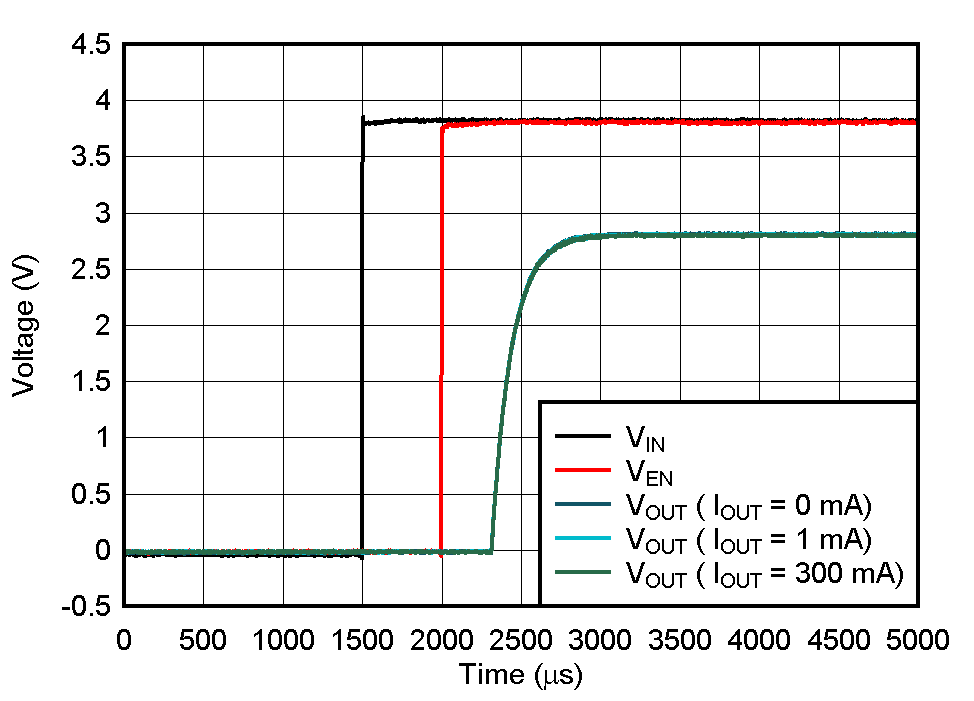

| VIN = 0V 至 3.8V，VEN = 0V 至 3.8V，VEN 比 VIN 晚 500μs 上升，VIN 和 VEN 壓擺率 = 1V/μs |

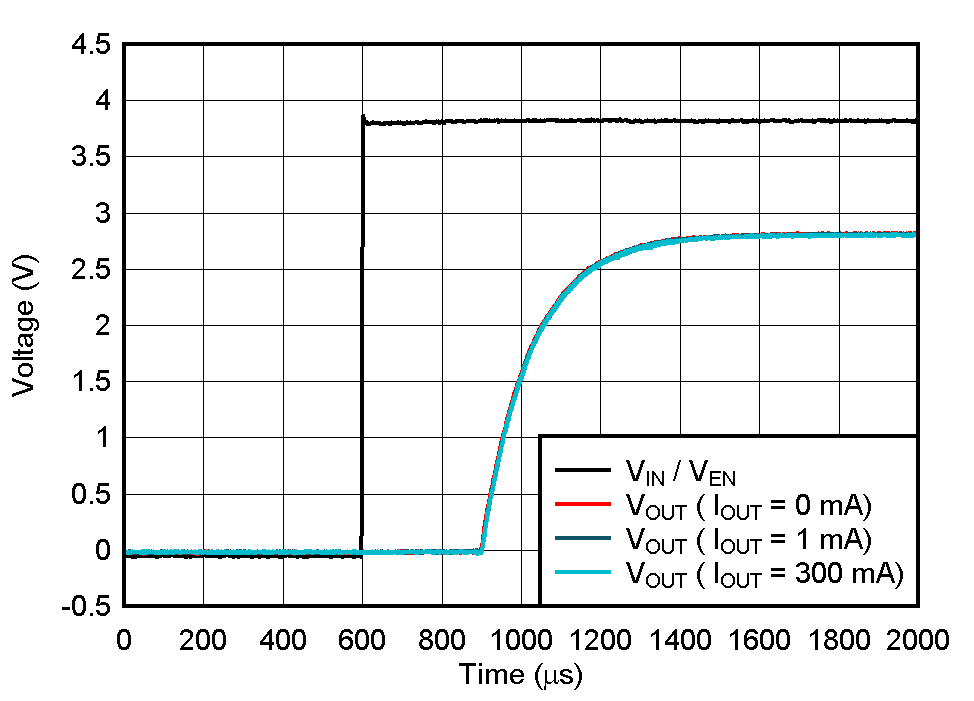

| VIN = 0V 至 3.8V，VEN = 0V 至 3.8V，VEN = VIN，VIN 和壓擺率 = 1V/μs |

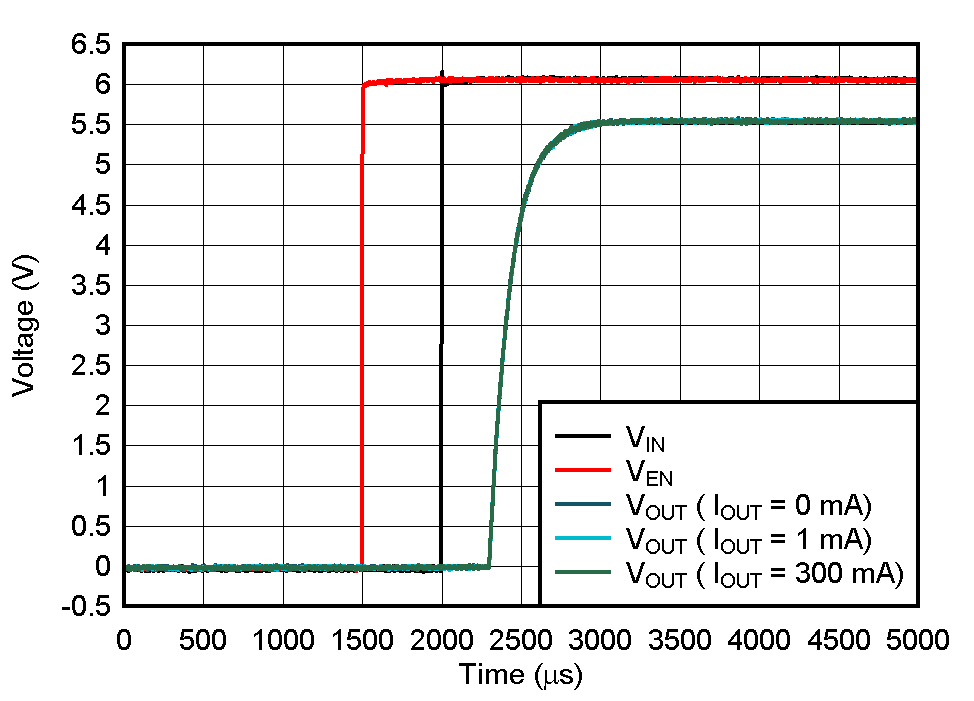

| VOUT = 5.5V，VIN = 0V 至 6.0V，VEN = 0V 至 6.0V，VEN 比 VIN 早 500μs 上升，VIN 和 VEN 壓擺率 = 1V/μs |

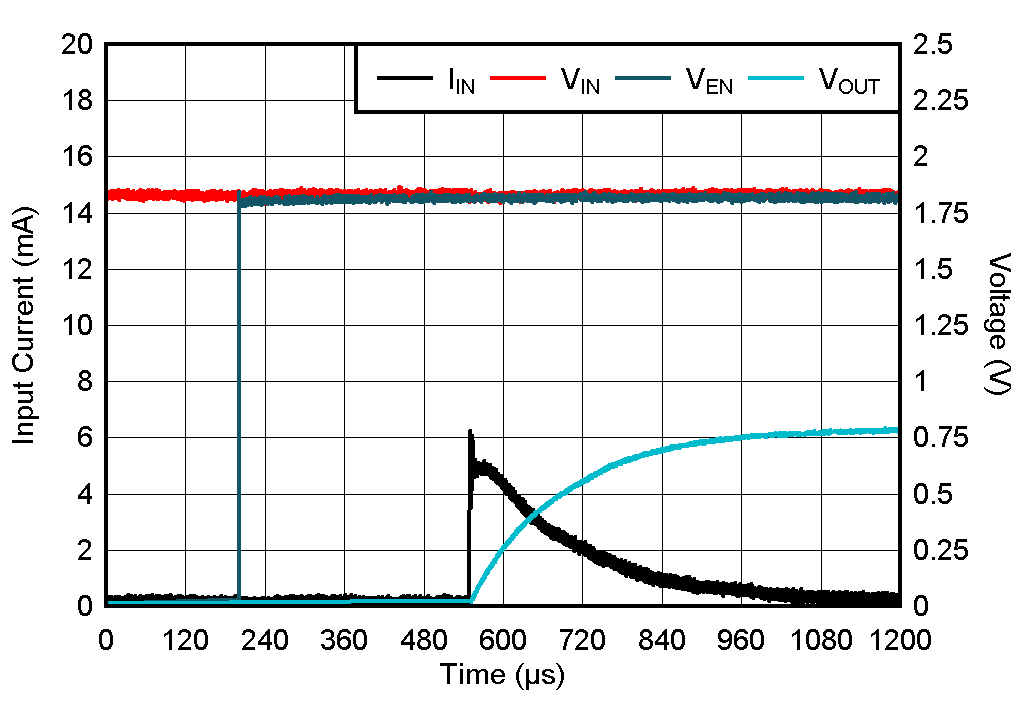

| VOUT = 0.8V，VIN = 1.8V，VEN = 0V 至 1.8V， VEN 壓擺率 = 1V/μs，COUT = 10μF |

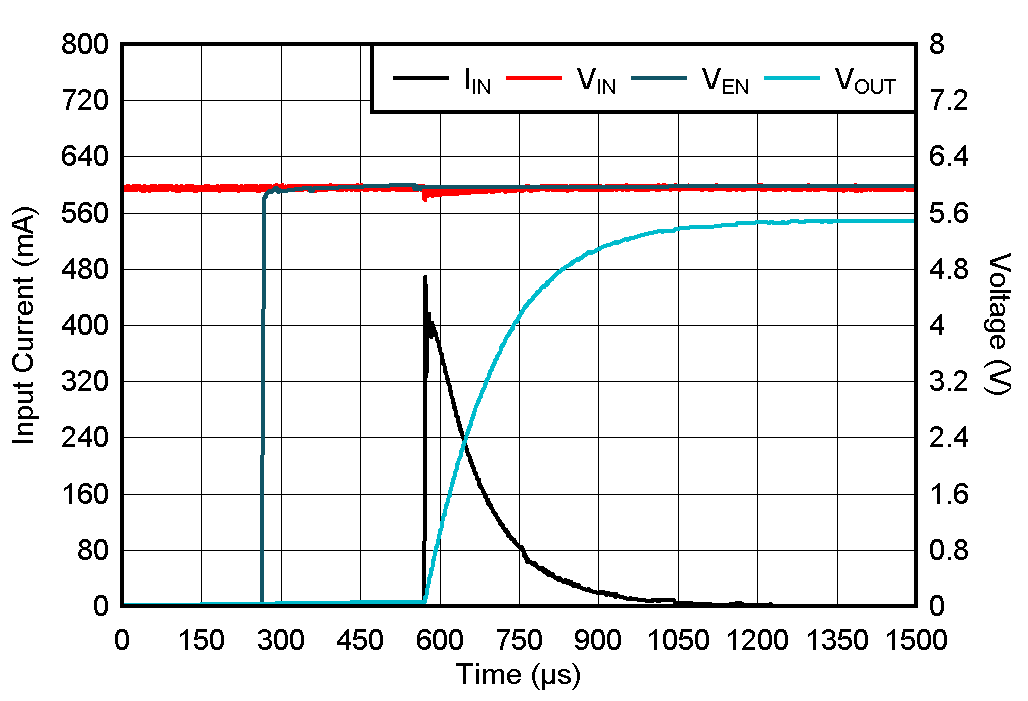

| VOUT = 5.5V，VIN = 6.0V，VEN = 0V 至 6.0V， VEN 壓擺率 = 1V/μs，COUT = 10μF |
