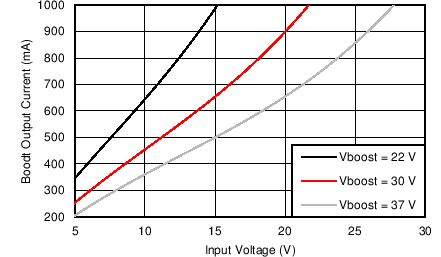

6.12 Typical Characteristics
Unless otherwise specified: D = NRVB460MFS, T = 25°C
| ?SW = 300 kHz | L = 33 μH | DC Load (PWM = 100%) |
| CIN and COUT = 33 μF + 2 × 10 μF (ceramic) | ||
| ?SW = 1.5 MHz | L = 8.2 μH | DC Load (PWM = 100%) | |
| CIN and COUT = 2 × 10 μF (ceramic) | |||

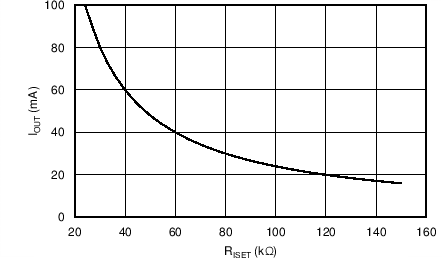

Figure 6-5 LED Current vs RISET

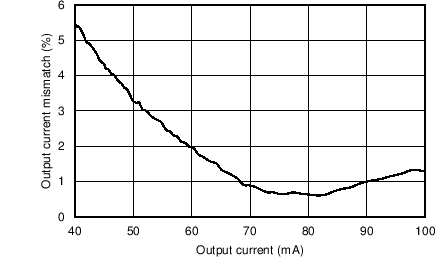

Figure 6-7 LED Current Sink Matching
| ?SW = 800 kHz | L = 15 μH | DC Load (PWM = 100%) |
| CIN and COUT = 2 × 10 μF (ceramic) | ||
| ?SW = 2.2 MHz | L = 4.7 μH | DC Load (PWM = 100%) |
| CIN and COUT = 2 × 10 μF (ceramic) | ||

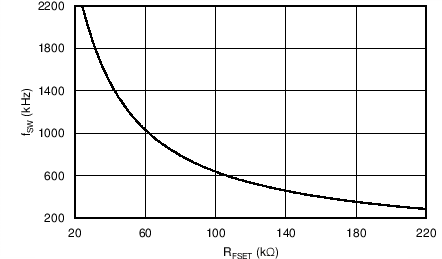

Figure 6-6 Boost Switching Frequency ?SW vs RFSET

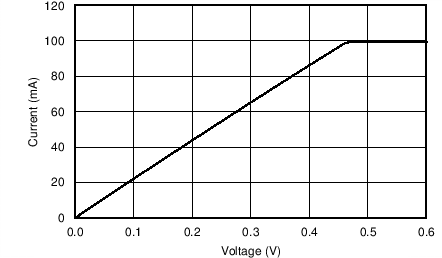

| RISET = 24 kΩ |
