8 Specifications
8.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| VI | Input voltage on LBI | –0.3 | 3.6 | V |
| Input voltage on SW, VOUT, LBO, VBAT, SYNC, EN, FB | –0.3 | 7 | V | |
| TJ | Maximum junction temperature | –40 | 150 | °C |
| Tstg | Storage temperature range | –65 | 150 |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
8.2 ESD Ratings
| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) | –2000 | 2000 | V |
| Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) | –1000 | 1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
8.3 Recommended Operating Conditions
| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| VI | Supply voltage at VBAT | 1.8 | 5.5 | V | |
| TA | Operating ambient temperature range | -40 | 85 | °C | |
| TJ | Operating virtual junction temperature range | -40 | 125 | °C | |
8.4 Thermal Information
| THERMAL METRIC(1) | TPS6103x | UNIT | ||
|---|---|---|---|---|
| PWP | RSA | |||
| 16 PINS | 16 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 46.9 | 35.5 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 25.8 | 36.7 | |
| RθJB | Junction-to-board thermal resistance | 19.4 | 12.9 | |
| ψJT | Junction-to-top characterization parameter | 0.8 | 0.5 | |
| ψJB | Junction-to-board characterization parameter | 19.3 | 12.9 | |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 2.2 | 3.8 | |
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
8.5 Electrical Characteristics
over recommended free-air temperature range and over recommended input voltage range (typical at an ambient temperature range of 25°C) (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| DC/DC STAGE | |||||||
| VI | Input voltage range | 1.8 | 5.5 | V | |||
| VO | TPS61030 output voltage range | 1.8 | 5.5 | V | |||
| VFB | TPS61030 feedback voltage | 490 | 500 | 510 | mV | ||
| f | Oscillator frequency | 500 | 600 | 700 | kHz | ||
| Frequency range for synchronization | 500 | 700 | kHz | ||||
| Switch current limit | VOUT= 5 V | 3600 | 4000 | 4500 | mA | ||
| Start-up current limit | 0.4 x ISW | mA | |||||
| SWN switch on resistance | VOUT= 5 V | 55 | mΩ | ||||
| SWP switch on resistance | VOUT= 5 V | 55 | mΩ | ||||
| Total accuracy | -3% | 3% | |||||
| Line regulation | 0.6% | ||||||
| Load regulation | 0.6% | ||||||
| Quiescent current | VBAT | IO = 0 mA, VEN = VBAT = 1.8 V, VOUT =5 V |
10 | 25 | µA | ||
| VOUT | IO = 0 mA, VEN = VBAT = 1.8 V, VOUT = 5 V |
10 | 20 | µA | |||
| Shutdown current | VEN= 0 V, VBAT = 2.4 V | 0.1 | 1 | µA | |||
| CONTROL STAGE | |||||||
| VUVLO | Under voltage lockout threshold | VLBI voltage decreasing | 1.5 | V | |||
| VIL | LBI voltage threshold | VLBI voltage decreasing | 490 | 500 | 510 | mV | |
| LBI input hysteresis | 10 | mV | |||||
| LBI input current | EN = VBAT or GND | 0.01 | 0.1 | µA | |||
| LBO output low voltage | VO = 3.3 V, IOI = 100 µA | 0.04 | 0.4 | V | |||
| LBO output low current | 100 | µA | |||||
| LBO output leakage current | VLBO= 7 V | 0.01 | 0.1 | µA | |||
| VIL | EN, SYNC input low voltage | 0.2 × VBAT | V | ||||
| VIH | EN, SYNC input high voltage | 0.8 × VBAT | V | ||||
| EN, SYNC input current | Clamped on GND or VBAT | 0.01 | 0.1 | µA | |||
| Overtemperature protection | 140 | °C | |||||
| Overtemperature hysteresis | 20 | °C | |||||
8.6 Typical Characteristics
Table 1. Table Of Graphs
| DC/DC CONVERTER | FIGURE | |
|---|---|---|

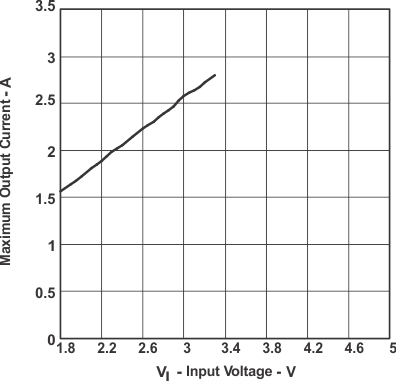

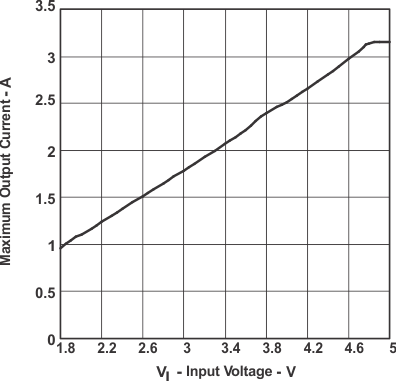

| Maximum output current | vs Input voltage | Figure 1, Figure 2 |

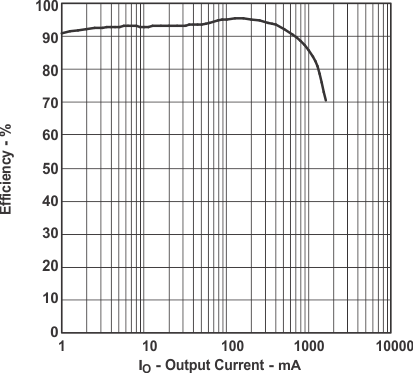

| Efficiency | vs Output current (TPS61030) (VO = 2.5 V, VI = 1.8 V, VSYNC = 0 V) | Figure 3 |

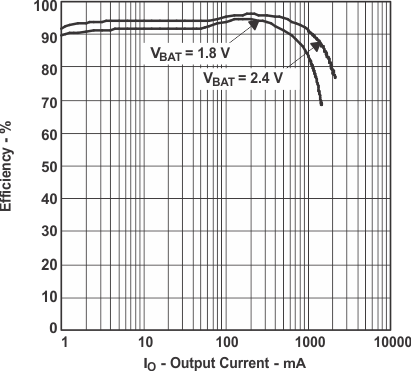

| vs Output current (TPS61031) (VO = 3.3 V, VI = 1.8 V, 2.4 V, VSYNC = 0 V) | Figure 4 | |

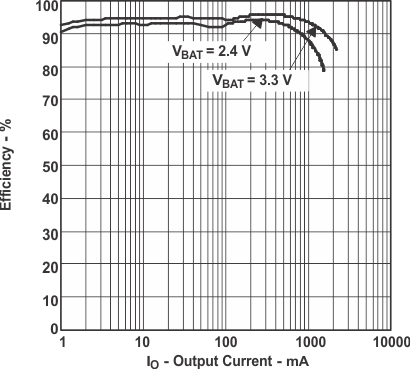

| vs Output current (TPS61032) (VO = 5.0 V, VI = 2.4 V, 3.3 V, VSYNC = 0 V) | Figure 5 | |

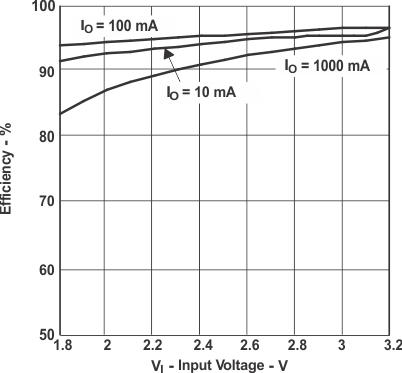

| vs Input voltage (TPS61031) (IO = 10 mA, 100 mA, 1000 mA, VSYNC = 0 V) | Figure 6 | |

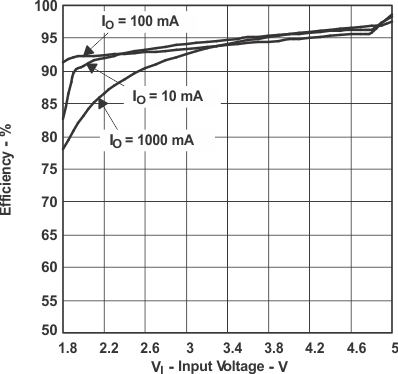

| vs Input voltage (TPS61032) (IO = 10 mA, 100 mA, 1000 mA, VSYNC = 0 V) | Figure 7 | |

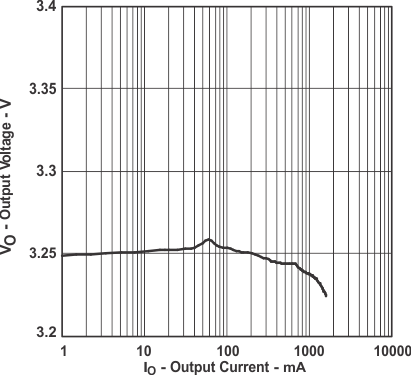

| Output voltage | vs Output current (TPS61031) (VI = 2.4 V) | Figure 8 |

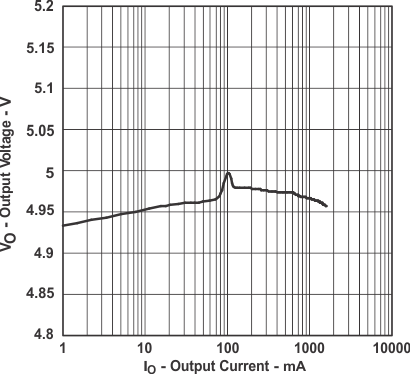

| vs Output current (TPS61032) (VI = 3.3 V) | Figure 9 | |

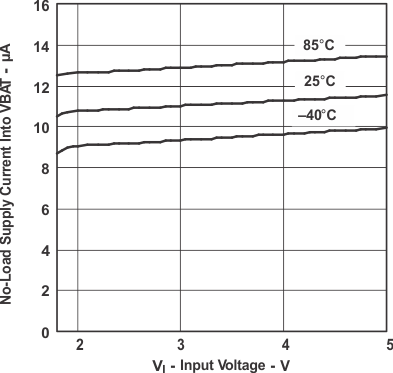

| No-load supply current into VBAT | vs Input voltage (TPS61032) | Figure 10 |

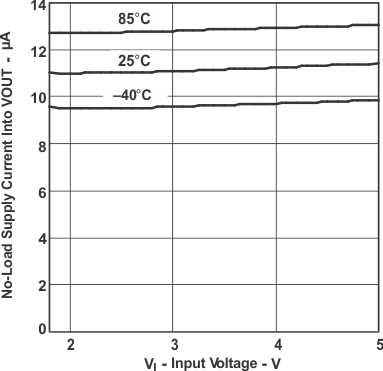

| No-load supply current into VOUT | vs Input voltage (TPS61032) | Figure 11 |

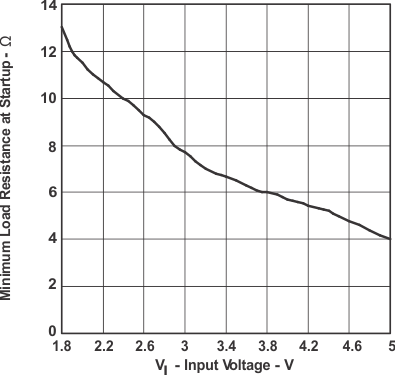

| Minimum Load Resistance at Startup | vs Input voltage (TPS61032) | Figure 12 |
vs Input Voltage
vs Input Voltage
| VO = 2.5 V | VI = 1.8 V |
| VO = 5 V |
| VBAT = 3.3 V |
vs Output Current
vs Input Voltage
| VO = 3.3 V |
| VBAT = 2.4 V |
vs input Voltage
vs Input Voltage
