8.2.3 Application Curves
Figure 19 through Figure 34 apply to the circuit of Figure 18. VIN = 12 V. TA = 25°C unless otherwise specified.
1.

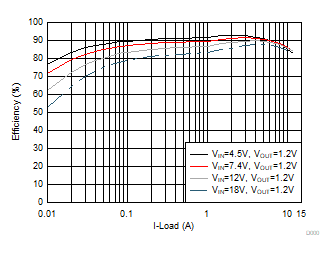

Figure 19. Efficiency Curve
1.
Figure 21. Switching Frequency vs Input Voltage | IOUT = 12 A |
1.

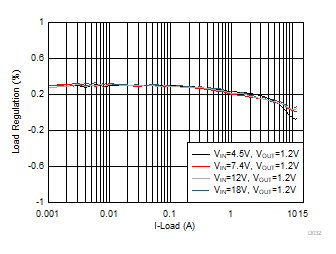

Figure 20. Load Regulation
1.

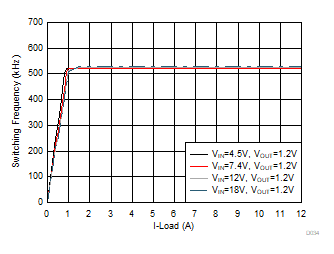

Figure 22. Switching Frequency vs Output Load
1.

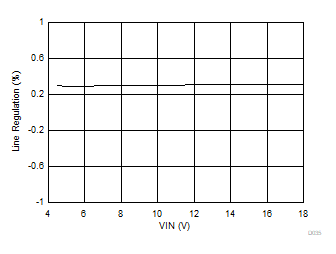

Figure 23. Line Regulation | IOUT=0.1A |
1.

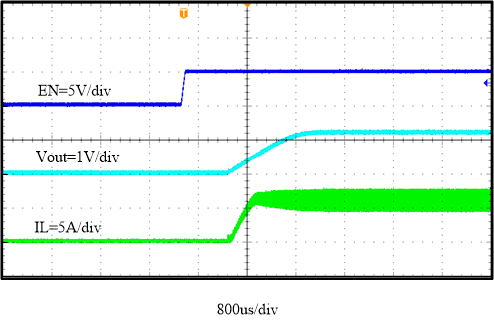

Figure 25. Start-Up Through EN | IOUT = 6A |
1.

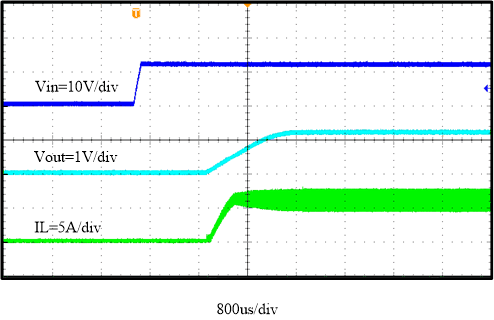

Figure 27. Start Up Relative to VIN Rising | IOUT = 6 A |
1.

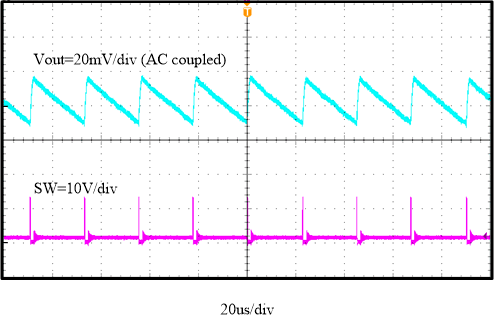

Figure 29. Output Voltage Ripple | IOUT = 0.1 A |
1.

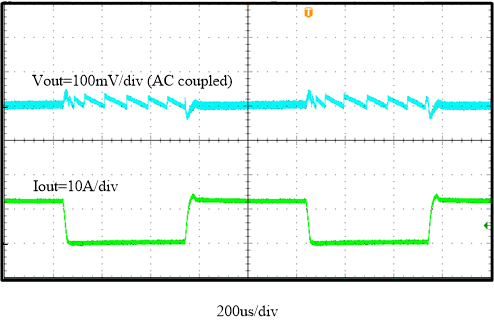

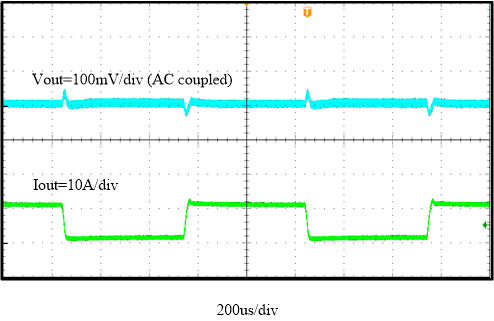

Figure 31. Transient Response | 1.2 A to 10.8 A | Slew Rate=2.5A/us |
1.

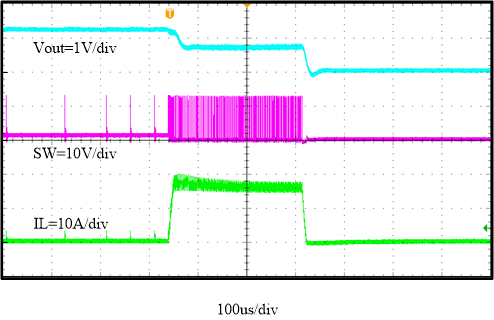

Figure 33. Normal Operation to Output Hard Short
1.

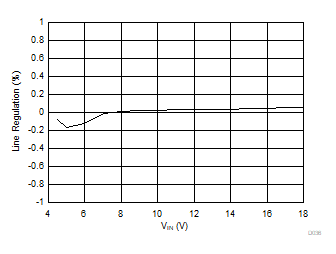

Figure 24. Line Regulation | IOUT=12A |
1.

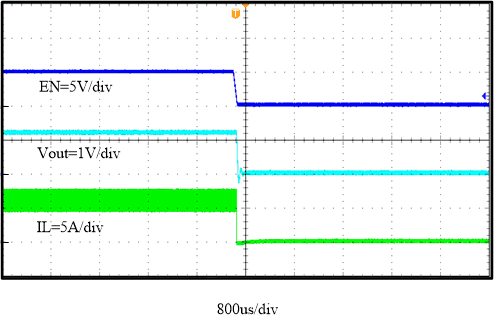

Figure 26. Shut-down Through EN | IOUT = 6A |
| IOUT = 6 A |
1.

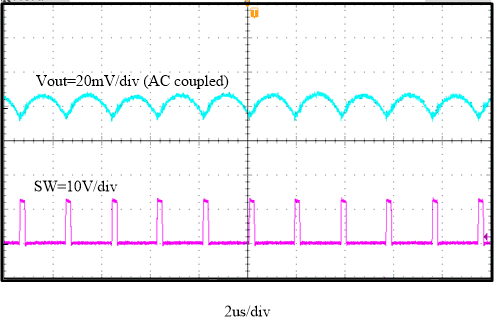

Figure 30. Output Voltage Ripple | IOUT = 12 A |
| 0 A to 12 A | Slew Rate=2.5A/us |
