8.2.3 Application Curves
VIN = 12 V, L1 = 2.2 μH, COUT = 22 μF, TA = 25°C (unless otherwise noted)
Figure 8-2 Efficiency Figure 8-4 Line
Regulation

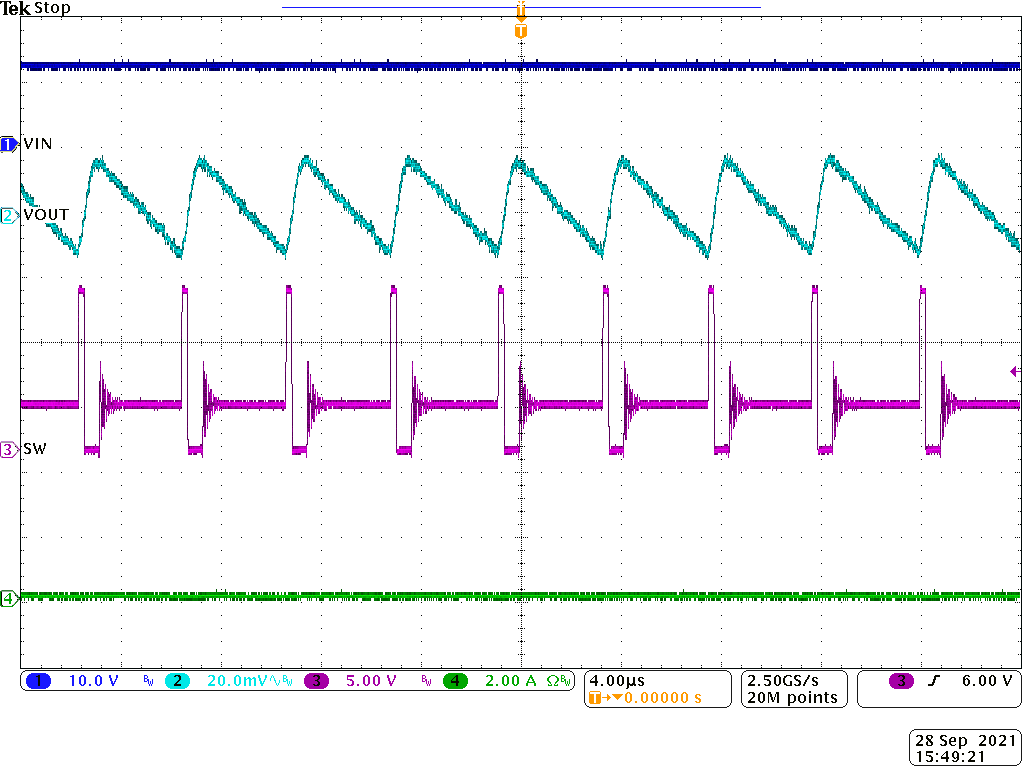

Figure 8-6 Steady State Waveforms, IOUT = 0
A

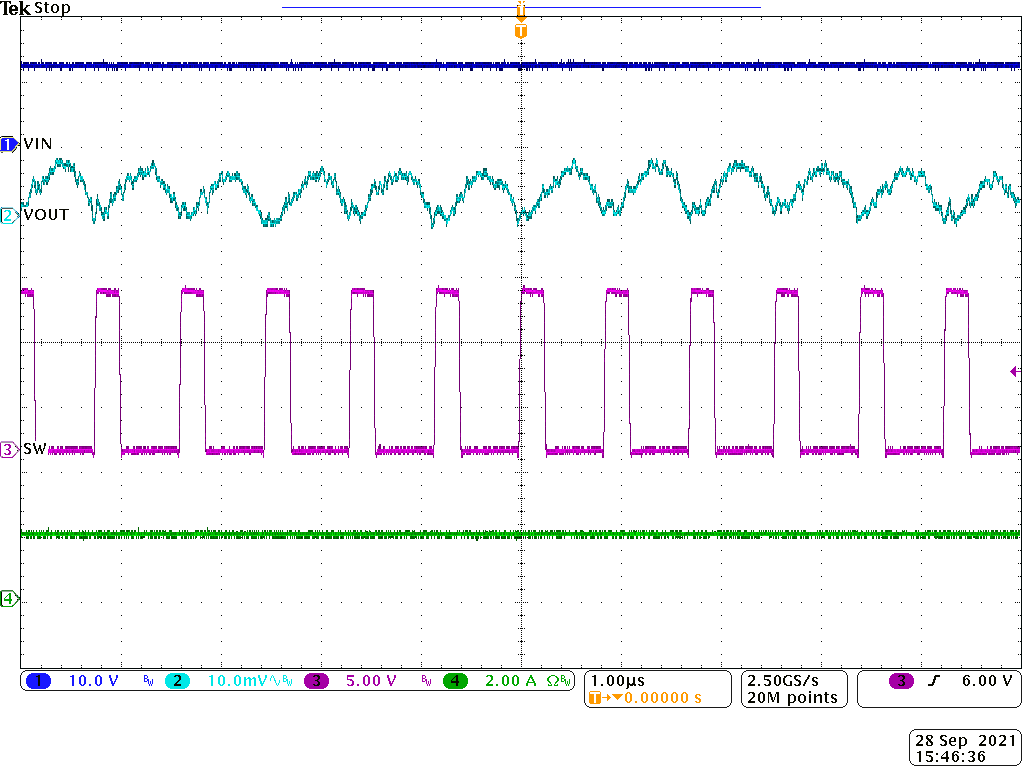

Figure 8-8 Steady State Waveforms, IOUT = 1.0
A

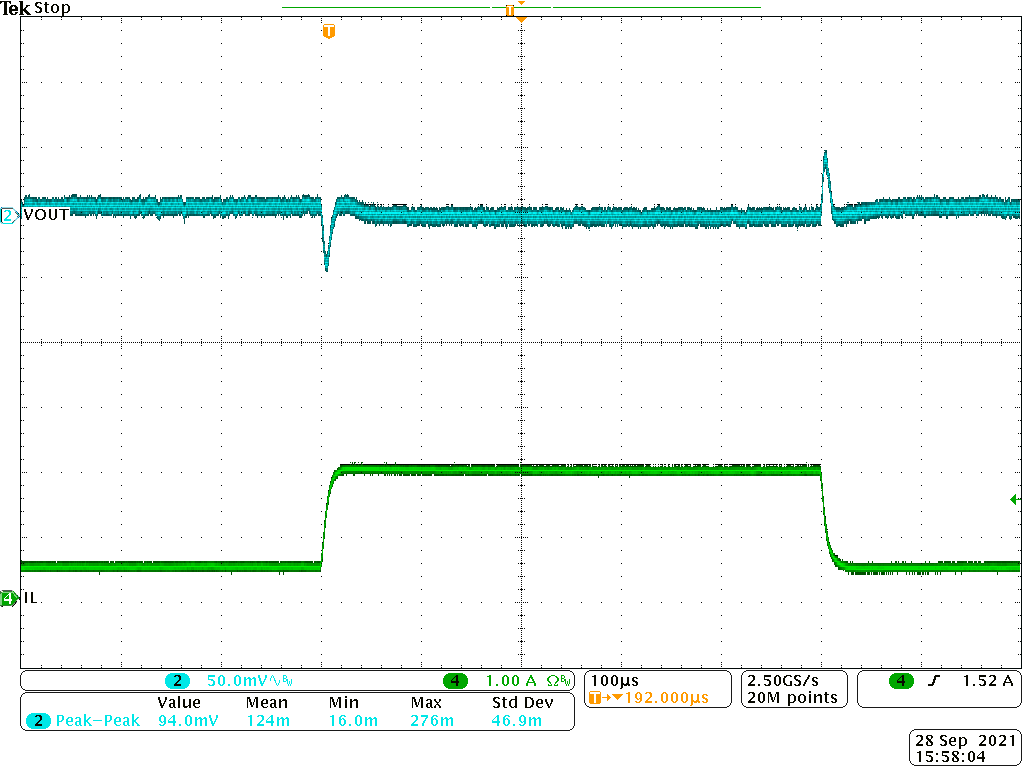

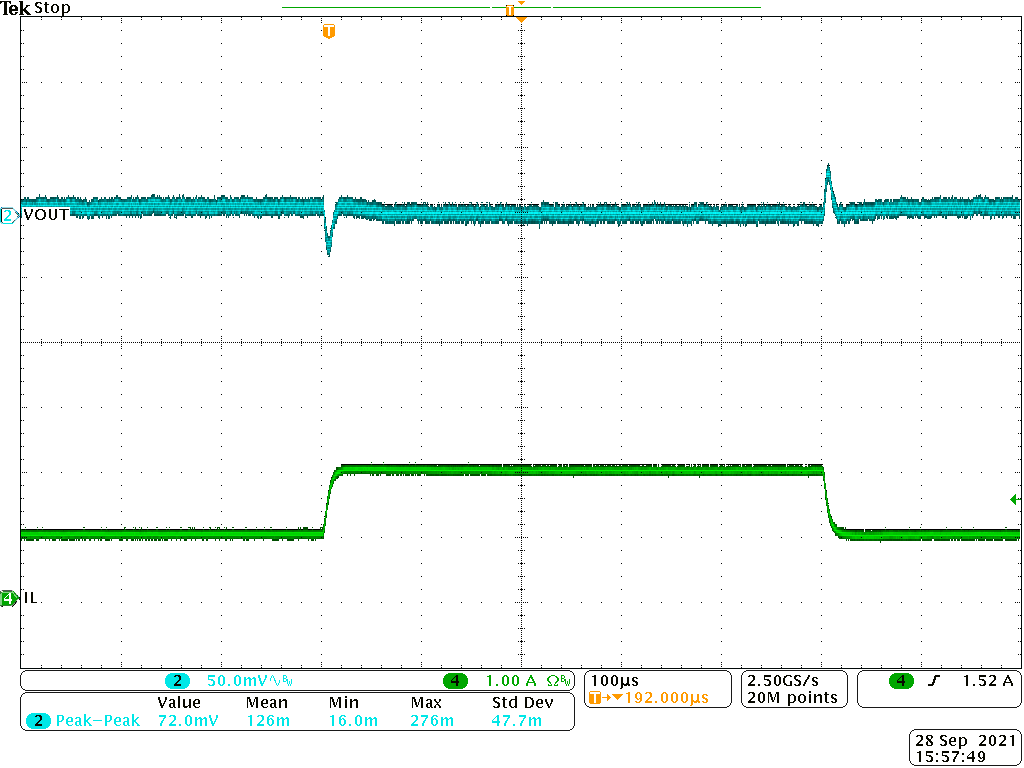

Figure 8-10 Transient Response 0.5 to 2 A with Slew Rate of 2.5
A/μs

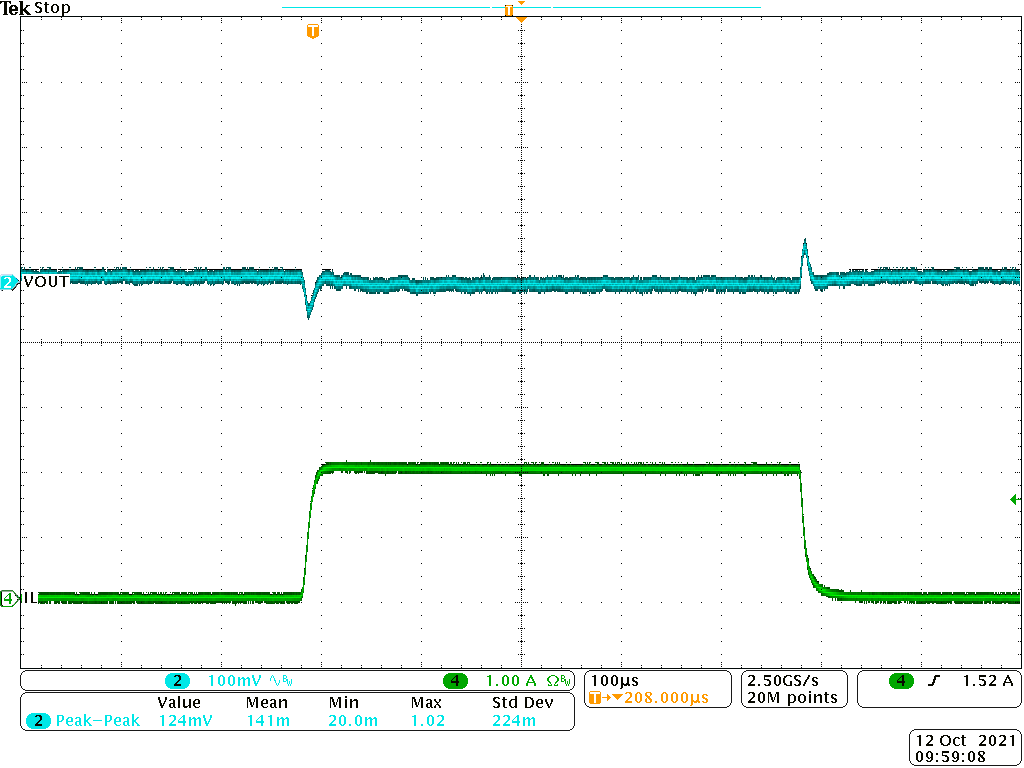

Figure 8-12 Transient Response 0 to 2 A with Slew Rate of 2.5
A/μs (ECO)

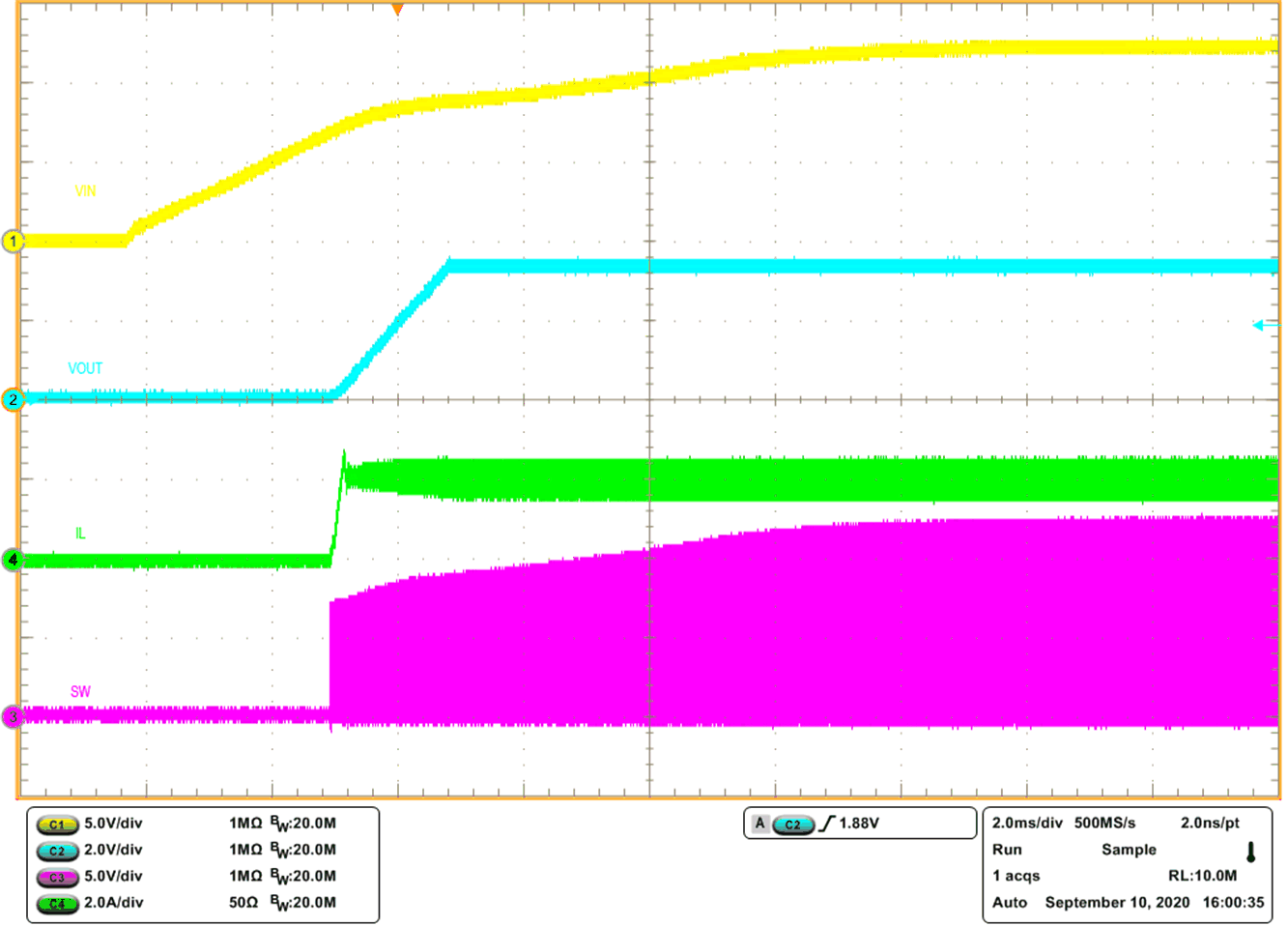

Figure 8-14 Start-Up Relative to VIN

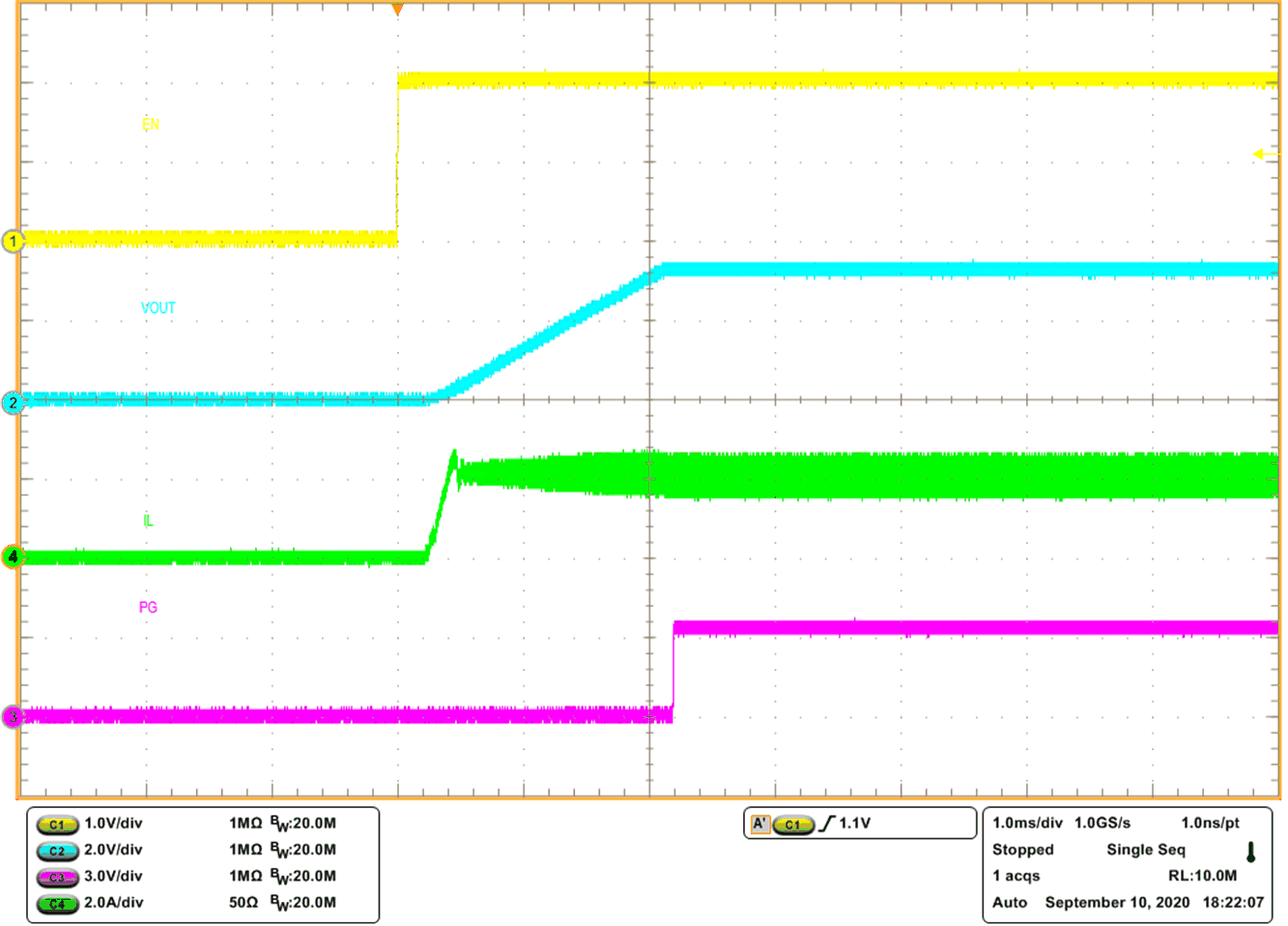

Figure 8-16 Enable Relative to EN

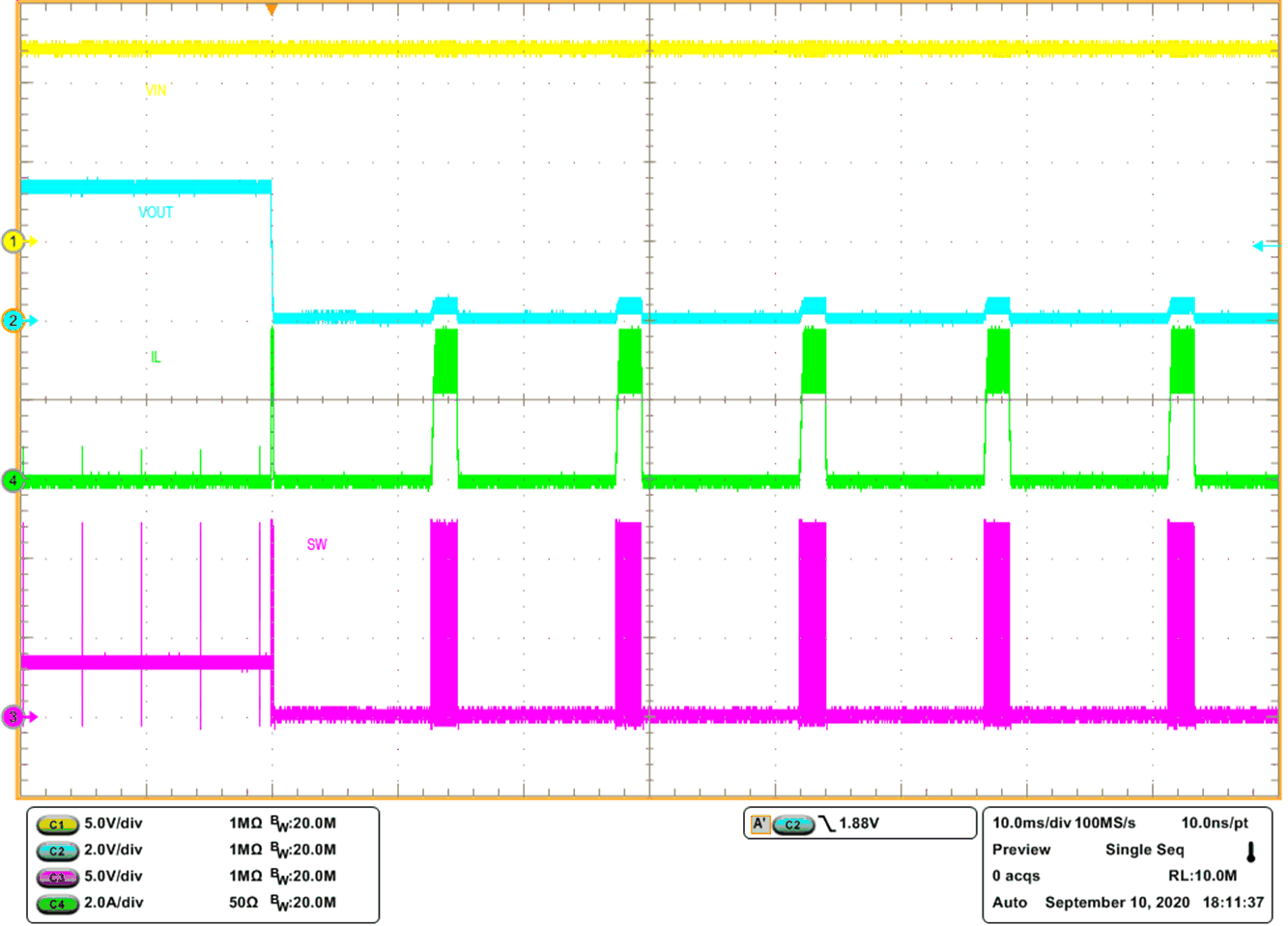

Figure 8-18 Output Short Protection (ECO)
Figure 8-3 Load
RegulationFigure 8-5 Case
Temperature Rise vs Load Current

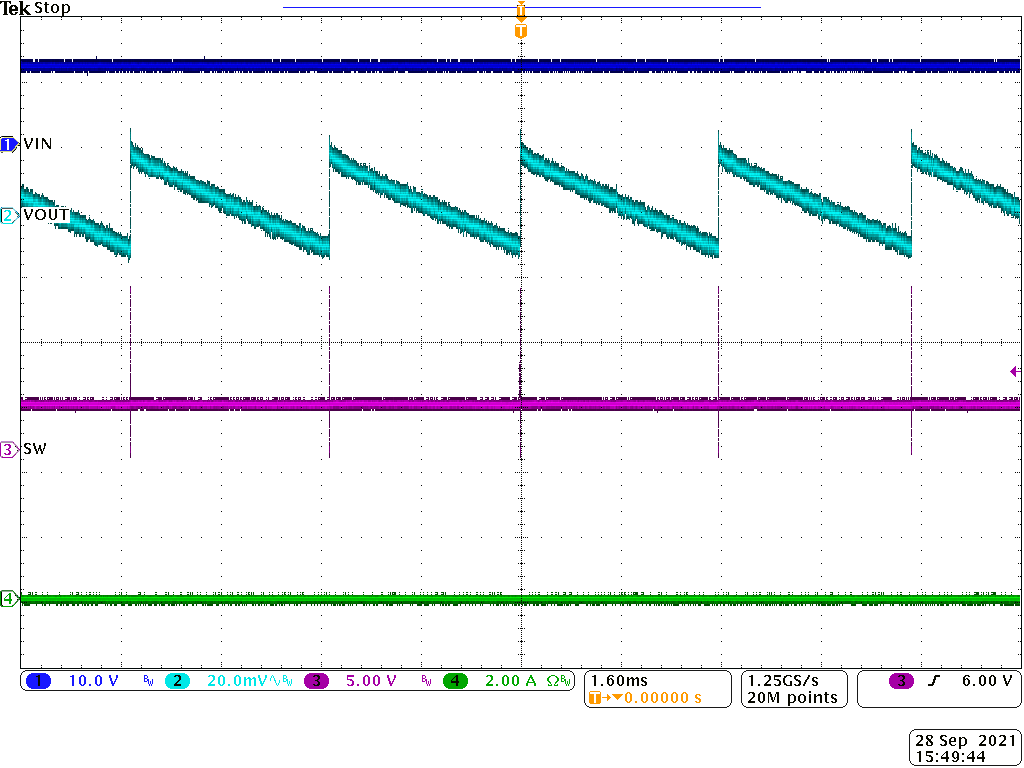

Figure 8-7 Steady State Waveforms, IOUT = 0.1
A

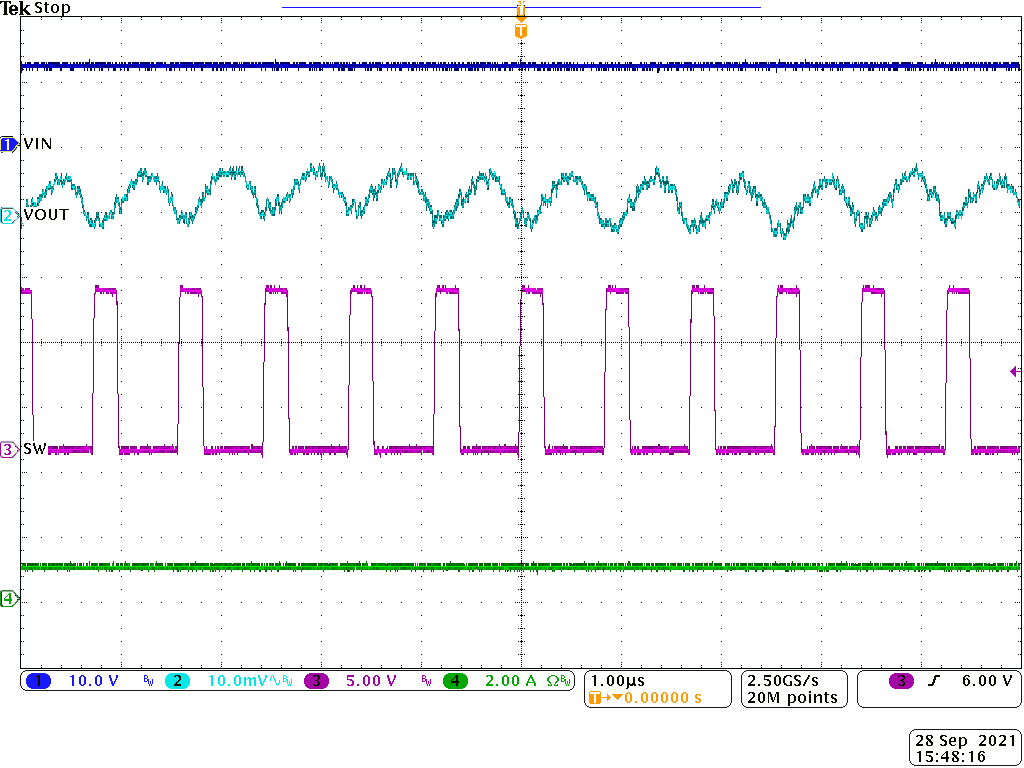

Figure 8-9 Steady State Waveforms, IOUT = 2
A
Figure 8-11 Transient Response 1 to 2 A with Slew Rate of 2.5
A/μs

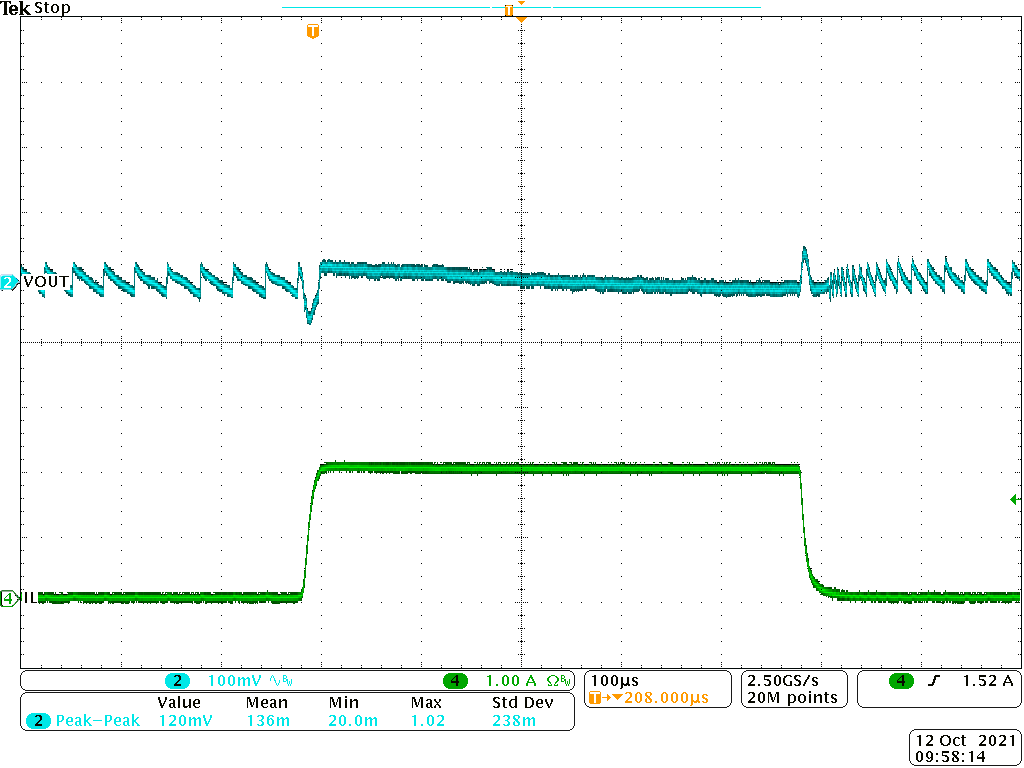

Figure 8-13 Transient Response 0 to 2 A with Slew Rate of 2.5
A/μs (FCCM)
Figure 8-15 Shutdown Relative to VIN

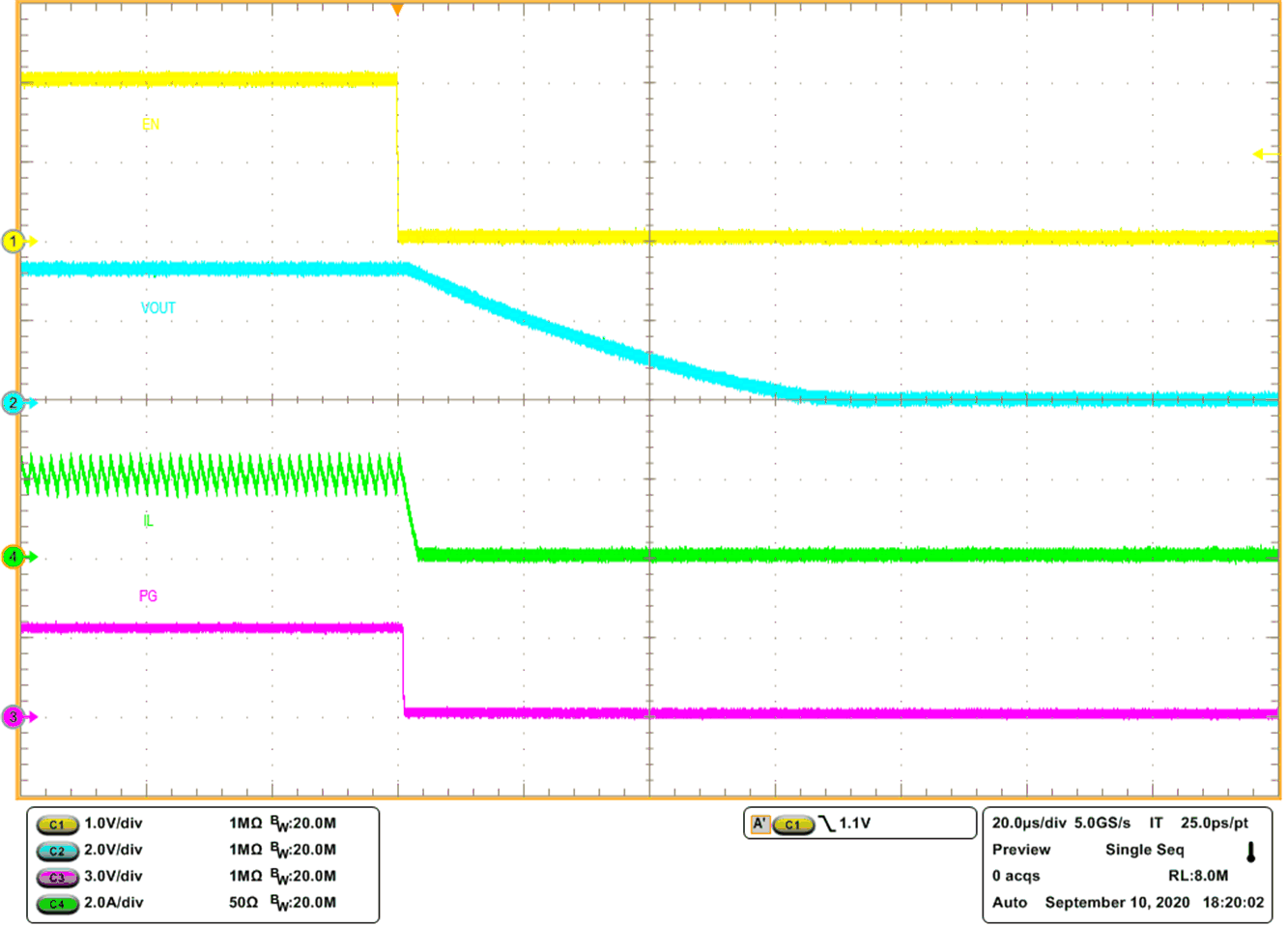

Figure 8-17 Disable Relative to EN

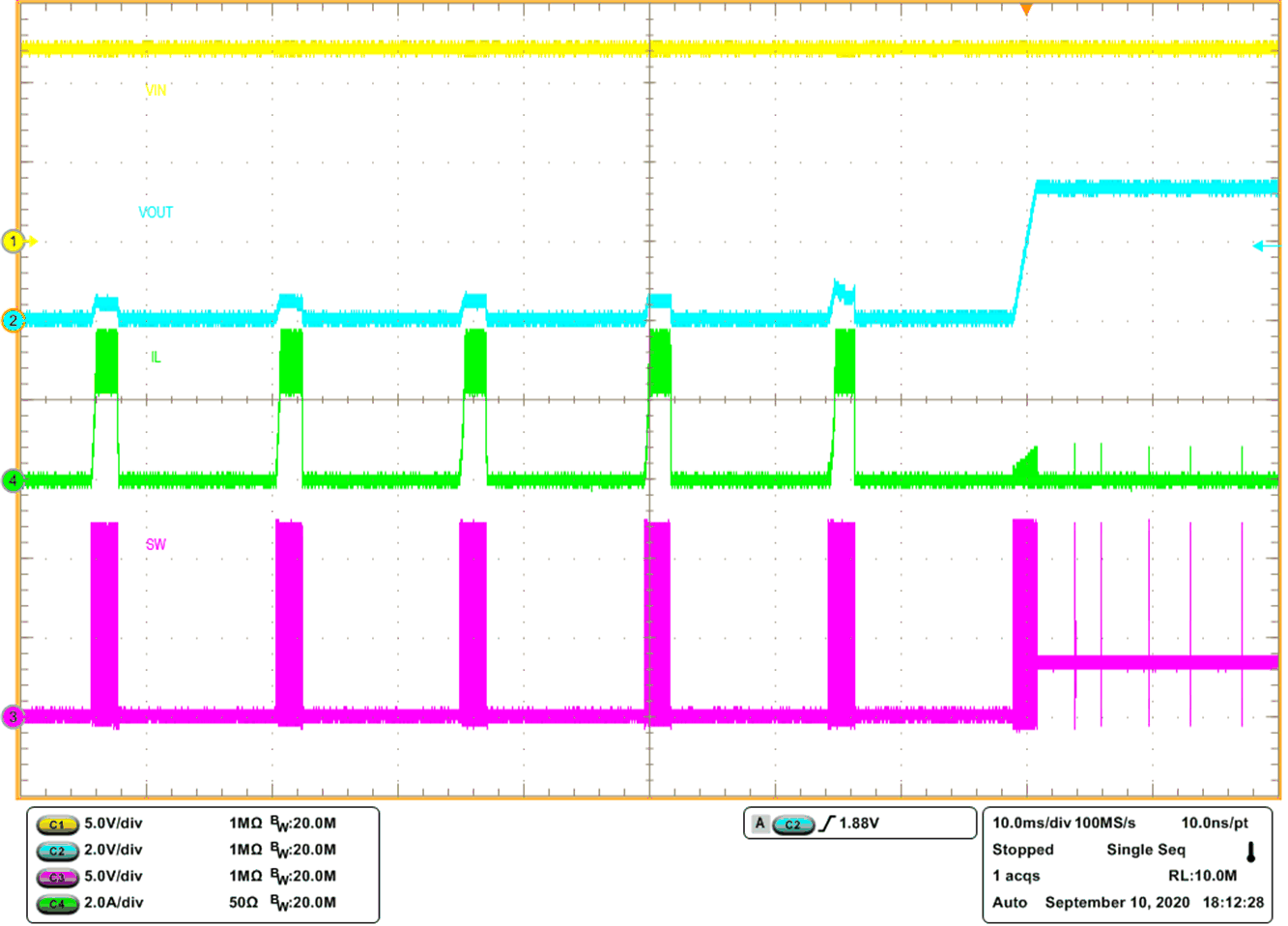

Figure 8-19 Output Short Recovery (ECO)
