6.6 Typical Characteristics
VIN = 12 V, TA = 25°C, unless otherwise noted
Figure 6-1 Quiescent
Current (Eco-mode) vs Junction Temperature

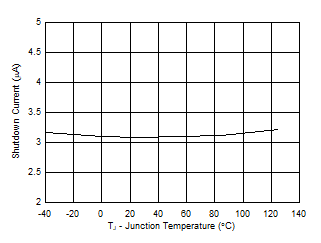

Figure 6-3 Shutdown
Current vs Junction Temperature

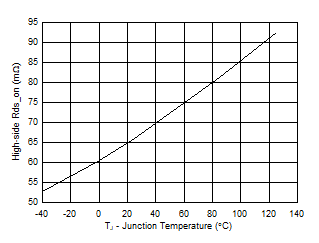

Figure 6-5 High-Side MOSFET
On-Resistance vs Junction Temperature
Figure 6-7 VIN UVLO
Threshold vs Junction Temperature

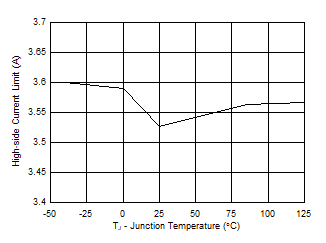

Figure 6-9 High-Side Current Limit
Threshold vs Junction TemperatureFigure 6-11 Switching Frequency vs Junction Temperature

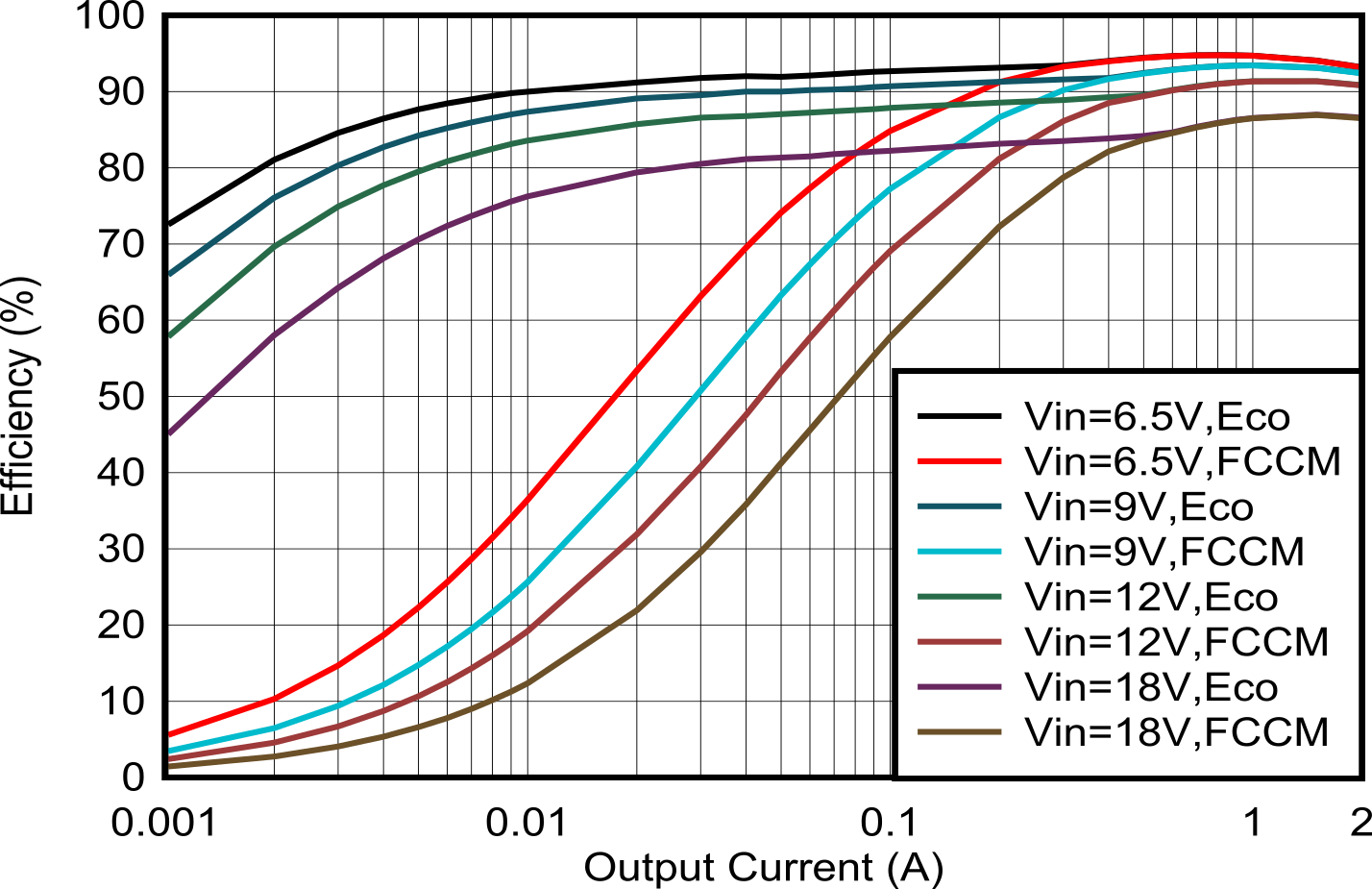

Figure 6-13 VOUT = 1.05-V Efficiency, L = 1.0 μH

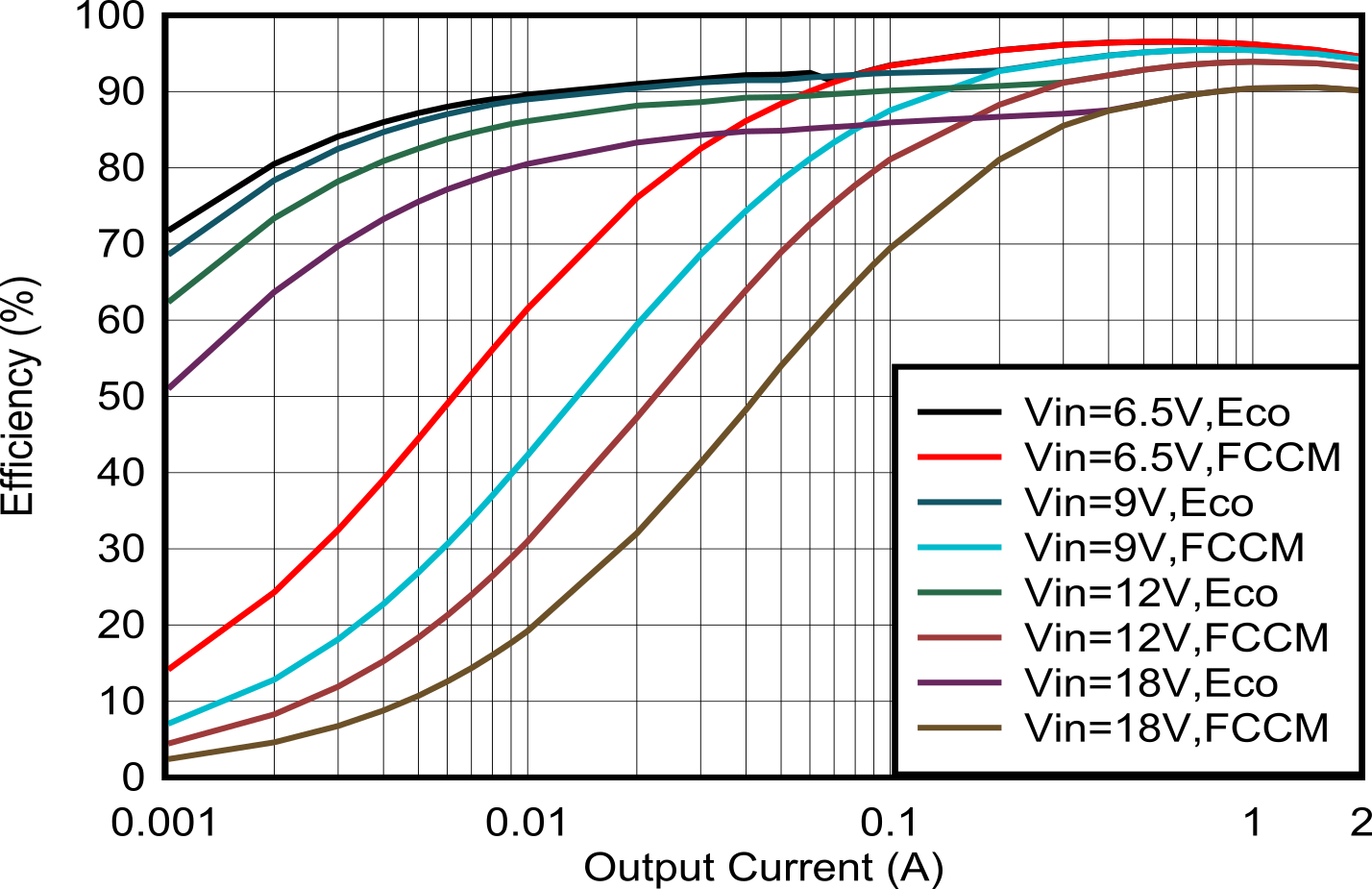

Figure 6-15 VOUT = 5-V Efficiency, L = 3.3 μH
Figure 6-2 Quiescent
Current (FCCM) vs Junction Temperature
Figure 6-4 Reference
Voltage vs Junction Temperature

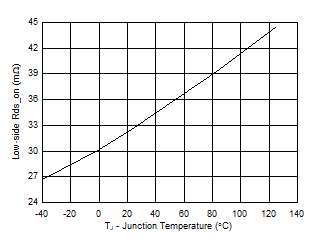

Figure 6-6 Low-Side MOSFET
On-Resistance vs Junction TemperatureFigure 6-8 EN
Threshold vs Junction Temperature
Figure 6-10 Low-Side Current Limit
Threshold vs Junction Temperature

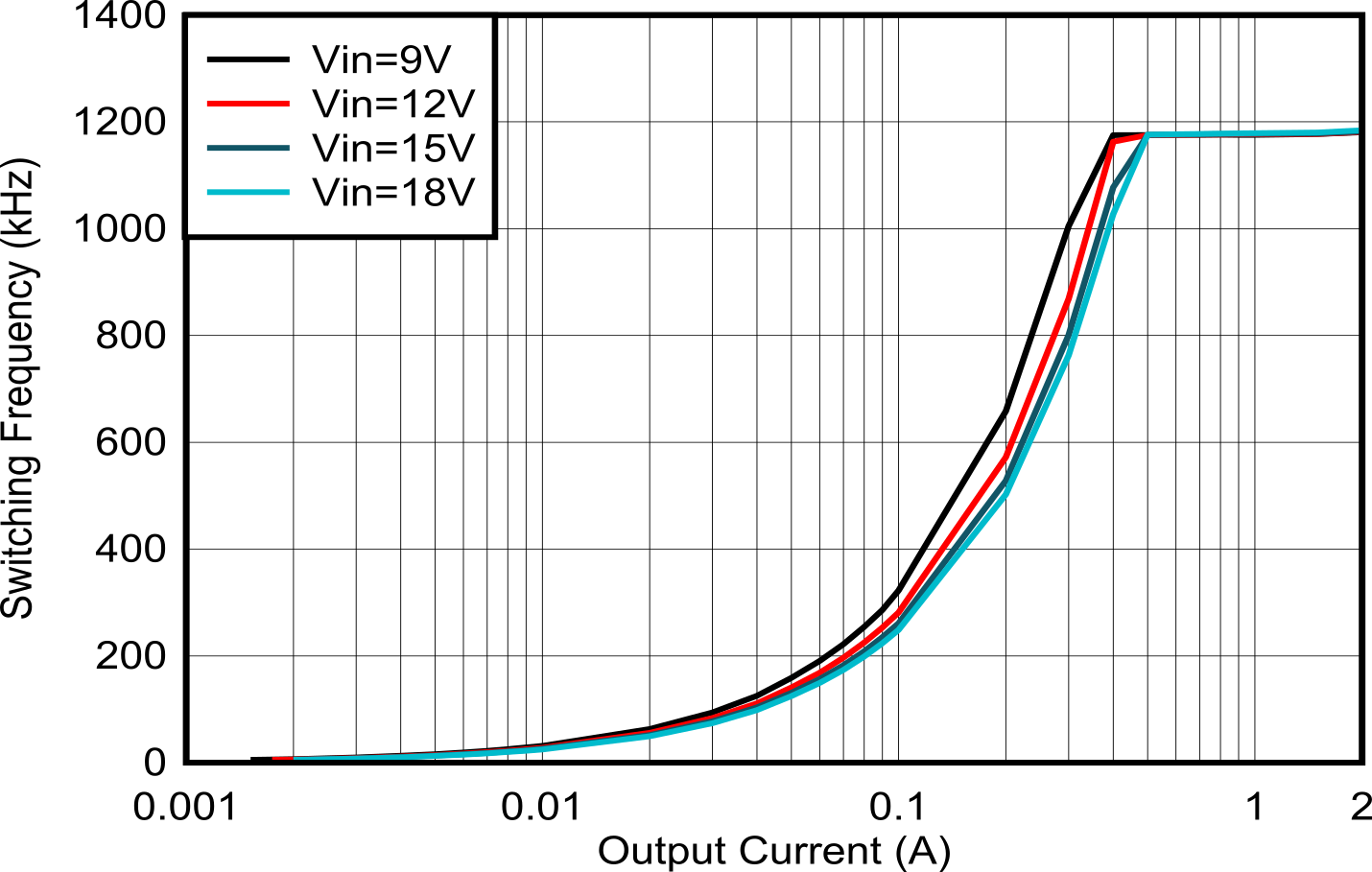

Figure 6-12 Switching Frequency vs Output Current, VOUT = 3.3 V, L = 2.2
μH

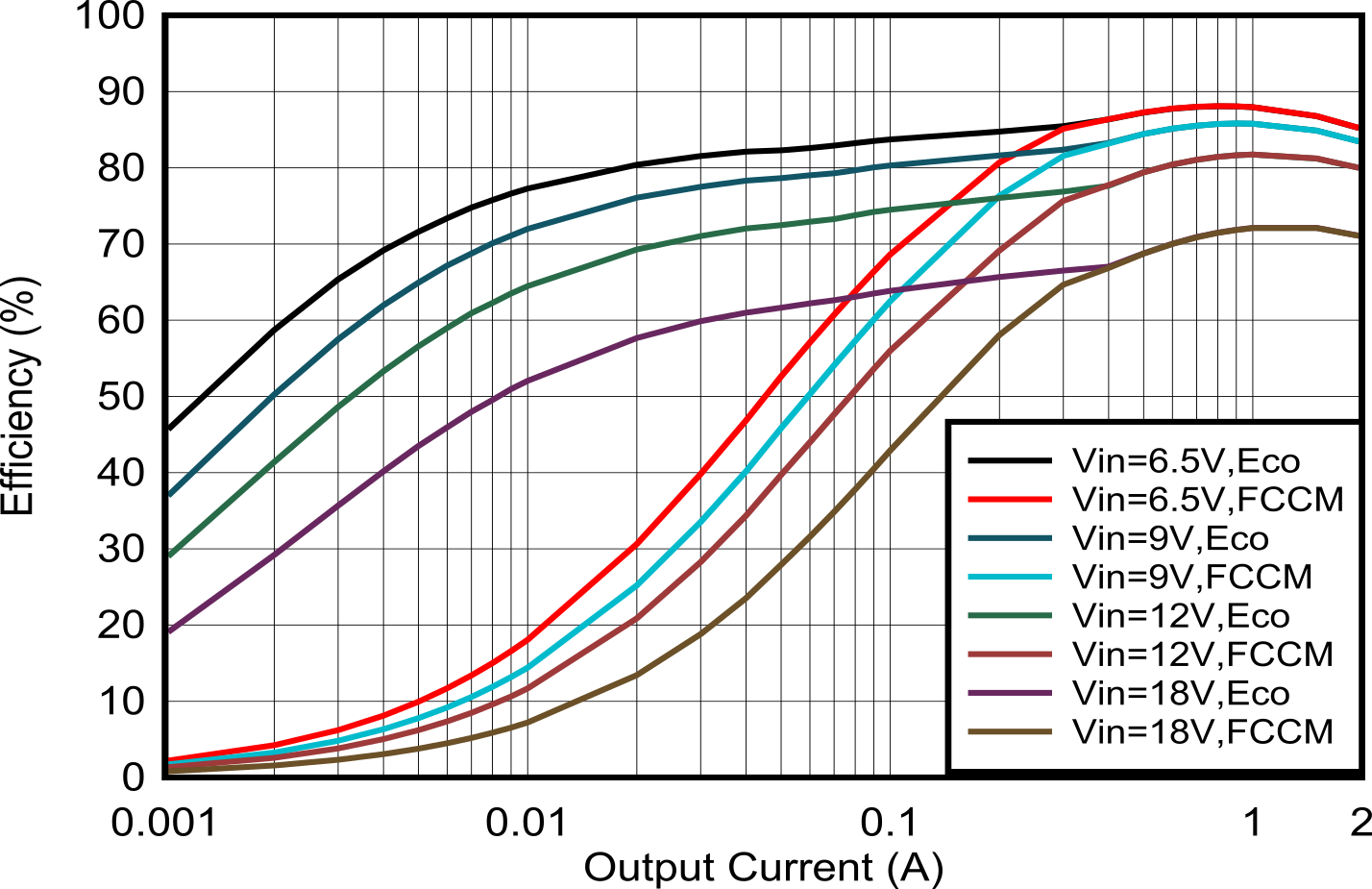

Figure 6-14 VOUT = 3.3-V Efficiency, L = 2.2 μH

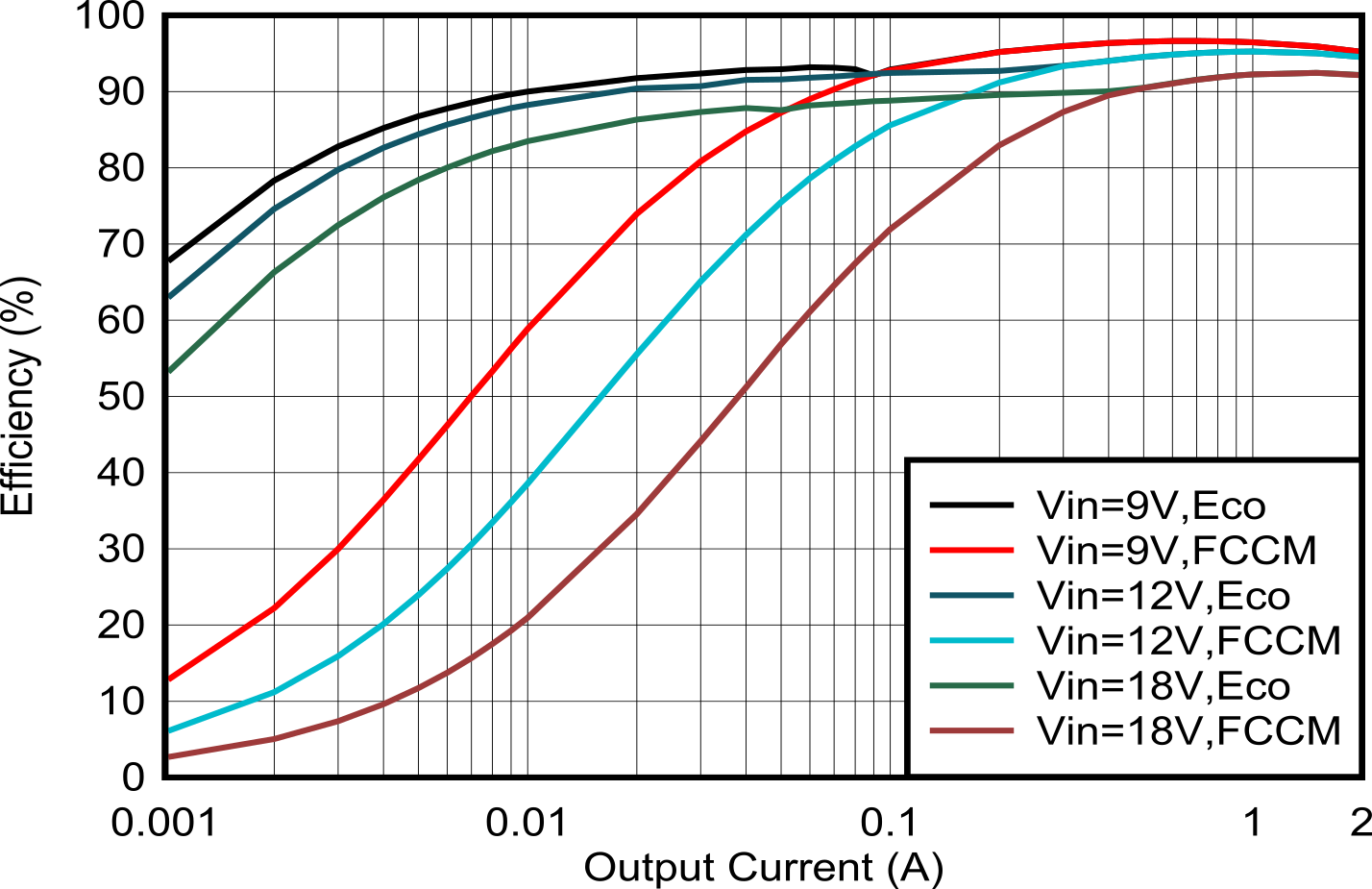

Figure 6-16 VOUT = 7-V Efficiency, L = 3.3 μH
