3 說明
TPS54622-EP 器件采用熱增強型 3.5mm × 3.5mm VQFN 封裝，是一款功能齊全的 17V、6A 同步降壓轉換器；該器件具有高效率且集成了高側和低側 MOSFET，經過優化可實現小型設計。通過采用電流模式控制來減少元件數量，同時選擇高開關頻率來縮小電感器尺寸，從而進一步節省空間。
輸出電壓啟動斜坡由 SS/TR 引腳控制，該引腳既支持獨立電源運行，又支持跟蹤模式。此外，正確配置使能與開漏電源良好引腳也可實現電源定序。
高側 FET 的逐周期電流限制可在過載情況下保護器件，并通過低側拉電流限制防止電流失控，增強限制效果。此外，還提供可關閉低側 MOSFET 的低側灌電流限制，防止反向電流過大。當過流持續時間超出預設時間時，將觸發間斷保護。當裸片溫度超過熱關斷溫度時，熱斷續保護功能將禁用該器件，并在內置熱關斷斷續時間后重新啟用該部件。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS54622-EP | VQFN (14) | 3.50mm × 3.50mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

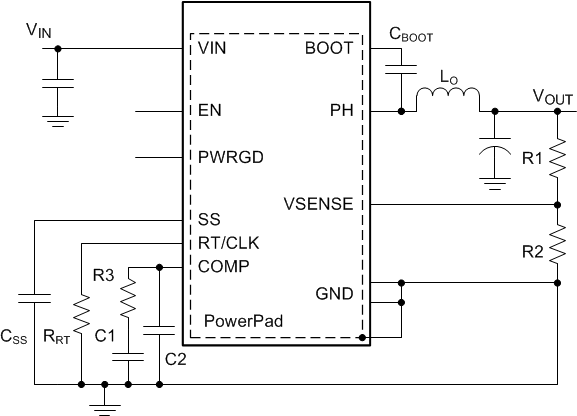

簡化版原理圖
效率與負載電流間的關系
