6.6 Typical Characteristics

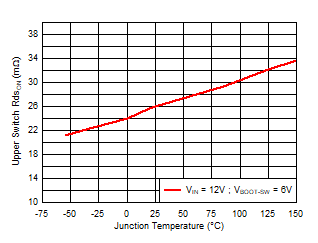

Figure 6-1 High-Side RDS(on) vs Temperature

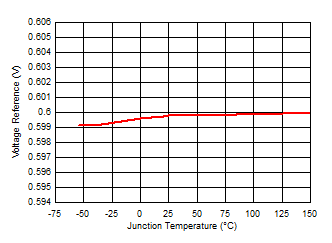

Figure 6-3 Voltage Reference vs Temperature

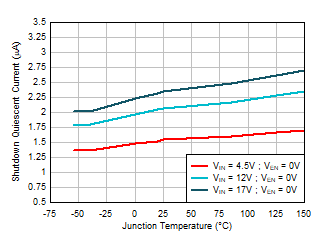

Figure 6-5 Shutdown Quiescent Current vs Temperature

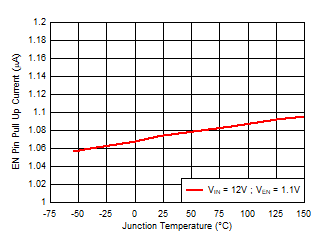

Figure 6-7 EN Pin Pullup Current vs Temperature

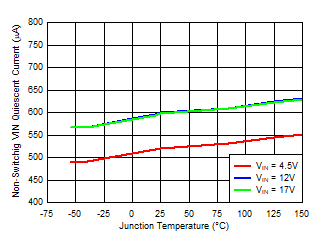

Figure 6-9 Non-Switching Operating Quiescent Current vs Temperature

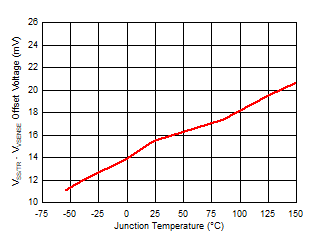

Figure 6-11 (SS/TR - VSENSE) Offset vs Temperature

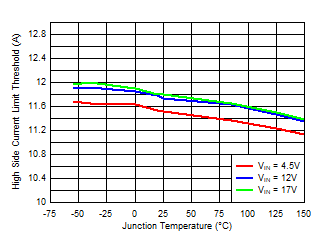

Figure 6-13 High-Side Current Limit Threshold vs Temperature

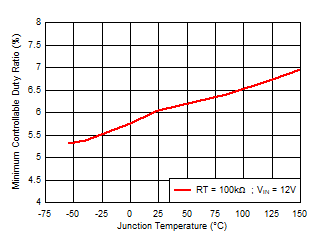

Figure 6-15 Minimum Controllable Duty Ratio vs Temperature

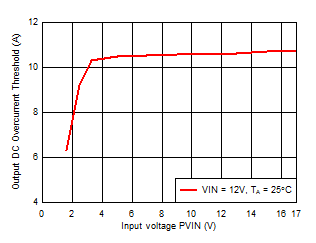

Figure 6-17 Overcurrent Threshold vs Input Voltage.

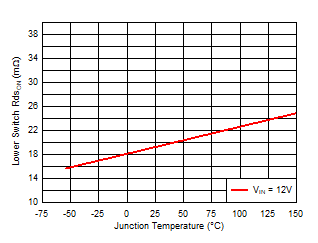

Figure 6-2 Low-Side RDS(on) vs Temperature

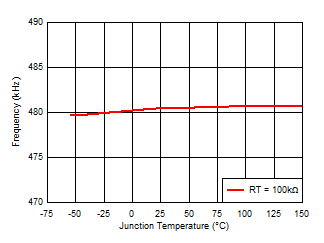

Figure 6-4 Oscillator Frequency vs Temperature

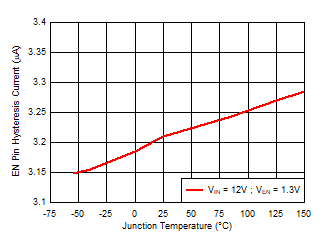

Figure 6-6 EN Pin Hysteresis Current vs Temperature

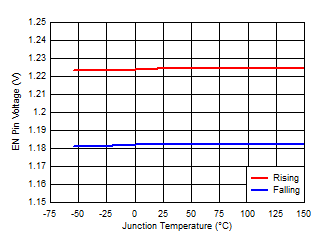

Figure 6-8 EN Pin UVLO Threshold vs Temperature
Figure 6-10 Slow Start Charge Current vs Temperature

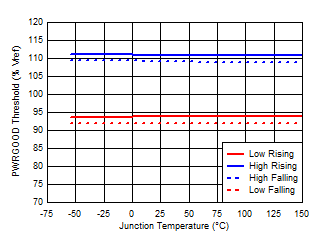

Figure 6-12 PWRGD Threshold vs Temperature

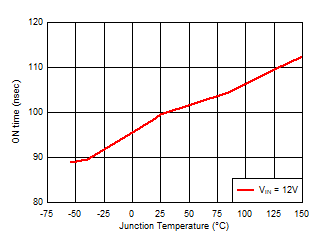

Figure 6-14 Minimum Controllable On-Time vs Temperature

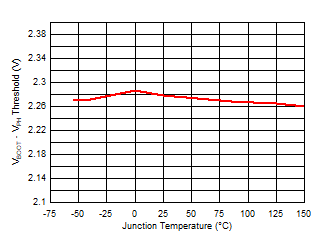

Figure 6-16 BOOT-PH UVLO Threshold vs Temperature
