9.3.1.1 Application Curves

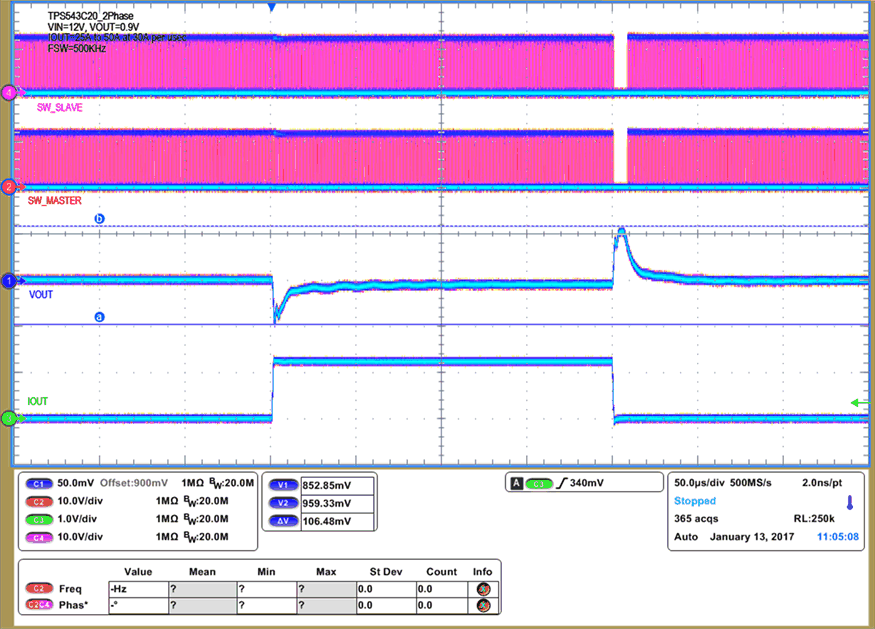

Figure 29. Transient Response of 0.9-V Output at 12 VIN, Transient is 25 A to 50 A, Step is 25 A at 30 A/μs

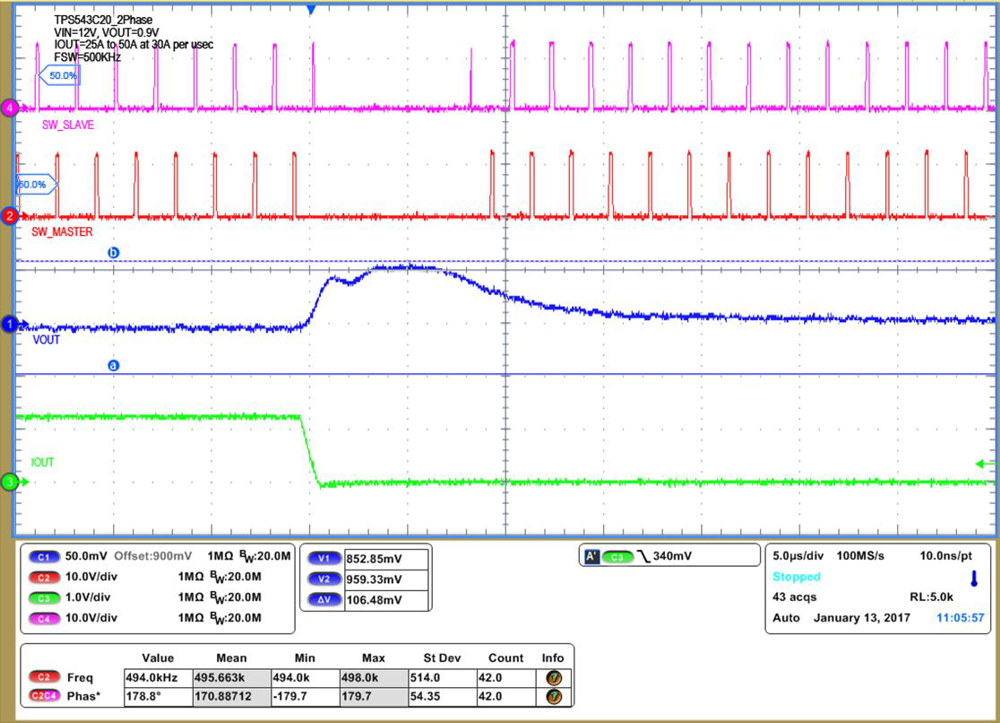

Figure 31. Transient Response of 50-A to 25-A Load
at 30 A/μs Fall

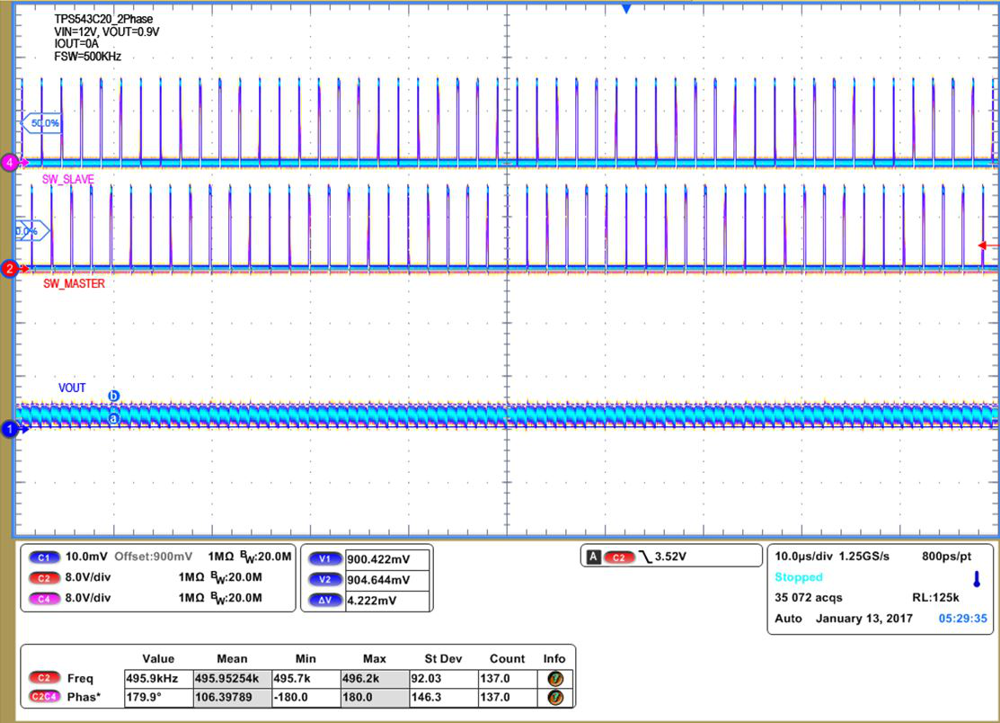

Figure 33. Output Ripple and SW Node
of 0.9-V Output at 12 VIN, 0-A Output

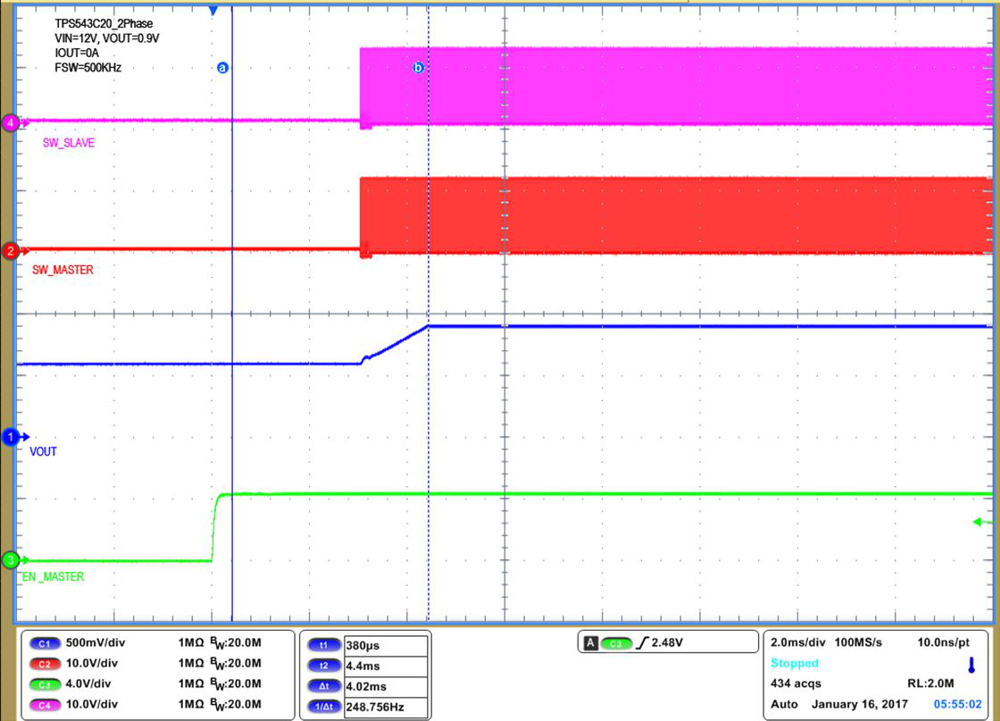

Figure 35. 0.6-V Pre-Bias Start Up From Enable,
0.9-V Output at 12 VIN, 0-A Output

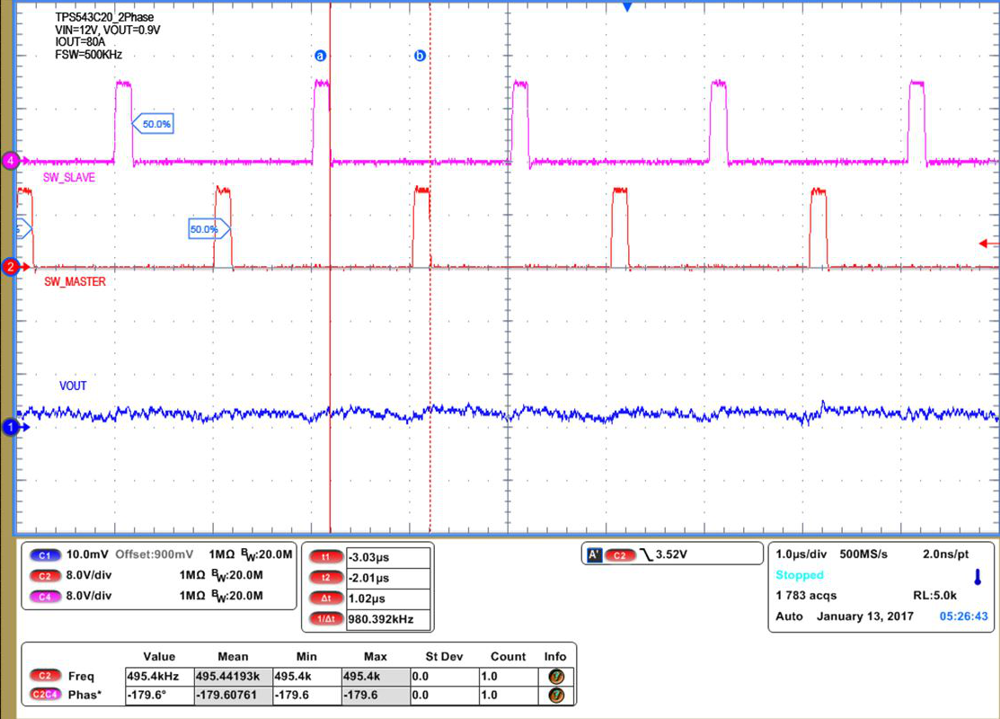

Figure 37. Master-Slave 180° Synchronization

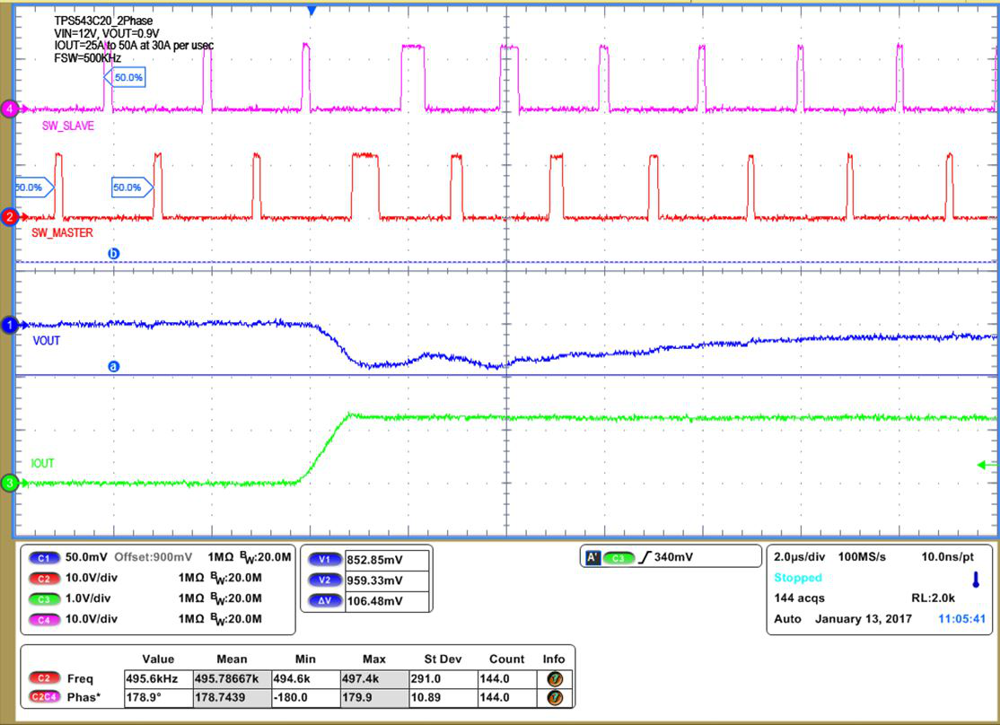

Figure 30. Transient Response of 25-A to 50-A Load
at 30 A/μs Rise

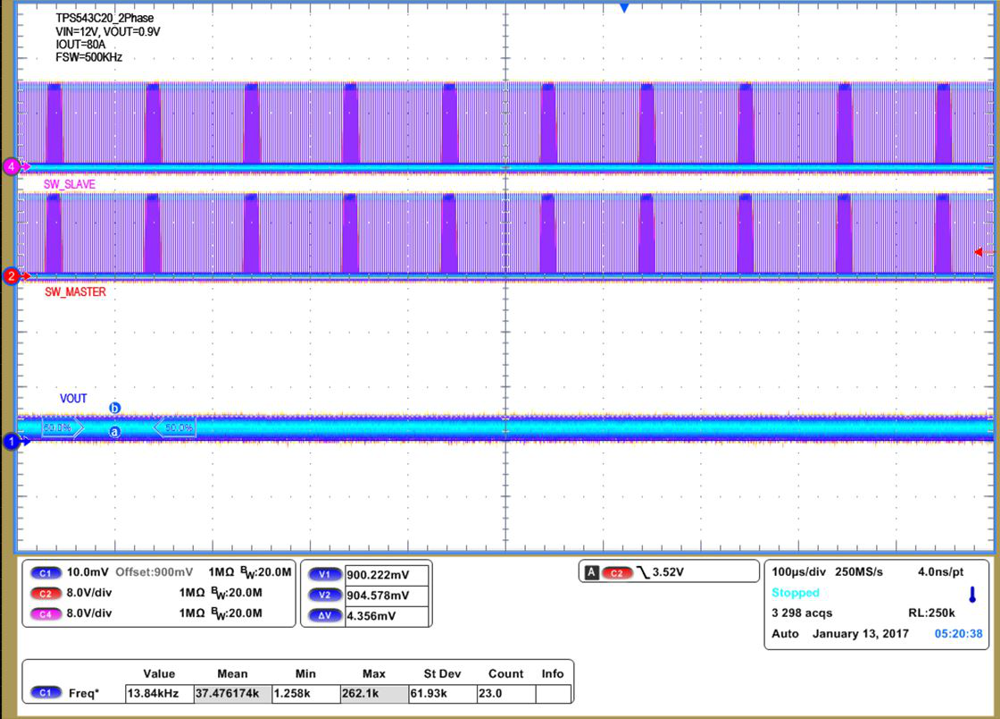

Figure 32. Output Ripple and SW Node
of 0.9-V Output at 12 VIN, 50-A Output
Figure 34. Start up from Enable,
0.9-V Output at 12 VIN, 50-A Output

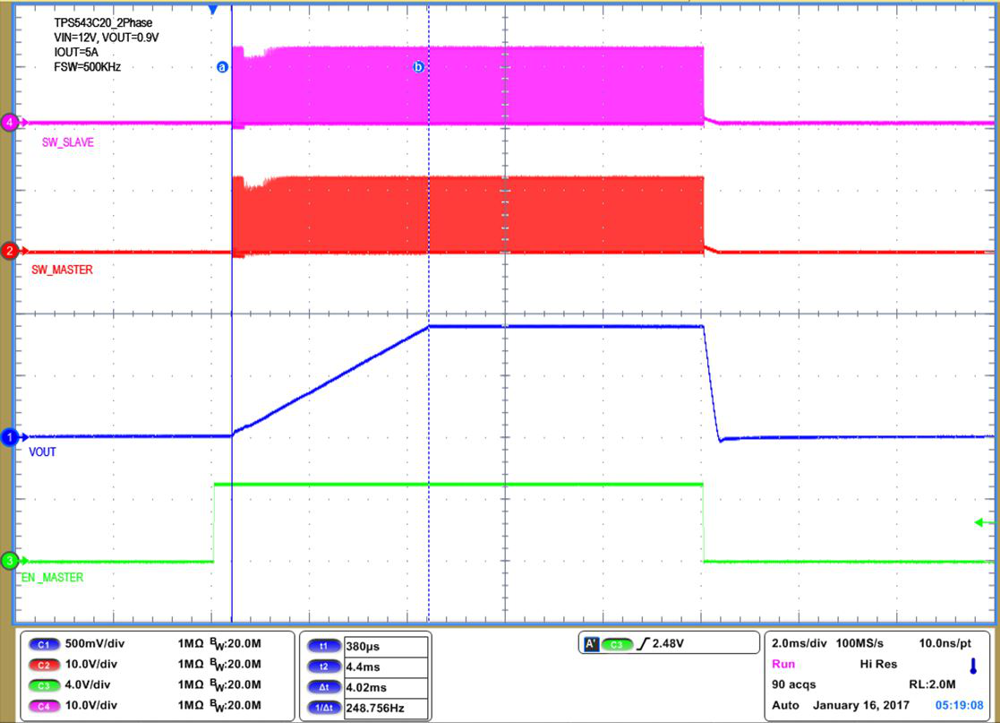

Figure 36. Output Voltage Start-up and Shutdown,
0.9-V Output at 12 VIN, 5-A Output
