ZHCSGJ0B May 2017 – March 2018 TPS543B20
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Device Comparison Table
- 6 Pin Configuration and Functions
- 7 Specifications
-
8 Detailed Description
- 8.1 Overview
- 8.2 Functional Block Diagram
- 8.3 Feature Description
- 8.4
Device Functional Modes
- 8.4.1 Soft-Start Operation
- 8.4.2 Input and VDD Undervoltage Lockout (UVLO) Protection
- 8.4.3 Power Good and Enable
- 8.4.4 Voltage Reference
- 8.4.5 Prebiased Output Start-up
- 8.4.6 Internal Ramp Generator
- 8.4.7 Switching Frequency
- 8.4.8 Clock Sync Point Selection
- 8.4.9 Synchronization and Stackable Configuration
- 8.4.10 Dual-Phase Stackable Configurations
- 8.4.11 Operation Mode
- 8.4.12 API/BODY Brake
- 8.4.13 Sense and Overcurrent Protection
- 8.4.14 Output Overvoltage and Undervoltage Protection
- 8.4.15 Overtemperature Protection
- 8.4.16 RSP/RSN Remote Sense Function
- 8.4.17 Current Sharing
- 8.4.18 Loss of Synchronization
-
9 Application and Implementation
- 9.1 Application Information
- 9.2
Typical Application: TPS543B20 Stand-alone Device
- 9.2.1 Design Requirements
- 9.2.2 Detailed Design Procedure
- 9.2.3 Application Curves
- 9.3 System Example
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息
封裝選項
機械數據 (封裝 | 引腳)
- RVF|40
散熱焊盤機械數據 (封裝 | 引腳)
- RVF|40
訂購信息
7.6 Typical Characteristics

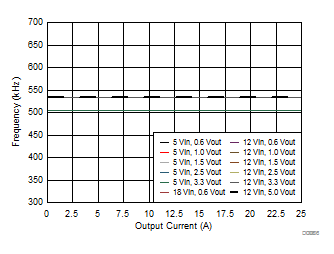

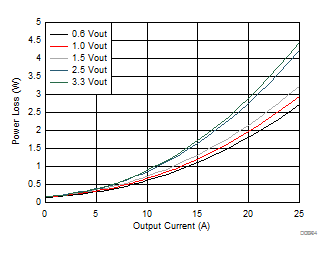

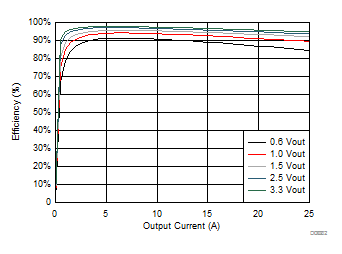

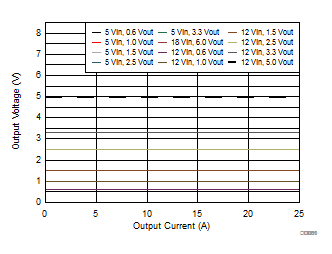

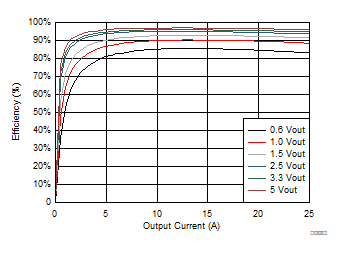

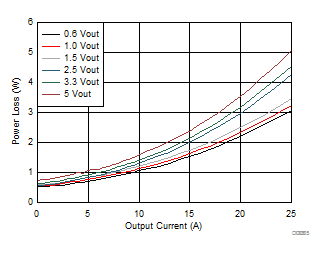

| VIN = 5 V | 500 kHz | 25°C |
| VIN = 12 V | 500 kHz | 25°C |
| 500 MHz | 25°C |

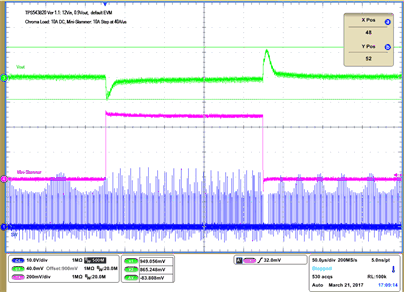

| VIN = 12 V | 10 A to 20 A to 10 A | 10-A Step at 40 A/μs | |

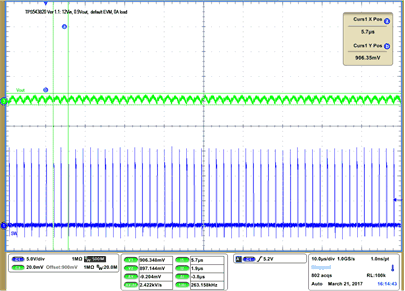

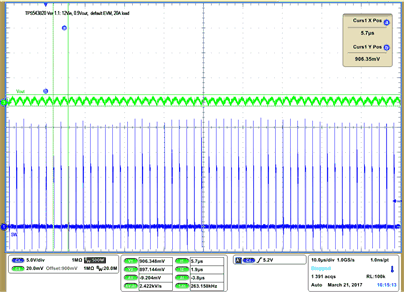

| 500 kHz | VOUT = 900 mV | ||
| VIN = 12 V | VOUT = 900 mV | 20 A Load | |
| 500 kHz | |||
| VIN = 12 V | VOUT = 900 mV | 20 A Load | |
| 500 kHz | |||
| VIN = 5 V | 500 kHz | 25°C |
| VIN = 12 V | 500 kHz | 25°C |
| 25°C |

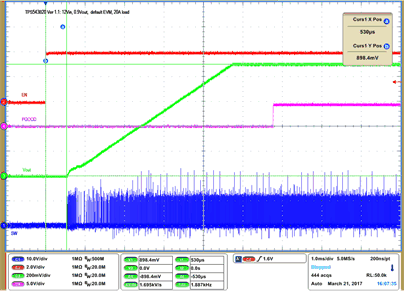

| VIN = 12 V | VOUT = 900 mV | 0 A Load | |
| 500 kHz | |||

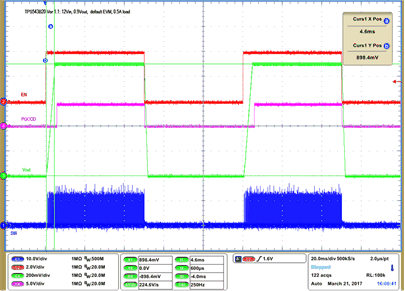

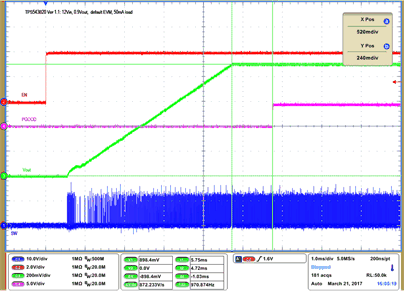

| VIN = 12 V | VOUT = 900 mV | 50 mA Load | |
| 500 kHz | |||
