9.3.1 Design 1: 2-Bit VID ICC(max) = 30 A, DCAP2 600-kHz Application for VCCIN_AUX in Intel TigerLake platform

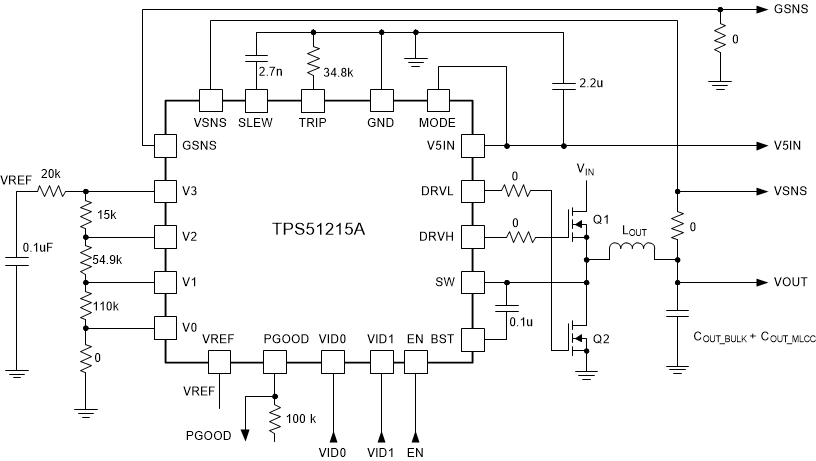

Figure 14. Application Circuit for Design 1 Table 1. VID Table for Design 1
| VID1 | VID0 | OUTPUT VOLTAGE (V) |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1.1 |
| 1 | 0 | 1.65 |
| 1 | 1 | 1.8 |
Table 2. List of Materials for Design 1
| REFERENCE
DESIGNATOR |
QTY | SPECIFICATION | MANUFACTURER | PART
NUMBER |
|---|---|---|---|---|
| CIN (not shown) | 6 | 10 µF, 25 V | TDK | C3216X5R1V106M160AB |
| COUT_BULK | 1 | 220 µF, 6.3 V, 5 mΩ | Panasonic | 6TPF220M5L |
| COUT_MLCC | 12 | 22 µF, 6.3 V | Murata | GRM21BR60J226ME39L |
| LOUT | 1 | 0.22 µH, 38 A, 1.15 mΩ | Cyntec | CMLE063T-R22MS-68 |
| Q1 Q2 | 1 | 30 V, 45A | Texas Instruments | CSD87355Q5D |
