9.4 Application Curves of Design 1

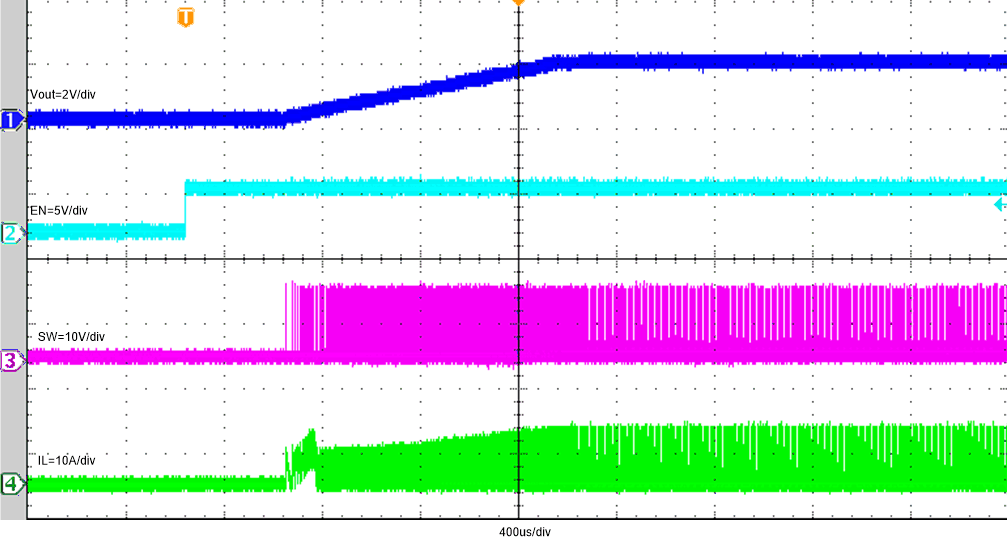

Figure 16. Start Up Relative to EN Rising

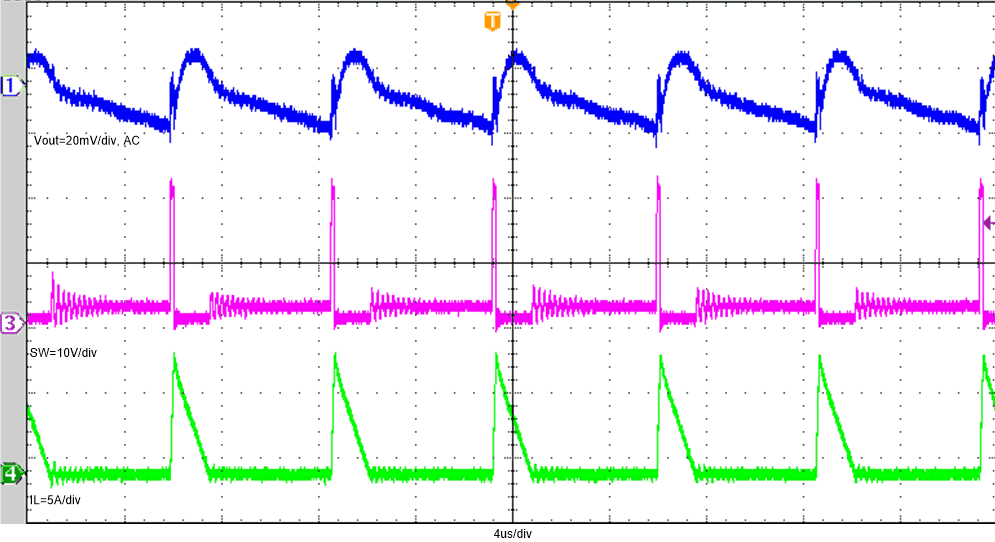

Figure 18. Steady State IOUT = 1 A

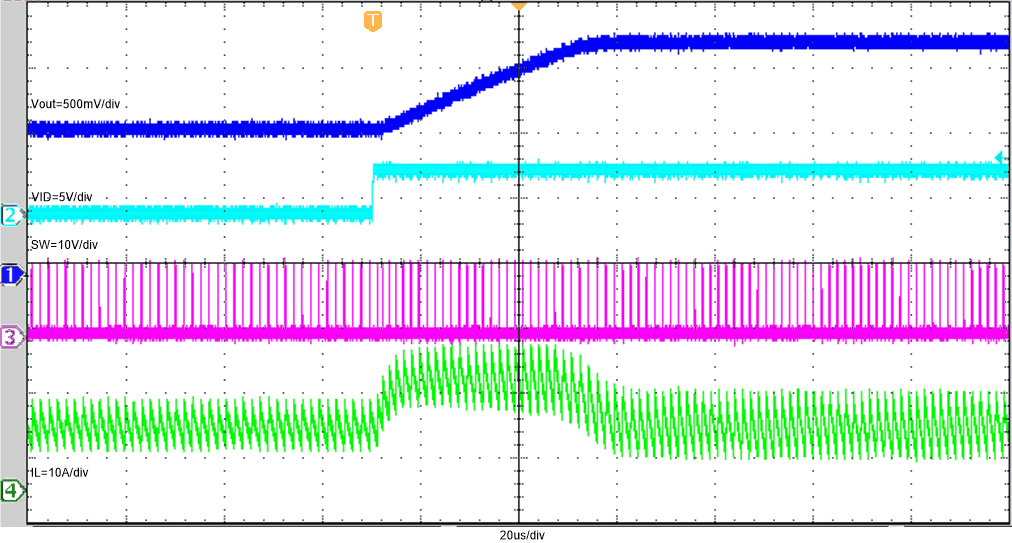

Figure 20. VID Transient, VID = 01 to 11, VOUT = 1.1 V to 1.8 V

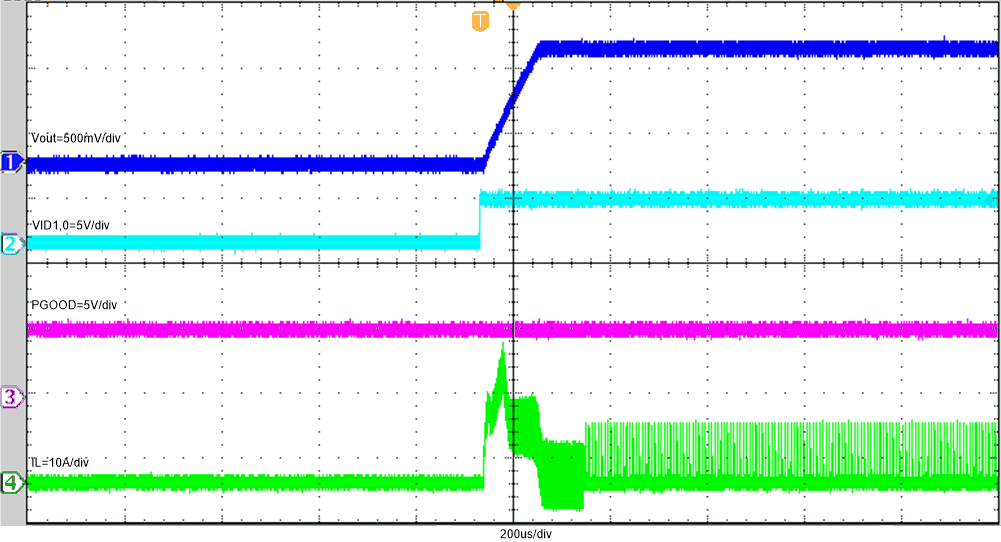

Figure 22. Low Power Mode Exit VOUT = 0 V to 1.8 V

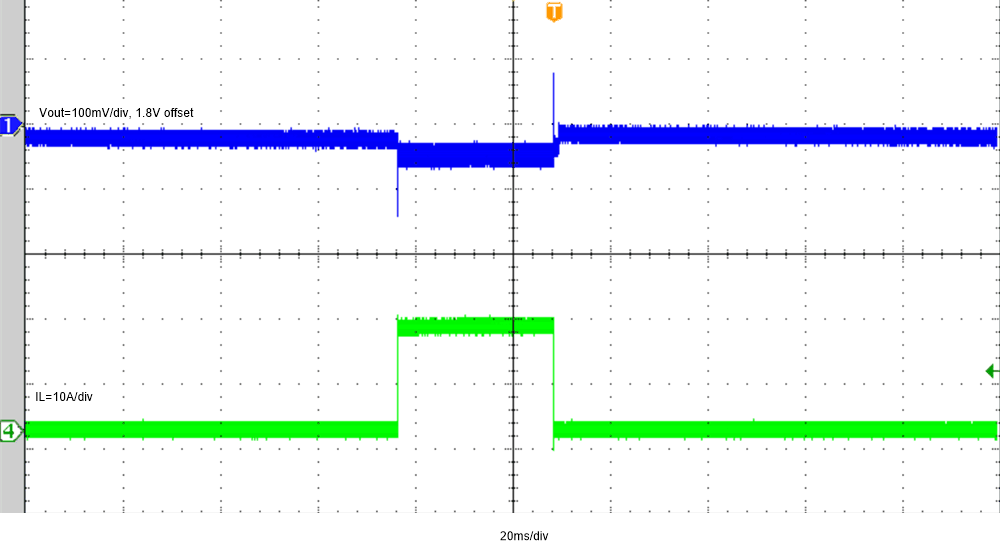

Figure 24. Load Transient, IOUT = 0 A to 16 A, Tr = Tf = 1 µs

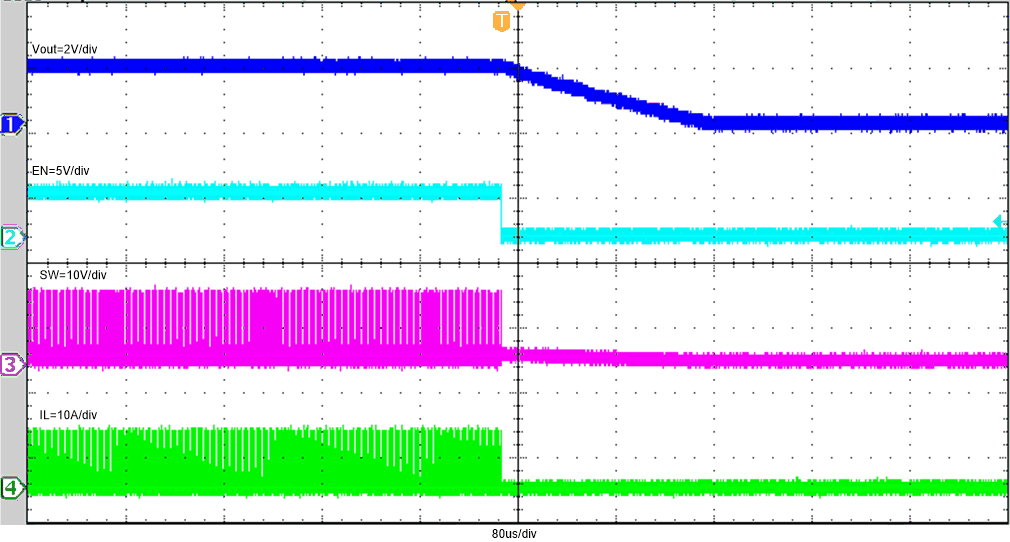

Figure 17. Shut Down Relative to EN Falling

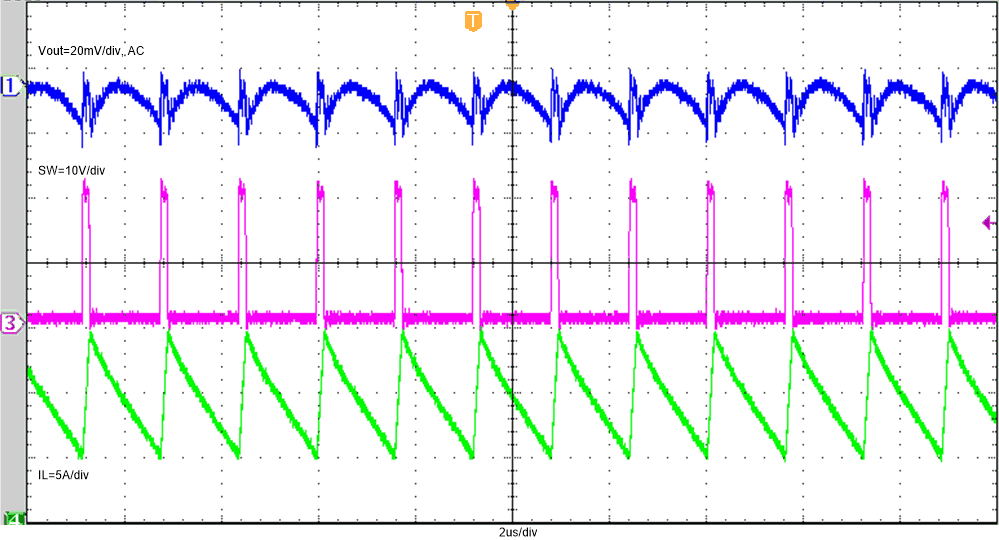

Figure 19. Steady State IOUT = 10 A

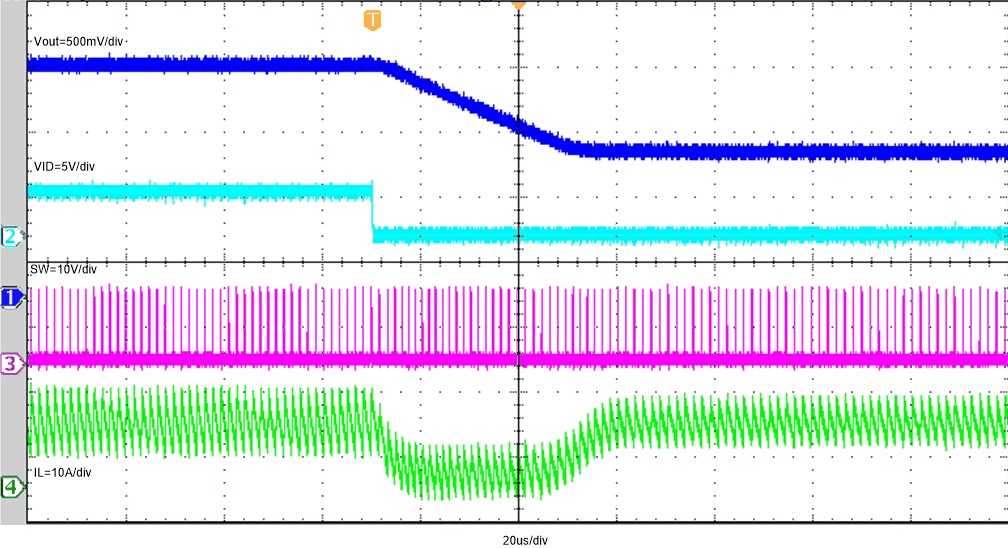

Figure 21. VID Transient, VID = 11 to 01, VOUT = 1.8 V to 1.1 V

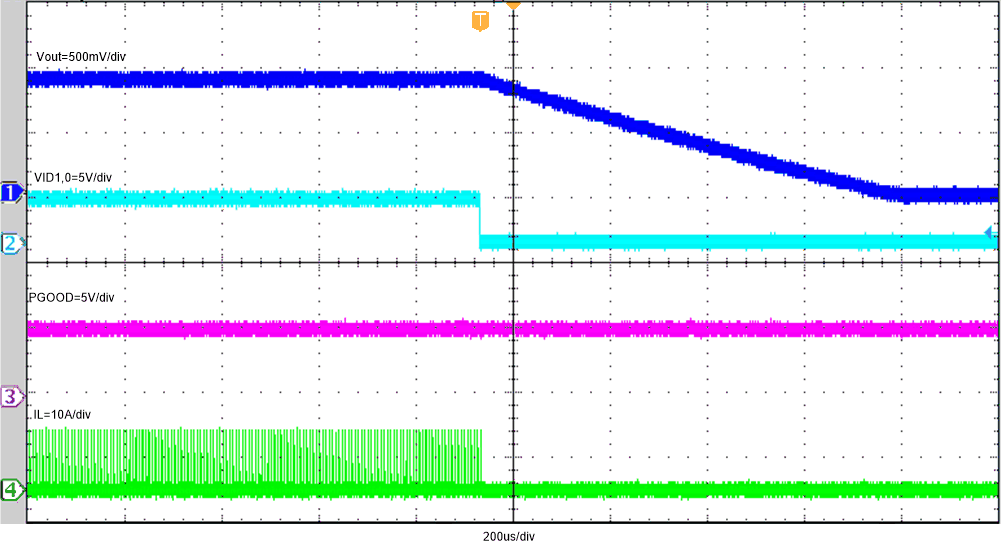

Figure 23. Low Power Mode Enter VOUT = 1.8 V to 0 V

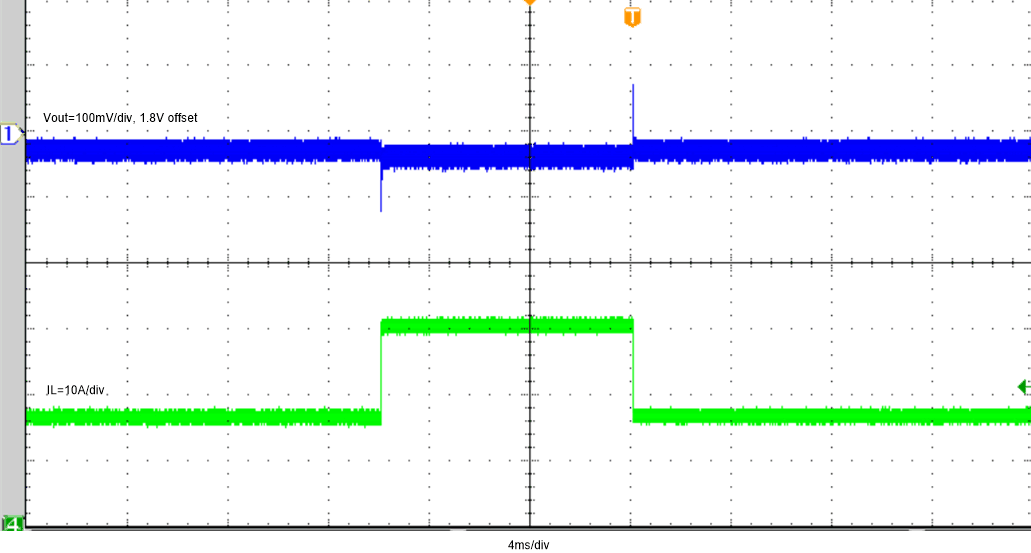

Figure 25. Load Transient, IOUT = 16 A to 30 A, Tr = Tf = 1 µs
