8.2.4 Application Curve
The evaluation module for the TPS50601A-SP was used to capture a load step response of the device. The testing conditions were:
- VIN = PVIN = 5 V
- VOUT = 2.5 V
- Load step = 0 A to 5 A
- Switching frequency = 100 kHz

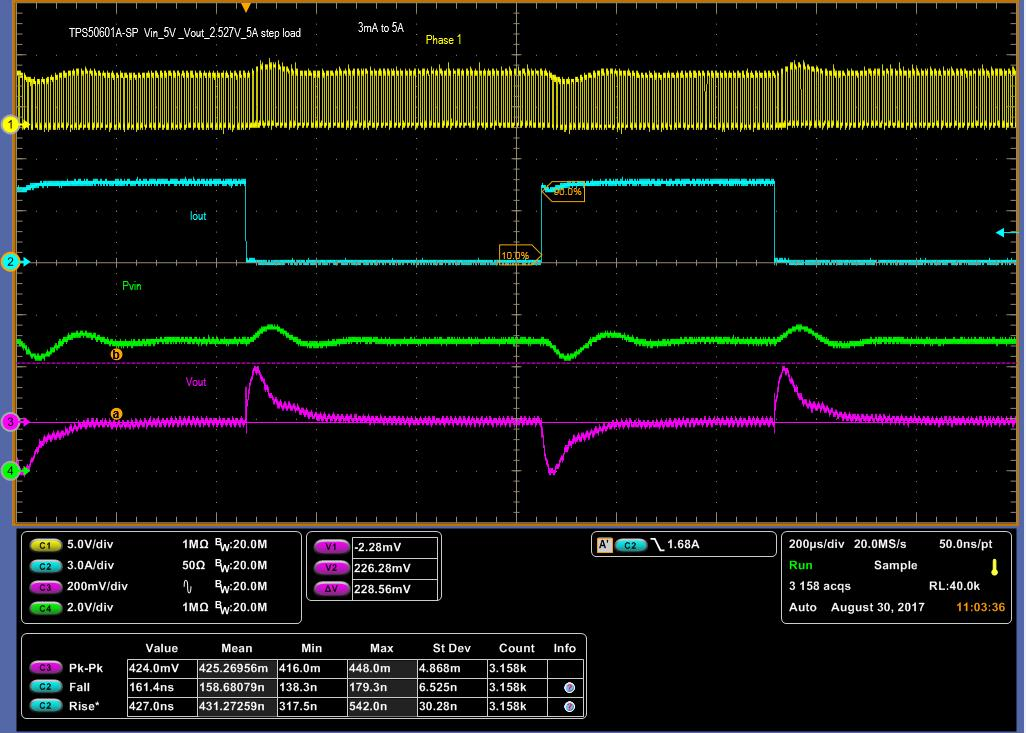

Figure 25. 5-A Step Response for 100-kHz Switching Operation
