8.3.3 Application Curves Design 2
Unless otherwise stated, application curves were taken at TA = 25°C.

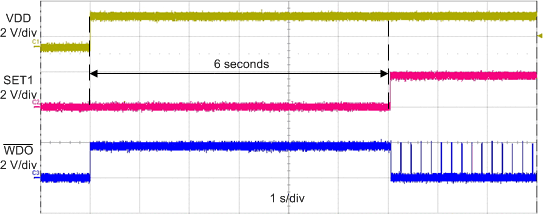

Figure 8-7 Startup Without a WDI Signal
Figure 8-9 Watchdog Disabled With Missing WDI Pulse

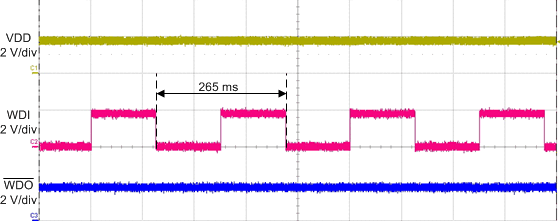

Figure 8-8 Typical WDI Signal
