6.8 Typical Characteristics
all curves are taken at TA = 25°C with 1.6 V ≤ VDD ≤ 6.5 V (unless otherwise noted)

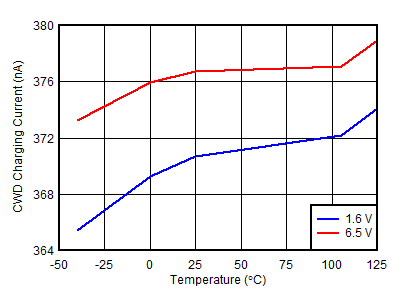

Figure 6-4 CWD Charging Current vs Temperature

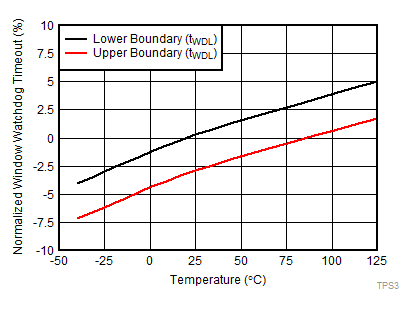

Figure 6-6 Normalized Watchdog Timeout Accuracy Over Temperature (SET0 = 1, SET1 = 1, CWD = NC)

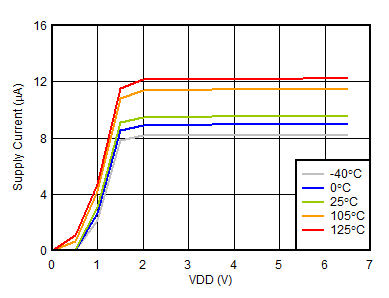

Figure 6-5 Supply Current vs Power-Supply Voltage

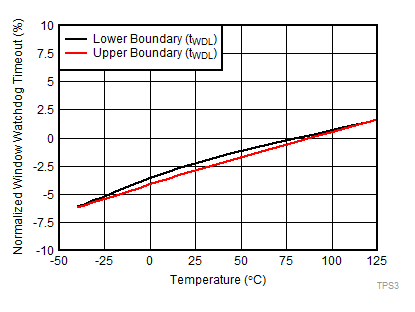

Figure 6-7 Normalized Watchdog Timeout Accuracy Over Temperature (SET0 = 1, SET1 = 1, CWD = 10kΩ to VDD)
