7.10 Typical DC Characteristics

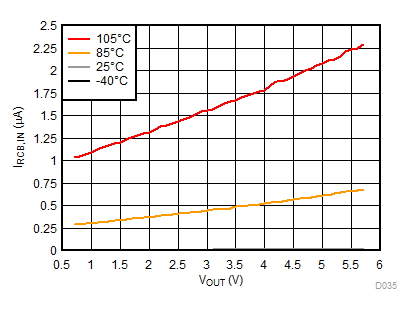

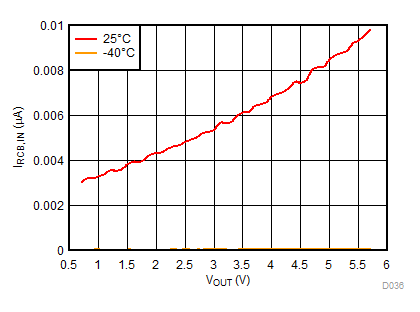

| VIN = 1.8 V | VEN = 5.7 V | VOUT = 0 V |

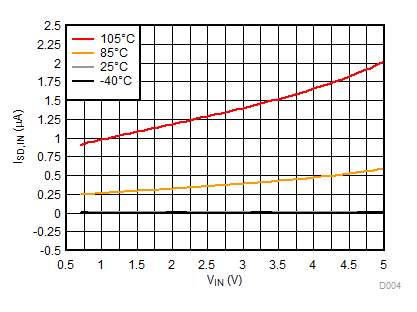

| VIN = 1.8 V | VEN = 0 V | VOUT = 0 V |

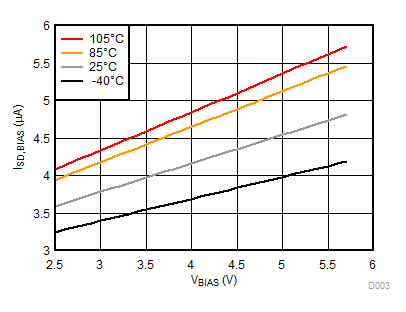

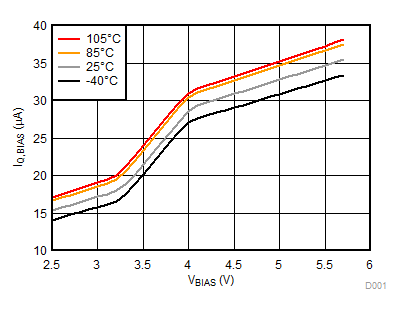

| VBIAS = 0 V to 5.7 V | VEN = 0 V | VIN = 0 V |

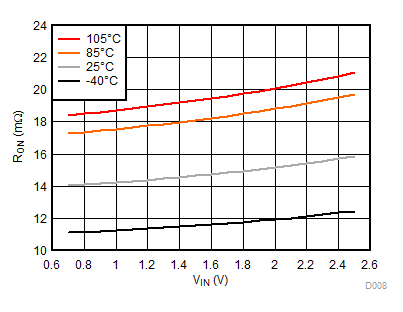

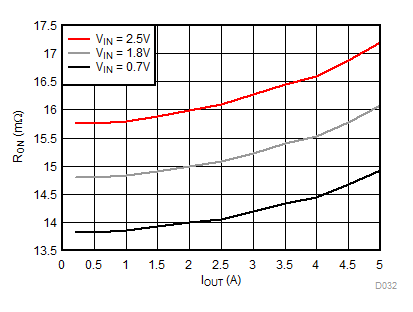

| VBIAS = 2.5 V | Iout = –200 mA | VEN = 5 V |

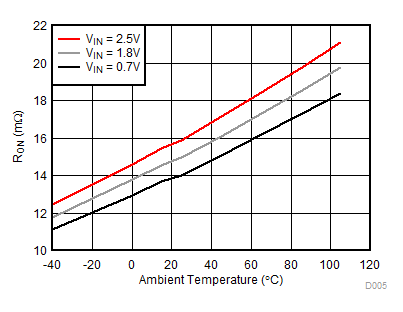

| VBIAS = 2.5 V | Iout = –200 mA | VEN = 5 V |
| VBIAS = 5 V | Iout = –200 mA | VEN = 5 V |

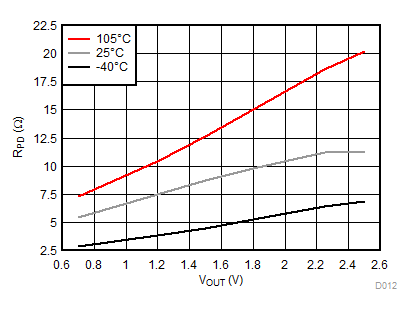

| VBIAS = 2.5 V | VEN = 5 V | |
| VBIAS = 5 V | VEN = 5 V | |
| VBIAS = 3.3 V | VIN = VOUT | VEN = 0 V |
| VBIAS = 5 V | VEN = 5.7 V | VOUT = 0 V |
| VBIAS = 5 V | VEN = 0 V | VOUT = 0 V |
| VBIAS = 0 V to 5.7 V | VEN = 0 V | VIN = 0 V |

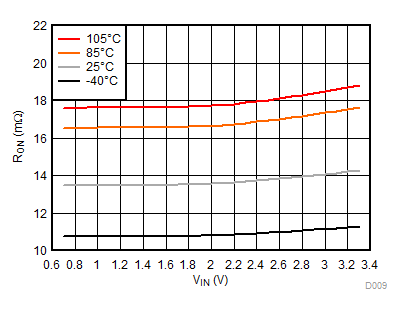

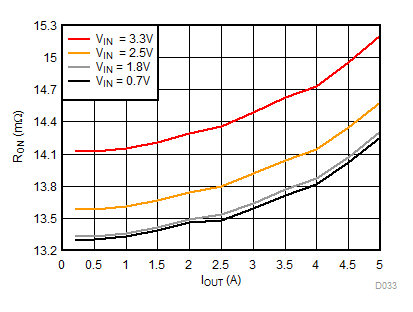

| VBIAS = 3.3 V | Iout = –200 mA | VEN = 5 V |

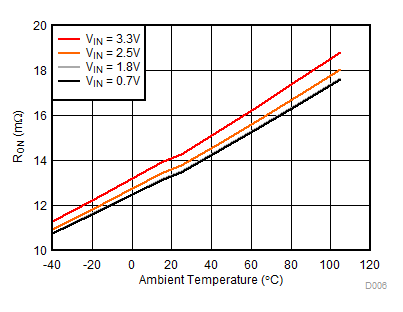

| VBIAS = 3.3 V | Iout = –200 mA | VEN = 5 V |

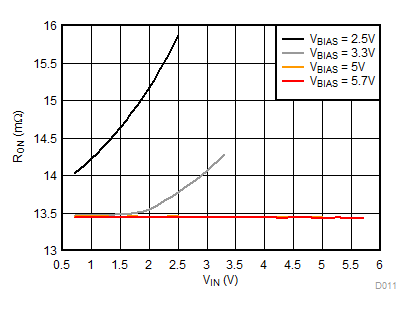

| TA = 25°C | Iout = –200 mA | VEN = 5 V |

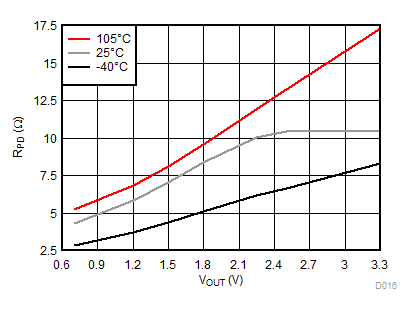

| VBIAS = 3.3 V | VEN = 5 V | |
| VBIAS = 2.5 V | VIN = VOUT | VEN = 0 V |
| VBIAS = 5 V | VIN = VOUT | VEN = 0 V |
