7.11 Typical Switching Characteristics

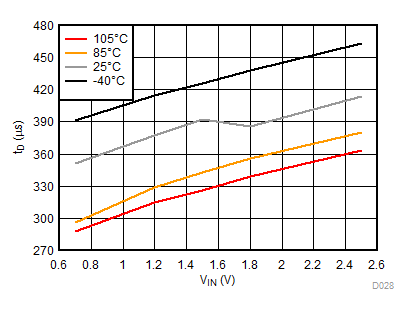

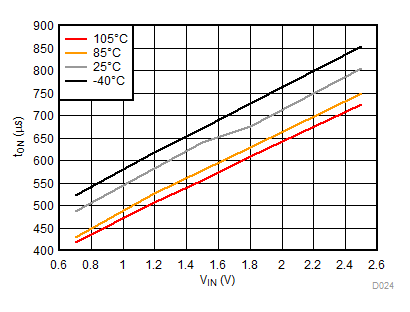

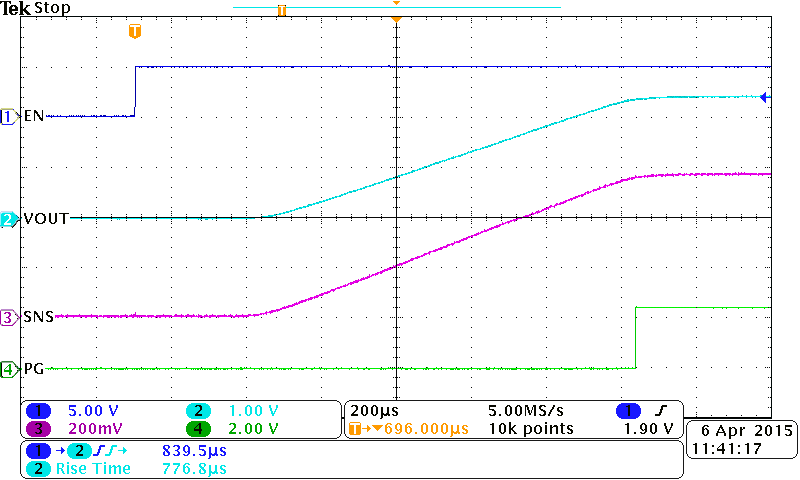

| VBIAS = 2.5 V | CT = 1000 pF | VEN = Low to High |

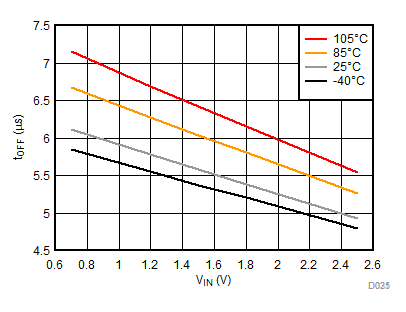

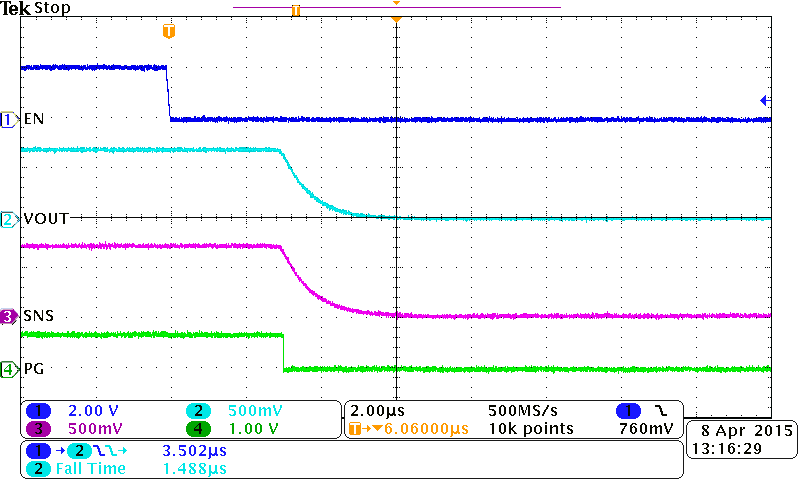

| VBIAS = 2.5 V | CT = 1000 pF | VEN = High to Low |

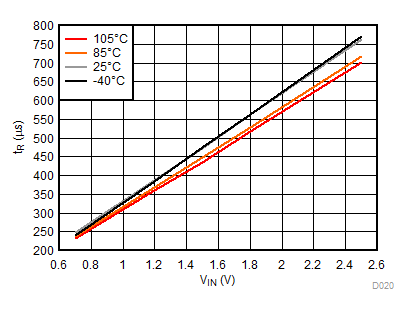

| VBIAS = 2.5 V | CT = 1000 pF | VEN = Low to High |

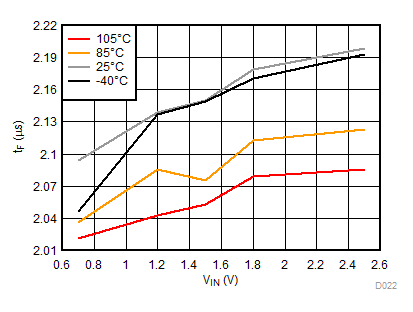

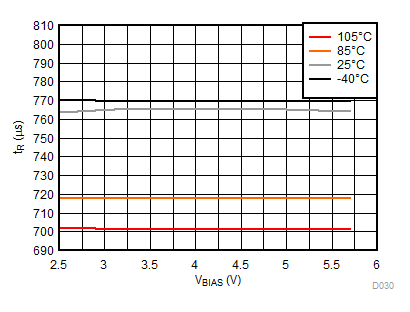

| VBIAS = 2.5 V | CT = 1000 pF | VEN = High to Low |
| VBIAS = 2.5 V | CT = 1000 pF | VEN = Low to High |
| VIN = 2.5 V | CT = 1000 pF | VEN = Low to High | ||

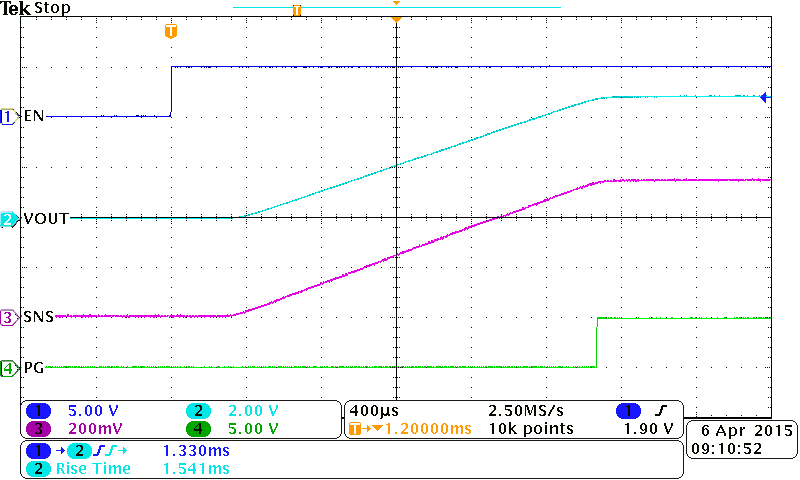

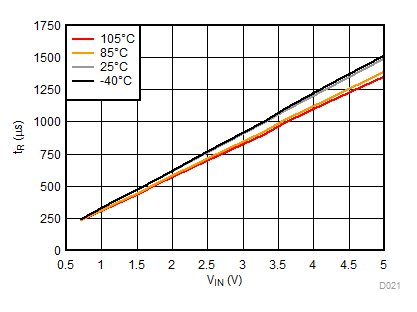

| VBIAS = 5 V | CT = 1000 pF | VEN = Low to High |

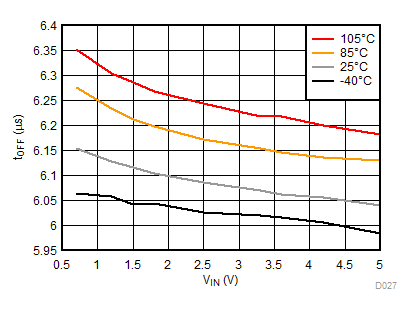

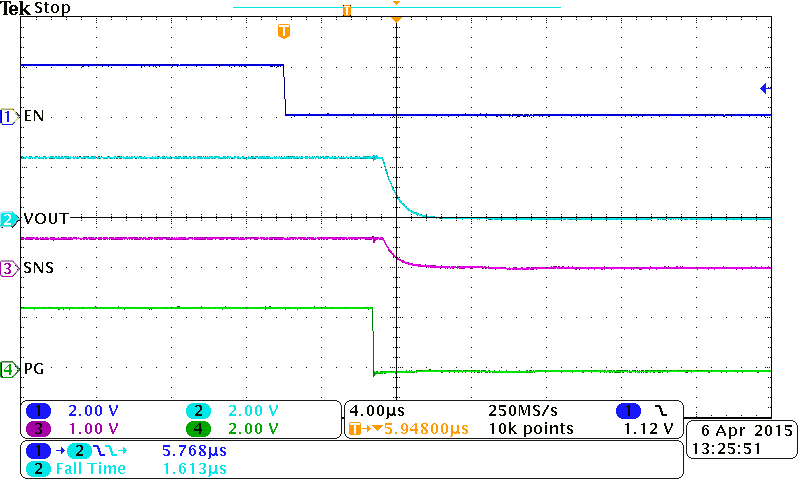

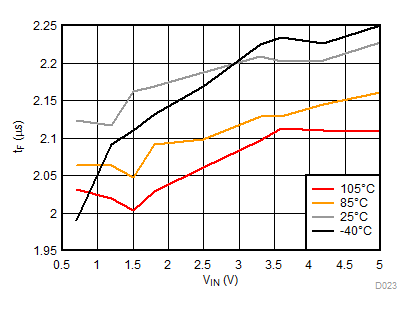

| VBIAS = 5 V | CT = 1000 pF | VEN = High to Low |
| VBIAS = 5 V | CT = 1000 pF | VEN = Low to High |
| VBIAS = 5 V | CT = 1000 pF | VEN = High to Low |

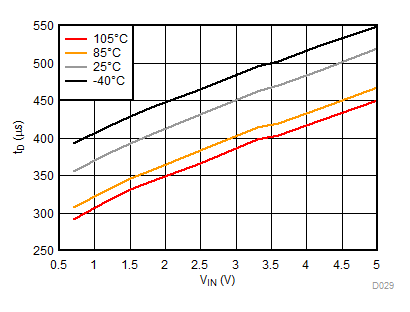

| VBIAS = 5 V | CT = 1000 pF | VEN =Low to High |

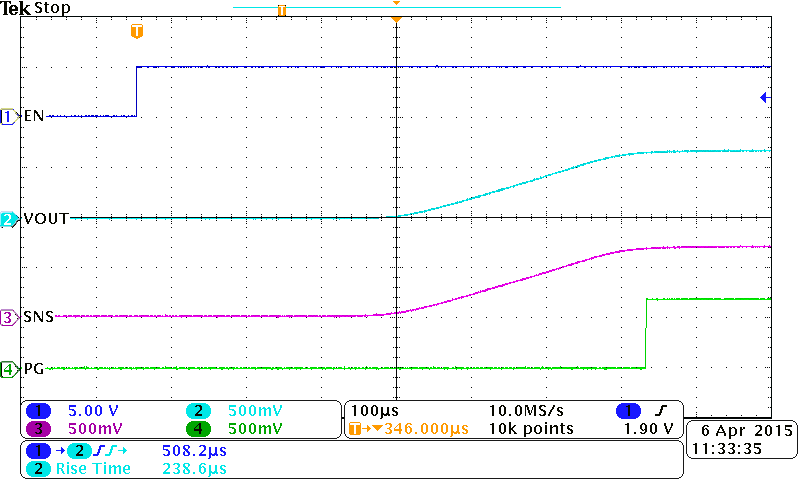

| VIN = 0.7 V | VBIAS = 2.5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |

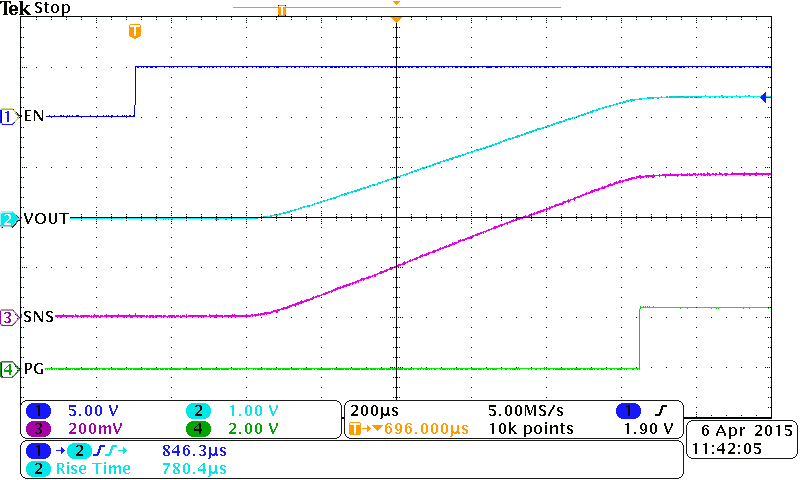

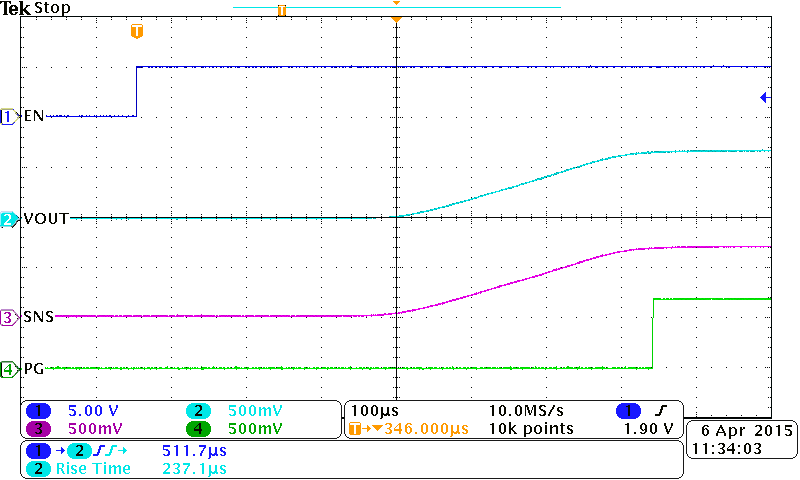

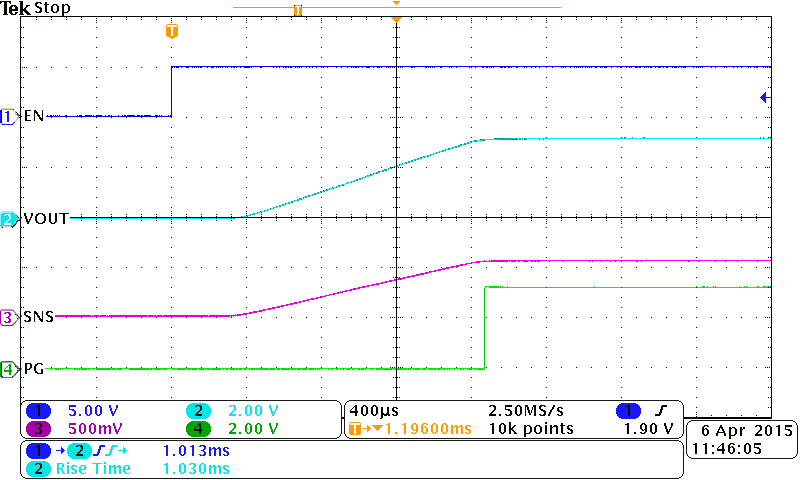

| VIN = 0.7 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 2.5 V | VBIAS = 2.5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 2.5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 3.3 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |

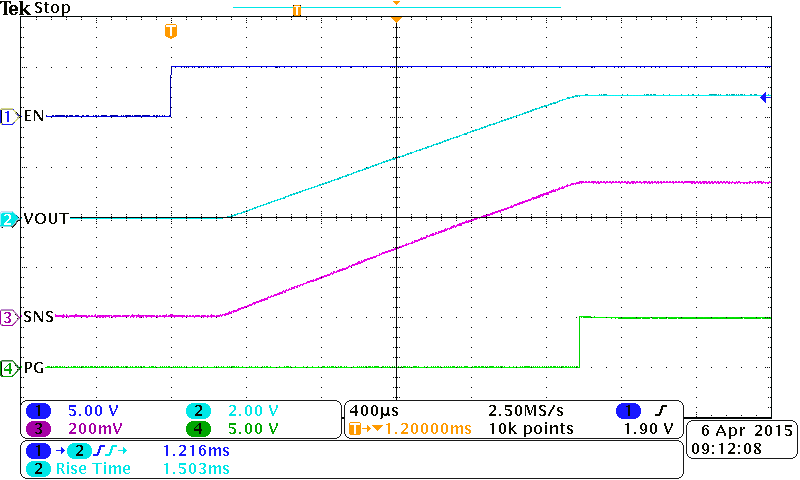

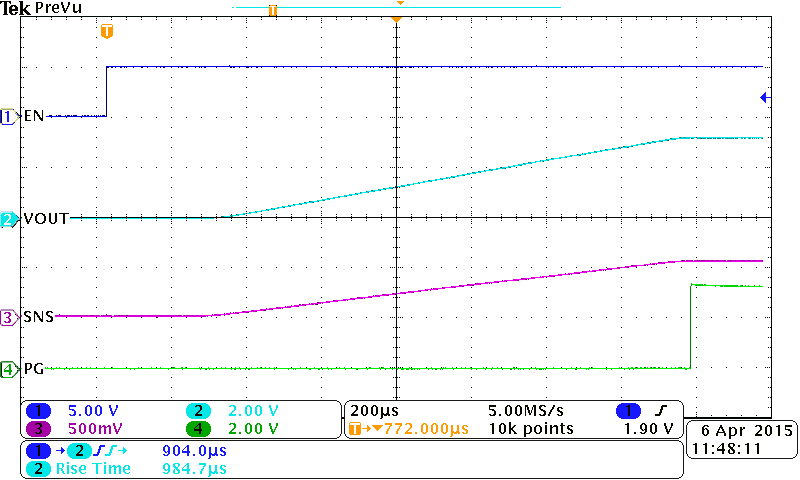

| VIN = 3.3 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = Open |
| VIN = 3.3 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 1 Ω |

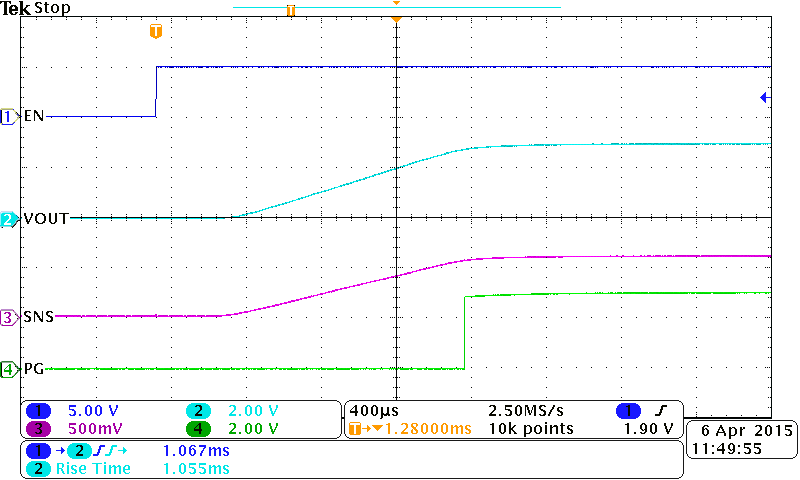

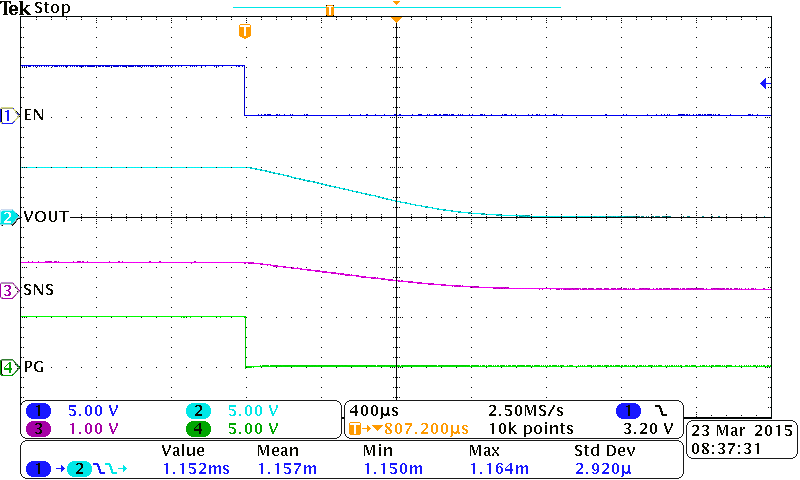

| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 100 μF | RL = 10 Ω |

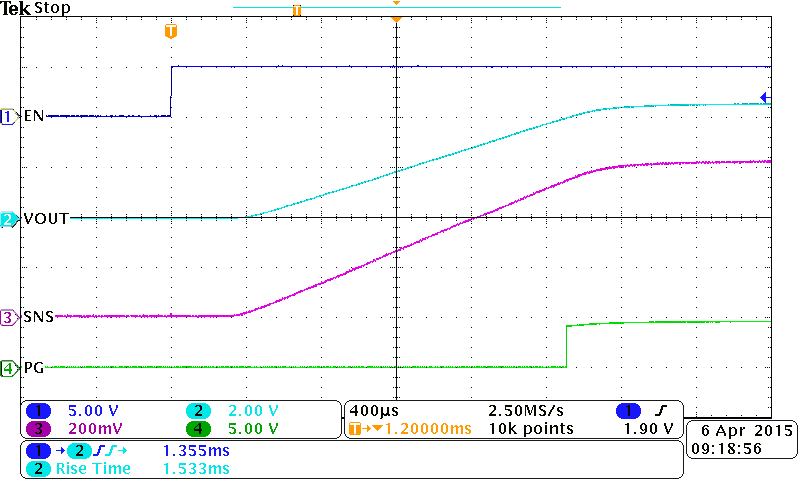

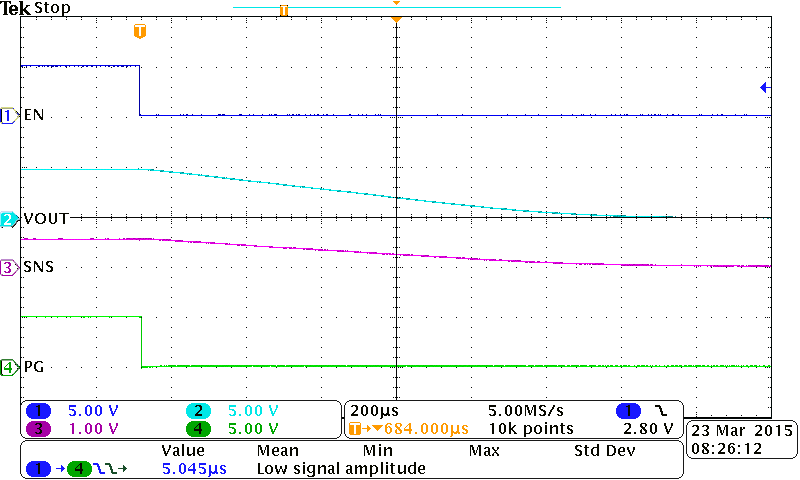

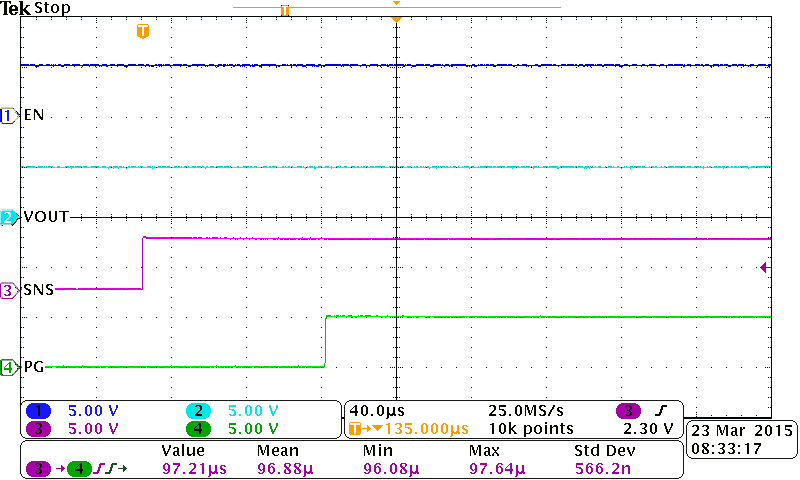

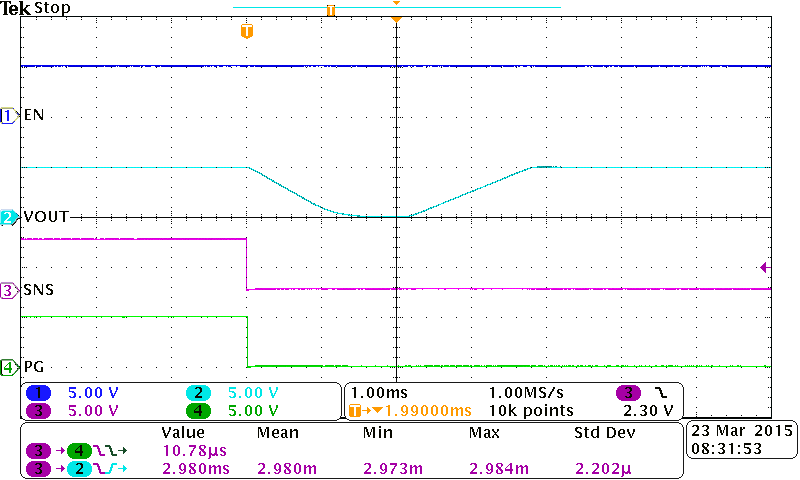

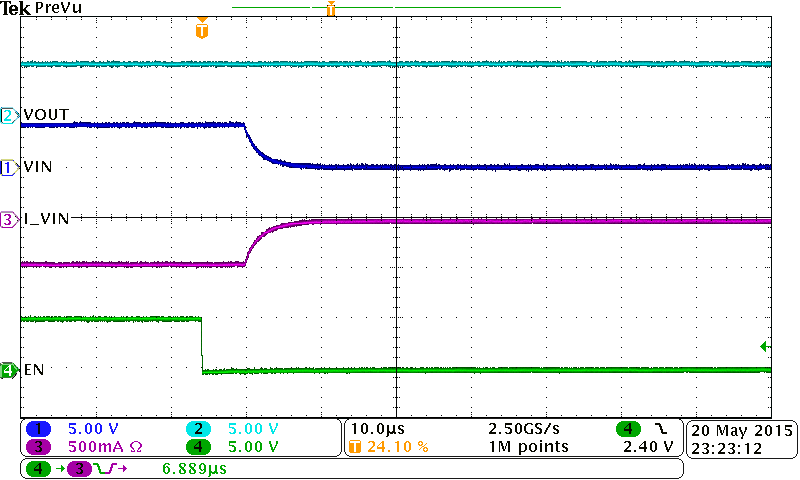

| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 100 μF | RL = 10 Ω |
| VIN = 10 Ω to GND | VBIAS = 5 V | |||
| CIN = 0.2 μF | VOUT = 5 V |

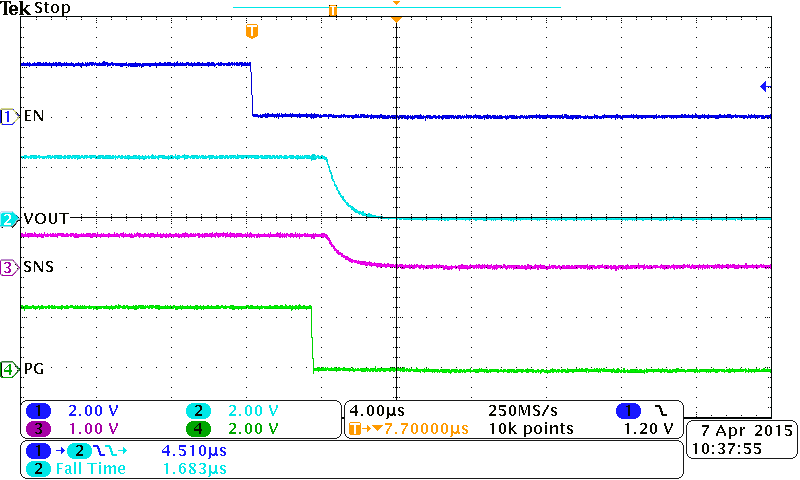

| VIN = 0.7 V | VBIAS = 2.5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |

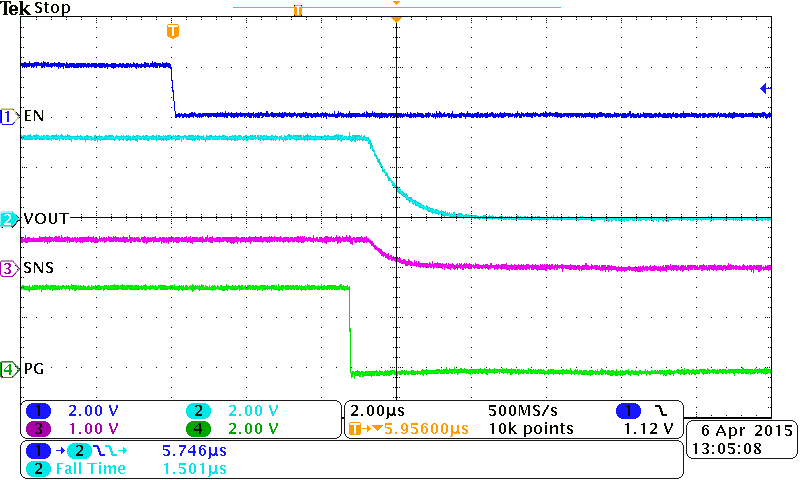

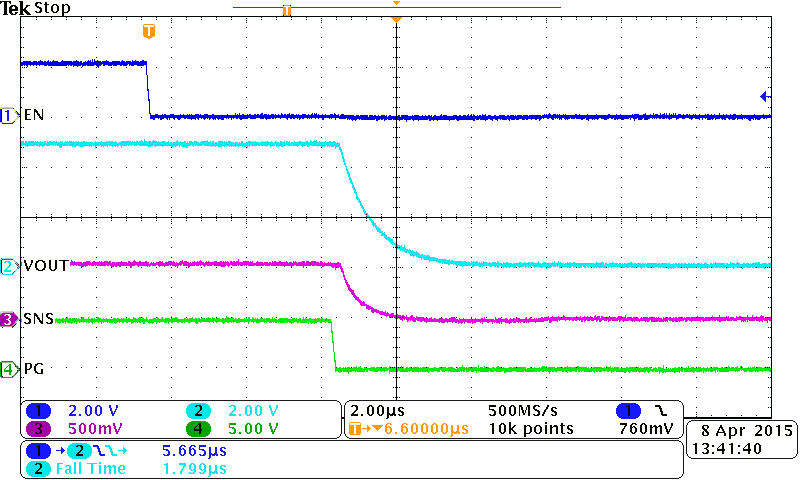

| VIN = 0.7 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 2.5 V | VBIAS = 2.5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 2.5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 3.3 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |
| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 10 Ω |

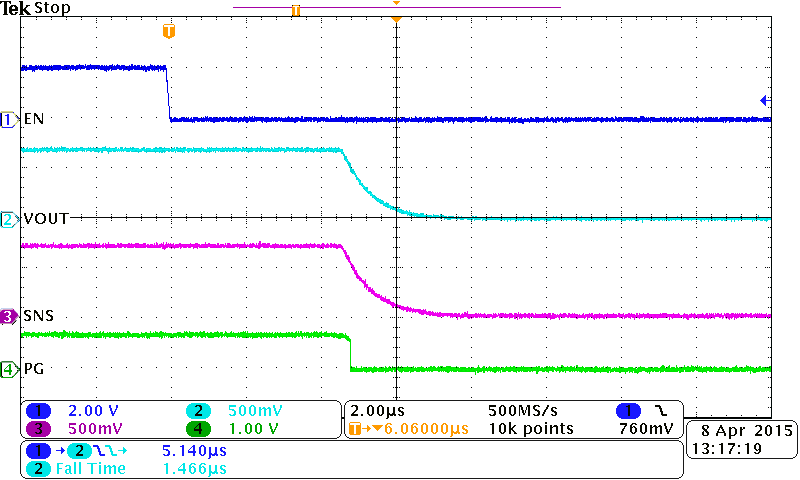

| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = Open |
| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 0.1 μF | RL = 1 Ω |
| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 100 μF | RL = 10 Ω |
| VIN = 5 V | VBIAS = 5 V | CT = 1000 pF |
| CIN = 1 μF | CL = 100 μF | RL = None |
