6.7 Typical Characteristics
fs = 400 kHz, BD Mode (unless otherwise noted)

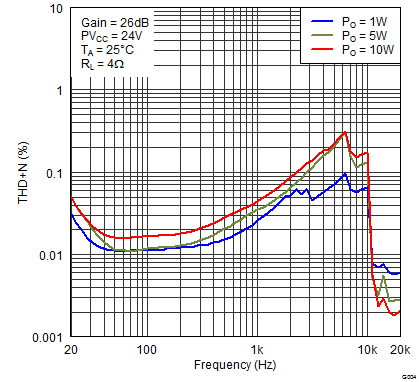

Figure 1. Total Harmonic Distortion + Noise (BTL) vs Frequency

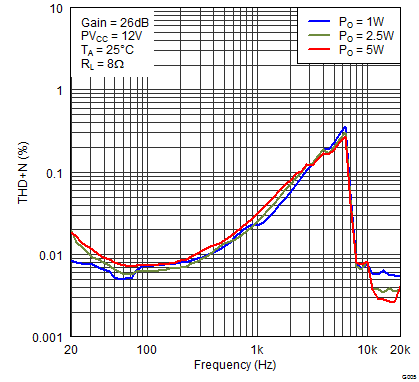

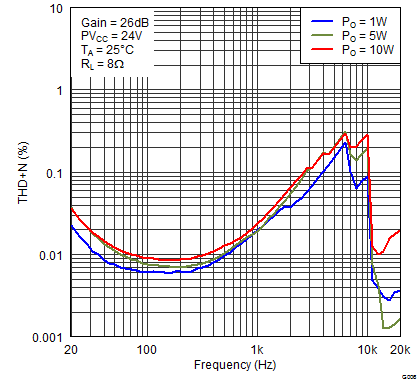

Figure 3. Total Harmonic Distortion + Noise (BTL) vs Frequency
Figure 5. Total Harmonic Distortion + Noise (BTL) vs Frequency

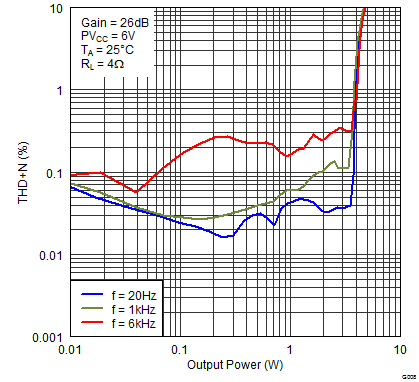

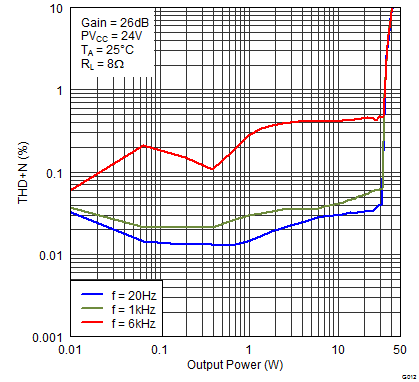

Figure 7. Total Harmonic Distortion + Noise (BTL) vs Output Power

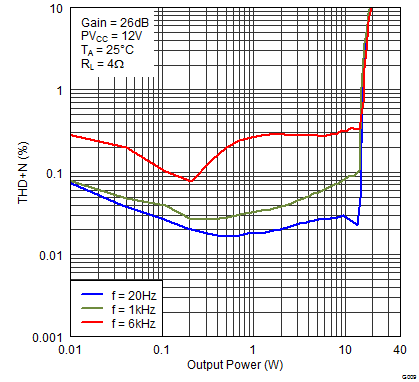

Figure 9. Total Harmonic Distortion + Noise (BTL) vs Output Power

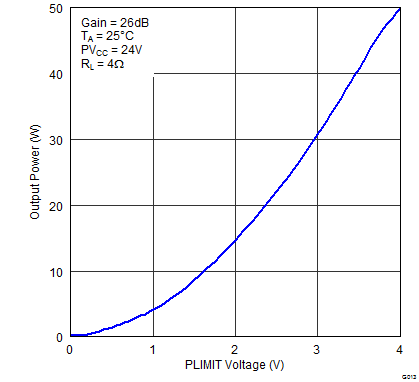

Figure 11. Output Power (BTL) vs Plimit Voltage

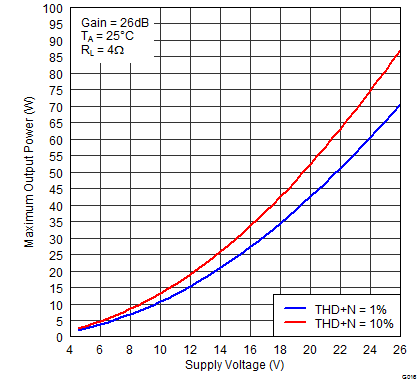

Figure 13. Maximum Output Power (BTL) vs Supply Voltage

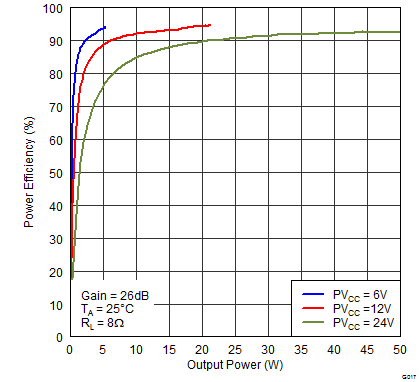

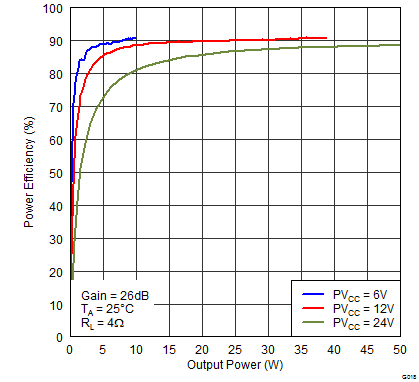

Figure 15. Power Efficiency (BTL) vs Output Power

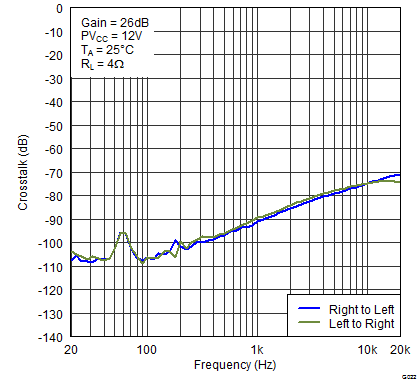

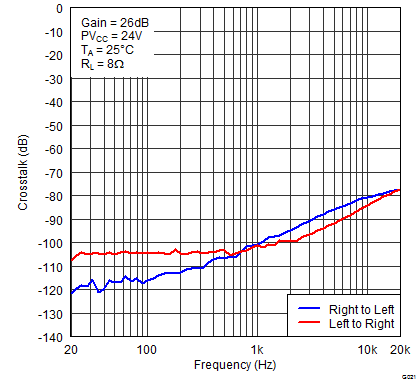

Figure 17. Crosstalk vs Frequency

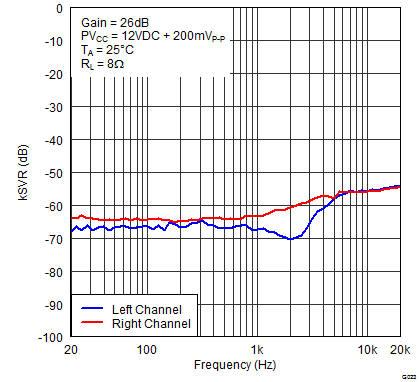

Figure 19. Supply Ripple Rejection Ratio (BTL) vs Frequency
Figure 21. Total Harmonic Distortion + Noise (PBTL) vs Output Power

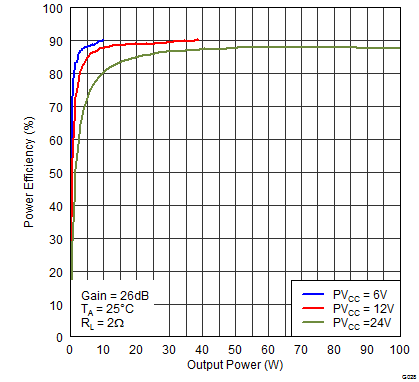

Figure 23. Power Efficiency (PBTL) vs Output Power

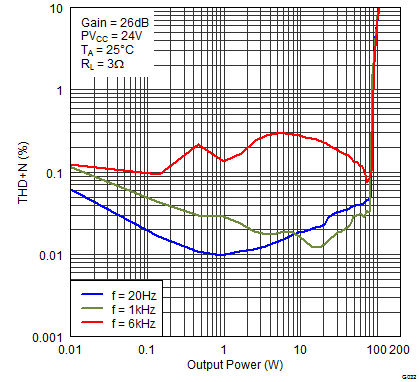

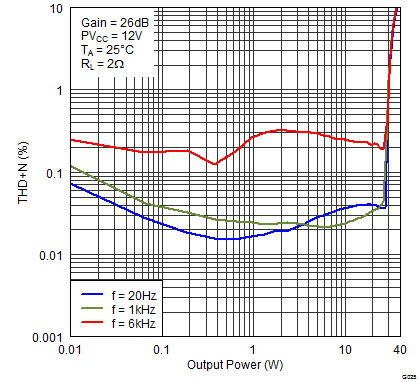

Figure 25. Total Harmonic Distortion + Noise (PBTL) vs Output Power

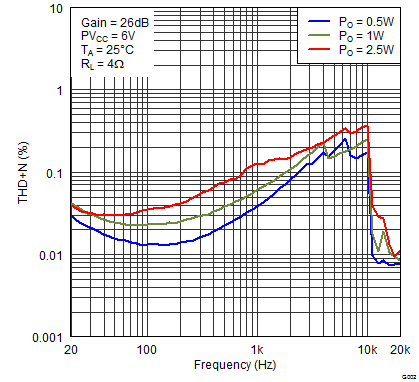

Figure 2. Total Harmonic Distortion + Noise (BTL) vs Frequency

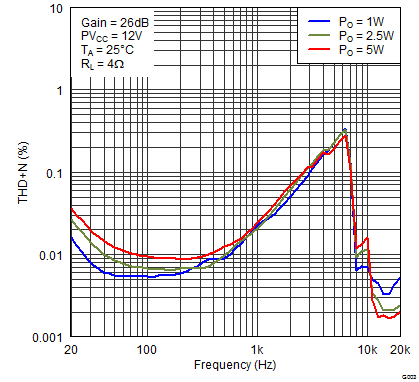

Figure 4. Total Harmonic Distortion + Noise (BTL) vs Frequency

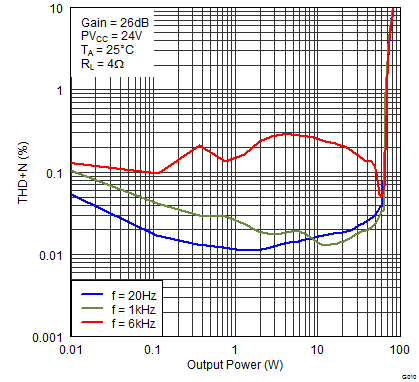

Figure 6. Total Harmonic Distortion + Noise (BTL) vs Output Power

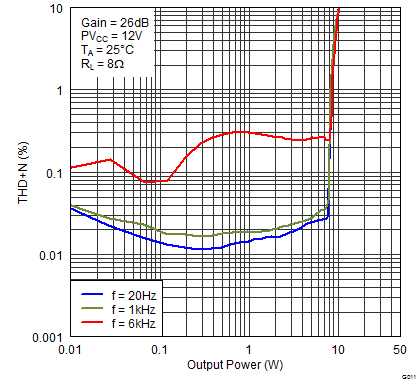

Figure 8. Total Harmonic Distortion + Noise (BTL) vs Output Power
Figure 10. Total Harmonic Distortion + Noise (BTL) vs Output Power

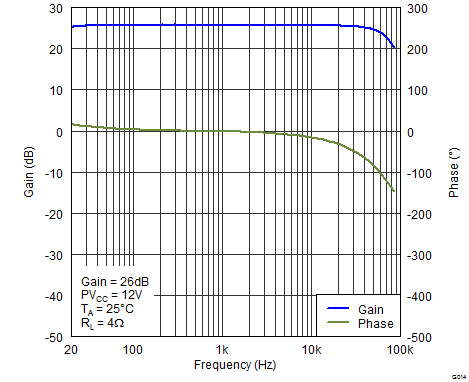

Figure 12. Gain/Phase (BTL) vs Frequency

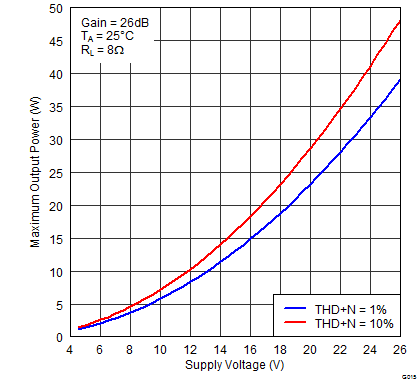

Figure 14. Maximum Output Power (BTL) vs Supply Voltage
Figure 16. Power Efficiency (BTL) vs Output Power
Figure 18. Crosstalk vs Frequency

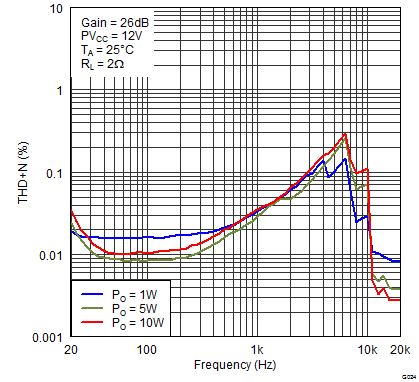

Figure 20. Total Harmonic Distortion + Noise (PBTL) vs Frequency

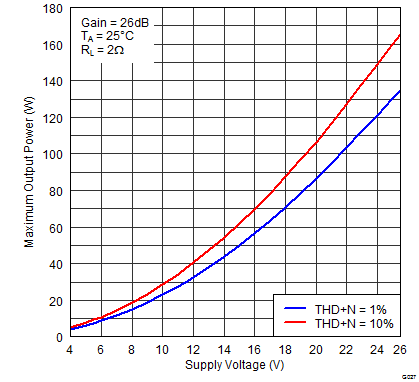

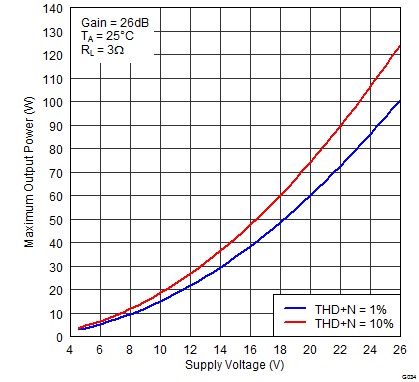

Figure 22. Maximum Output Power (PBTL) vs Supply Voltage

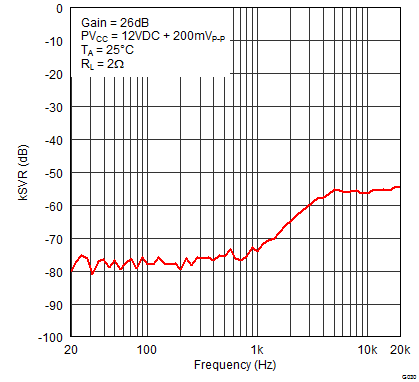

Figure 24. Supply Ripple Rejection Ratio (PBTL) vs Frequency
Figure 26. Maximum Output Power (PBTL) vs Supply Voltage
