8.9 Crosstalk
There are two types of crosstalk that can be defined for the devices:
- Intra-channel crosstalk (XTALK(INTRA)): the voltage at the source pin (Sx) of an off-switch input when a signal is applied at the source pin of an on-switch input in the same channel, as shown in Figure 8-9 .
- Inter-channel crosstalk (XTALK(INTER)): the voltage at the source pin (Sx) of an on-switch input when a signal is applied at the source pin of an on-switch input in a different channel, as shown in Figure 8-10. Inter-channel crosstalk applies only to the TMUX8109 device.

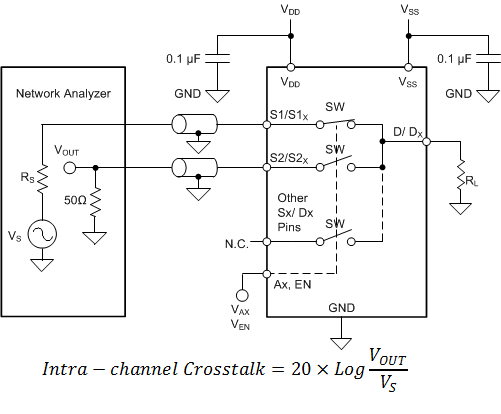

Figure 8-9 Intra-channel Crosstalk Measurement Setup

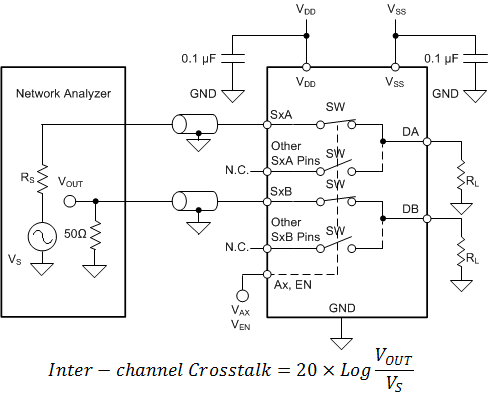

Figure 8-10 Inter-channel Crosstalk Measurement Setup
