ZHCSNF7G February 2021 – July 2024 TMUX7234
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Thermal Information
- 5.4 Recommended Operating Conditions
- 5.5 Source or Drain Continuous Current
- 5.6 ±15 V Dual Supply: Electrical Characteristics?
- 5.7 ±15 V Dual Supply: Switching Characteristics?
- 5.8 ±20 V Dual Supply: Electrical Characteristics
- 5.9 ±20 V Dual Supply: Switching Characteristics
- 5.10 44 V Single Supply: Electrical Characteristics?
- 5.11 44 V Single Supply: Switching Characteristics?
- 5.12 12 V Single Supply: Electrical Characteristics?
- 5.13 12 V Single Supply: Switching Characteristics?
- 5.14 Typical Characteristics
-
6 Parameter Measurement Information
- 6.1 On-Resistance
- 6.2 Off-Leakage Current
- 6.3 On-Leakage Current
- 6.4 Transition Time
- 6.5 tON(EN) and tOFF(EN)
- 6.6 Break-Before-Make
- 6.7 tON (VDD) Time
- 6.8 Propagation Delay
- 6.9 Charge Injection
- 6.10 Off Isolation
- 6.11 Crosstalk
- 6.12 Bandwidth
- 6.13 THD + Noise
- 6.14 Power Supply Rejection Ratio (PSRR)
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Revision History
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息

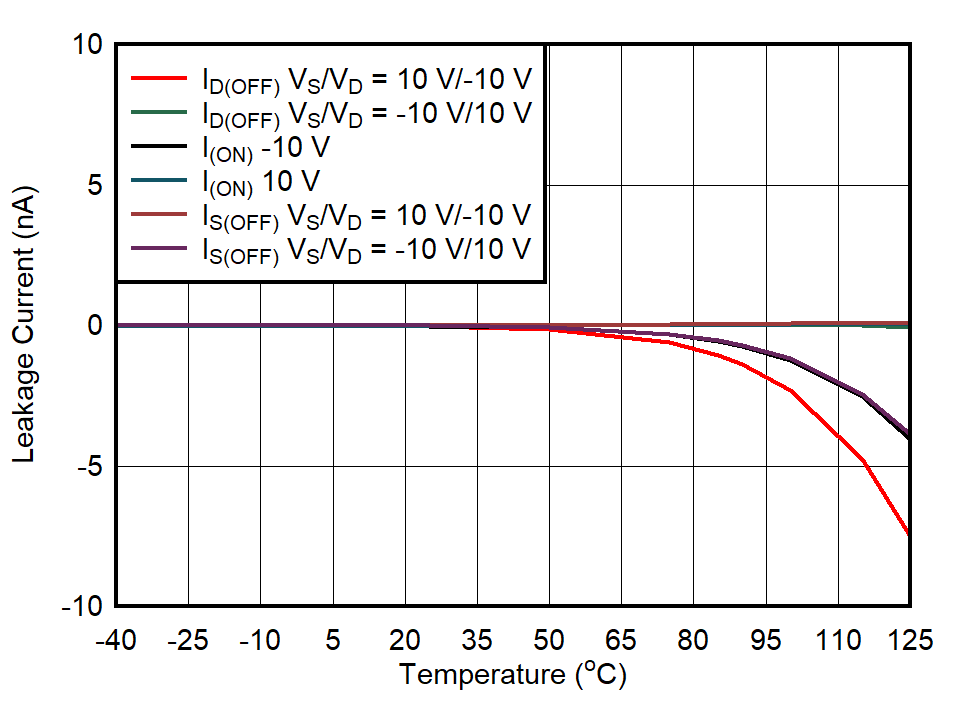

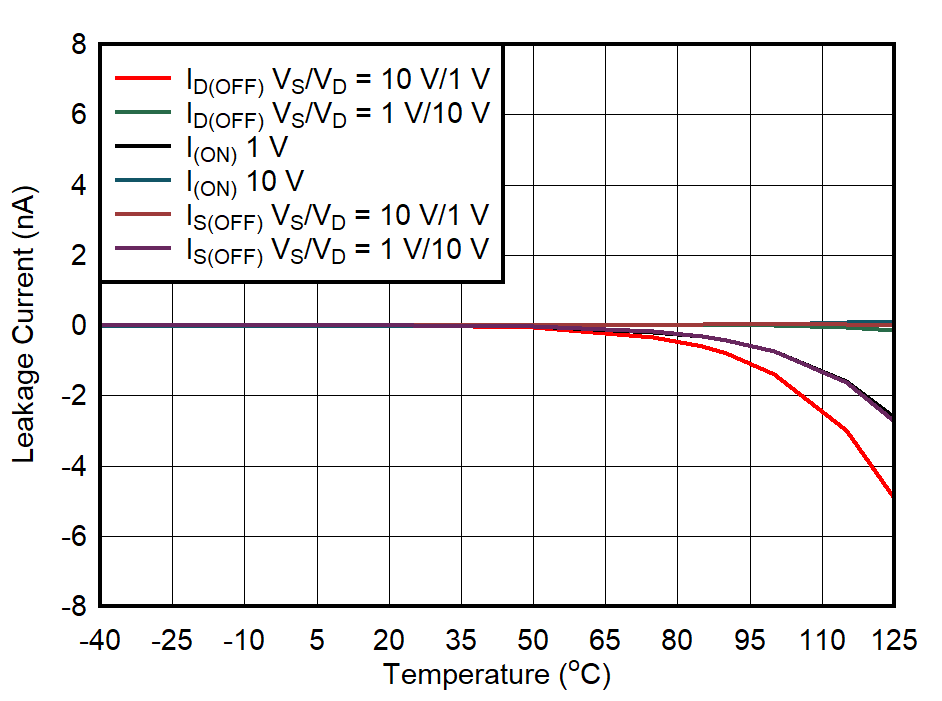

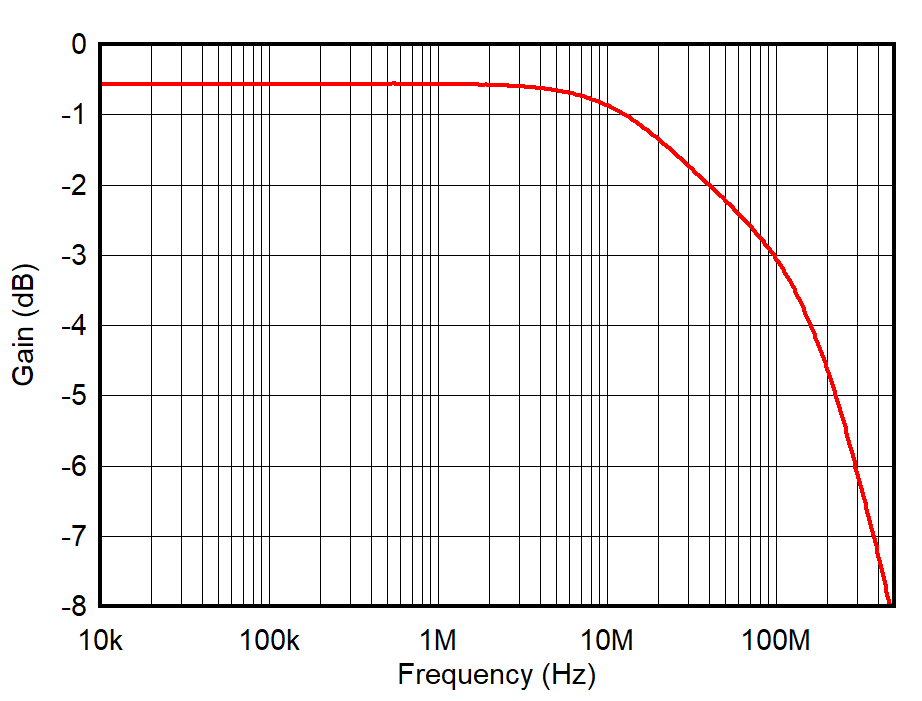

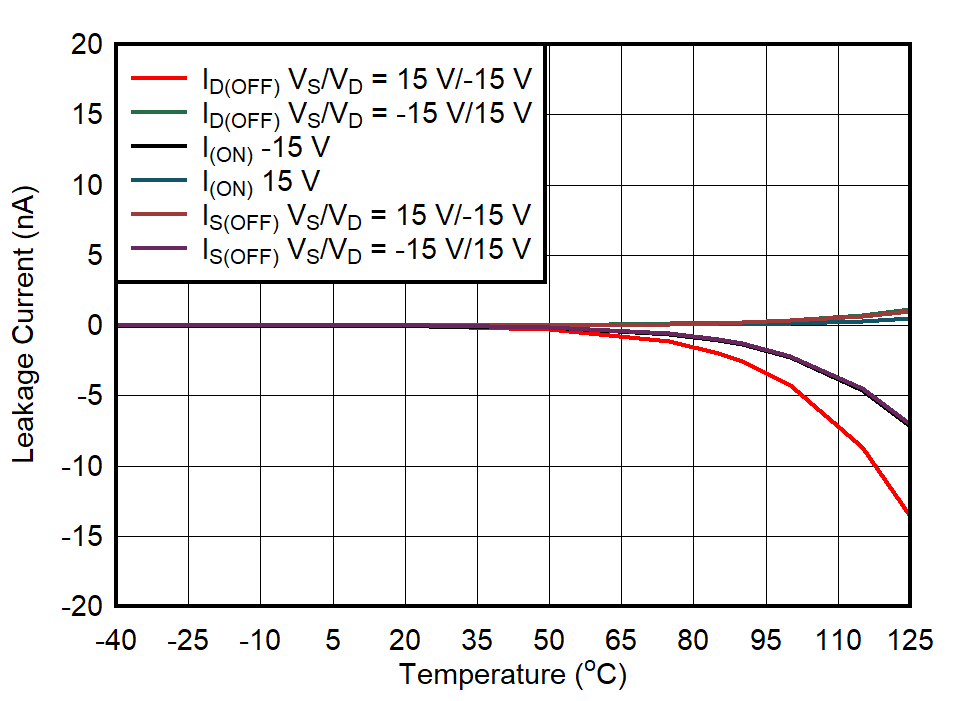

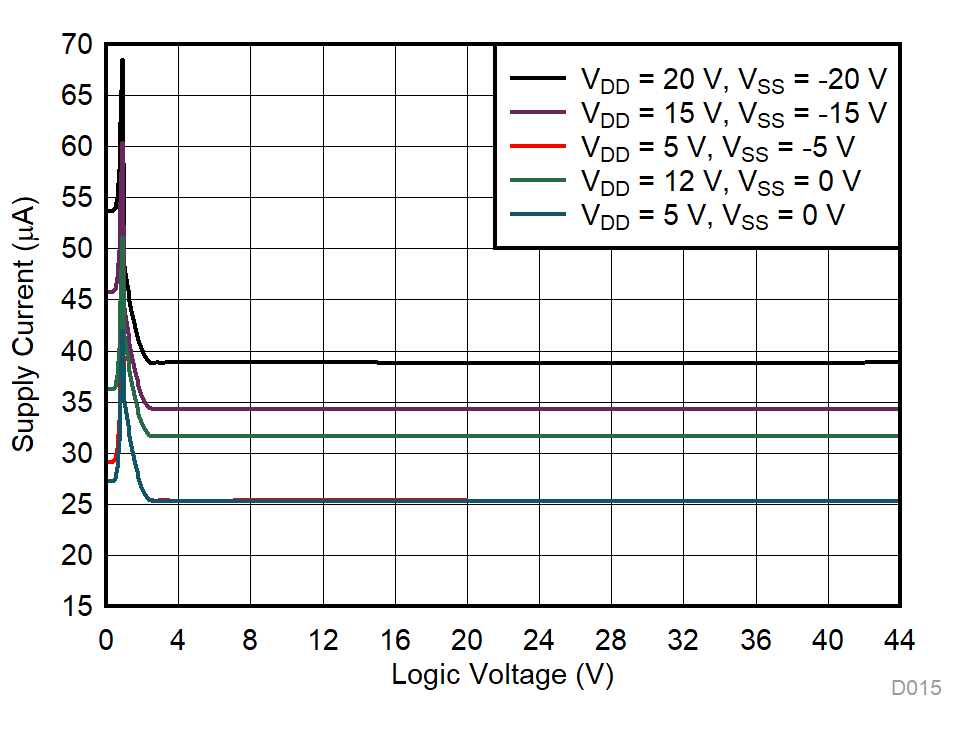

5.14 Typical Characteristics

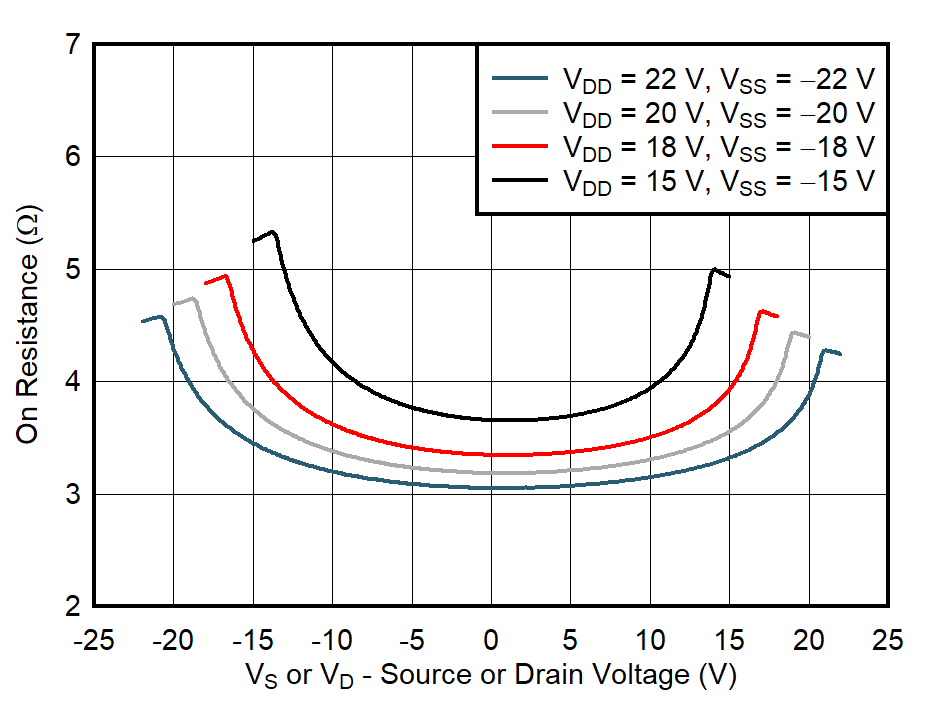

at TA = 25°C (unless otherwise noted)

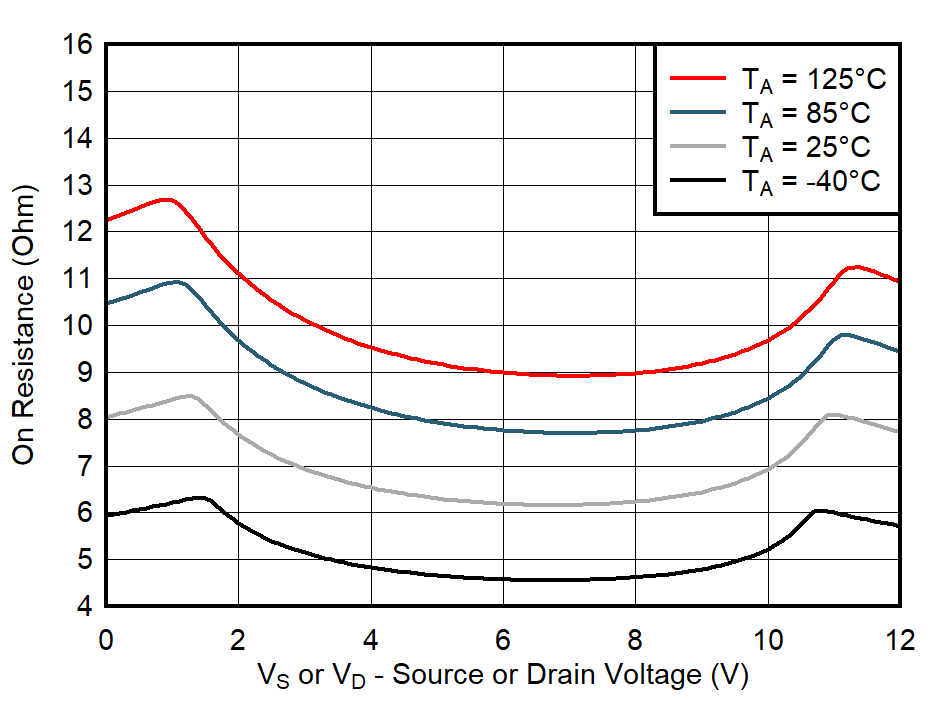

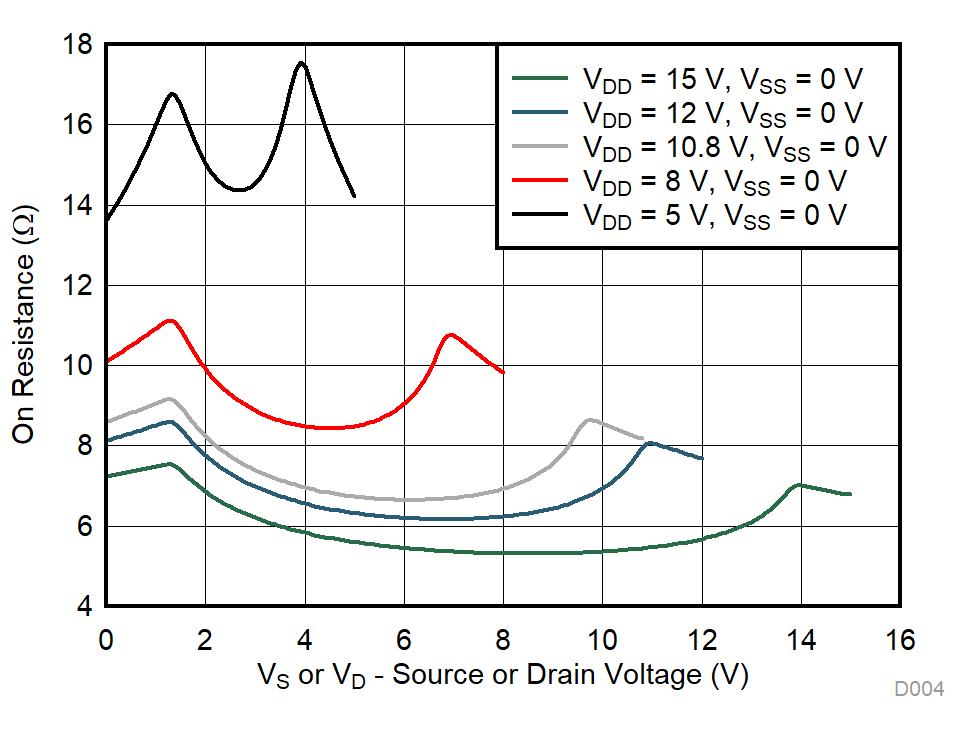

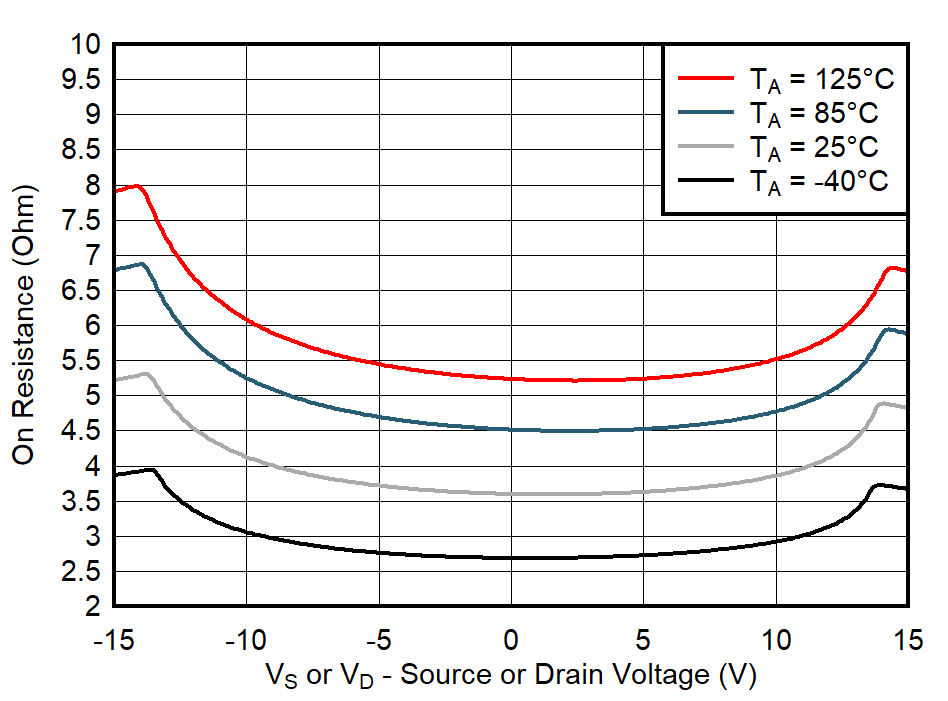

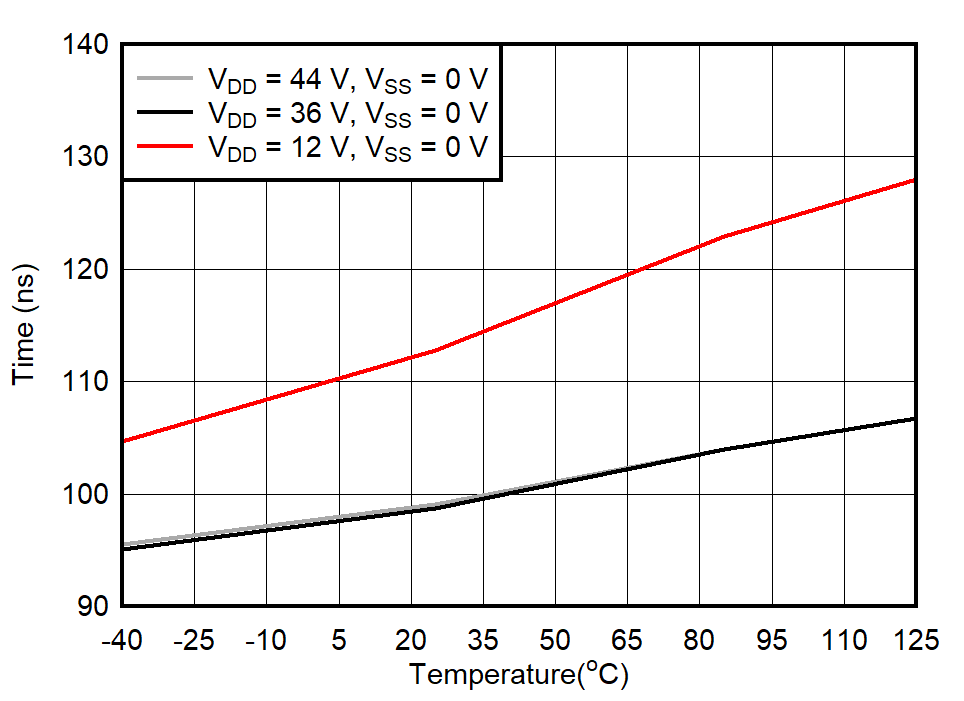

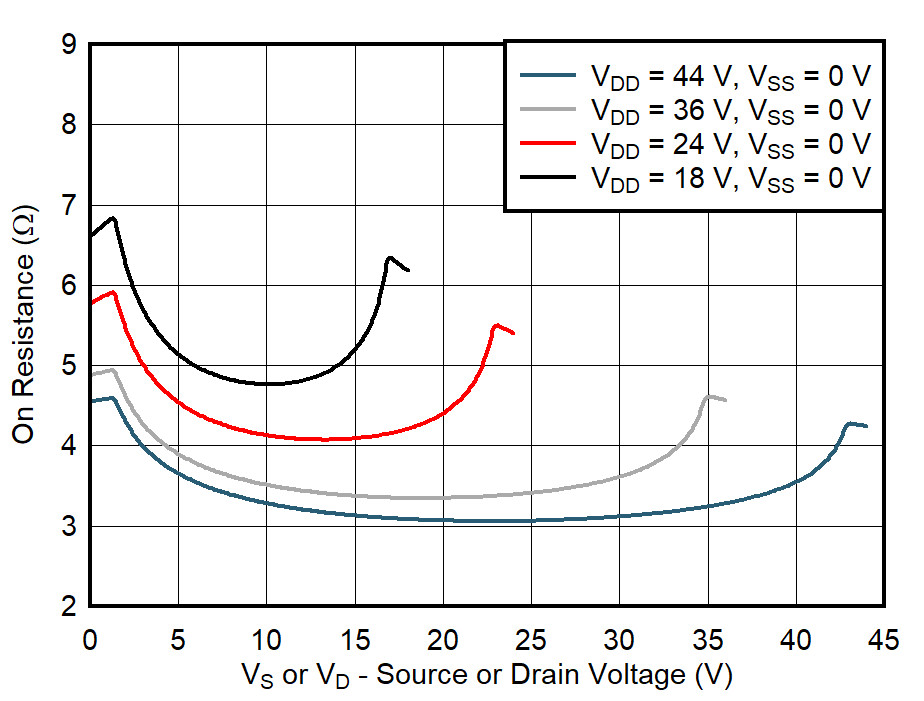

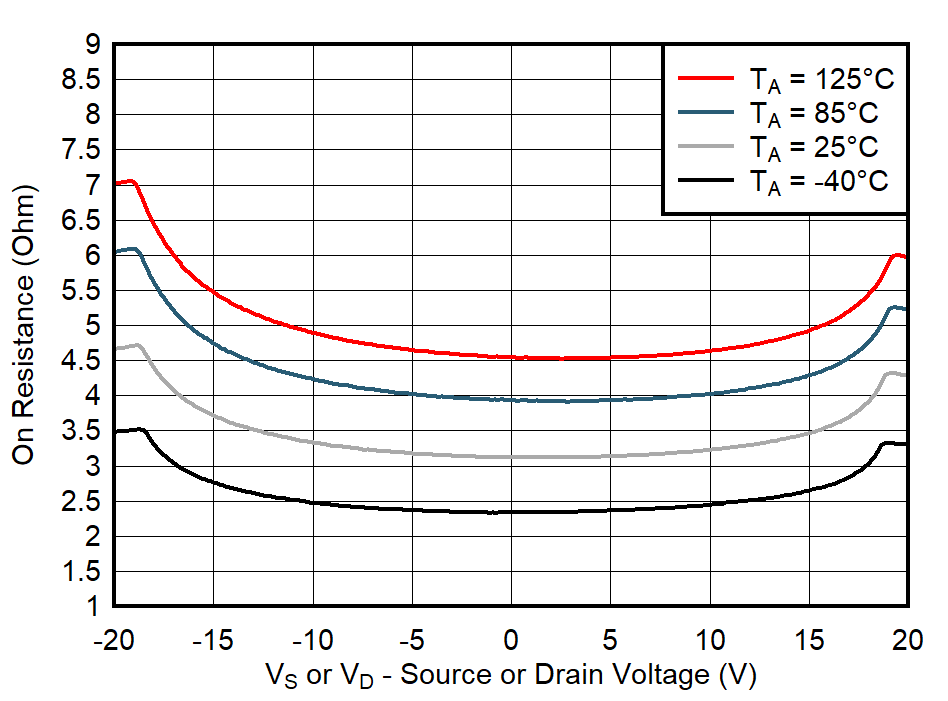

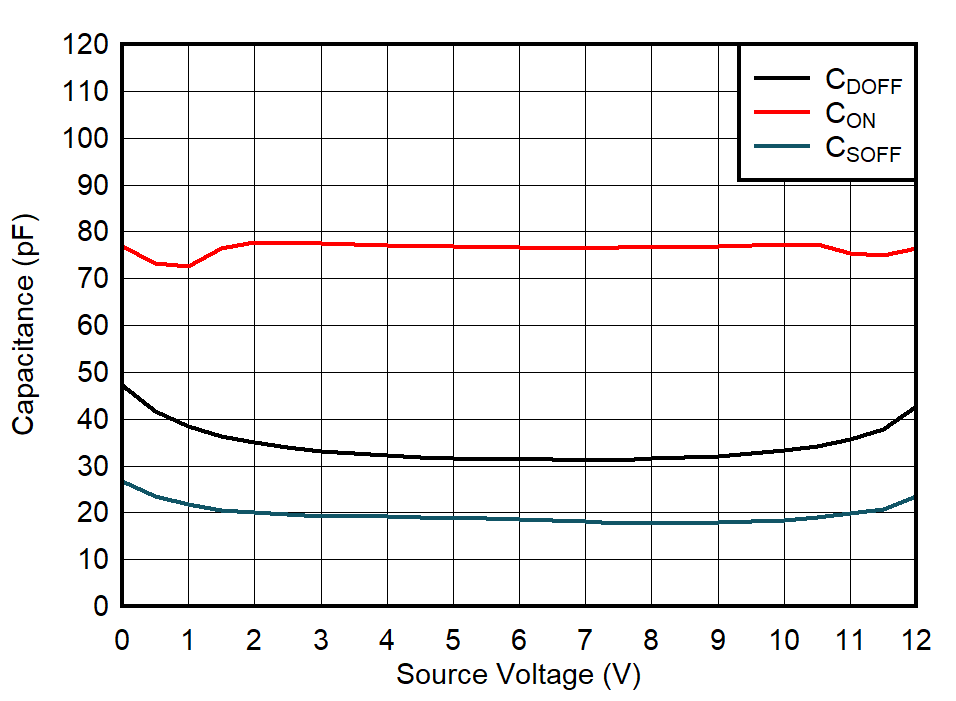

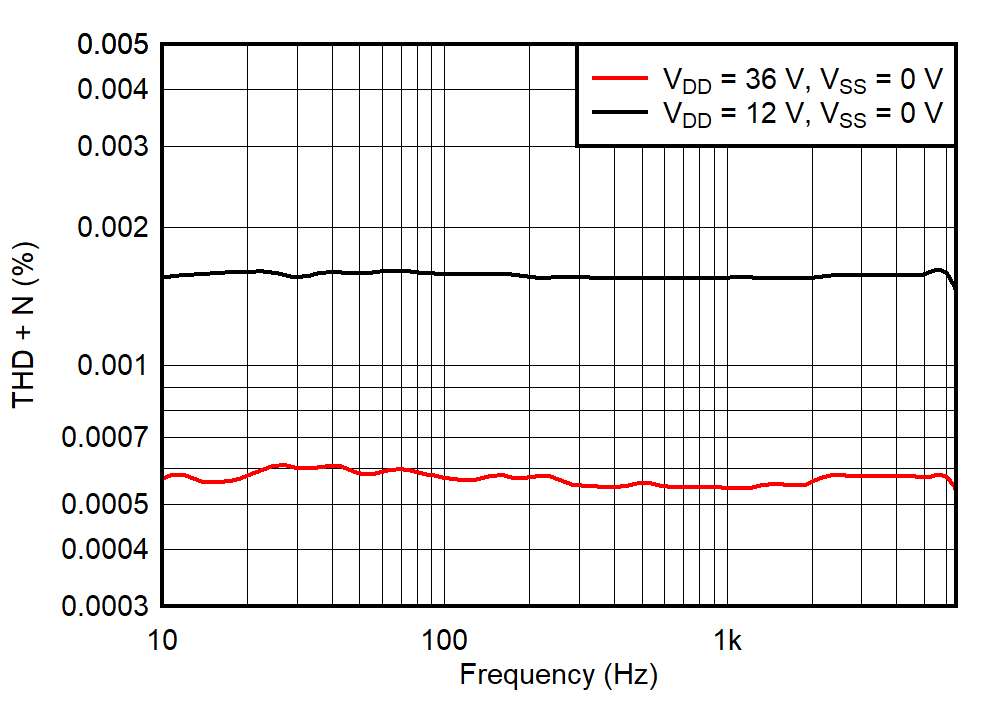

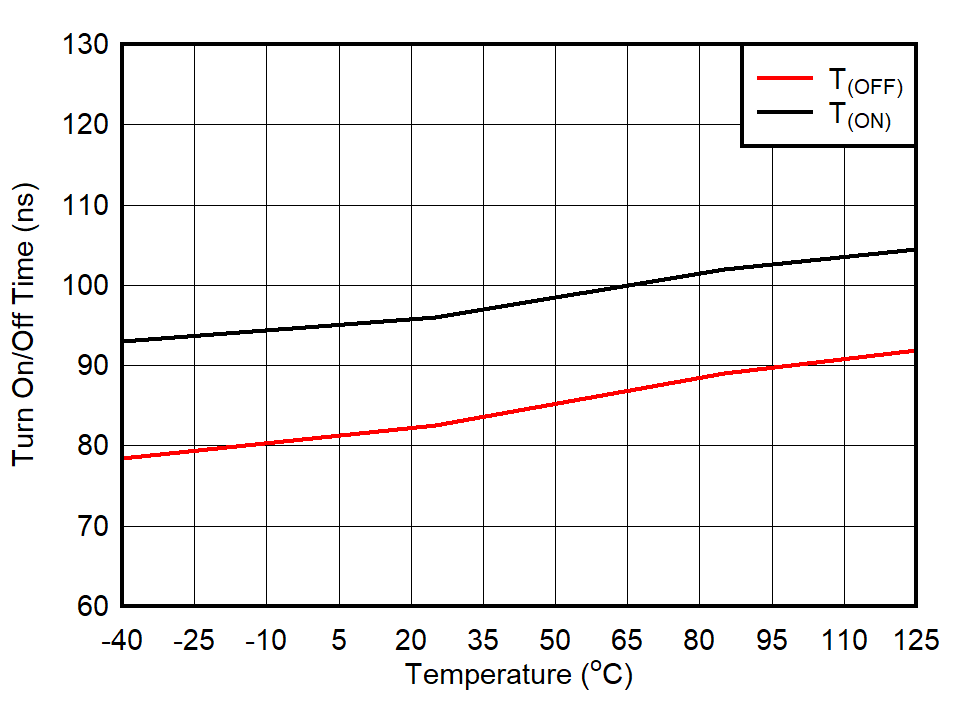

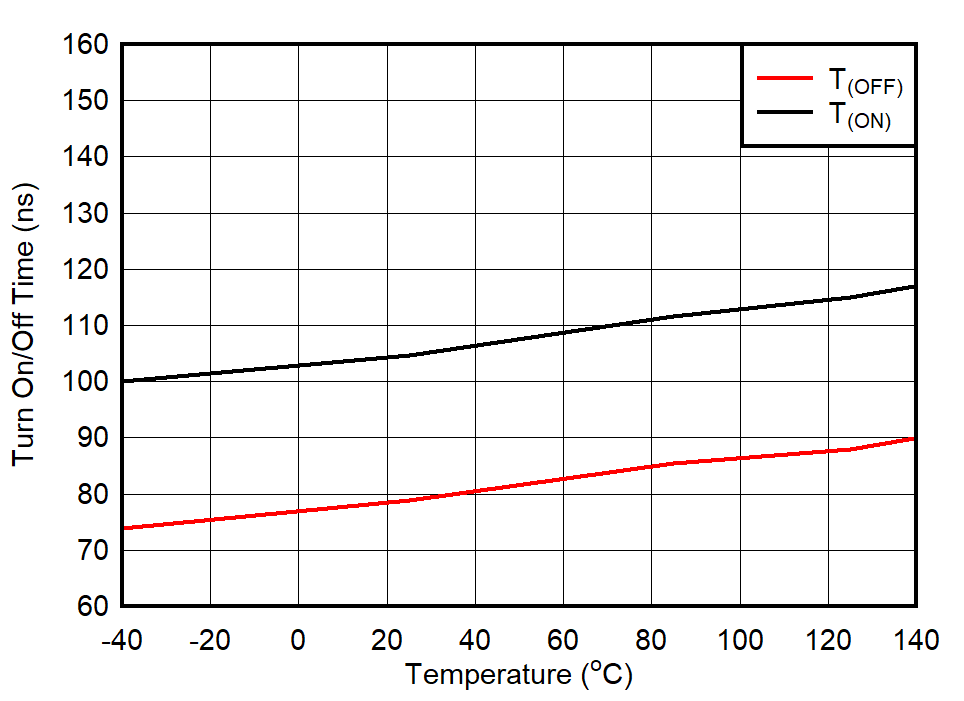

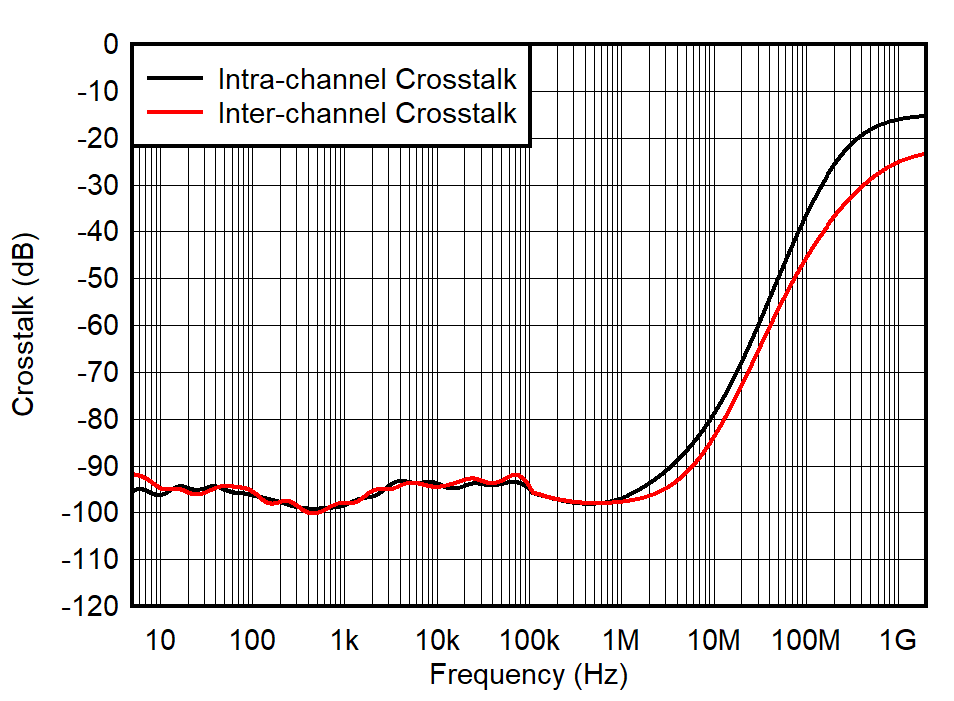

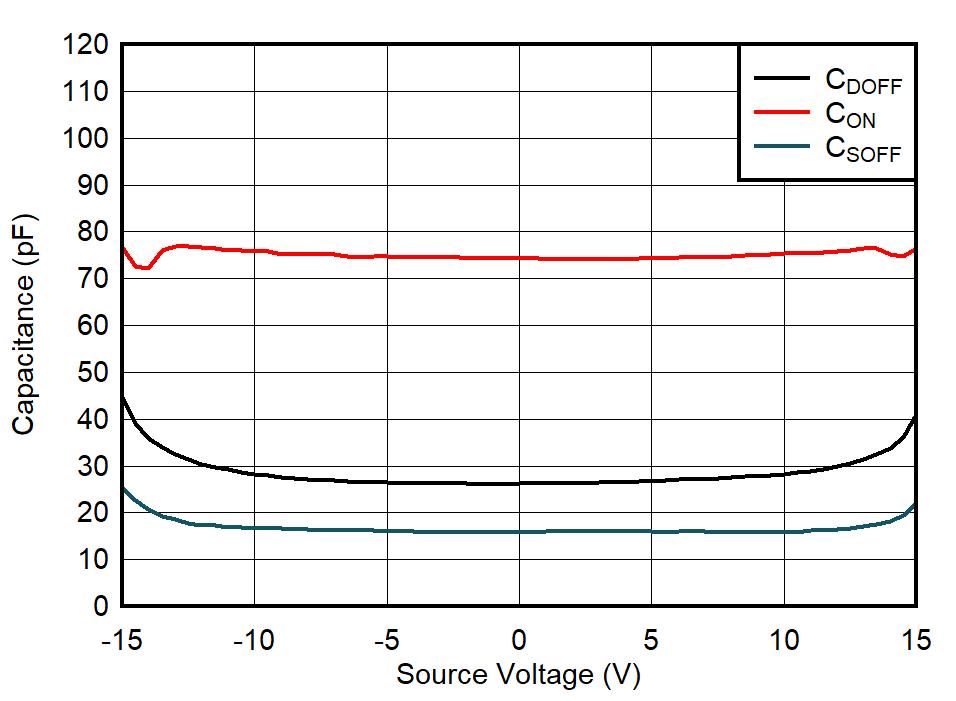

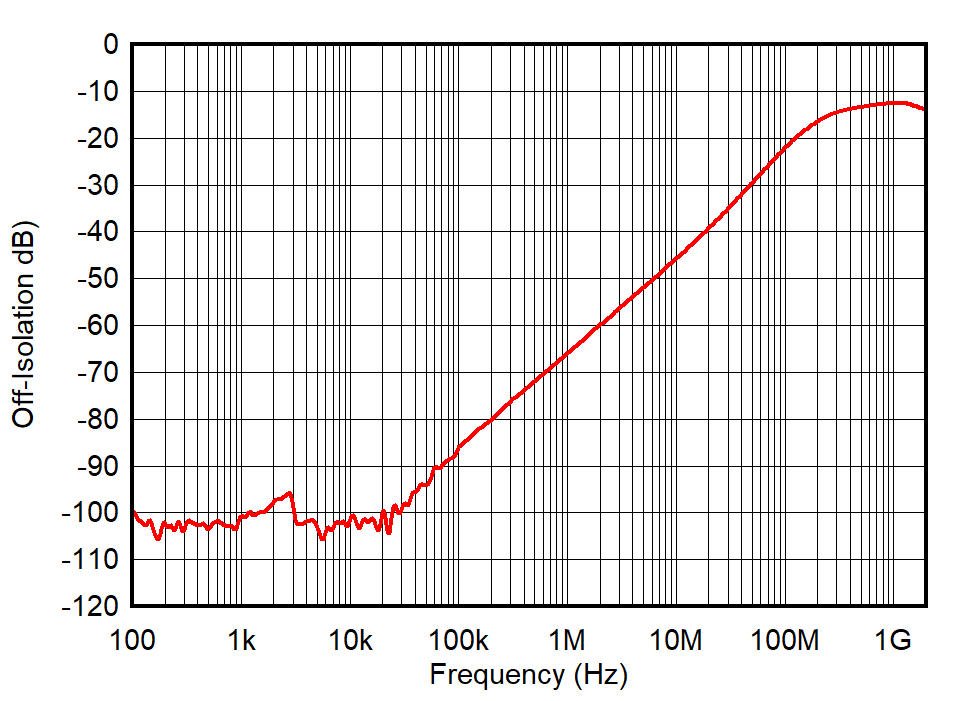

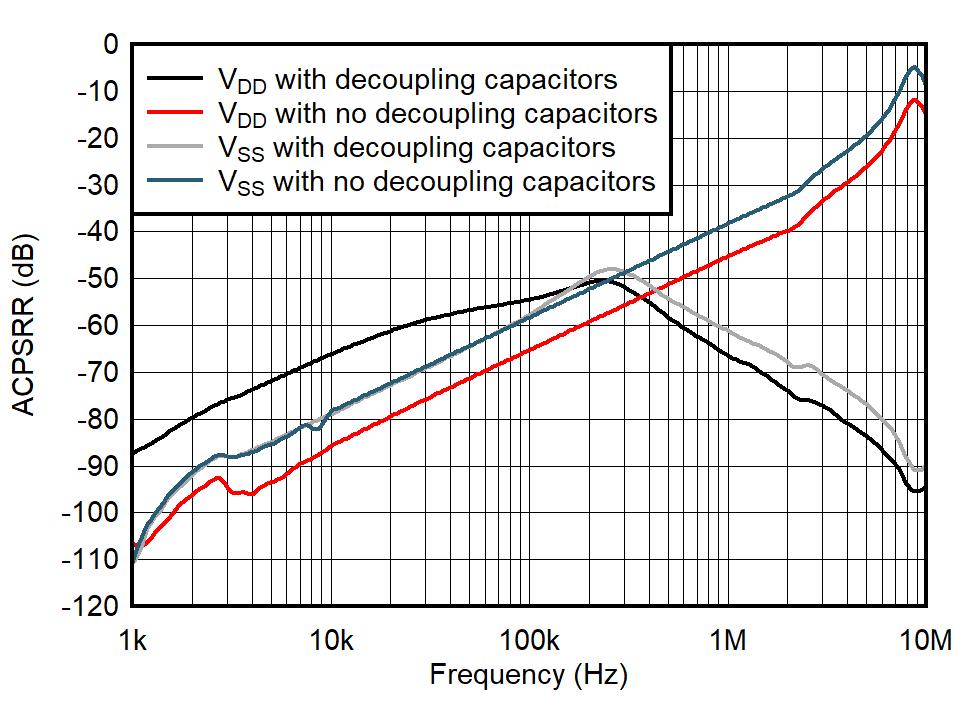

| VDD = 15 V, VSS = -15 V |
| VDD = 12 V, VSS = 0 V |
| VDD = 15 V, VSS = -15 V |
| VDD = 44 V, VSS = 0 V |
| VDD = 15 V, VSS = -15 V |
| VDD = +15 V, VSS = -15 V |
| VDD = 12 V, VSS = 0 V |
| VDD = 20 V, VSS = -20 V |
| VDD = 20 V, VSS = -20 V |
| VDD = 12 V, VSS = 0 V |
| VDD = 15 V, VSS = -15 V |
| VDD = 15 V, VSS = -15 V, TA = 25°C |
| VDD = 15 V, VSS = -15 V |
| VDD = +15 V, VSS = -15 V |
