10 Power Supply Recommendations
10.1 Power-On Reset Requirements
In the event of a glitch or data corruption, the TCA6507 can be reset to its default conditions by using the power-on reset feature. Power-on reset requires that the device go through a power cycle to be completely reset. This reset also happens when the device is powered on for the first time in an application.

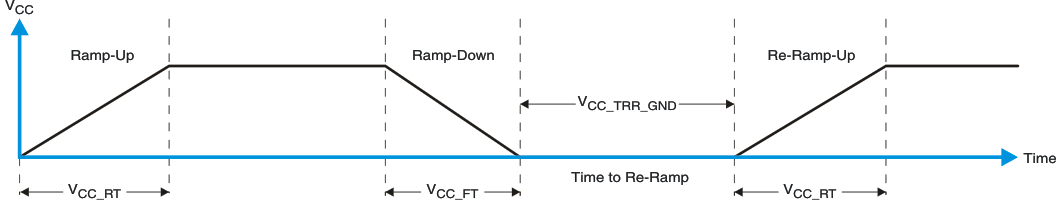

Figure 27. VCC Is Lowered to 0 V and Then Ramped Up to VCC
The Table 26 section specifies the performance of the power-on reset feature for TCA6507.
Table 26. Recommended Supply Sequencing and Ramp Rates when EN is Connected to VCC(1)
| PARAMETER | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|
| VCC_FT | Fall rate | See Figure 27 | 0.01 | 100 | ms | |
| VCC_RT | Rise rate | See Figure 27 | 0.01 | 100 | ms | |
| VCC_TRR_GND | Time spent low before re-ramp (when VCC drops to GND) | See Figure 27 | 500 | ms | ||
(1) TA = –40°C to +85°C (unless otherwise noted)
If the EN pin is controlled independently from VCC, ramp rates and times outside these recommended limits. EN must be ramped after supply to ensure correct power-on reset sequence.
