6 Parameter Measurement Information

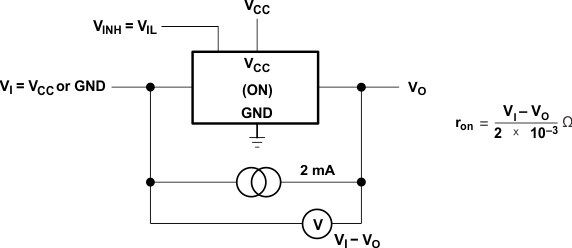

Figure 6-1 On-State
Resistance Test Circuit

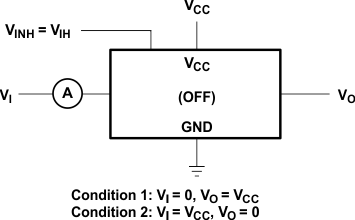

Figure 6-2 Off-State
Switch Leakage-Current Test Circuit

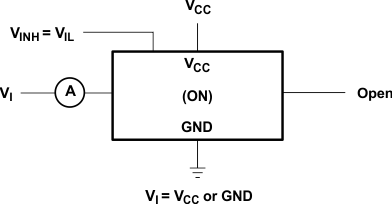

Figure 6-3 On-State
Switch Leakage-Current Test Circuit

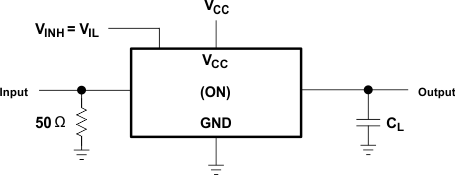

Figure 6-4 Propagation Delay Time, Signal Input to Signal Output

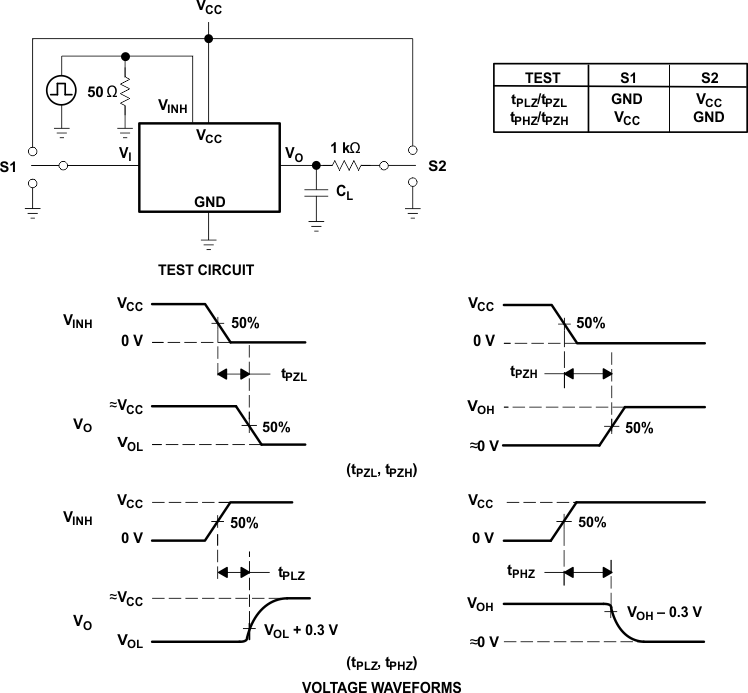

Figure 6-5 Switching
Time (tPZL, tPLZ, tPZH, tPHZ),
Control to Signal Output
A. fin is a sine
wave.

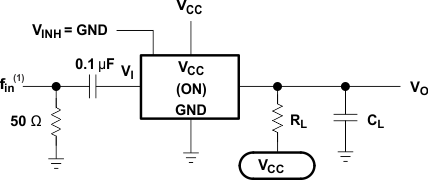

Figure 6-6 Frequency
Response (Switch On)

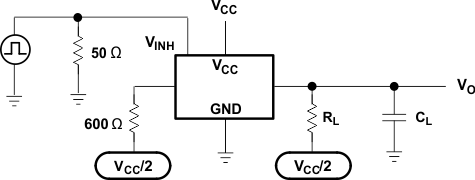

Figure 6-7 Crosstalk
(Control Input, Switch Output)

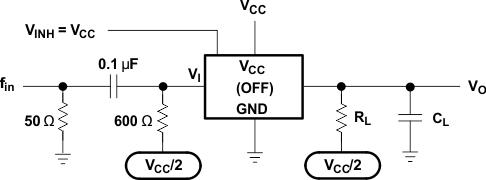

Figure 6-8 Feedthrough Attenuation (Switch Off)

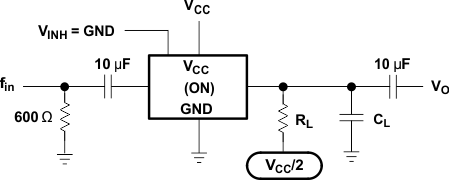

Figure 6-9 Sine-Wave
Distortion
