6.8 Typical Characteristics
TA = 25°C

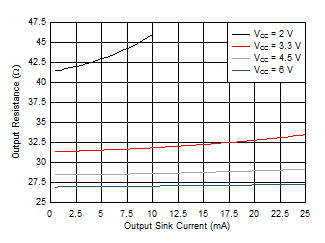

Figure 1. Output driver resistance in LOW state.

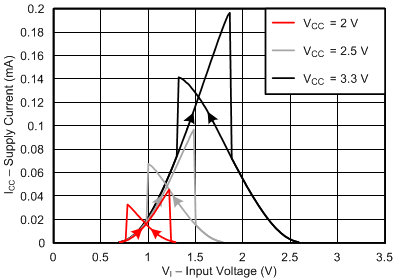

Figure 3. Supply current across input voltage, 2-, 2.5-, and 3.3-V supply

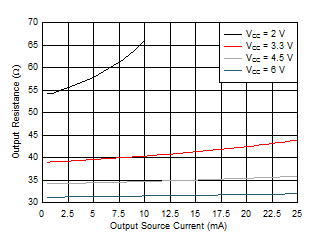

Figure 2. Output driver resistance in HIGH state.

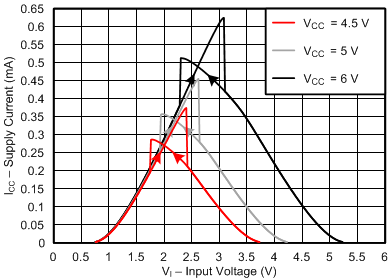

Figure 4. Supply current across input voltage, 4.5-, 5-, and 6-V supply
