ZHCSN18B September 2020 – February 2022 SN74HCS245-Q1
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6.8 Typical Characteristics
TA = 25°C

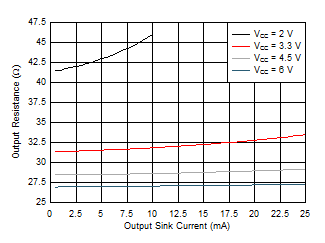

Figure 6-1 Output driver resistance in LOW state.

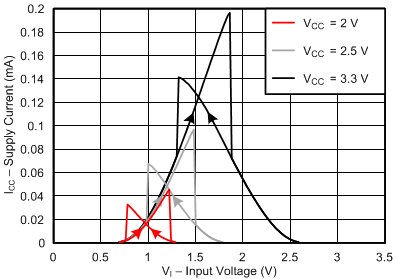

Figure 6-3 Supply current across input voltage, 2-, 2.5-, and 3.3-V supply

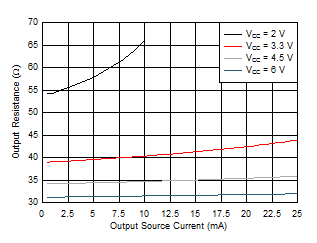

Figure 6-2 Output driver resistance in HIGH state.

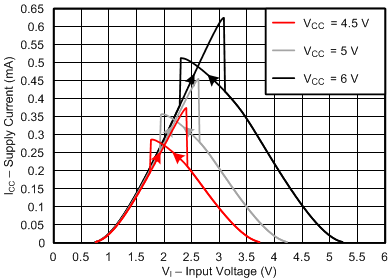

Figure 6-4 Supply current across input voltage, 4.5-, 5-, and 6-V supply
