ZHCSWJ4A March 2004 – June 2024 SN74HC4852
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- PW|16
- N|16
- D|16
- DGV|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
4 Pin Configuration and Functions

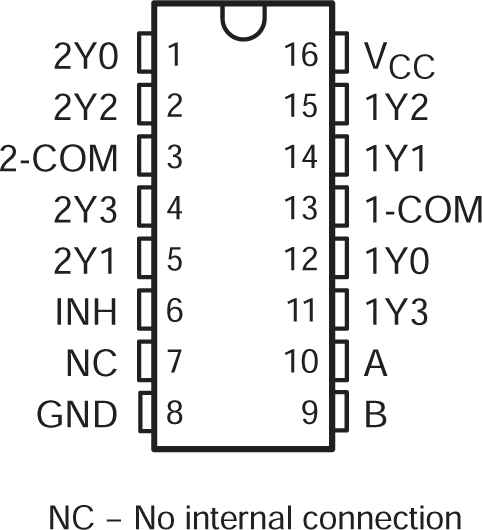

Figure 4-1 PW Package, 16-Pin TSSOP (Top
View)Table 4-1 Function Table
| INPUTS | ON CHANNEL | ||
|---|---|---|---|
| INH | B | A | |
| L | L | L | 1Y0, 2Y0 |
| L | L | H | 1Y1, 2Y1 |
| L | H | L | 1Y2, 2Y2 |
| L | H | H | 1Y3, 2Y3 |
| H | X | X | None |
