ZHCSWJ4A March 2004 – June 2024 SN74HC4852
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- PW|16
- N|16
- D|16
- DGV|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6 Parameter Measurement Information

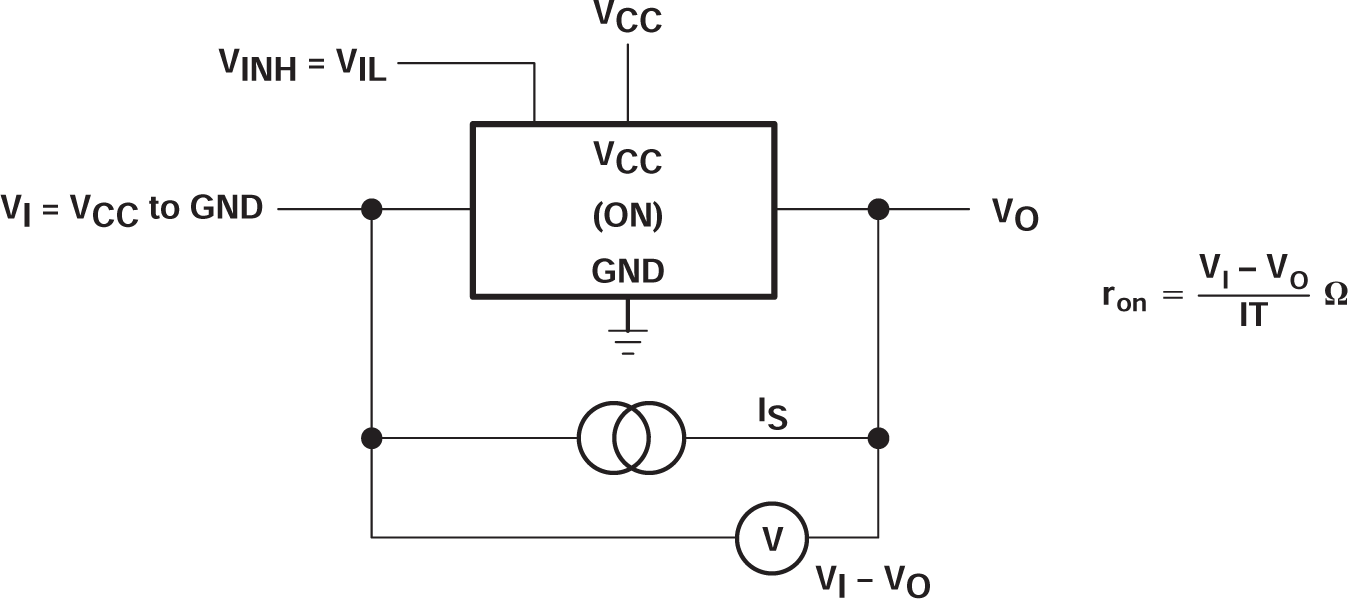

Figure 6-1 On-State Resistance Test Circuit

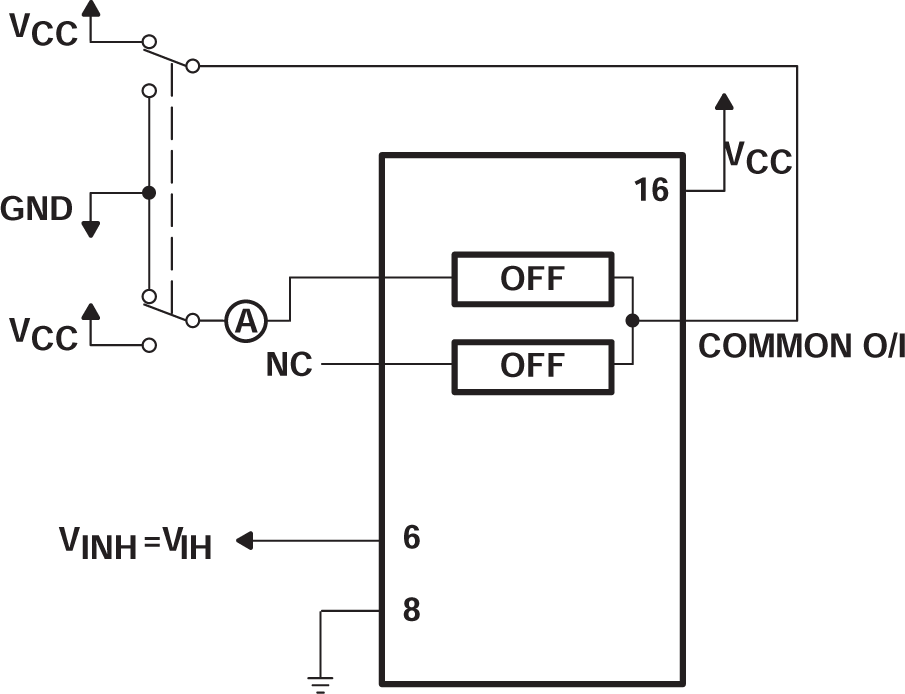

Figure 6-2 Maximum Off-Channel Leakage Current, Any One Channel, Test Setup

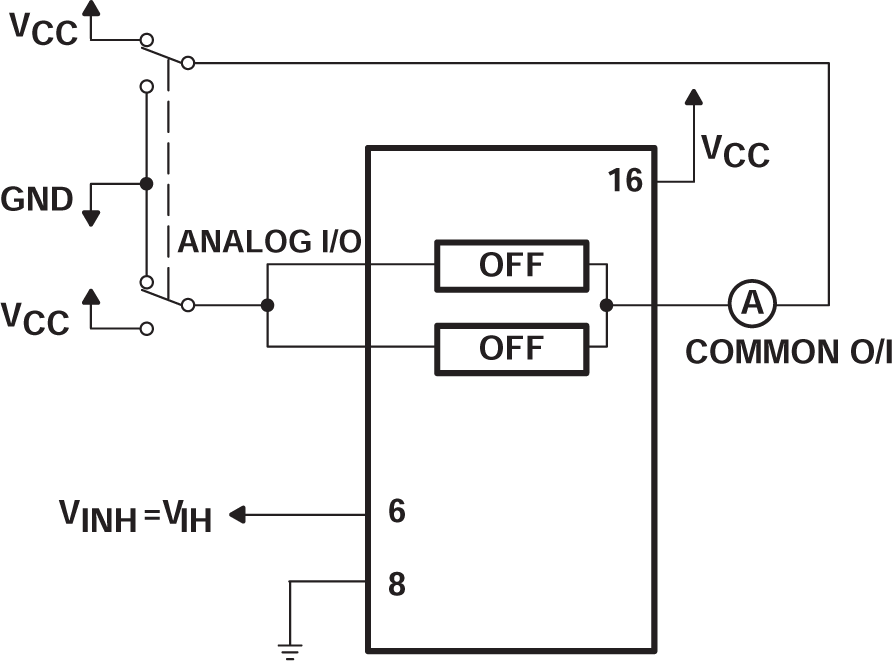

Figure 6-3 Maximum Off-Channel Leakage Current, Common Channel, Test Setup

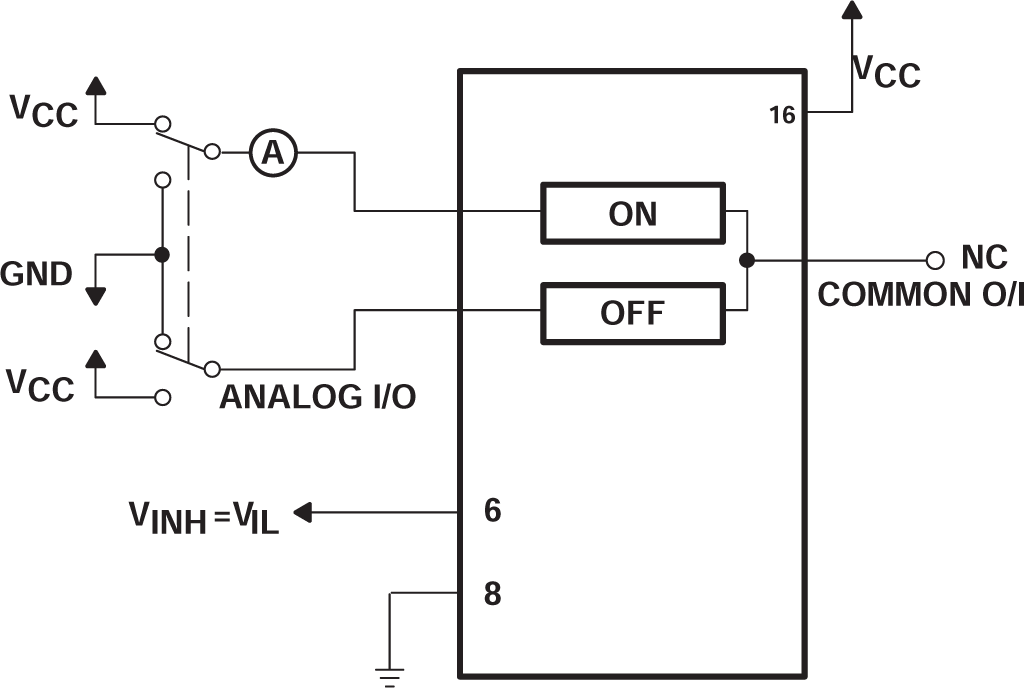

Figure 6-4 Maximum On-Channel Leakage Current, Channel to Channel, Test Setup

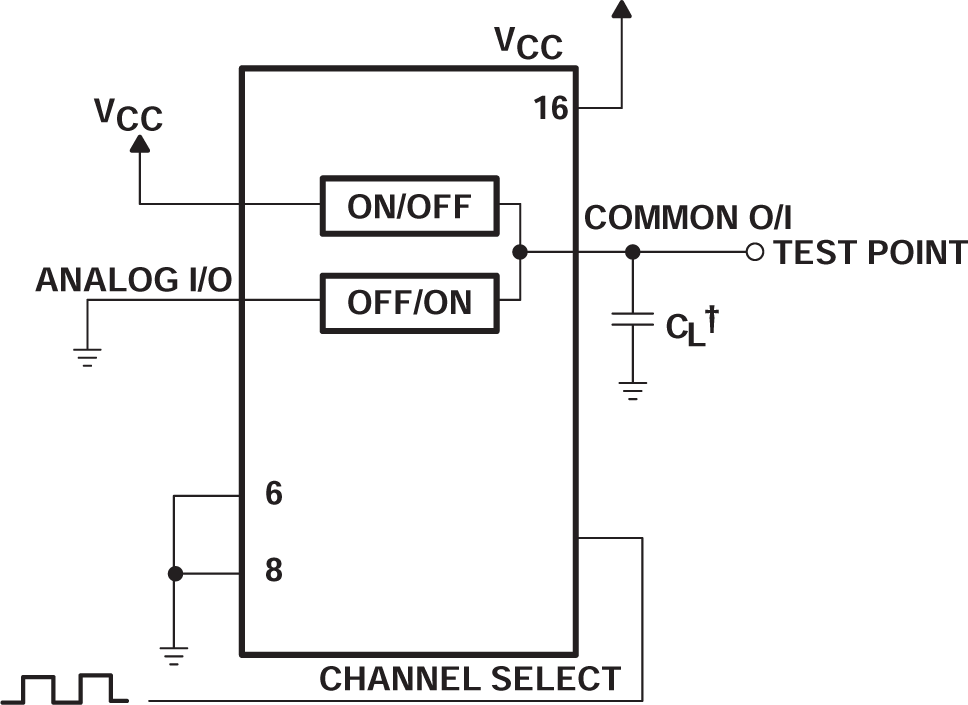

Figure 6-5 Propagation Delays, Channel Select to Analog Out

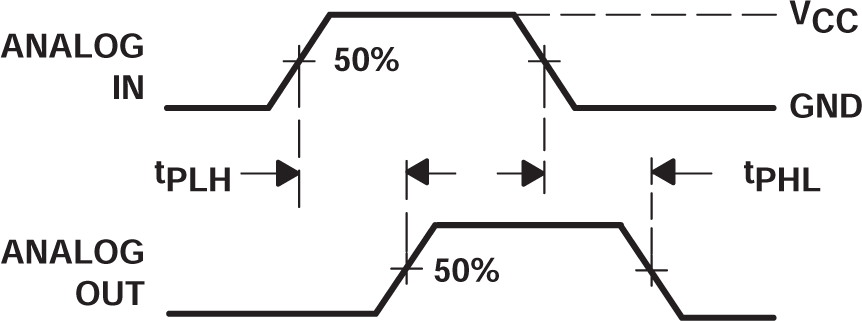

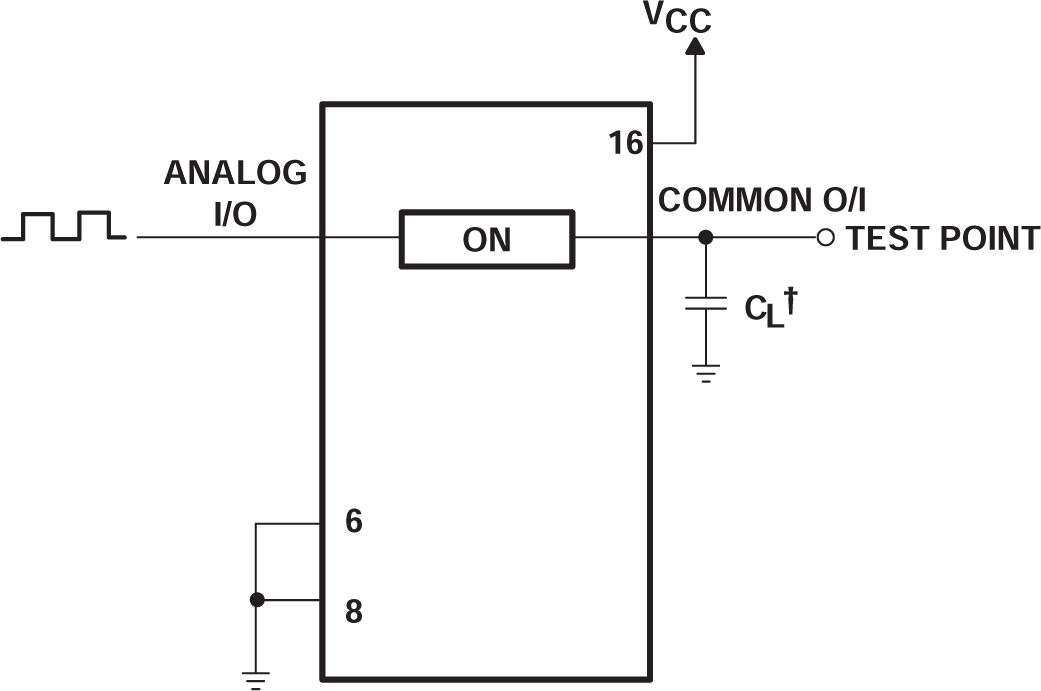

Figure 6-7 Propagation Delays, Analog in to Analog Out
Figure 6-9 Propagation Delays, Enable to Analog Out

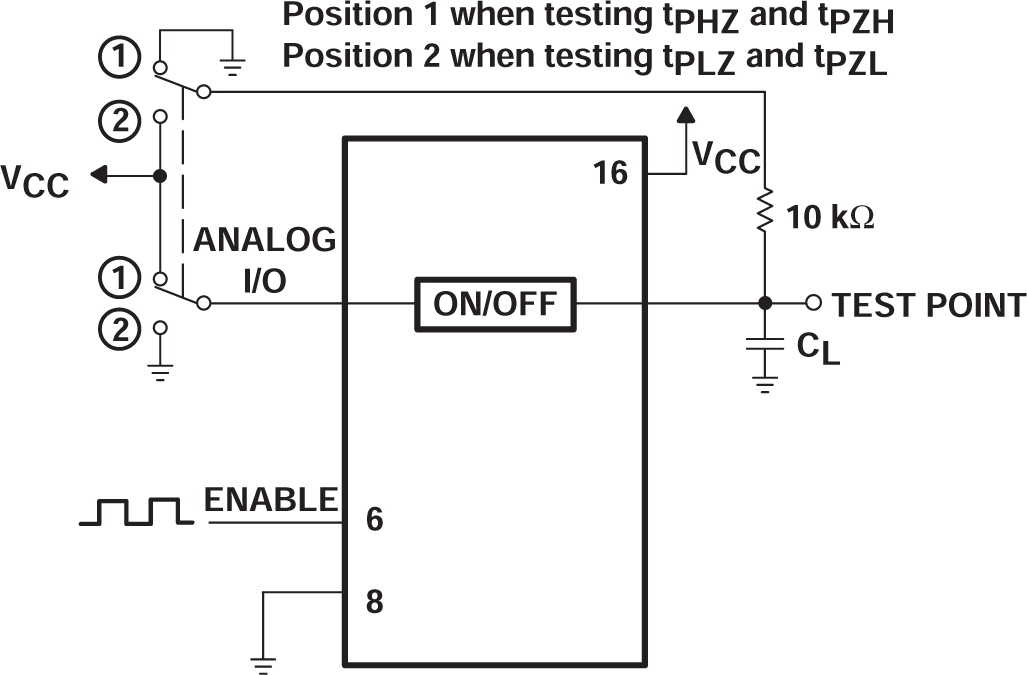

Figure 6-10 Propagation Delay, Enable to Analog Out, Test Setup

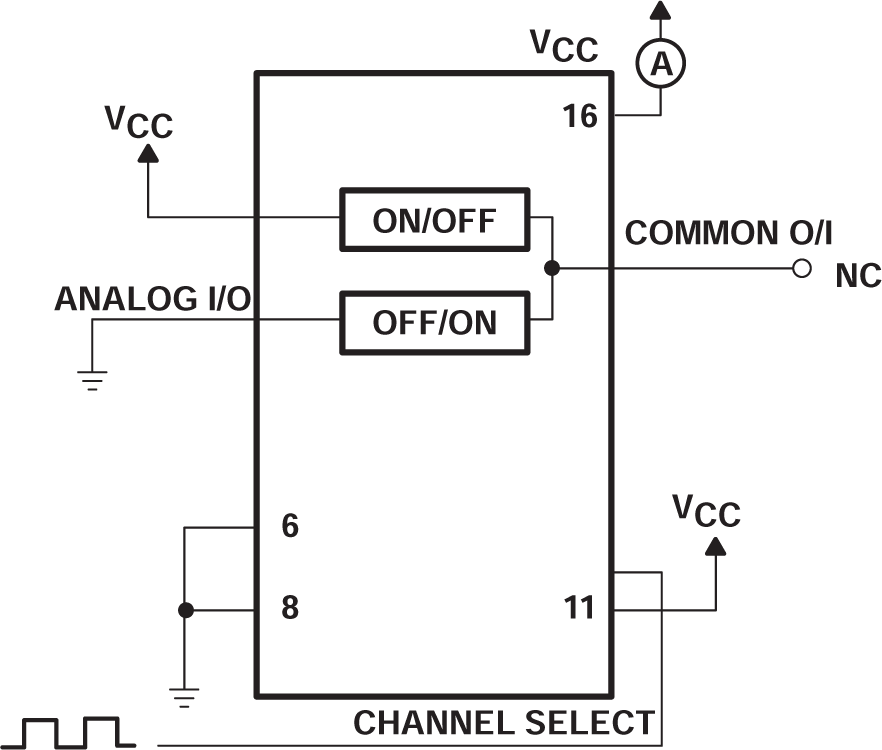

Figure 6-11 Power-Dissipation Capacitance, Test Setup?. Includes all probe and jig capacitance
?. Includes all probe and jig capacitance
