7 Parameter Measurement Information
CL = Load Capacitance, includes jig and probe capacitance (see Section 6.5 for value)

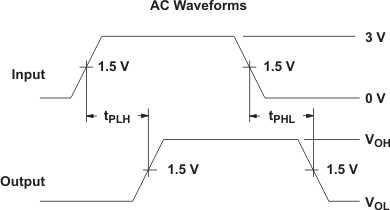

Figure 7-1 Input
(Sn) to Output (Dn) Propagation Delays

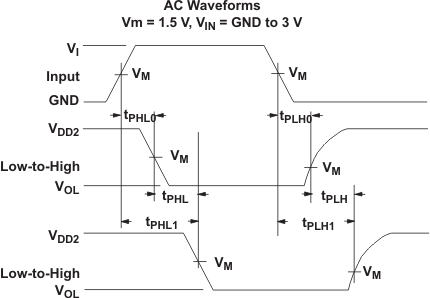

Figure 7-3 Input
(Sn) to Output (Dn) Propagation Delays

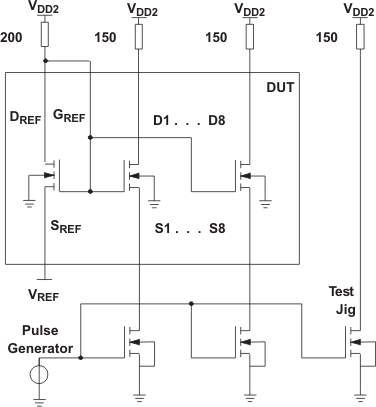

Figure 7-2 Load
Circuit
Figure 7-4 Load
CircuitTable 7-1 Test Conditions
| TEST | S1 |
|---|---|
| tpd | Open |
| tPLZ/tPZL | 7 V |
| TPHZ/TPZH | Open |
