5.8 Typical Characteristics

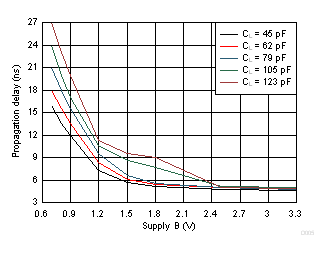

| TA = 25°C | VCCA = 0.7V |
(A to B) vs Load Capacitance
| TA = 25°C | VCCA = 0.9V |
(A to B) vs Load Capacitance
| TA = 25°C | VCCA = 1.5V |
(A to B) vs Load Capacitance
| TA = 25°C | VCCA = 3.3V |
(A to B) vs Load Capacitance

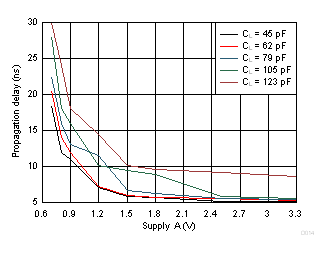

| TA = 25°C | VCCA = 0.7V |
(B to A) vs Load Capacitance
| TA = 25°C | VCCA = 0.9V |
(B to A) vs Load Capacitance
| TA = 25°C | VCCA = 1.5V |
(B to A) vs Load Capacitance
| TA = 25°C | VCCA = 2.5V |
(B to A) vs Load Capacitance
| TA = 25°C | VCCA = 0.8V |
(A to B) vs Load Capacitance
| TA = 25°C | VCCA = 1.2V |
(A to B) vs Load Capacitance
| TA = 25°C | VCCA = 1.8V |
(A to B) vs Load Capacitance
| TA = 25°C | VCCA = 2.5V |
(A to B) vs Load Capacitance
| TA = 25°C | VCCA = 0.8V |
(B to A) vs Load Capacitance
| TA = 25°C | VCCA = 1.2V |
(B to A) vs Load Capacitance
| TA = 25°C | VCCA = 1.8V |
(B to A) vs Load Capacitance
| TA = 25°C | VCCA = 3.3V |
(B to A) vs Load Capacitance
