ZHCSTY0E December 2008 – November 2023 SN74AVC8T245-Q1
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Recommended Operating Conditions
- 5.4 Thermal Information
- 5.5 Electrical Characteristics
- 5.6 Switching Characteristics: VCCA = 1.2 V
- 5.7 Switching Characteristics: VCCA = 1.5 V ± 0.1 V
- 5.8 Switching Characteristics: VCCA = 1.8 V ± 0.15 V
- 5.9 Switching Characteristics: VCCA = 2.5 V ± 0.2 V
- 5.10 Switching Characteristics: VCCA = 3.3 V ± 0.3 V
- 5.11 Operating Characteristics
- 5.12 Typical Total Static Current Consumption (ICCA + ICCB)
- 5.13 Typical Characteristics
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息

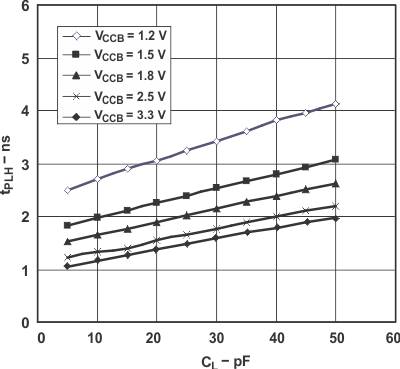

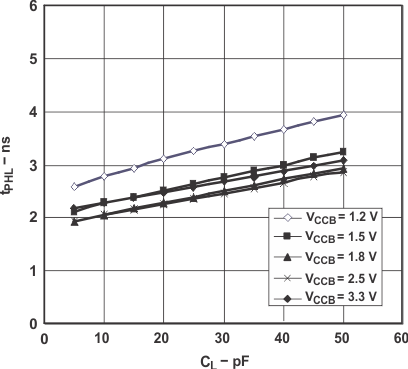

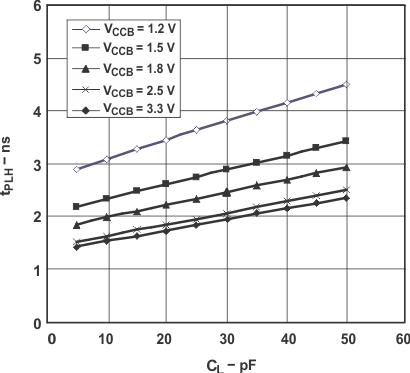

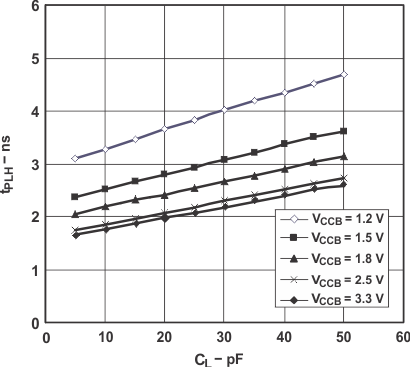

5.13 Typical Characteristics
TA = 25°C
| VCCA = 1.2 V |
| VCCA = 1.5 V |
| VCCA = 1.8 V |
| VCCA = 2.5 V |
| VCCA = 3.3 V |
Figure 5-11 High-Level Output Voltage (VOH) vs High-Level Current (IOH)
| VCCA = 1.5 V |
| VCCA = 1.8 V |
| VCCA = 2.5 V |
| VCCA = 3.3 V |

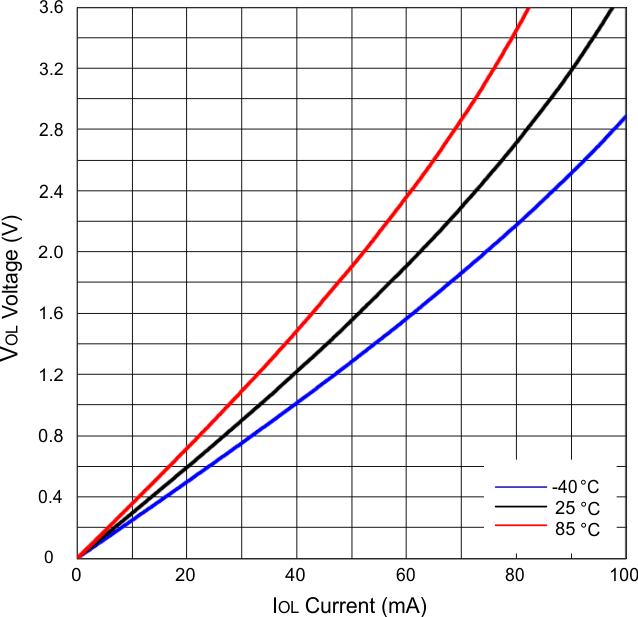

Figure 5-10 Low-Level Output Voltage (VOL) vs Low-Level Current (IOL)
