Abstract
Unless otherwise noted, all input pulses are supplied by generators having the following characteristics:
- PRR ≤ 1 MHz
- ZO = 50 Ω
- tr ≤ 3 ns
- tf ≤ 3 ns
Note:
All parameters and waveforms are not applicable to all devices.
A. CL includes probe and jig capacitance.
B. The outputs are measured one at a time, with one transition per measurement.
Figure 6-1 Load Circuit For Totem-Pole Outputs
A. CL includes probe and jig capacitance.
B. The outputs are measured one at a time, with one transition per measurement.
Figure 6-2 Load Circuit For Tri-State And Open-Drain OutputsTable 6-1 Loading Conditions For Parameter
| TEST | S1 |
|---|---|
| tPLH(1), tPHL(1) | Open |
| tPLZ(3), tPZL (2) | VCC |
| tPHZ(3), tPZH(2) | GND |
| Open drain | VCC |
(1) tPLH and tPHL are the same as tpd.
(2) tPZL and tPZH are the same as ten.
(3) tPLZ and tPHZ are the same as tdis.

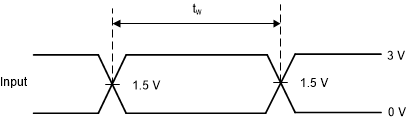

Figure 6-3 Voltage Waveforms Pulse Durations
A. The outputs are measured one at a time, with one transition per measurement.
Figure 6-4 Voltage Waveforms Propagation Delay Times Inverting and Noninverting Outputs

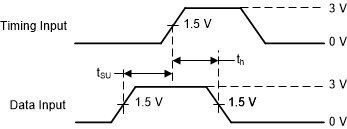

Figure 6-5 Voltage Waveforms Setup And Hold Times

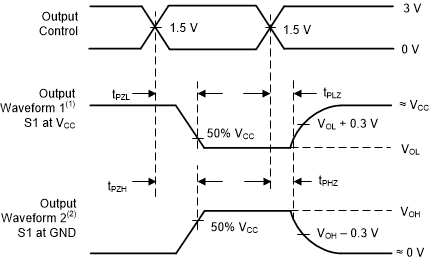

A. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
B. Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. The outputs are measured one at a time, with one transition per measurement.
Figure 6-6 Voltage Waveforms Enable And Disable Times
Low- and High-Level Enabling
