SCLS336I January 2000 – August 2014 SN74AHCT16373
UNLESS OTHERWISE NOTED, this document contains PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Simplified Schematic
- 5 Revision History
- 6 Pin Configuration and Functions
- 7 Specifications
- 8 Parameter Measurement Information
- 9 Detailed Description
- 10Application and Implementation
- 11Power Supply Recommendations
- 12Layout
- 13Device and Documentation Support
- 14Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DGG|48
- DL|48
- DGV|48
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息

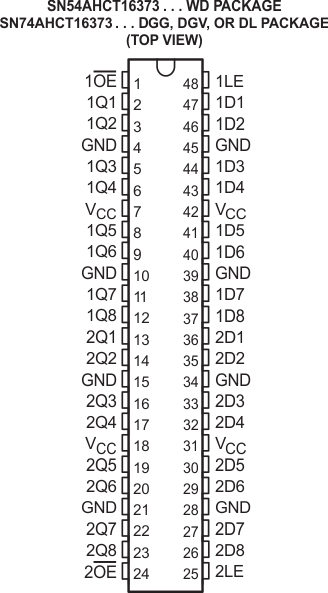

6 Pin Configuration and Functions
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | 1OE | I | Output Enable 1 |
| 2 | 1Q1 | O | 1Q1 Output |
| 3 | 1Q2 | O | 1Q2 Output |
| 4 | GND | — | Ground Pin |
| 5 | 1Q3 | O | 1Q3 Output |
| 6 | 1Q4 | O | 1Q4 Output |
| 7 | VCC | — | Power Pin |
| 8 | 1Q5 | O | 1Q5 Output |
| 9 | 1Q6 | O | 1Q6 Output |
| 10 | GND | — | Ground Pin |
| 11 | 1Q7 | O | 1Q7 Output |
| 12 | 1Q8 | O | 1Q8 Output |
| 13 | 2Q1 | O | 2Q1 Output |
| 14 | 2Q2 | O | 2Q2 Output |
| 15 | GND | — | Ground Pin |
| 16 | 2Q3 | O | 2Q3 Output |
| 17 | 2Q4 | O | 2Q4 Output |
| 18 | VCC | — | Power Pin |
| 19 | 2Q5 | O | 2Q5 Output |
| 20 | 2Q6 | O | 2Q6 Output |
| 21 | GND | — | Ground Pin |
| 22 | 2Q7 | O | 2Q7 Output |
| 23 | 2Q8 | O | 2Q8 Output |
| 24 | 2OE | I | Output Enable 2 |
| 25 | 2LE | I | Latch Enable 2 |
| 26 | 2D8 | I | 2D8 Input |
| 27 | 2D7 | I | 2D7 Input |
| 28 | GND | — | Ground Pin |
| 29 | 2D6 | I | 2D6 Input |
| 30 | 2D5 | I | 2D5 Input |
| 31 | VCC | — | Power Pin |
| 32 | 2D4 | I | 2D4 Input |
| 33 | 2D3 | I | 2D3 Input |
| 34 | GND | — | Ground Pin |
| 35 | 2D2 | I | 2D2 Input |
| 36 | 2D1 | I | 2D1 Input |
| 37 | 1D8 | I | 1D8 Input |
| 38 | 1D7 | I | 1D7 Input |
| 39 | GND | — | Ground Pin |
| 40 | 1D6 | I | 1D6 Input |
| 41 | 1D5 | I | 1D5 Input |
| 42 | VCC | — | Power Pin |
| 43 | 1D4 | I | 1D4 Input |
| 44 | 1D3 | I | 1D3 Input |
| 45 | GND | — | Ground Pin |
| 46 | 1D2 | I | 1D2 Input |
| 47 | 1D1 | I | 1D1 Input |
| 48 | 1LE | I | Latch Enable 1 |
