7 Parameter Measurement Information
7.1 Waveforms
For the complete serial interface timing, refer to Figure 17.

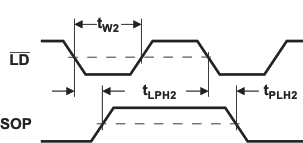

Figure 4. Parallel – Load Mode

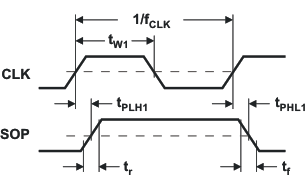

Figure 6. Serial – Shift Mode

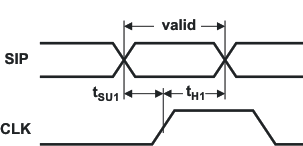

Figure 8. Serial – Shift Mode

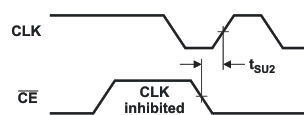

Figure 5. Serial – Shift Mode

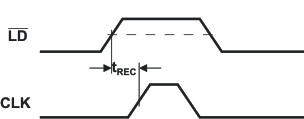

Figure 7. Serial – Shift Mode
7.2 Signal Conventions

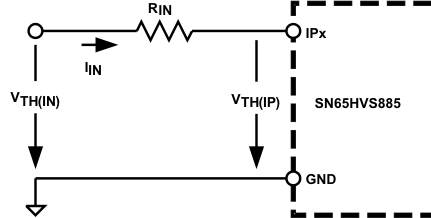

Figure 9. On/Off Threshold Voltage Measurements
