9 Parameter Measurement Information
Note:
Test load capacitance includes probe and jig capacitance (unless otherwise specified). Signal generator characteristics: rise and fall time < 6 ns, pulse rate 100 kHz, 50% duty cycle, ZO = 50 Ω (unless otherwise specified).

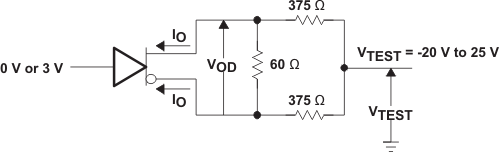

Figure 9-1 Driver Test Circuit, VOD and VOC Without Common-Mode Loading
Figure 9-2 Driver Test Circuit, VOD With Common-Mode Loading

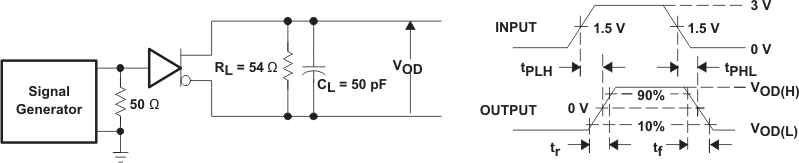

Figure 9-3 Driver Switching Test Circuit and Waveforms

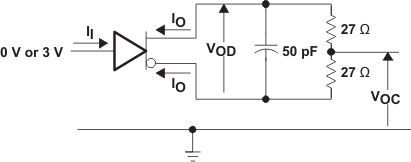

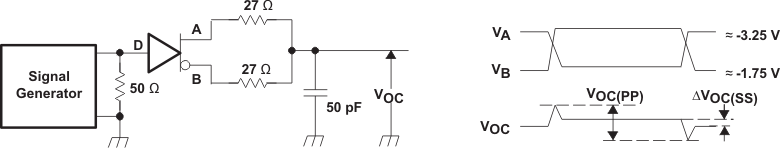

Figure 9-4 Driver VOC Test Circuit and Waveforms
VOD(RING) is measured at four points on the output waveform, corresponding to overshoot and undershoot from the VOD(H) and VOD(L) steady state values.

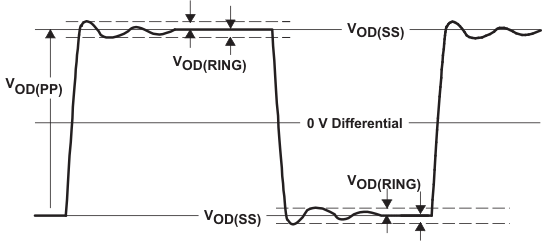

Figure 9-5 VOD(RING) Waveform and Definitions

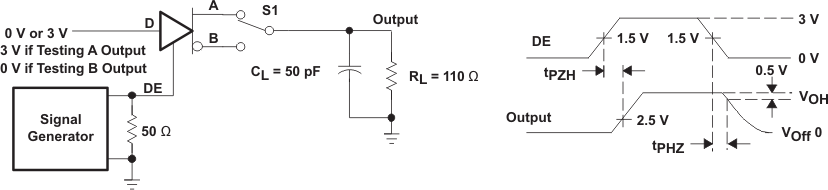

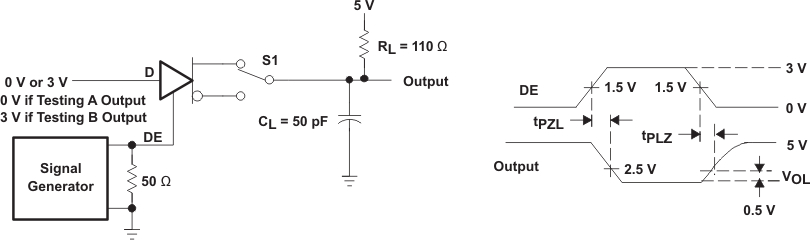

Figure 9-6 Driver Enable and Disable Test, High Output
Figure 9-7 Driver Enable and Disable Test, Low Output

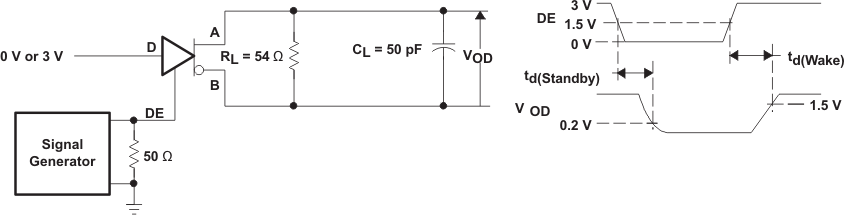

Figure 9-8 Driver Standby and Wake Test Circuit and Waveforms
Figure 9-9 Driver Short-Circuit Test
Figure 9-10 Receiver DC Parameter Definitions

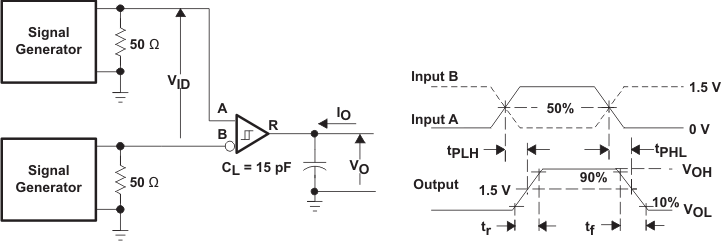

Figure 9-11 Receiver Switching Test Circuit and Waveforms

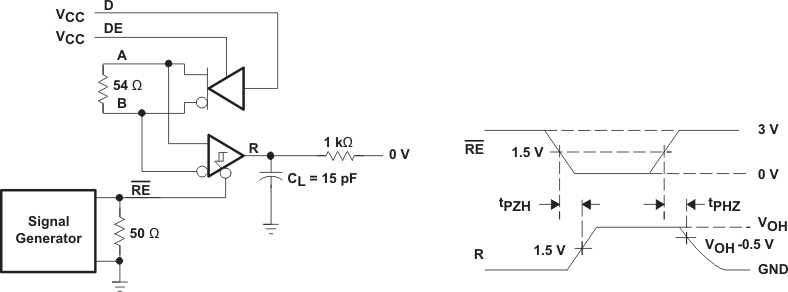

Figure 9-12 Receiver Enable Test Circuit and Waveforms, Data Output High

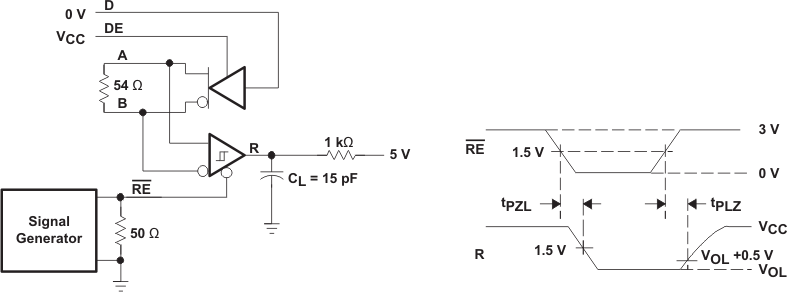

Figure 9-13 Receiver Enable Test Circuit and Waveforms, Data Output Low

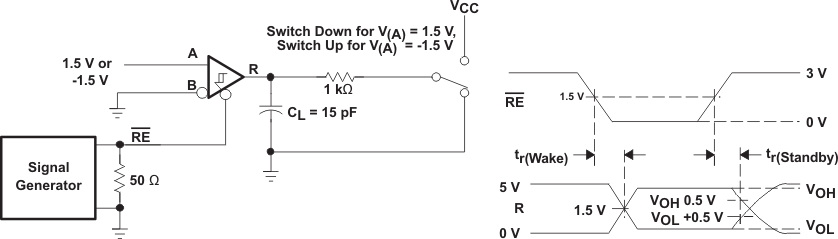

Figure 9-14 Receiver Standby and Wake Test Circuit and Waveforms

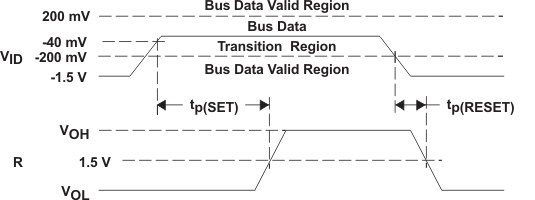

Figure 9-15 Receiver Active Failsafe Definitions and Waveforms

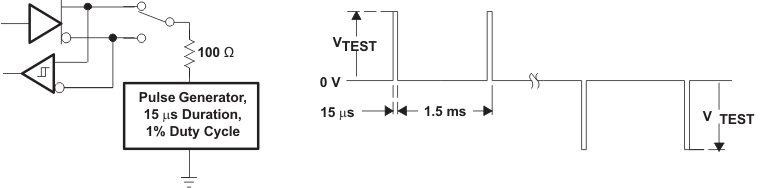

Figure 9-16 Test Circuit and Waveforms, Transient Overvoltage Test
