8.11 Typical Characteristics

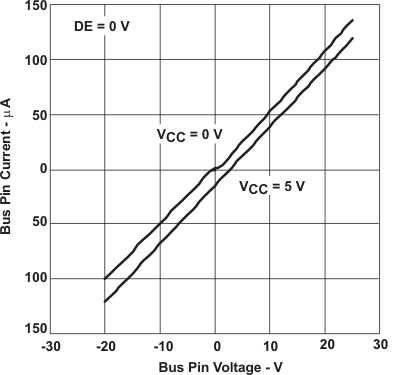

Figure 8-1 SN65HVD2[0,3] Bus Pin Current vs Bus Pin Voltage

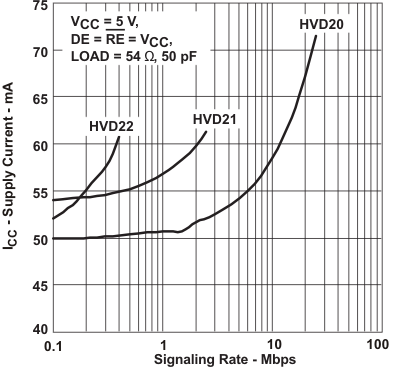

Figure 8-3 Supply Current vs Signaling Rate

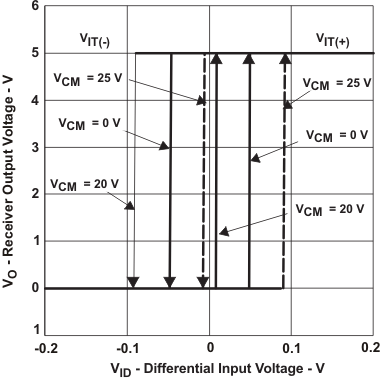

Figure 8-5 Receiver Output Voltage vs Differential Input Voltage

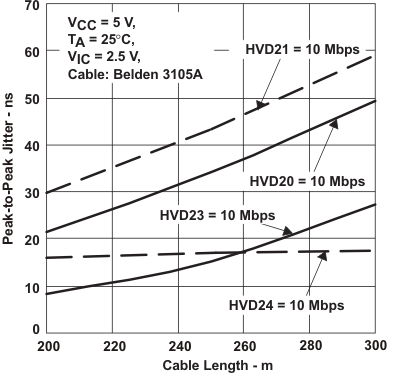

Figure 8-7 SN65HVD2[0,1,3,4] Peak-to-Peak Jitter vs Cable Length

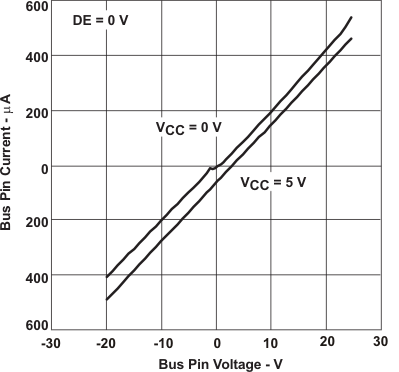

Figure 8-2 SN65HVD2[1,2,4] Bus Pin Current vs Bus Pin Voltage

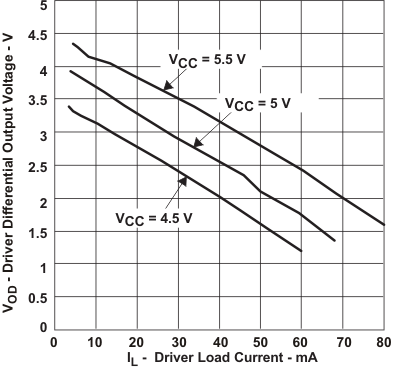

Figure 8-4 Driver Differential Output Voltage vs Driver Load Current

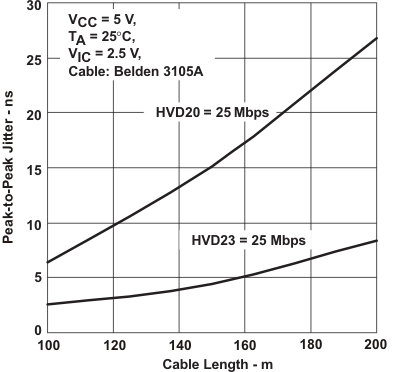

Figure 8-6 SN65HVD2[0,3] Peak-to-Peak Jitter vs Cable Length

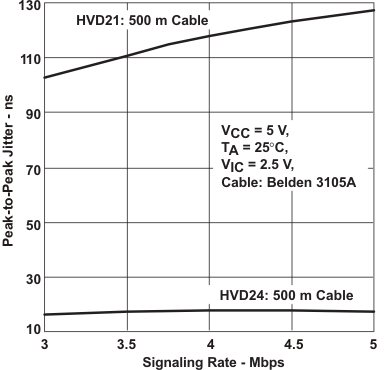

Figure 8-8 SN65HVD2[1,4] Peak-to-Peak Jitter vs Signaling Rate
