8.4.5 DSI Pixel Stream Packets
The SN65DSI84-Q1 processes 18bpp (RGB666) and 24 bpp (RGB888) DSI packets on each channel as shown in Figure 13, Figure 14, andFigure 15.

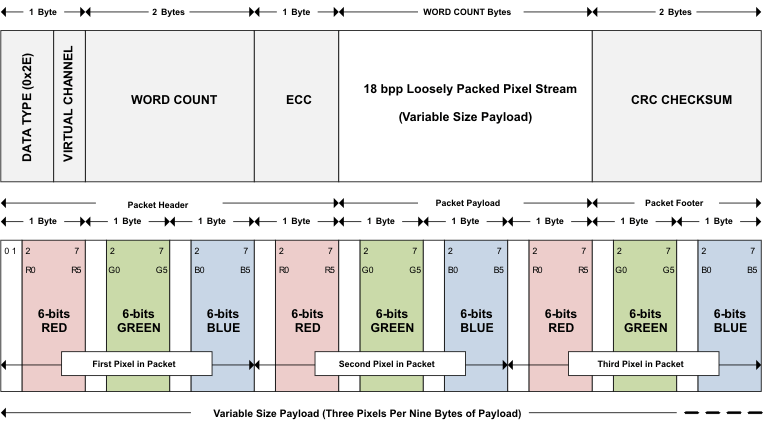

Figure 13. 18 Bpp (Loosely Packed) DSI Packet Structure

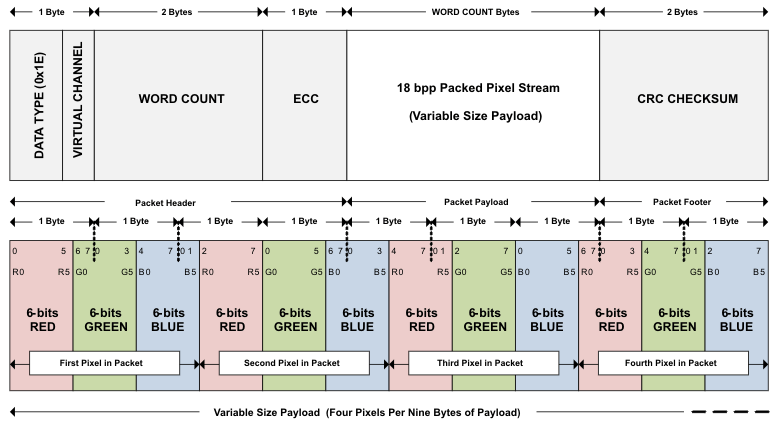

Figure 14. 18-Bpp (Tightly Packed) DSI Packet Structure

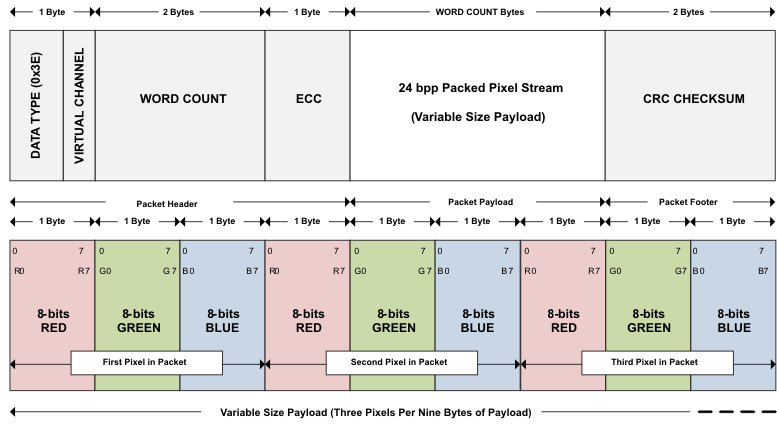

Figure 15. 24-Bpp DSI Packet Structure
