8.3.8 DSI Pixel Stream Packets
The SN65DSI83-Q1 processes 18-bpp (RGB666) and 24-bpp (RGB888) DSI packets as shown in Figure 14, Figure 15, and Figure 16.

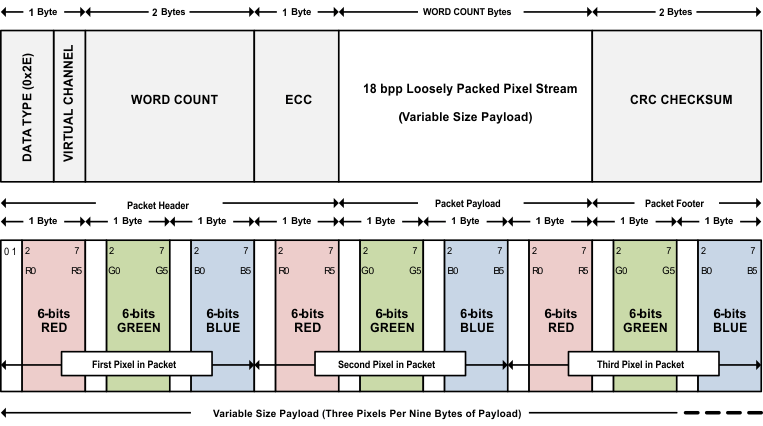

Figure 14. 18-bpp (Loosely Packed) DSI Packet Structure

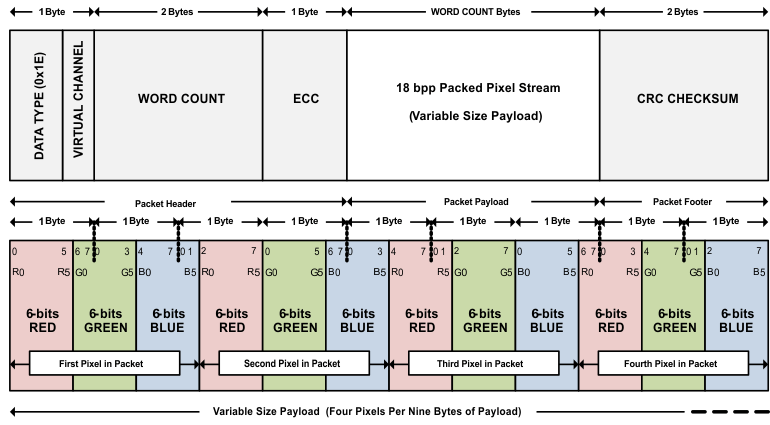

Figure 15. 18-bpp (Tightly Packed) DSI Packet Structure

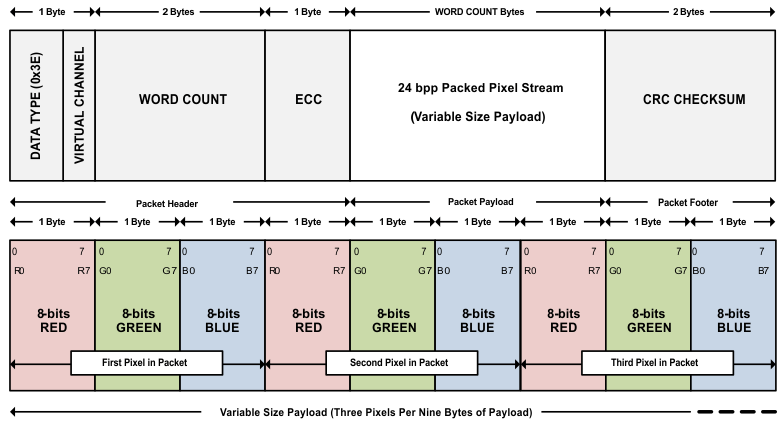

Figure 16. 24-bpp DSI Packet Structure
