ZHCSQ97F December 1982 – March 2022 SN54HC259 , SN74HC259
PRODUCTION DATA
- 1 特性
- 2 說明
- 3 Revision History
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Power Supply Recommendations
- 9 Layout
- 10Device and Documentation Support
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- J|16
- FK|20
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息

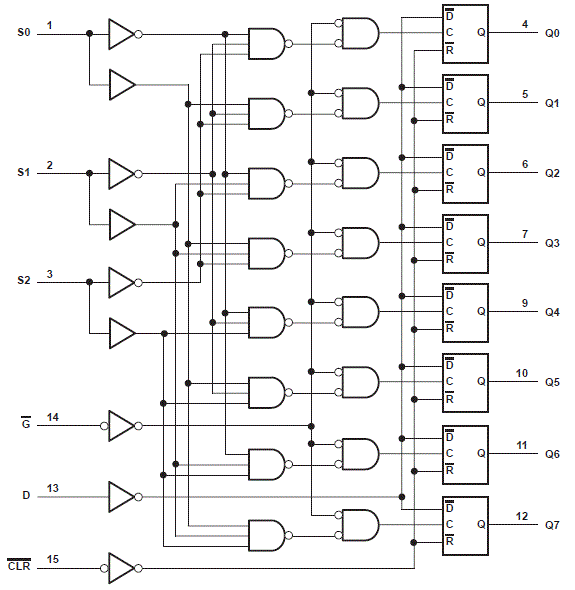

7.2 Functional Block Diagram
Pin numbers shown are for the D, J, N, NS, PW, and W packages.

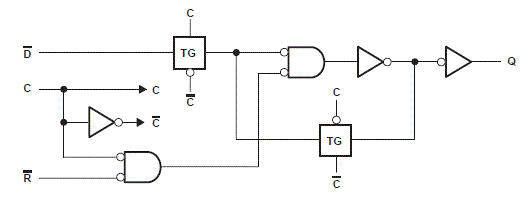

Figure 7-1 Logic Diagram, Each Internal
Latch (positive logic)
