6.6 Typical Characteristics
At TA = 25°C, VIN = 5-V power supply, and REF3125-Q1 is used for typical characteristic measurements, unless otherwise noted.
| 0°C to 70°C |

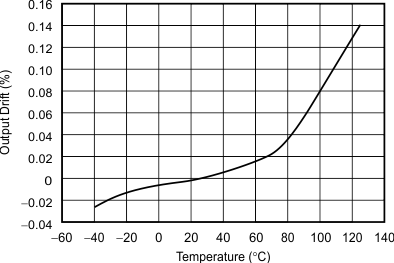

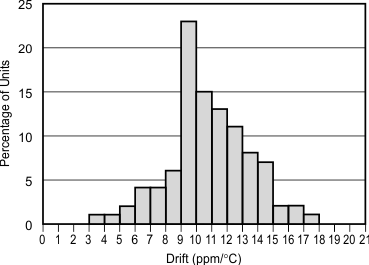

Figure 6-3 Output Voltage vs Temperature

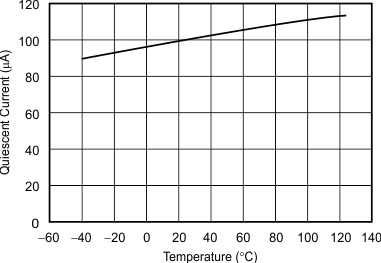

Figure 6-5 Quiescent Current vs Temperature

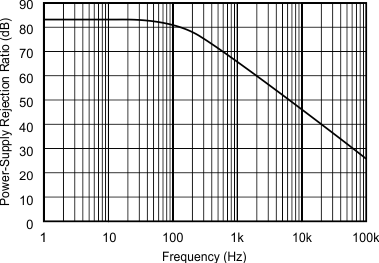

Figure 6-7 PSRR vs Frequency

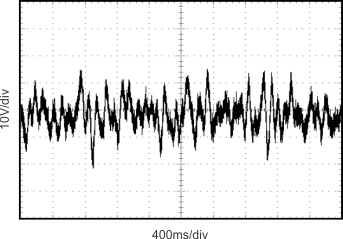

Figure 6-11 0.1-Hz to 10-Hz Noise
| CL = 0 pF |

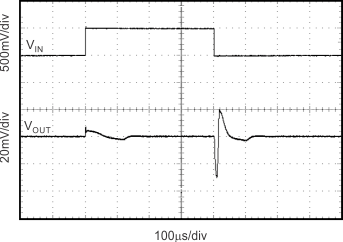

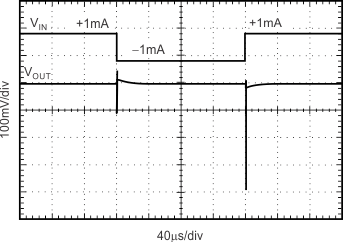

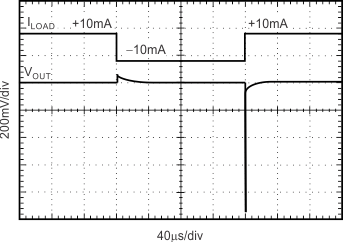

| CL = 0 pF | ±10-mA Output Pulse |

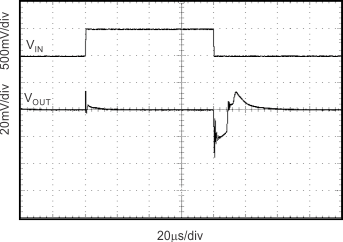

| CL = 0 pF | ±1-mA Output Pulse |
| –40°C to +125°C |

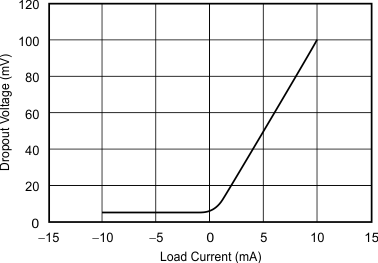

Figure 6-4 Dropout Voltage vs Load Current

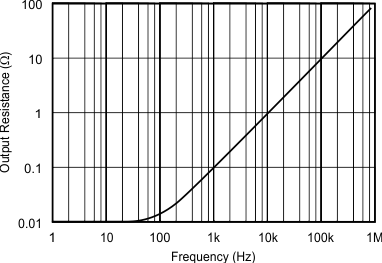

Figure 6-6 Output Impedance vs Frequency

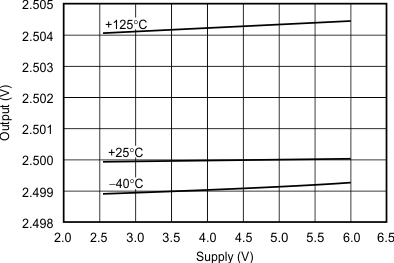

Figure 6-8 Output vs Supply

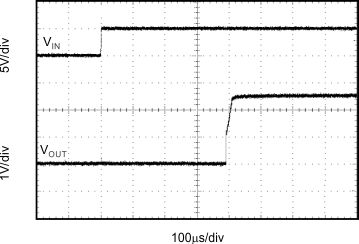

| CL = 0 μF | 5-V Start-Up |

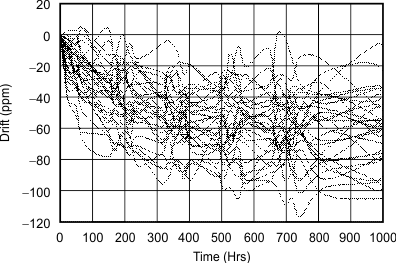

Figure 6-12 REF3112 Long-Term Stability
| CL = 10 μF |

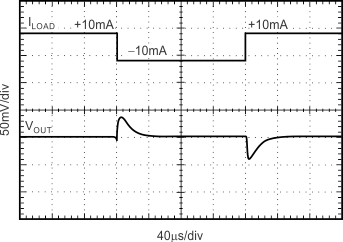

| CL = 1 μF | ±10-mA Output Pulse |

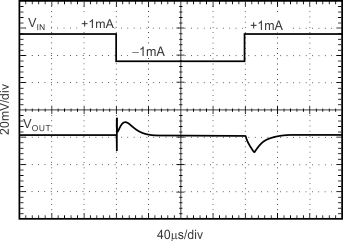

| CL = 1 μF | ±1-mA Output Pulse |
