9.2.3 Application Curves
Measurements are done on the EVM by feeding the device analog input signal using audio precision and with a 3.3-V AVDD supply.

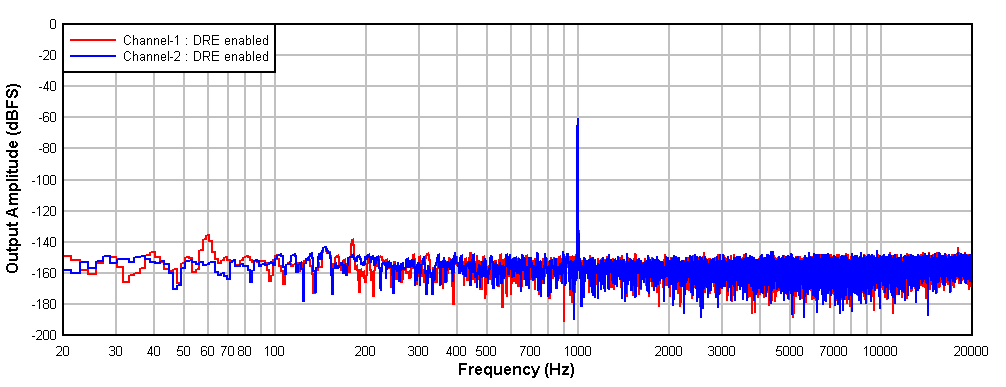

Figure 9-2 PCM1820: FFT With a –60-dBr Input With DRE Enabled

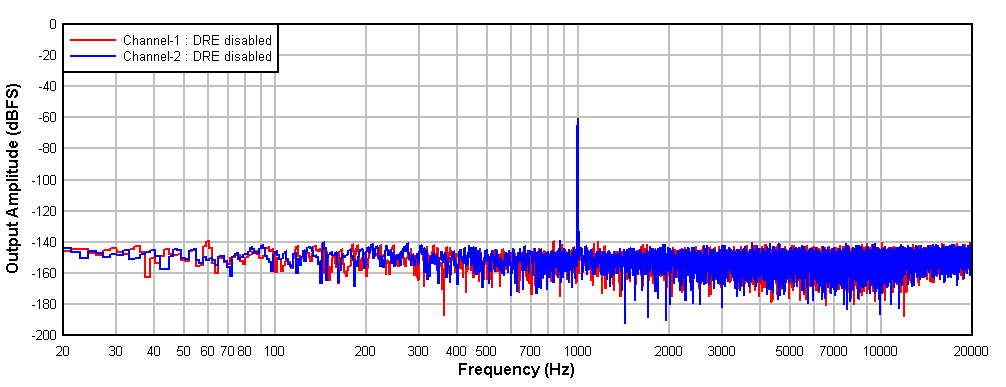

Figure 9-4 PCM1820: FFT With a –60-dBr Input With DRE Disabled

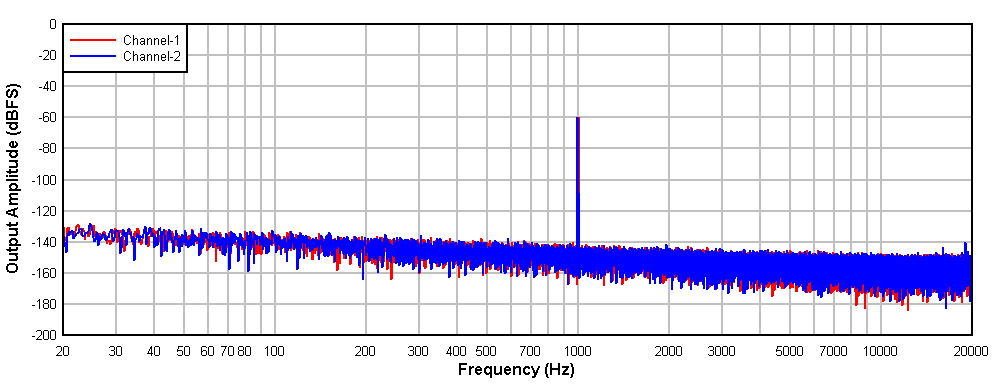

Figure 9-6 PCM1821: FFT With a –60-dBr Input

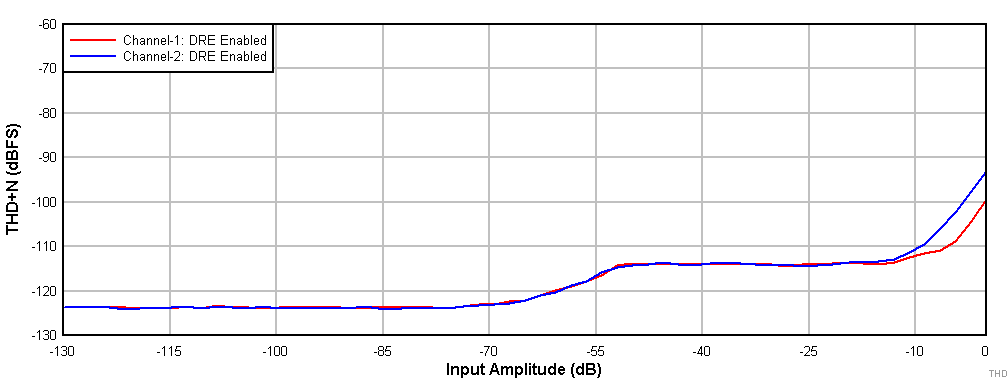

Figure 9-3 PCM1820: THD+N vs Input Amplitude With DRE Enabled

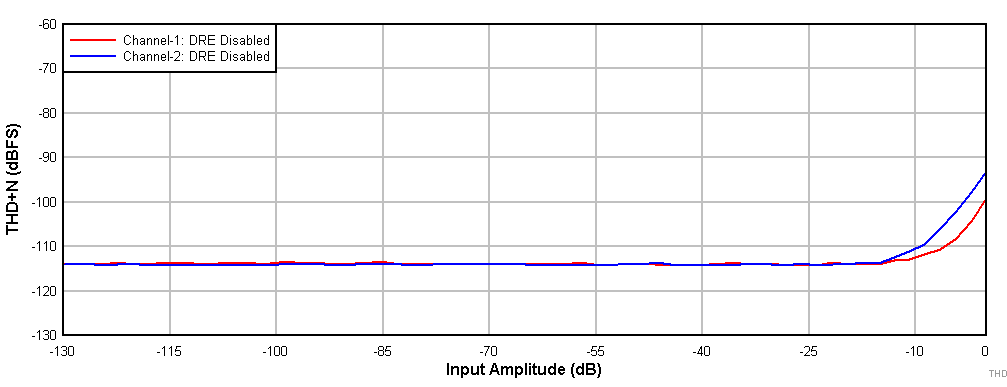

Figure 9-5 PCM1820: THD+N vs Input Amplitude With DRE Disabled

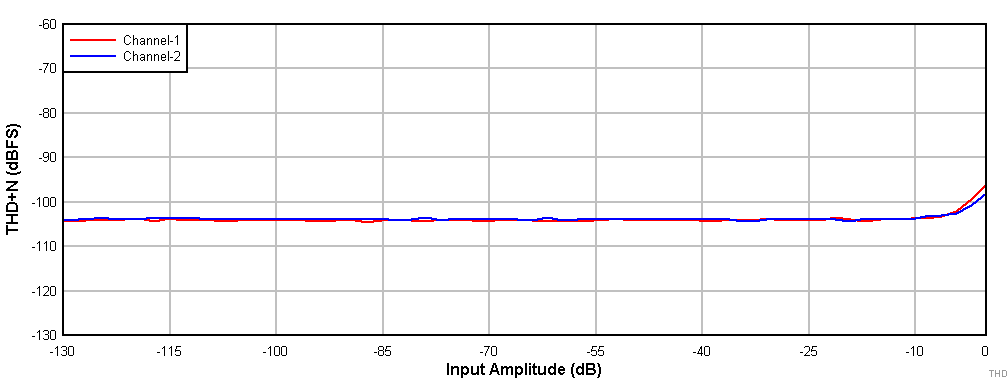

Figure 9-7 PCM1821: THD+N vs Input Amplitude
