7.9.1 Digital Filter (De-Emphasis Off)
all specifications at TA = 25°C, VCC = 5 V, fS = 44.1 kHz, system clock = 384 fS, and 24-bit data, (unless otherwise noted)

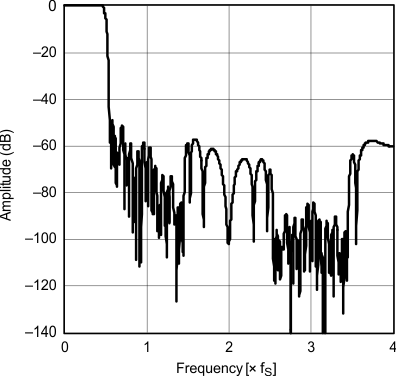

Figure 2. Frequency Response, Sharp Rolloff

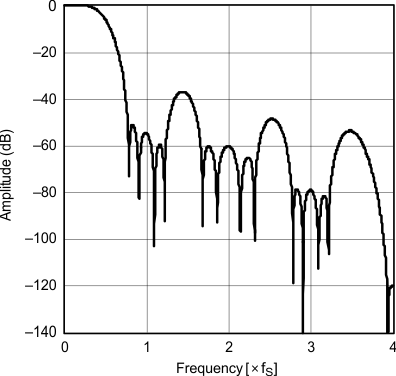

Figure 4. Frequency Response, Slow Rolloff

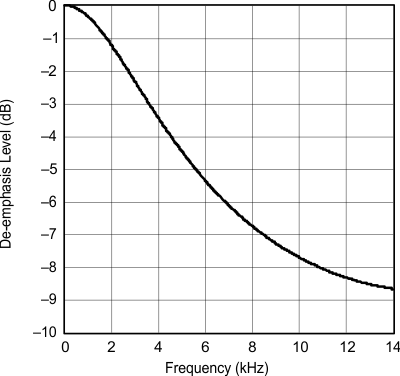

Figure 6. De-Emphasis Level vs Frequency

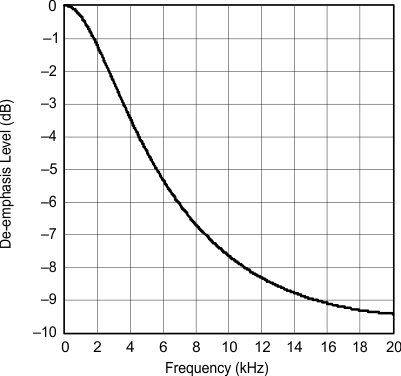

Figure 8. De-Emphasis Level vs Frequency

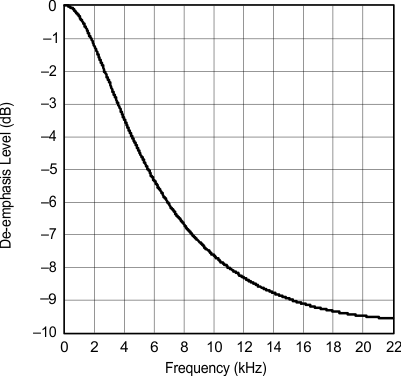

Figure 10. De-Emphasis Level vs Frequency

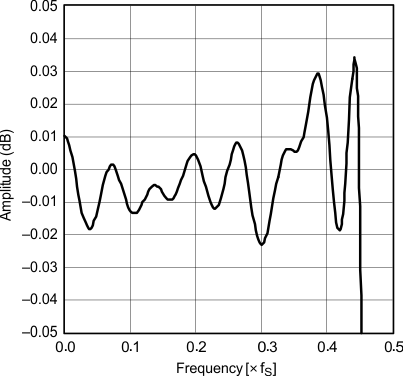

Figure 3. Pass-Band Ripple, Sharp Rolloff

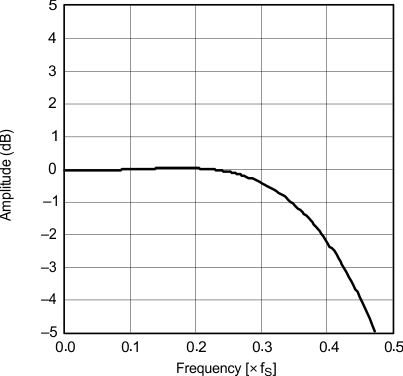

Figure 5. Transition Characteristics, Slow Rolloff

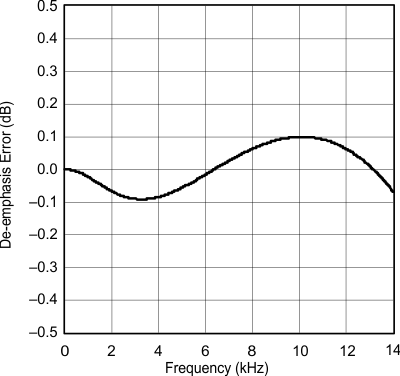

Figure 7. De-Emphasis Error vs Frequency

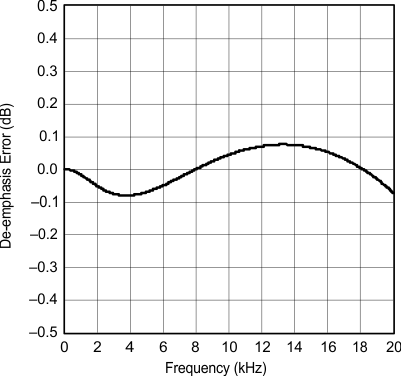

Figure 9. De-Emphasis Error vs Frequency
Figure 11. De-Emphasis Error vs Frequency
