11 Layout
11.1 Layout Guidelines
Figure 38 shows a typical PCB floor plan for the PCM175x-Q1 family of devices. A ground plane is recommended, with the analog and digital sections being isolated from one another using a split or cut in the circuit board. The PCM175x-Q1 family of devices should be oriented with the digital I/O pins facing the ground plane split or cut to allow for short, direct connections to the digital audio interface and control signals originating from the digital section of the board.
11.2 Layout Example

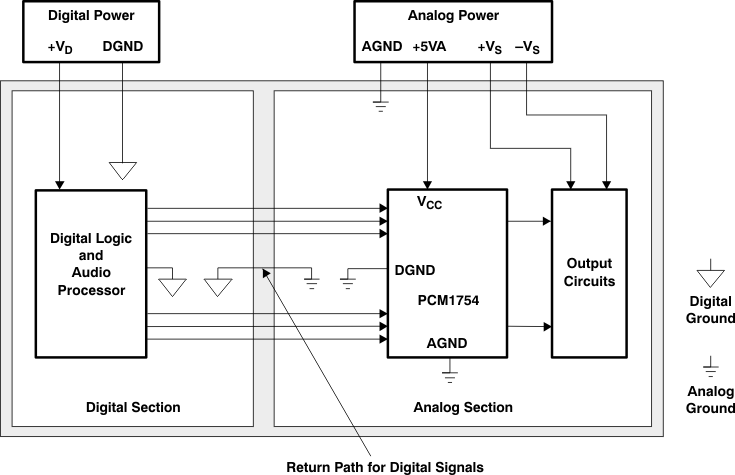

Figure 38. Recommended PCB Layout
Figure 39. Single-Supply PCB Layout
