ZHCSDW5A June 2015 – July 2015 ONET1130EC
PRODUCTION DATA.
| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Supply voltage | at VCC_TX, VCC_RX, VDD | –0.5 | 3 | V |
| Voltage | at 3.3-V tolerant pins LOL, SDA, SCK, RX_LOS, RX_DIS, TX_FLT, TX_DIS | –0.5 | 3.6 | V |
| at all other pins MONB, TXIN+, TXIN–, PD, MONP, TX_LF, BIAS, TXOUT–, TXOUT+, AMP, RXIN+, RXIN–, COMP, RX_LF, RXOUT–, RXOUT+, | –0.5 | 3 | V | |
| Maximum current at transmitter input pins | TXIN+, TXIN– | 10 | mA | |
| Maximum current at transmitter output pins | TXOUT+, TXOUT– | 125 | mA | |
| Maximum current at receiver input pins | RXIN+, RXIN– | 10 | mA | |
| Maximum current at receiver output pins | RXOUT+, RXOUT– | 30 | mA | |
| Maximum junction temperature, TJ | 125 | °C | ||
| Storage temperature, Tstg | –65 | 150 | °C | |
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±750 | |||
| MIN | TYP | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| VCC | Supply Voltage | 2.37 | 2.5 | 2.63 | V | |
| VIH | Digital input high voltage | TX_DIS, RX_DIS, SCK, SDA, 3.3-V tolerant IOs | 2 | V | ||
| VIL | Digital input low voltage | 0.8 | V | |||
| Photodiode current range | Control bit TXPDRNG = 1x, step size = 3 µA | 3080 | µA | |||
| Control bit TXPDRNG = 01, step size = 1.5 µA | 1540 | |||||
| Control bit TXPDRNG = 00, step size = 0.75 µA | 770 | |||||
| Serial Data rate | TXCDR_DIS = 0 and RXCDR_DIS = 0 | 9.8 | 11.7 | Gbps | ||
| TXCDR_DIS = 1 and RXCDR_DIS = 1 | 1 | 11.7 | ||||
| VAMP | Amplitude control input voltage range | 0 | 2 | V | ||
| tR-IN | Input rise time | 20%–80% | 30 | 45 | ps | |
| tF-IN | Input fall time | 20%–80% | 30 | 45 | ps | |
| TC | Temperature at thermal pad | –40 | 100 | °C | ||
| THERMAL METRIC(1) | RSM (VQFN) | UNIT | |
|---|---|---|---|
| 32 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 37.2 | °C/W |
| RθJCtop | Junction-to-case (top) thermal resistance | 30.1 | °C/W |
| RθJB | Junction-to-board thermal resistance | 7.8 | °C/W |
| ψJT | Junction-to-top characterization parameter | 0.4 | °C/W |
| ψJB | Junction-to-board characterization parameter | 7.6 | °C/W |
| RθJCbot | Junction-to-case (bottom) thermal resistance | 2.4 | °C/W |
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| VCC | Supply voltage | 2.37 | 2.5 | 2.63 | V | |

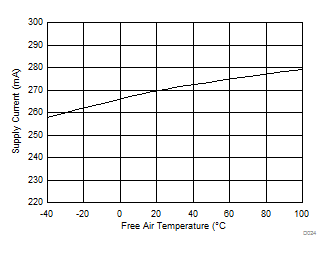

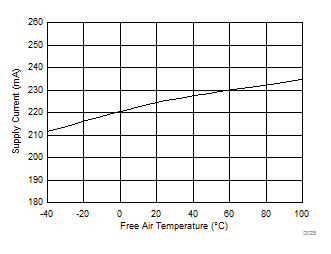

| IVCC | Supply current in single-ended TX mode with CDRs enabled | TXMODE = 1, TXCDR_DIS = 0, TX VOUT = 2 VPP single-ended, I(BIAS) = 0 mA; RXCDR_DIS = 0, 600 mVPP differential RX output | 225 | 266 | mA | |
| Power dissipation in single-ended TX mode with CDRs enabled | 563 | 699 | mW | |||
| Supply current in differential TX mode with CDRs enabled | TXMODE = 0, TXCDR_DIS = 0, TX VOUT = 1.8 VPP single-ended, I(BIAS) = 0 mA; RXCDR_DIS = 0, 600 mVPP differential RX output | 270 | 310 | mA | ||
| Power dissipation in differential TX mode with CDRs enabled | 675 | 815 | mW | |||
| Supply current in single-ended TX mode with CDRs disabled | TXMODE = 1, TXCDR_DIS = 1, TX VOUT = 2 VPP single-ended, I(BIAS) = 0 mA; RXCDR_DIS = 1, 600 mVPP differential RX output | 161 | 185 | mA | ||
| Power dissipation in single-ended TX mode with CDRs disabled | 403 | 487 | mW | |||
| Supply current in differential TX mode with CDRs disabled | TXMODE = 0, TXCDR_DIS = 1, TX VOUT = 1.8 VPP single-ended, I(BIAS) = 0 mA; RXCDR_DIS = 1, 600 mVPP differential RX output | 206 | 242 | mA | ||
| Power dissipation in differential TX mode with CDRs disabled | 515 | 636 | mW | |||
| R(TXIN) | Transmitter data input resistance | Differential between TXIN+ / TXIN– | 100 | Ω | ||
| Transmitter data input termination mismatch | 5% | |||||
| R(RXIN) | Receiver data input resistance | Differential between RXIN+ / RXIN– | 100 | Ω | ||
| R(OUT) | Transmitter output resistance | Single-ended at TXOUT+ or TXOUT– | 60 | Ω | ||
| R(RXOUT) | Receiver data output resistance | Differential between RXOUT+ or RXOUT– | 90 | Ω | ||
| Receiver data output termination mismatch | 5% | |||||
| Digital input current | TX_DIS, RX_DIS pull up to VCC | –20 | 20 | µA | ||
| VOH | Digital output high voltage | LOL, TX_FLT, RX_LOS, pull-up to VCC, ISOURCE = 37.5 μA |
2.1 | V | ||
| VOL | Digital output low voltage | LOL, TX_FLT, RX_LOS, pull-up to VCC, ISINK = 350 μA |
0.4 | V | ||
| I(BIAS-MIN) | Minimum bias current | See (1) | 5 | mA | ||

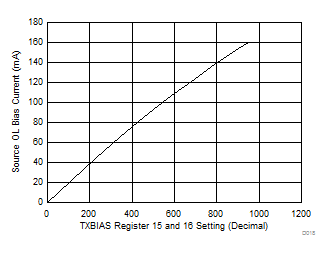

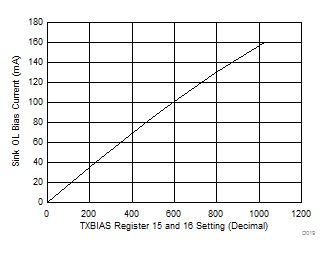

| I(BIAS-MAX) | Maximum bias current | Source. BIASPOL = 0, DAC set to maximum, open and closed loop | 145 | 150 | mA | |
| Sink. BIASPOL = 1, DAC set to maximum, open and closed loop | 95 | 100 | ||||
| I(BIAS-DIS) | Bias current during disable | 100 | µA | |||
| Average power stability | APC loop enabled | ±0.5 | dB | |||
| Bias pin compliance voltage | Source. TXBIASPOL = 0 | VCC-0.45 | V | |||
| Sink. TXBIASPOL = 1 | 0.45 | |||||
| Temperature sensor accuracy | With 1-point external mid-scale calibration | ±3 | °C | |||
| V(PD) | Photodiode reverse bias voltage | APC active, I(PD) = 1500 μA | 1.3 | 2.3 | V | |

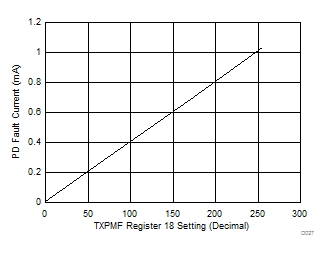

| Photodiode fault current level | Percent of target I(PD)(2) | 150% | ||||

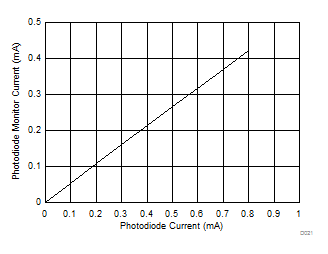

| Photodiode current monitor ratio | I(MONP) / I(PD) with control bit PDRNG = 1X | 10% | 12.5% | 15% | ||
| I(MONP) / I(PD) with control bit PDRNG = 01 | 20% | 25% | 30% | |||
| I(MONP) / I(PD) with control bit TXPDRNG = 00 | 40% | 50% | 60% | |||
| Monitor diode DMI accuracy | With external mid-scale calibration | ±10% | ||||

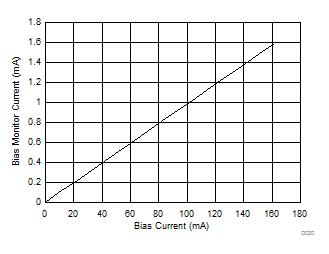

| Bias current monitor ratio | I(MONB) / I(BIAS) (nominal 1/100 = 1%), V(MONB) < 1.5V | 0.9% | 1% | 1.1% | ||
| Bias current DMI accuracy | I(BIAS) ≥ 20 mA | –15% | 15% | |||
| Power supply monitor accuracy | With external mid-scale calibration | –2% | 2% | |||
| V(CC-RST) | VCC reset threshold voltage | VCC voltage level which triggers power-on reset | 1.8 | 2.1 | V | |
| V(CC-RSTHYS) | VCC reset threshold voltage hysteresis | 100 | mV | |||

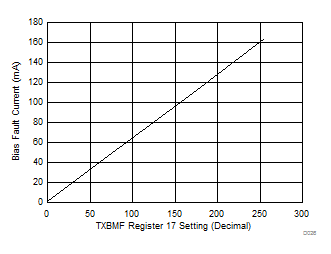

| V(MONB-FLT) | Fault voltage at MONB | TXFLTEN = 1, TXDMONB = 0, Fault occurs if voltage at MONB exceeds this value | 1.15 | 1.2 | 1.25 | V |
| V(MONP-FLT) | Fault voltage at MONP | TXFLTEN = 1, TXMONPFLT = 1, TXDMONP = 0, Fault occurs if voltage at MONP exceeds this value | 1.15 | 1.2 | 1.25 | V |
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| TX INPUT SPECIFICATIONS | ||||||
| CDR lock range | CPRI, Ethernet, SONET, Fibre Channel | 9.80 | 11.7 | Gbps | ||
| Differential input return loss | 0.05 GHz < f ≤ 0.1 GHz | 20 | dB | |||
| 0.1 GHz < f ≤ 5.5 GHz | 12 | 15 | ||||
| 5.5 GHz < f < 12 GHz | 8 | |||||
| Differential to common mode conversion | 0.1 GHz < f < 12 GHz | 10 | 15 | dB | ||
| Common mode input return loss | 0.1 GHz < f < 12 GHz | 3 | dB | |||
| Input AC common mode voltage tolerance | 15 | mV | ||||
| Total Non-DDJ | Total jitter less ISI | 0.45 | UIPP | |||
| T(J_TX) | Total Jitter | 0.65 | UIPP | |||

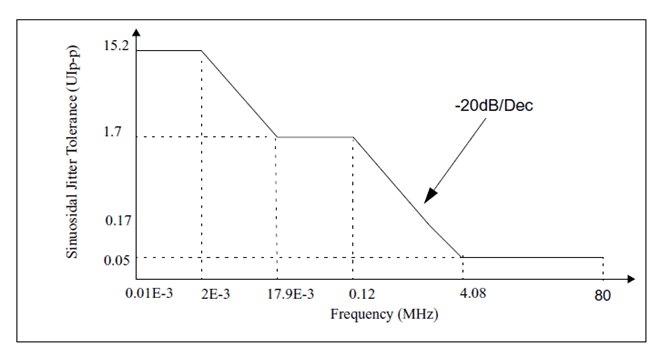

| S(J_TX) | Sinusoidal Jitter Tolerance | With addition of input jitter, See Figure 1 | UIPP | |||
| VIN | Differential input voltage swing | 100 | 1000 | mVPP | ||
| EQ(boost) | EQ high freq boost | Maximum setting; 7 GHz | 6 | 9 | dB | |
| TX OUTPUT SPECIFICATIONS | ||||||
| Differential output return loss | 0.01 GHz < f < 12 GHz | 12 | dB | |||
| VO(MIN) | Minimum output amplitude | AC Coupled Outputs, 50-Ω single-ended load | 0.5 | VPP | ||
| TX OUTPUT SPECIFICATIONS in SINGLE-ENDED MODE of OPERATION (TXMODE = 1) | ||||||
| VO(MAX) | Maximum output amplitude | AC Coupled Outputs, 50-Ω load, single-ended | 2 | VPP | ||
| Output amplitude stability | AC Coupled Outputs, 50-Ω load, single-ended | 230 | mVPP | |||
| High Cross Point Control Range | 50-Ω load, single-ended | 70% | 75% | |||
| Low Cross Point Control Range | 50-Ω load, single-ended | 35% | 40% | |||
| Cross Point Stability | 50-Ω load, single-ended | -5 | 5 | pp | ||
| Output de-emphasis | TXDEADJ[0..3] = 1111, TXPKSEL = 0 | 5 | dB | |||
| TXDEADJ[0..3] = 1111, TXPKSEL = 1 | 6 | |||||
| TX OUTPUT SPECIFICATIONS in DIFFERENTIAL MODE of OPERATION (TXMODE = 0) | ||||||

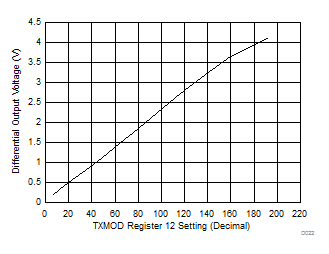

| VO(MAX) | Maximum output amplitude | AC Coupled Outputs, 100-Ω differential load | 3.6 | VPP | ||
| Output amplitude stability | AC Coupled Outputs, 100-Ω differential load | 230 | mVPP | |||
| High Cross Point Control Range | 100-Ω differential load | 65% | 75% | |||
| Low Cross Point Control Range | 100-Ω differential load | 35% | 40% | |||
| Cross Point Stability | 100-Ω differential load | –5 | 5 | pp | ||
| Output de-emphasis | TXDEADJ[0..3] = 1111, TXPKSEL = 0 | 5 | dB | |||
| TXDEADJ[0..3] = 1111, TXPKSEL = 1 | 6 | |||||
| TX CDR SPECIFICATIONS | ||||||
| BW(TX) | Jitter Transfer Bandwidth | 9.95 Gbps, PRBS31 | 8 | MHz | ||
| J(P_TX) | Jitter Peaking | > 120 kHz | 1 | dB | ||
| JGEN(rms) | Random RMS jitter generation | Clock pattern, 50 kHz to 80 MHz | 6 | mUIrms | ||
| JGEN(PP) | Total jitter generation | Clock pattern, 50 kHz to 80 MHz, BER = 10-12 | 60 | mUIPP | ||
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| RX INPUT SPECIFICATIONS | ||||||
| CDR lock range | CPRI, Ethernet, SONET, Fibre Channel | 9.8 | 11.7 | Gbps | ||

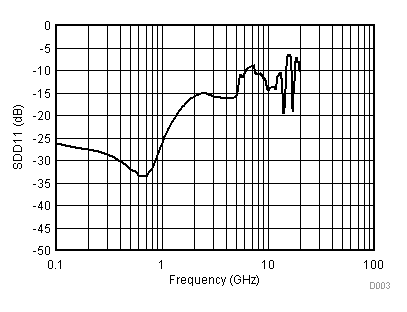

| Differential input return loss | 0.01 GHz < f ≤ 5 GHz | 15 | dB | |||
| 5 GHz < f < 12 GHz | 8 | |||||
| Differential to common mode conversion | 0.1 GHz < f < 12 GHz | 15 | dB | |||
| VI(RX,MIN) | Data input sensitivity | TXOUT_DIS = 1, PRBS31 pattern at 11.7Gbps, BER < 10-12 |
6 | 9 | mVPP | |
| VI(RX,MAX) | Data input overload | 800 | mVPP | |||
| J(T_RX) | Sinusoidal jitter tolerance | 9.95 Gbps, BER = 10-12, f = 400kHz | 1.5 | UIPP | ||
| 9.95 Gbps, BER = 10-12, f = 4MHz | 0.4 | |||||
| 9.95 Gbps, BER = 10-12, f = 80MHz | 0.4 | |||||
| RX OUTPUT SPECIFICATIONS | ||||||

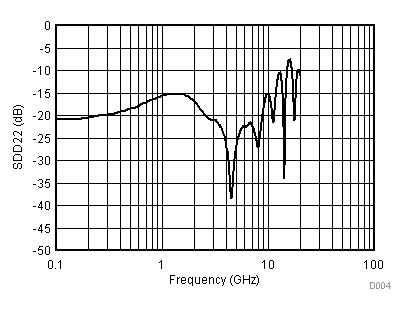

| Differential output return loss | 0.05 GHz < f ≤ 0.1 GHz | 20 | dB | |||
| 0.1 GHz < f < 5.5 GHz | 8 | 15 | ||||
| 5.5 GHz < f < 12 GHz | 8 | |||||
| Common mode input return loss | 0.1 GHz < f < 12 GHz | 3 | dB | |||
| CMOV(RX) | Output AC common mode voltage | PRBS31 pattern, RXAMP[0..3] = 0001 | 7 | mVrms | ||
| f3dB-L | Low frequency –3dB bandwidth | 20 | 50 | kHz | ||
| D(J_RX) | Deterministic output jitter | 0.1 | UIPP | |||
| T(J_RX) | Total output jitter | 0.2 | UIPP | |||
| VOD | Differential data output voltage | VIN > 25 mVPP, RX_DIS = 0, RXAMP[0..3] = 0000 | 300 | mVPP | ||
| VIN > 25 mVPP, RX_DIS = 0, RXAMP[0..3] = 1111 | 900 | mVPP | ||||
| RX_DIS = 1 | 5 | mVrms | ||||
| Output De-emphasis | RXDADJ[0..1] = 11 | 1 | dB | |||
| RX LOS SPECIFICATIONS | ||||||

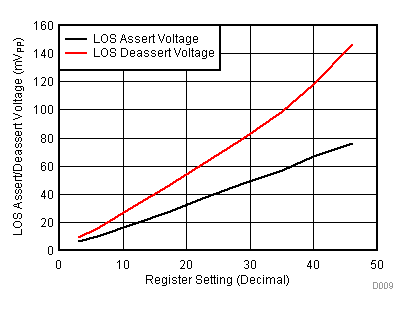

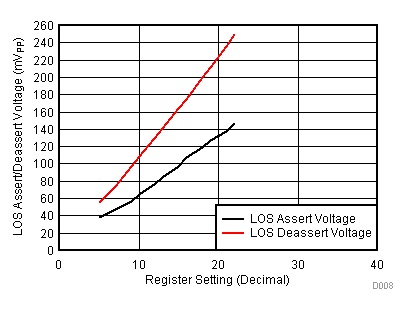

| VTH | LOW LOS assert threshold range min | PRBS7 pattern at 11.3Gbps, RXLOSRNG = 1 | 10 | mVPP | ||
| LOW LOS assert threshold range max | PRBS7 pattern at 11.3Gbps, RXLOSRNG = 1 | 50 | ||||
| VTH | HIGH LOS assert threshold range min | PRBS7 pattern at 11.3Gbps, RXLOSRNG = 0 | 40 | mVPP | ||
| HIGH LOS assert threshold range max | PRBS7 pattern at 11.3Gbps, RXLOSRNG = 0 | 130 | ||||

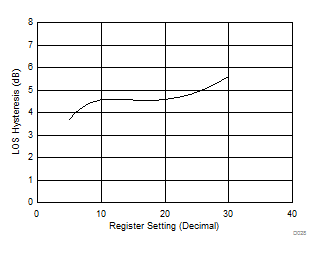

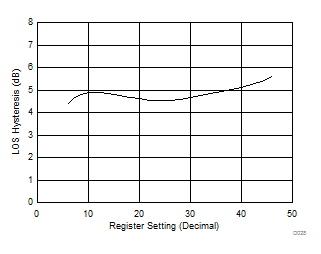

| LOS hysteresis (electrical) | 2 | 4 | 6 | dB | ||
| LOS threshold variation | Versus temperature | 1.5 | dB | |||
| Versus supply voltage | 1 | |||||
| Versus data rate | 1.5 | |||||
| RX CDR SPECIFICATIONS | ||||||
| BW(RX) | Jitter Transfer Bandwidth | 9.95 Gbps, PRBS31 | 8 | MHz | ||
| J(P_TX) | Jitter Peaking | > 50 kHz | 1 | dB | ||
| MIN | TYP | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| t(APC) | APC time constant | CAPC 0.01 µF, IPD = 500 µA, PD coupling ratio CR = 150, PDRNG = 01 |
50 | µs | ||
| t(INIT1) | Power-on to initialize | Power-on to registers ready to be loaded | 0.2 | 1 | ms | |
| t(INIT2) | Initialize to transmit | Register load STOP command to part ready to transmit valid data | 2 | ms | ||
| t(OFF) | Transmitter disable time | Rising edge of TX_DIS to I(BIAS) ≤ 0.1 × I(BIAS-NOMINAL) | 1 | 5 | µs | |
| t(ON) | Disable negate time | Falling edge of TX_DIS to I(BIAS) ≥ 0.9 × I(BIAS-NOMINAL) | 1 | ms | ||
| t(RESET) | TX_DIS pulse width | Time TX_DIS must held high to reset part | 100 | ns | ||
| t(FAULT) | Fault assert time | Time from fault condition to FLT high | 50 | µs | ||
| TX OUTPUT SPECIFICATIONS in SINGLE-ENDED MODE of OPERATION (TXMODE = 1) | ||||||

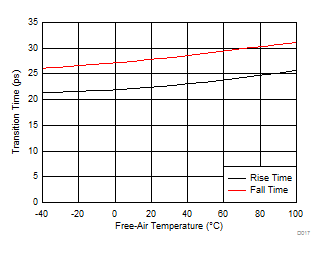

| tR(OUTTX) | Output rise time | 20% - 80%, AC Coupled Outputs, 50-Ω load, single-ended | 30 | 42 | ps | |
| tF(OUTTX) | Output fall time | 20% - 80%, AC Coupled Outputs, 50-Ω load, single-ended | 30 | 42 | ps | |
| ISI(TX) | Intersymbol interference | TXEQ_DIS = 1, 11.3 Gbps, PRBS9 pattern, 150-mVpp, 600-mVpp, 1200-mVpp differential input voltage |
4 | 12 | ps | |
| TXEQ_DIS = 0, 11.3 Gbps, PRBS9 pattern, 150-mVpp, 600-mVpp, 1200-mVpp differential input voltage, maximum equalization with 18-inch transmission line at the input. |
7 | |||||

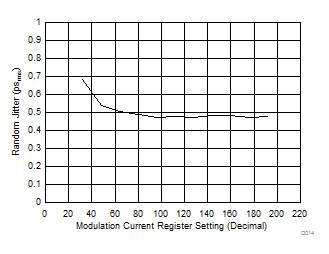

| R(J_TX) | Serial data output random jitter | 0.4 | 0.7.5 | psRMS | ||
| Output de-emphasis width | TXPKSEL = 0 | 28 | ps | |||
| TXPKSEL = 1 | 35 | |||||
| TX OUTPUT SPECIFICATIONS in DIFFERENTIAL MODE of OPERATION (TXMODE = 0) | ||||||
| tR(OUTTX) | Output rise time | 20%–80%, AC Coupled Outputs, 100-Ω differential load | 30 | 42 | ps | |
| tF(OUTTX) | Output fall time | 20%–80%, AC Coupled Outputs, 100-Ω differential load | 30 | 42 | ps | |

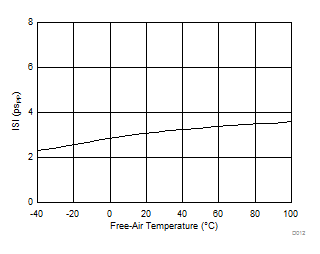

| ISI(TX) | Intersymbol interference | TXEQ_DIS = 1, 11.3 Gbps, PRBS9 pattern, 150-mVpp, 600-mVpp, 1200-mVpp differential input voltage |
4 | 10 | ps | |
| TXEQ_DIS = 0, 11.3 Gbps, PRBS9 pattern, 150-mVpp, 600-mVpp, 1200-mVpp differential input voltage, maximum equalization with 18-inch transmission line at the input. |
7 | |||||

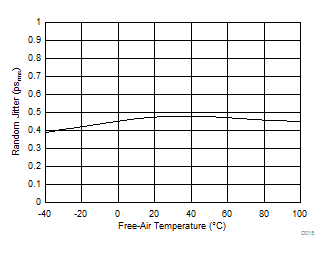

| R(J_TX) | Serial data output random jitter | 0.4 | 0.75 | psRMS | ||
| Output Peaking Width | TXPKSEL = 0 | 28 | ps | |||
| TXPKSEL = 1 | 35 | |||||
| TX CDR SPECIFICATIONS | ||||||
| t(Lock,TX) | CDR Acquisition time | 2 | ms | |||
| LOL assert time | 500 | μs | ||||
| RX OUTPUT SPECIFICATIONS | ||||||
| tR(OUTRX) | Output rise time | 20%–80%, 100-Ω differential load, adjustable | 30 | 40 | ps | |
| tF(OUTRX) | Output fall time | 20%–80%, 100-Ω differential load, adjustable | 30 | 40 | ps | |

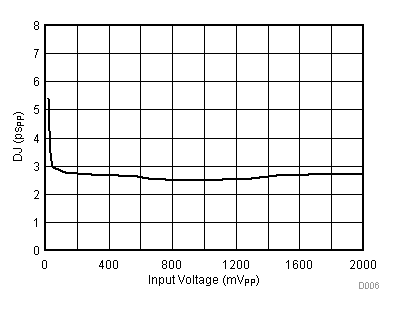

| Serial data output deterministic jitter | PRBS9 pattern 11.3 Gbps, VIN = 15 mVpp to 900 mVpp | 3 | 10 | ps | ||
| RX LOS SPECIFICATIONS | ||||||
| t(LOS_AST) | LOS assert time | 2.5 | 10 | 50 | μs | |
| t(LOS, DEA) | LOS deassert time | 2.5 | 10 | 50 | μs | |
| RX CDR SPECIFICATIONS | ||||||
| t(Lock,RX) | CDR Acquisition time | 2 | ms | |||
| LOL assert time | 500 | μs | ||||
Figure 1. Transmitter Input Sinusoidal Jitter Tolerance (INF-8077i Rev. 4.5 XFP MSA)
Figure 2. 2-Wire Interface Diagram
| Symbol | Description | Min | Max | Unit |
|---|---|---|---|---|
| fSCK | SCK clock frequency | 400 | kHz | |
| tBUF | Bus free time between START and STOP conditions | 1.3 | µs | |
| tHDSTA | Hold time after repeated START condition. After this period, the first clock pulse is generated | 0.6 | µs | |
| tLOW | Low period of the SCK clock | 1.3 | µs | |
| tHIGH | High period of the SCK clock | 0.6 | µs | |
| tSUSTA | Setup time for a repeated START condition | 0.6 | µs | |
| tHDDAT | Data HOLD time | 0 | µs | |
| tSUDAT | Data setup time | 100 | ns | |
| tR | Rise time of both SDA and SCK signals | 300 | ns | |
| tF | Fall time of both SDA and SCK signals | 300 | ns | |
| tSUSTO | Setup time for STOP condition | 0.6 | µs |

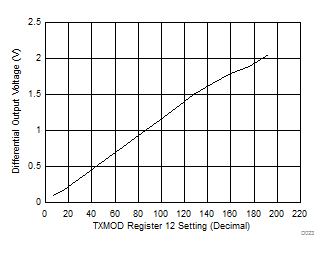

| TXMODE = 0 |

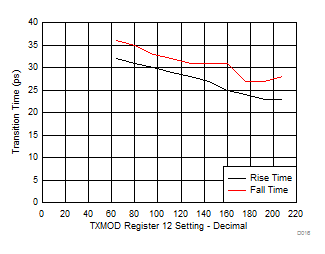

| TXMODE = 0 |

| TXMODE = 1 |

| TXMODE = 1 |



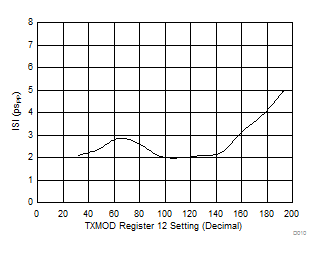

| TXMODE = 0 |

| TXMODE = 0 | Bias Current = 0 |


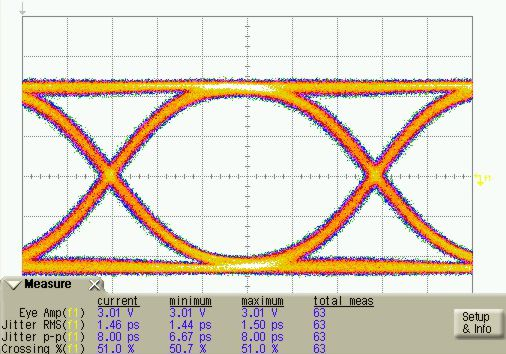

| TXMODE = 0 | 15 ps/Div |

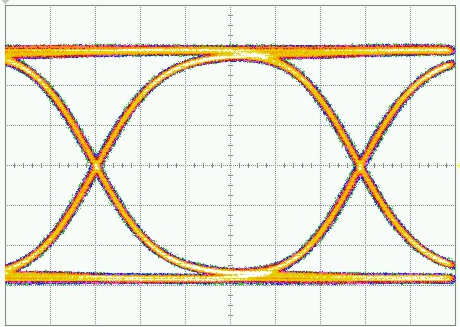

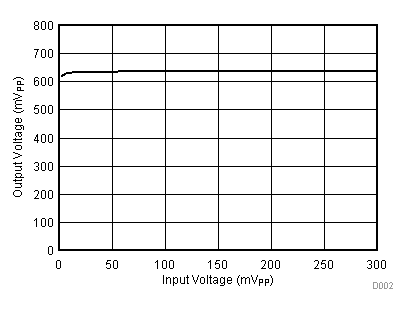

| 11.3 Gbps | TX Disabled |


| RX LOSRNG = 1 |

| RX LOSRNG = 1 |

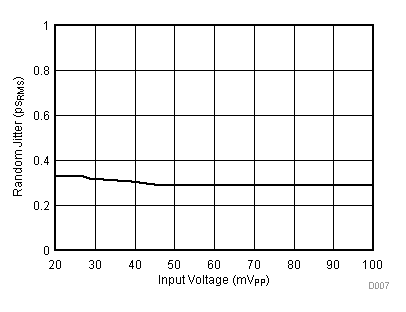

| Pin = –20 dBm | CDR Enabled | |

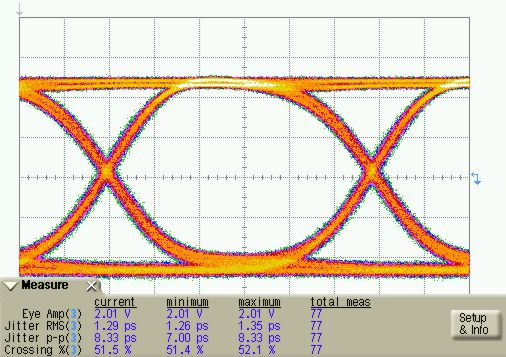

| TXMODE = 1 |

| TXMODE = 1 |

| TXMODE = 1 |

| TXMODE = 1 |


| TXPDRNG[0..1] = 00 |

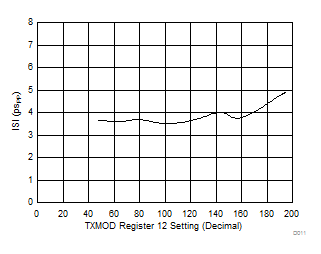

| TXMODE = 1 |

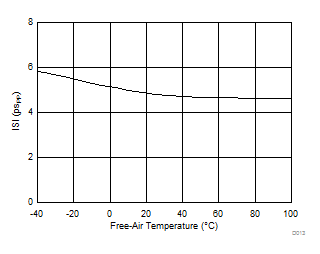

| TXMODE = 1 | Bias Current = 0 |


| TXMODE = 1 | 15 ps/Div |

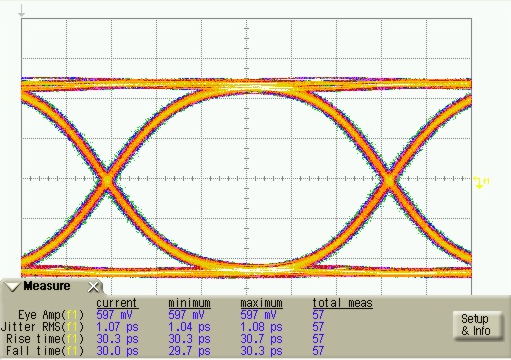

| RX LOSRNG = 0 |

| RX LOSRNG = 0 |

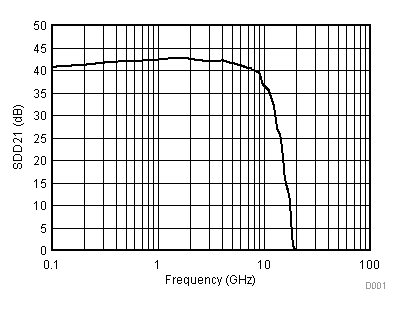

| VI = 20 mVPP | ||

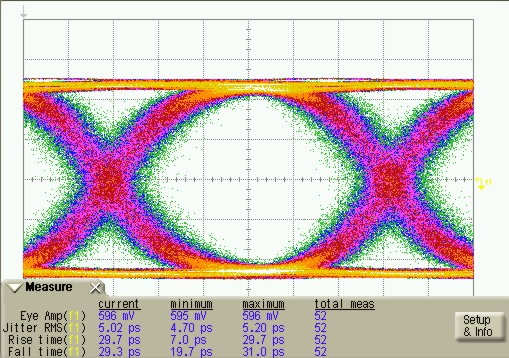

| Pin = –20 dBm | CDR Disabled | |
