5 Pin Configuration and Functions

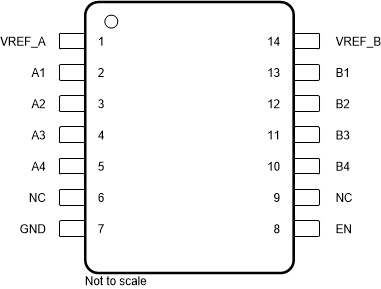

Figure 5-1 PW Package14-Pin TSSOP
Top View
Table 5-1 Pin Functions 2
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| VREF_A | 1 | — | Reference supply voltage; see Section 8 section |
| A1 | 2 | I/O | Input/output 1. |
| A2 | 3 | I/O | Input/output 2. |
| A3 | 4 | I/O | Input/output 3. |
| A4 | 5 | I/O | Input/output 4. |
| NC | 6 | — | No connection. Not internally connected. |
| GND | 7 | — | Ground |
| EN | 8 | I | Translation enable input, EN is active-high |
| NC | 9 | — | No connection. Not internally connected. |
| B4 | 10 | I/O | Input/output 4. |
| B3 | 11 | I/O | Input/output 3. |
| B2 | 12 | I/O | Input/output 2. |
| B1 | 13 | I/O | Input/output 1. |
| VREF_B | 14 | — | Reference supply voltage; see Section 8 section |
