7.2.1.3 Application Curves
The following figures show oscilloscope captures of the LOG200 output as the device responds to one-decade shifts in the input current. Rising and falling steps between 10nA and 100nA, and between 10μA and 100μA, were recorded. The oscilloscope was set to use the ac-coupled path.
For the current steps between 10nA and 100nA, a 10mA laser diode bias was used. A rise time of approximately 268ns and a fall time of approximately 626ns are observed.

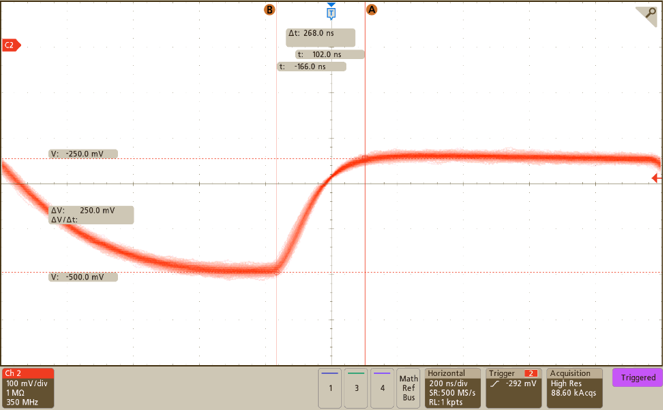

Figure 7-6 10nA-to-100nA Current
Step

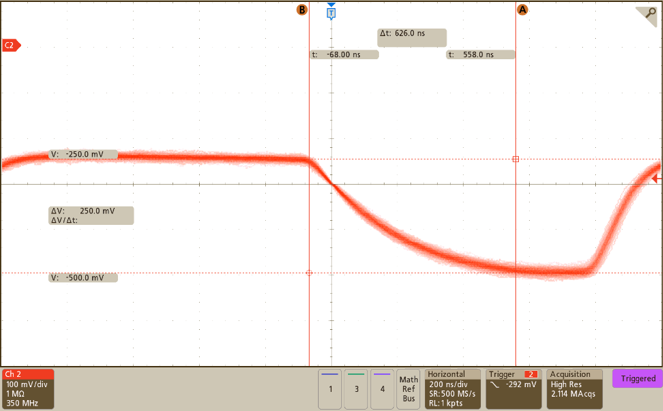

Figure 7-7 100nA-to-10nA Current StepFor the current steps between 10μA and 100μA, a 13mA laser diode bias was used. A rise time of approximately 45.60ns and a fall time of approximately 55.60ns are observed.

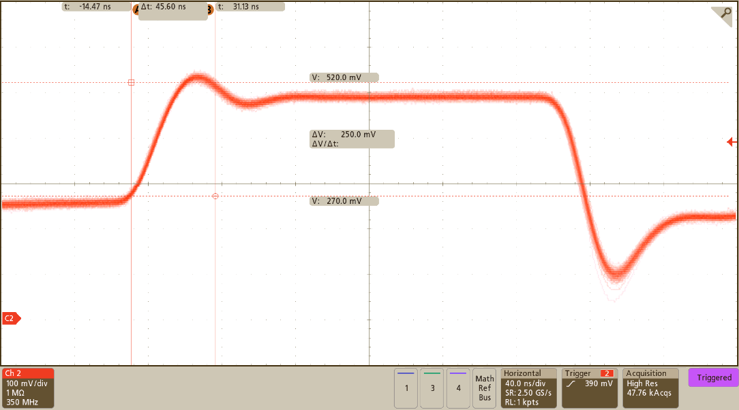

Figure 7-8 10μA-to-100μA Current
Step

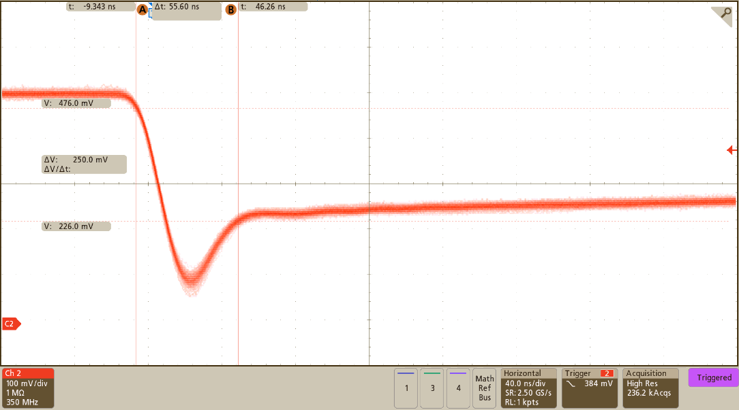

Figure 7-9 100μA-to-10μA Current
Step
