8.2.3.4 VOUT = 3.3 V
Figure 56. Typical Applications Circuit

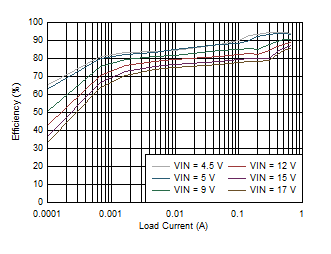

Figure 58. Efficiency VOUT = 3.3 V

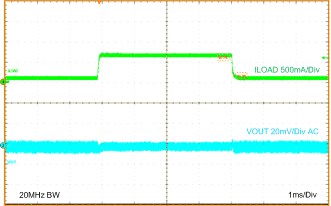

Figure 60. Load Transient VOUT = 3.3 V

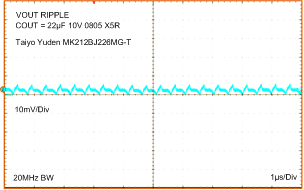

Figure 62. 20 MHz Oscilloscope Bandwidth
Output Voltage Ripple VOUT = 3.3 V

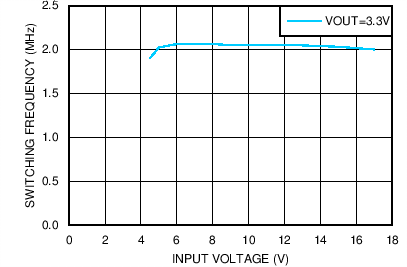

Figure 64. Typical Switching Frequency at 650mA Load VOUT = 3.3 V

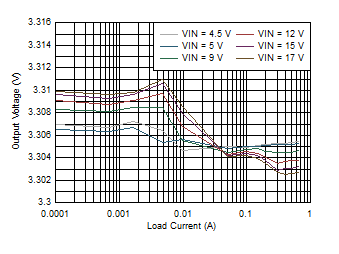

Figure 66. Line and Load Regulation VOUT = 3.3 V
Figure 57. External Component Values
(VOUT = 3.3V)

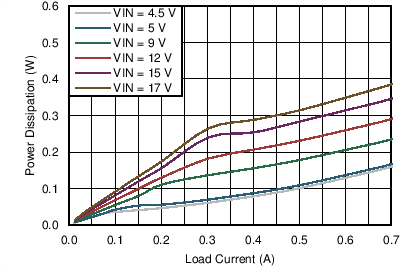

Figure 59. Power Dissipation VOUT = 3.3 V

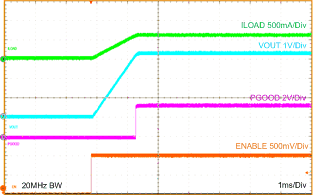

Figure 61. Startup VOUT = 3.3 V

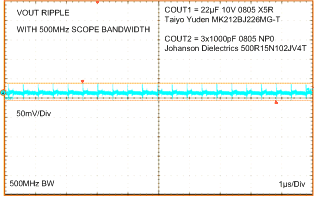

Figure 63. 500MHz Oscilloscope Bandwidth, 3x1000 pF additional output capacitance
Output Voltage Ripple and HF Noise VOUT = 3.3 V

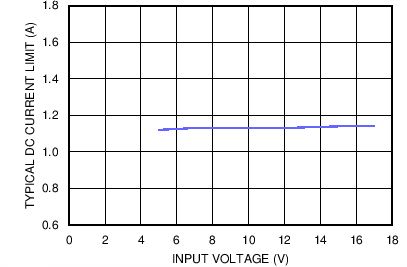

Figure 65. Typical Current Limit VOUT = 3.3 V, TA = 85 °C

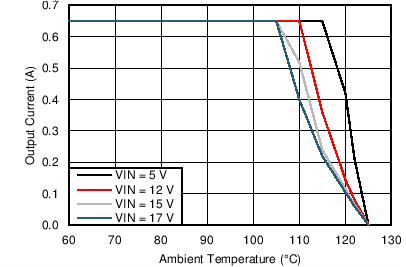

Figure 67. Thermal Derating for θJA = 47ºC/W, VOUT = 3.3 V
