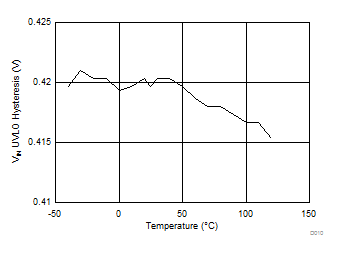

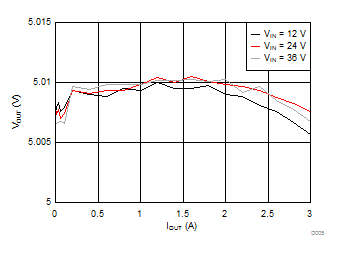

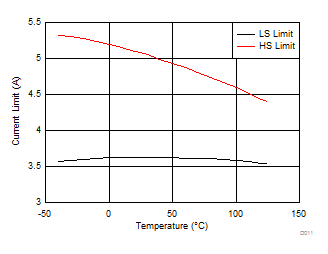

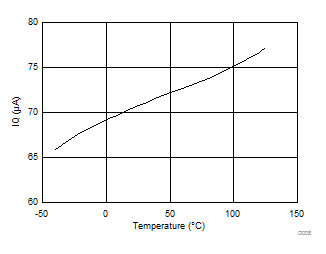

7.8 Typical Characteristics
Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 400 kHz, L = 8.2 µH, COUT = 150 µF, TA = 25°C.

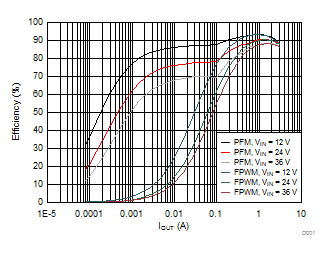

| fSW = 400 kHz | VOUT = 5 V |

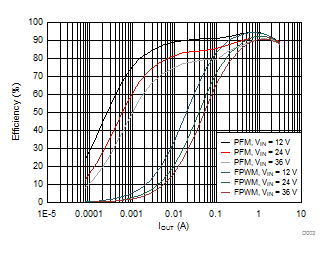

| fSW = 200 kHz (Sync) | VOUT = 5 V |

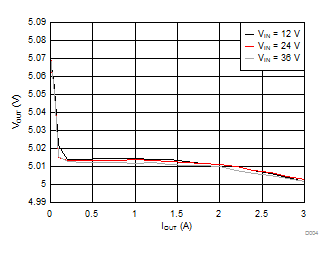

| PFM Option | VOUT = 5 V |

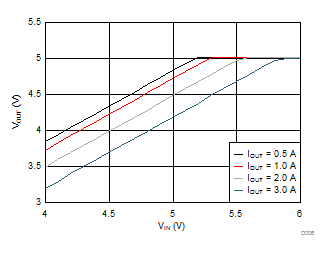

| VOUT = 5 V |
| VIN = 12 V | VFB = 1.1 V |

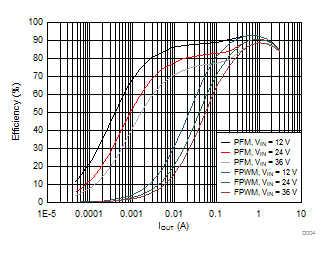

| fSW = 400 kHz | VOUT = 3.3 V |

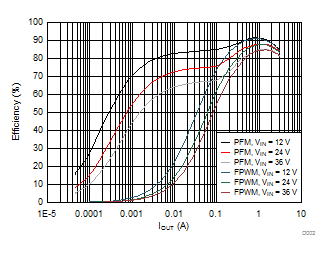

| fSW = 200 kHz (Sync) | VOUT = 3.3 V |
| FPWM Option | VOUT = 5 V |

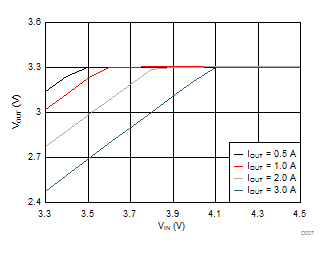

| VOUT = 3.3 V |

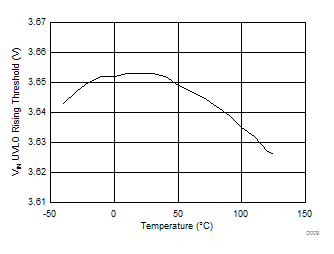

| VIN = 12 V |
